SAMSON Type 3241-7 Pneumatic Globe Control Valve with 3277 Actuator, 3730 Positioner and 4708 Regulator
The SAMSON Type 3241-7 Pneumatic Globe Control Valve Assembly is designed for precise regulation of flow, pressure, and temperature in industrial process control systems.
- Two-Way Globe Valve Valve Configuration
- PN 10–40 DIN Pressure Rating Options
- Pneumatic Valve Actuation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview

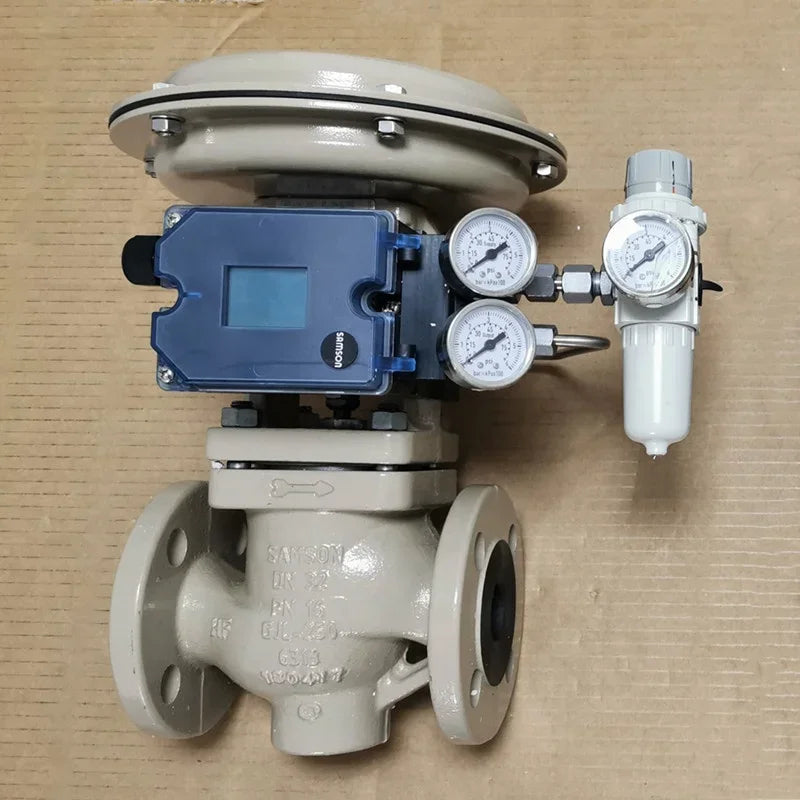

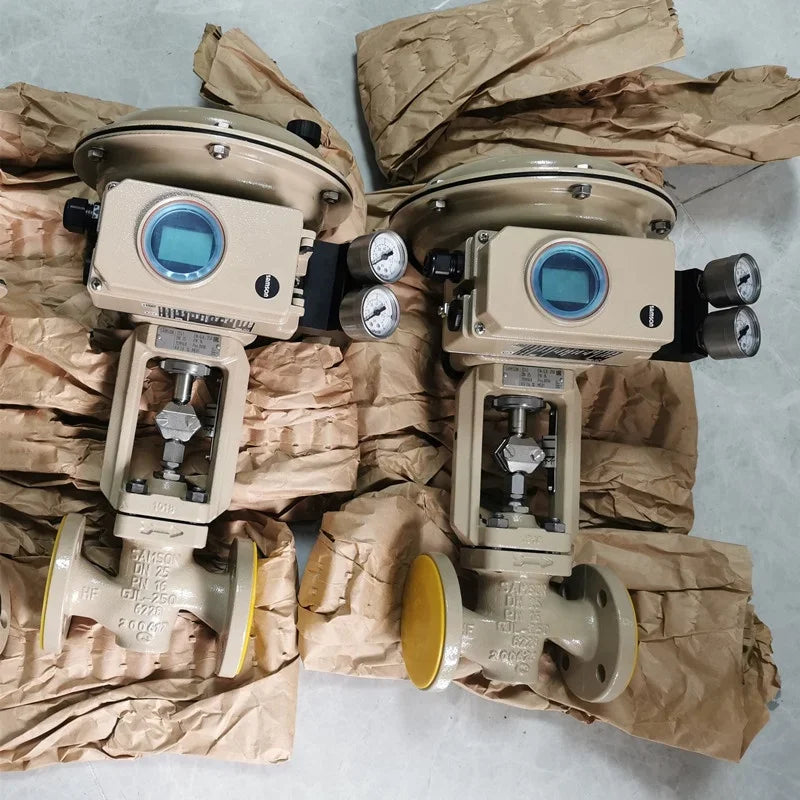

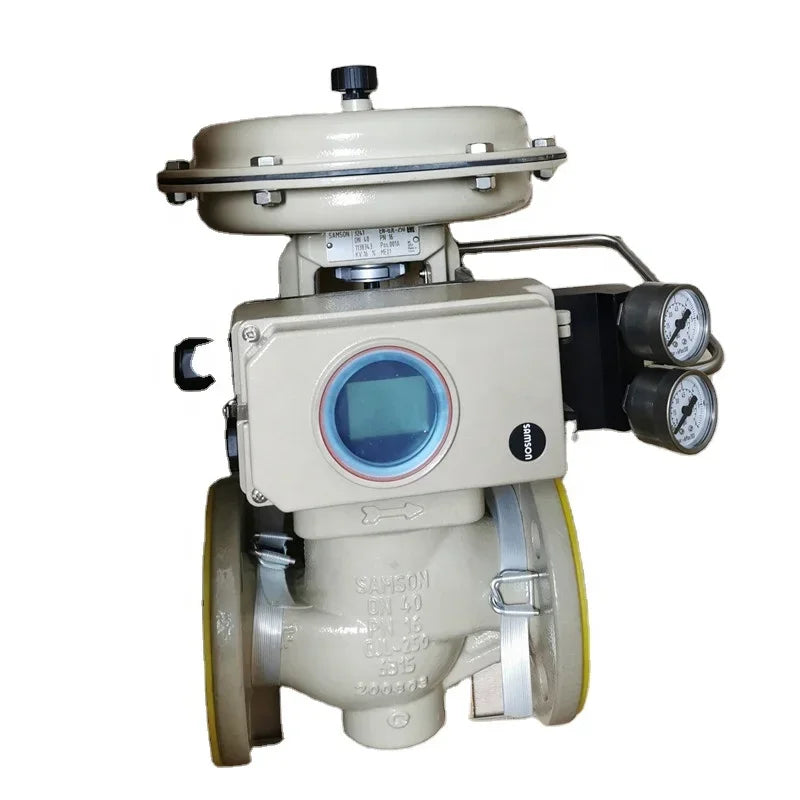

The SAMSON Type 3241-7 Pneumatic Globe Control Valve Assembly is designed for precise regulation of flow, pressure, and temperature in industrial process control systems. Manufactured by SAMSON, this complete valve assembly combines the Type 3241 globe control valve, Type 3277 pneumatic diaphragm actuator, Type 3730 electropneumatic valve positioner, and Type 4708 instrument air pressure regulator. These components work together to provide accurate valve positioning, controlled pneumatic operation, and dependable process regulation. The globe valve's linear-moving plug and seat mechanism adjusts the flow of compatible liquids, gases, and steam, making the assembly suitable for demanding industrial applications.
Part of the SAMSON Series 240, the Type 3241-7 features a modular design that supports different valve body materials, pressure ratings, flow characteristics, and pneumatic control configurations. The Type 3277 actuator converts instrument air pressure into linear valve stem movement, while the Type 3730 positioner controls actuator pressure to achieve the required valve opening. The Type 4708 regulator reduces and stabilises the supply air pressure delivered to the pneumatic control equipment. This arrangement supports accurate flow modulation, reliable actuator response, and efficient maintenance in chemical processing, oil and gas facilities, power generation, water treatment, and industrial manufacturing.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Pneumatic Globe Control Valve Assembly |
|
Manufacturer / Brand |
SAMSON |
|
Main Valve Model |
Type 3241 |
|
Complete Valve Designation |
Type 3241-7 |
|
Product Series |
Series 240 |
|
Product Type |
Pneumatically Actuated Globe Control Valve |
|
Valve Configuration |
Two-Way Globe Valve |
|
Valve Operating Principle |
Linear Plug and Seat Flow Regulation |
|
Actuator Model |
Type 3277 |
|
Actuator Type |
Pneumatic Diaphragm Actuator |
|
Positioner Model |
Type 3730 Series |
|
Positioner Type |
Electropneumatic Valve Positioner |
|
Pressure Regulator Model |
Type 4708 Series |
|
Regulator Type |
Instrument Air Supply Pressure Regulator |
|
Valve Nominal Size Range, Series |
DN 15–300 |
|
Type 3241-7 Nominal Size Range |
DN 15–150 |
|
DIN Pressure Rating Options |
PN 10–40 |
|
Valve Body Material Options |
Cast Iron, Cast Steel, Stainless Steel and Special Alloys |
|
Process Connection |
Flanged, with Other Options Depending on Configuration |
|
Valve Stem Movement |
Linear |
|
Flow Characteristic Options |
Linear or Equal Percentage |
|
Valve Plug Sealing Options |
Metal Seal, Soft Seal or High-Performance Metal Seal |
|
Standard Process Temperature Range |
−10°C to +220°C |
|
Special Process Temperature Capability |
−196°C to +450°C, Depending on Configuration |
|
Valve Leakage Classification |
Depends on the Installed Valve Trim |
|
Valve Actuation |
Pneumatic |
|
Actuator Operating Principle |
Pneumatic Pressure and Spring Force |
|
Actuator Failure Action |
Stem Extends or Stem Retracts |
|
Positioner Mounting |
Integral Attachment to Compatible Type 3277 Actuator |
|
Positioner Electrical Input |
Depends on Installed Type 3730 Model |
|
Positioner Communication |
Depends on Installed Type 3730 Model |
|
Regulator Function |
Instrument Air Pressure Reduction |
|
Compatible Regulator Family |
Type 4708 |
|
Regulator Mounting |
Direct or Adapter-Based, Depending on Model |
|
Regulator Filtration |
Available Depending on Configuration |
|
Instrument Air Medium |
Clean, Dry Compressed Air |
|
Primary Control Function |
Flow, Pressure and Temperature Regulation |
|
Application Scope |
Industrial Process Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Complete pneumatic globe control valve assembly for industrial process regulation
SAMSON Type 3241 globe valve for precise fluid flow control
Type 3277 pneumatic diaphragm actuator for controlled linear valve movement
Type 3730 electropneumatic positioner for automatic actuator positioning
Type 4708 instrument air regulator for stable pneumatic supply pressure
Modular construction for convenient maintenance and component replacement
Two-way globe valve design for accurate throttling applications
Linear or equal-percentage flow characteristics available according to valve trim
Multiple valve body material options for different industrial operating conditions
Spring-return actuator design with configurable fail-open or fail-closed action
Integral positioner mounting supported by the Type 3277 actuator
Responsive pneumatic control for stable flow and pressure regulation
Compatible with properly specified industrial automation and process control systems
Optional valve trim configurations for different leakage and operating requirements
Suitable for continuous modulating control in industrial process installations
Individual components can be serviced or replaced using compatible SAMSON spare parts
Designed for industrial control valve maintenance and process automation upgrades
Typical Applications
Industrial process flow regulation
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining and processing installations
Power generation and steam control systems
Water and wastewater treatment facilities
Industrial manufacturing and production equipment
Industrial pressure regulation systems
Temperature control and heat exchanger applications
Process fluid distribution and transfer systems
Pneumatic control valve automation
Chemical dosing and processing systems
Industrial utilities and plant instrumentation
Boiler feedwater and compatible steam systems
Distributed control and process automation systems
Industrial valve maintenance and equipment replacement
