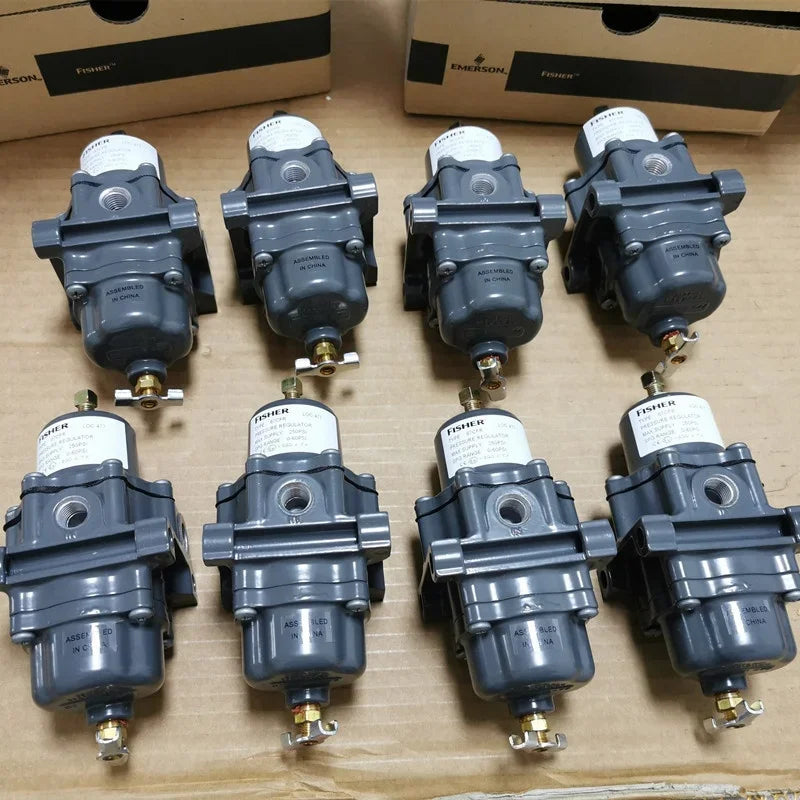

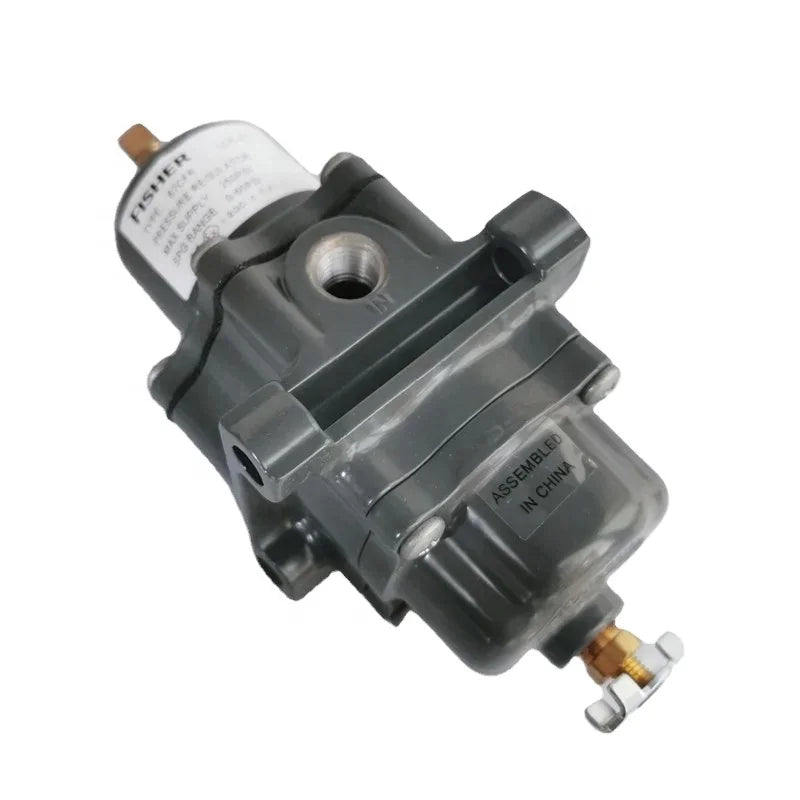

Fisher 67CFR-237 Instrument Air Filter Pressure Regulator with Gauge
The Fisher 67CFR-237 Instrument Air Filter Pressure Regulator is designed to provide clean, stable, and accurately regulated air pressure to pneumatic control valves, valve positioners, and industrial process instrumentation. Manufactured by Fisher,...
- Soft-Seat Internal Relief Relief Valve Type
- 0–60 psig (0–4.1 bar) Adjustable Outlet Pressure Range
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Fisher 67CFR-237 Instrument Air Filter Pressure Regulator is designed to provide clean, stable, and accurately regulated air pressure to pneumatic control valves, valve positioners, and industrial process instrumentation. Manufactured by Fisher, an Emerson brand, this direct-operated pressure-reducing regulator maintains a controlled downstream pressure despite normal variations in upstream instrument air supply. Its adjustable outlet pressure range of 0–60 psi (0–4.1 bar) supports reliable pneumatic equipment operation, improved control accuracy, and consistent performance in industrial automation systems.
Part of the Fisher 67C Series, the 67CFR-237 combines pressure regulation, an integrated 5-micron polyethylene filter, an internal relief valve, and a pressure gauge within a compact aluminium housing. Its filtration system helps remove solid contaminants from incoming instrument air, while the internal relief mechanism provides limited protection against minor downstream overpressure caused by seat leakage. The regulator features 1/4-inch NPT connections and can be mounted on compatible valve actuator and positioner assemblies using appropriate mounting hardware. It is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial pneumatic control applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Instrument Air Filter Pressure Regulator with Gauge |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Main Model |
67CFR-237 |
|
Product Series |
67C Series |
|
Regulator Type |
Direct-Operated Pressure-Reducing Regulator |
|
Product Classification |
Instrument Air Filter Regulator |
|
Primary Function |
Instrument Air Pressure Reduction and Filtration |
|
Operating Principle |
Spring-Loaded Diaphragm Pressure Regulation |
|
Adjustable Outlet Pressure Range |
0–60 psig (0–4.1 bar) |
|
Maximum Inlet Pressure |
250 psig (17.2 bar) |
|
Maximum Emergency Outlet Pressure |
50 psi (3.4 bar) Above Outlet Setting |
|
Pressure Registration |
Internal |
|
Body Material |
Aluminium |
|
Spring Case Material |
Aluminium |
|
Body Finish |
Protective Powder Coating |
|
Inlet Connection |
1/4 Inch NPT |
|
Outlet Connection |
1/4 Inch NPT |
|
Outlet Arrangement |
Two Tapped Outlet Connections |
|
Filter Type |
Integrated Polyethylene Filter |
|
Filter Rating |
5 Microns |
|
Internal Relief Valve |
Included |
|
Relief Valve Type |
Soft-Seat Internal Relief |
|
Pressure Gauge |
Included |
|
Gauge Pressure Range |
0–60 psi |
|
Gauge Wetted Parts |
Brass |
|
Gauge Case Material |
Plastic |
|
Adjustment Mechanism |
Square-Head Adjusting Screw |
|
Valve Plug Material |
Nitrile Rubber |
|
Valve Stem Material |
Brass |
|
Drain Valve |
Manual |
|
Drain Valve Material |
Brass |
|
Standard Drain Location |
Under Inlet |
|
Standard Vent Location |
Over Inlet |
|
Pressure Control Spring |
Blue-Stripe Spring for 0–60 psi Range |
|
Standard Temperature Range with NBR |
−20°F to +180°F (−29°C to +82°C) |
|
Approximate Weight |
0.5 kg |
|
Working Medium |
Compatible Clean Air or Gas |
|
Mounting Configuration |
Instrument or Valve Assembly Mounting with Suitable Hardware |
|
Related Model |
67CFR-601 |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Direct-operated pressure-reducing regulator for industrial pneumatic instrumentation
Adjustable outlet pressure range of 0–60 psi for accurate instrument air control
Maximum inlet pressure rating of 250 psi for compatible industrial air supply systems
Integrated 5-micron polyethylene filter for removing solid contaminants from incoming air
Built-in internal relief valve for limited downstream overpressure relief
Integrated pressure gauge for convenient downstream pressure monitoring
Durable aluminium housing with protective powder-coated finish
Standard 1/4-inch NPT connections for pneumatic instrument installation
Compact and lightweight construction for convenient mounting on valve assemblies
Spring-loaded diaphragm mechanism for responsive downstream pressure regulation
Square-head pressure adjusting screw for setting the required outlet pressure
Manual drain valve for removing accumulated contaminants
Soft-seat internal relief construction for reliable pressure control
Compatible with pneumatic valve positioners and industrial control instruments
Suitable for instrument air filtration and pressure reduction in automated control systems
Designed for industrial maintenance, equipment replacement, and pneumatic system upgrades
Typical Applications
Pneumatic valve positioner air supply regulation
Industrial control valve actuator installations
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining and processing installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing and automation equipment
Instrument air filtration and pressure control
Pneumatic process controllers and instrumentation
Industrial valve maintenance and servicing
Compressed air distribution and regulation systems
Pneumatic actuators and control accessories
Industrial air-operated equipment
