Fisher 67CFR-601 Instrument Air Filter Regulator 0–125 PSI Pressure Reducing Valve
The Fisher 67CFR-601 Instrument Air Filter Regulator is designed to provide stable, reduced air pressure to pneumatic valve positioners, actuators, controllers, and industrial instrumentation.
- 0–125 psig (0–8.6 bar) Outlet Pressure Range
- Cv 0.36 Main Valve Flow Coefficient
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview

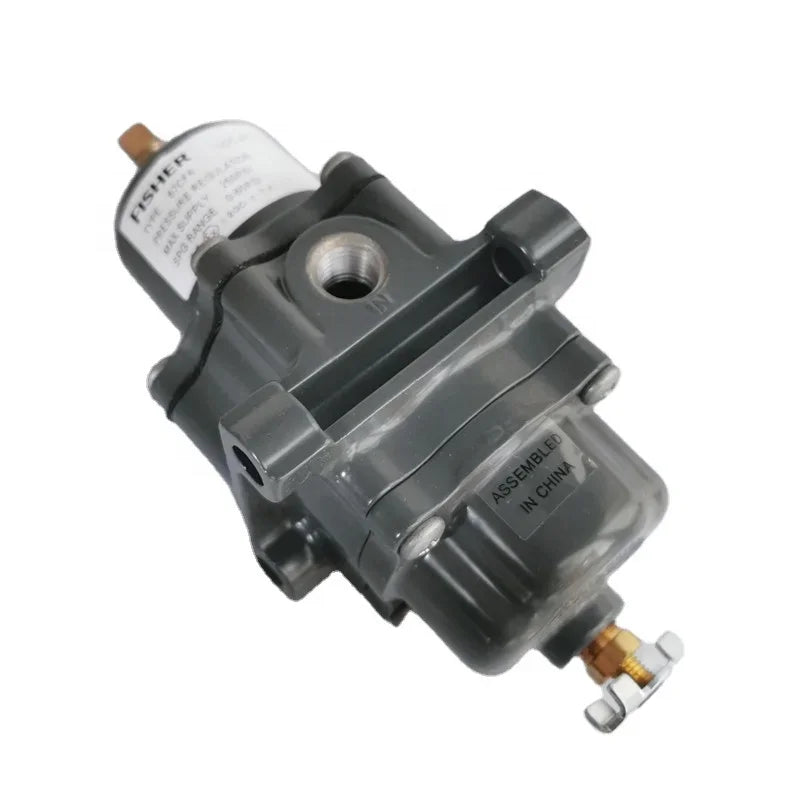

The Fisher 67CFR-601 Instrument Air Filter Regulator is designed to provide stable, reduced air pressure to pneumatic valve positioners, actuators, controllers, and industrial instrumentation. Manufactured by Fisher, an Emerson brand, this direct-operated pressure regulator combines downstream pressure regulation, particulate filtration, and an internal relief valve in one compact assembly. Its spring-loaded diaphragm mechanism responds to changes in downstream pressure, helping maintain consistent instrument air supply for reliable industrial process control.

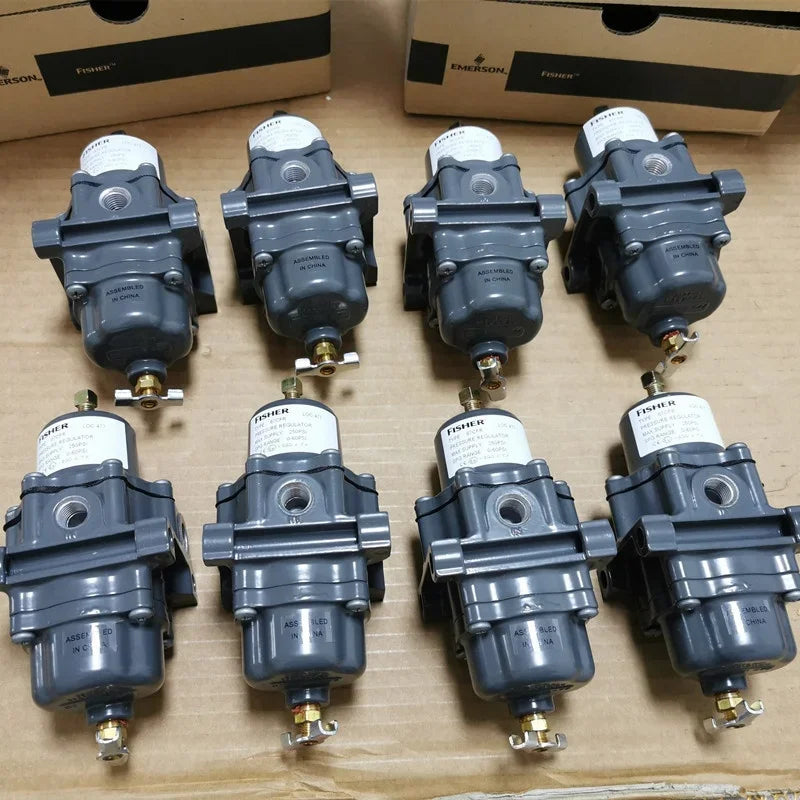

Part of the Fisher 67C Series, the 67CFR-601 features an adjustable outlet pressure range of 0–125 psig, an aluminium body, 1/4-inch NPT inlet and outlet connections, and a 5-micron polyethylene filter element. The regulator is suitable for installation near compatible pneumatic control valves and positioners, helping protect instrumentation from particulate contamination and excessive supply pressure. It is widely applicable to industrial automation, chemical processing, oil and gas facilities, power generation, and manufacturing systems.

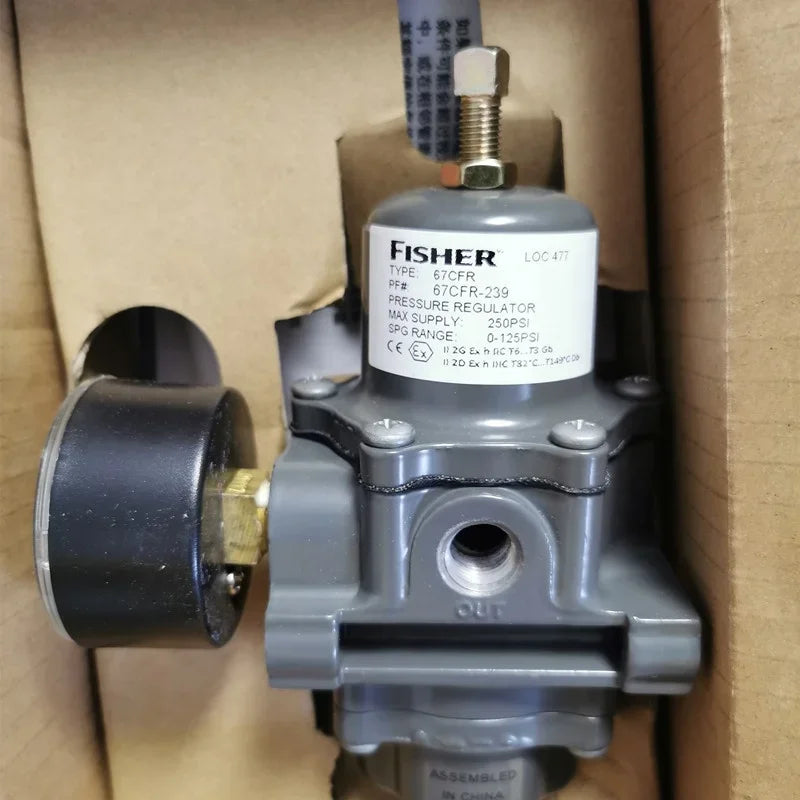

Important product distinction: The standard Fisher 67CFR-601 is supplied without a pressure gauge. The 67CFR-239 is a related 0–125 psig configuration with a gauge.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Instrument Air Pressure Reducing Filter Regulator |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Main Model |
67CFR-601 |
|
Series |
Fisher 67C |
|
Product Type |
Pressure Reducing Filter Regulator |
|
Regulator Design |
Direct Operated |
|
Operating Mechanism |
Spring-Loaded Diaphragm |
|
Body Material |
Aluminium |
|
Outlet Pressure Range |
0–125 psig (0–8.6 bar) |
|
Maximum Inlet Pressure |
250 psig (17.2 bar) |
|
Inlet Connection |
1/4 Inch NPT |
|
Outlet Connection |
1/4 Inch NPT |
|
Gauge Connection |
Secondary Outlet Available for Compatible Gauge Installation |
|
Filter Element |
Polyethylene |
|
Filtration Rating |
5 Microns |
|
Internal Relief |
Included, Soft-Seated |
|
Pressure Registration |
Internal |
|
Pressure Adjustment |
Square-Head Adjustment Screw |
|
Flow Control |
Automatic Downstream Pressure Regulation |
|
Main Valve Flow Coefficient |
Cv 0.36 |
|
Standard Valve Plug Material |
Nitrile (NBR) |
|
Standard Valve Stem Material |
Brass |
|
Approximate Weight |
0.5 kg |
|
Working Medium |
Compressed Instrument Air and Compatible Gases |
|
Installation Application |
Pneumatic Instrument Supply and Valve Control Assemblies |
|
Related Models |
67CFR-237, 67CFR-239, 67CFR-226 |
|
Separate Related Equipment |

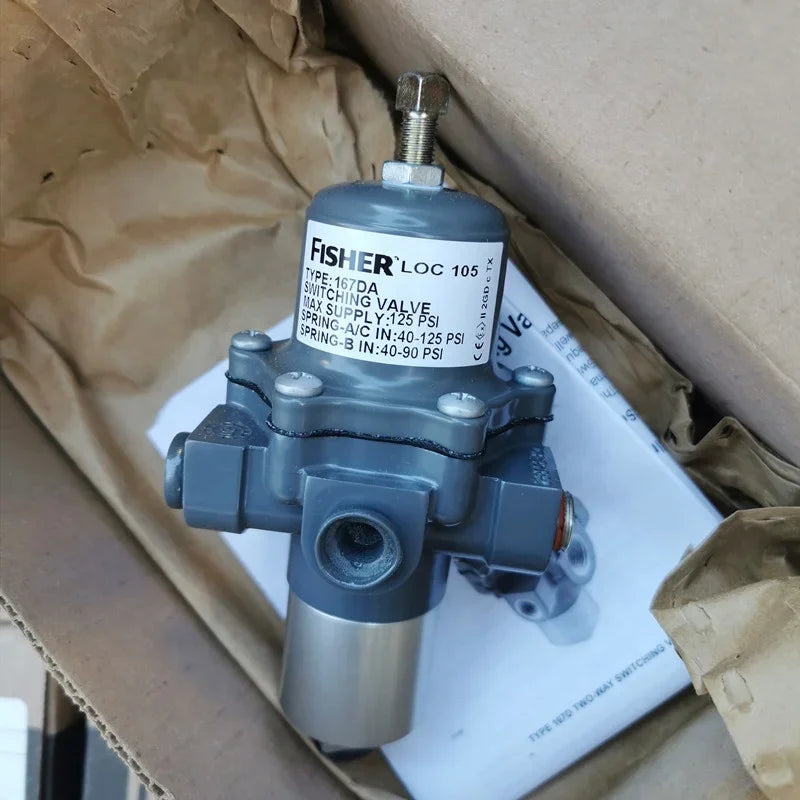

Fisher 167DA Switching Valve |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Adjustable 0–125 psig outlet pressure range for compatible pneumatic instrumentation.
-
Direct-operated pressure reduction for stable downstream instrument air delivery.
-
Maximum inlet pressure rating of 250 psig.
-
Integrated 5-micron polyethylene filter for removing solid contaminants from supply air.
-
Soft-seated internal relief mechanism for limited downstream overpressure relief.
-
Durable aluminium body for suitable industrial applications.
-
Standard 1/4-inch NPT inlet and outlet connections.
-
Spring-loaded diaphragm mechanism that responds to downstream pressure changes.
-
Square-head adjustment screw for setting regulated outlet pressure.
-
Internal pressure registration for responsive pressure control.
-
Compact design for installation near pneumatic positioners and control valves.
-
Mechanical operation without an external electrical power supply.
-
Secondary outlet connection for suitable instrumentation accessories.
-
Suitable for maintenance, replacement, and new pneumatic control installations.
-
Designed to provide consistent supply pressure to compatible electropneumatic and pneumatic instruments.
Typical Applications
-
Pneumatic valve positioner air supply
-
Industrial instrument air pressure regulation
-
Control valve pneumatic assemblies
-
Oil and gas production facilities
-
Chemical and petrochemical processing
-
Power generation and utility systems
-
Water and wastewater treatment plants
-
Industrial manufacturing machinery
-
Pneumatic actuator supply arrangements
-
Compressed air filtration and regulation
-
Process instrumentation control panels
-
Industrial maintenance and equipment replacement
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
