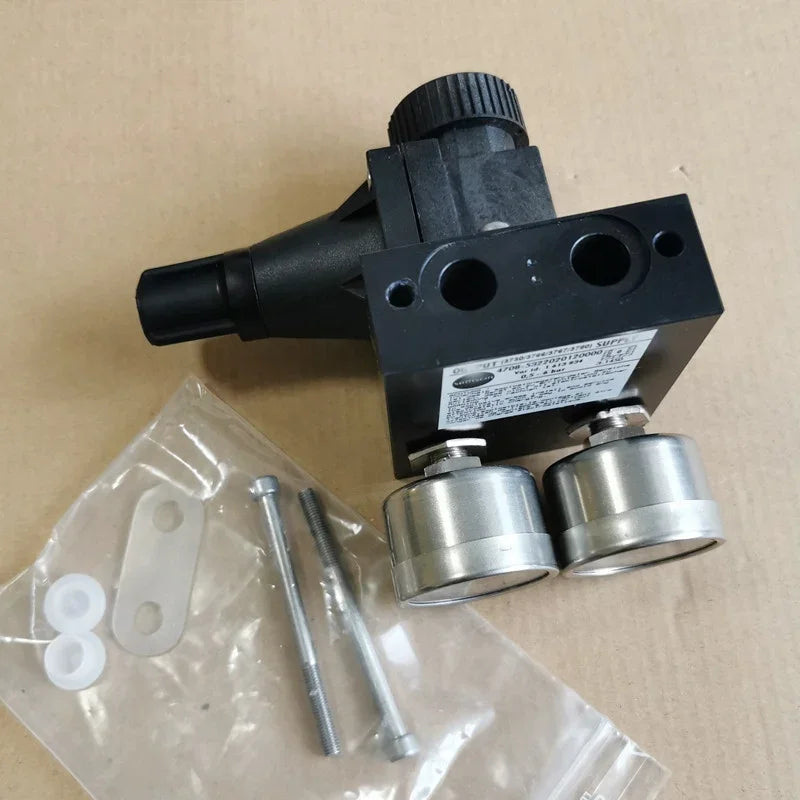

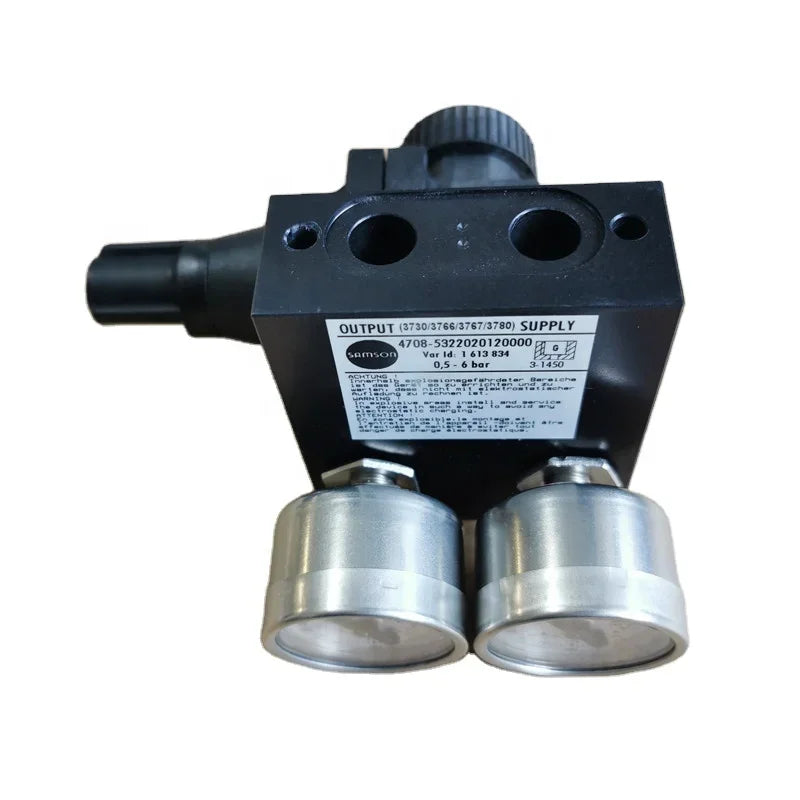

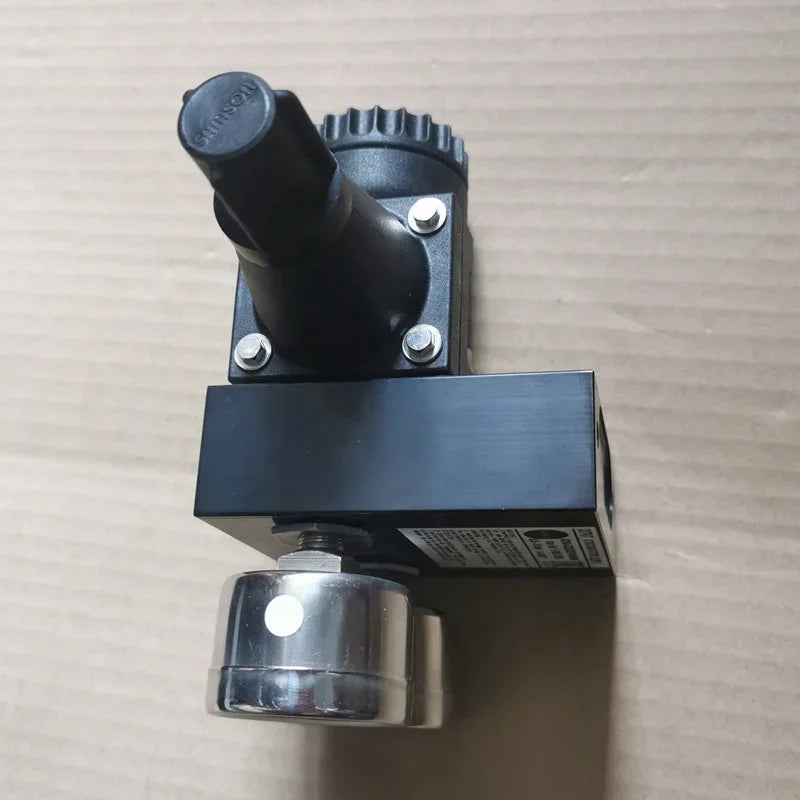

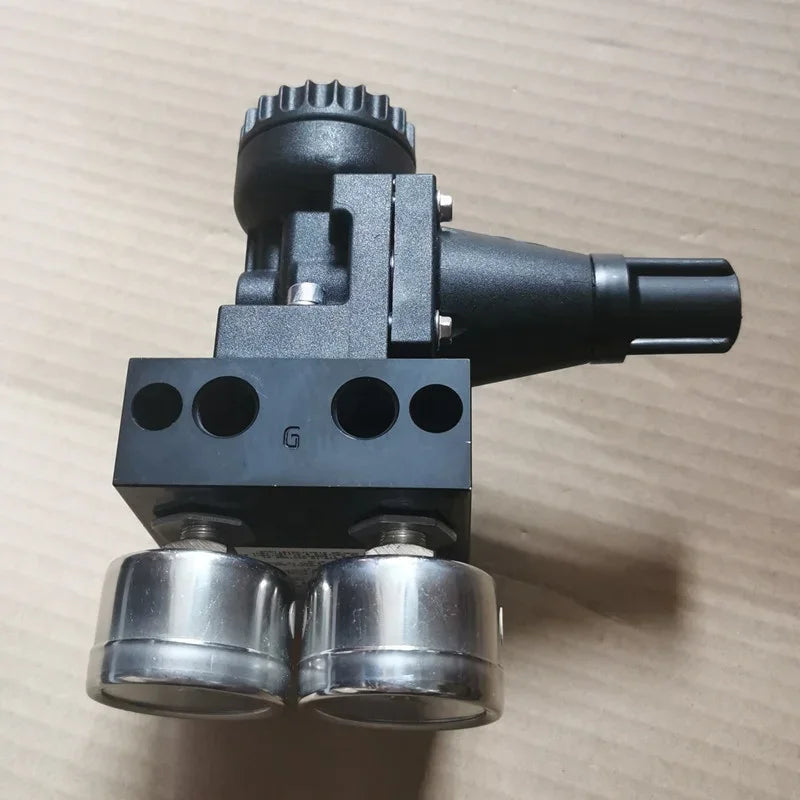

SAMSON 4708-532202012 Pressure Reducing Valve, Pneumatic Supply Pressure Regulator
The SAMSON 4708-532202012 Pressure Reducing Valve is designed for accurate pressure regulation and consistent compressed air supply in industrial pneumatic control systems.
- Pneumatic Pressure Regulator Valve Type
- 12 Bar (180 psi) Maximum Supply Pressure
- Automatic Downstream Pressure Regulation Control Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The SAMSON 4708-532202012 Pressure Reducing Valve is designed for accurate pressure regulation and consistent compressed air supply in industrial pneumatic control systems. Part of the SAMSON Type 4708 series, this pressure regulator reduces incoming compressed air pressure to an adjustable downstream level, ensuring reliable operation of pneumatic valve positioners, control actuators, and industrial instrumentation. Its direct-operated, spring-loaded diaphragm mechanism provides stable pressure control, supporting efficient system performance in demanding industrial environments.
Engineered for integration into pneumatic control valve assemblies, the SAMSON 4708-532202012 features a compact valve-mounted design, adjustable pressure regulation, and an integrated filter cartridge that helps remove solid contaminants from the compressed air supply. The Type 4708-53 configuration is designed for direct attachment to compatible SAMSON valve positioners, allowing convenient installation and efficient instrument air distribution. Related models include the SAMSON 4708-5352 and 4708-1150, which offer alternative mounting arrangements and configurations. Its durable construction and low air consumption make it suitable for process automation, manufacturing equipment, and industrial pneumatic pressure control applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Pneumatic Supply Pressure Regulator |
|
Brand |
SAMSON |
|
Model |
4708-532202012 |
|
Series |
Type 4708 |
|
Product Type |
Pressure Reducing Valve |
|
Valve Type |
Pneumatic Pressure Regulator |
|
Structure |
Direct Operated, Spring-Loaded Diaphragm |
|
Control Type |
Automatic Downstream Pressure Regulation |
|
Power Source |
Pneumatic / Mechanical |
|
Body Material |
Aluminium Alloy |
|
Maximum Supply Pressure |
12 Bar (180 psi) |
|
Adjustable Set Point Ranges |
0.2–1.6 Bar or 0.5–6 Bar, Depending on Configuration |
|
Pressure Regulation Principle |
Force Balance |
|
Filtration |
Integrated Filter Cartridge |
|
Standard Filter Mesh Size |
20 µm |
|
Air Consumption |
≤0.05 m³/h at 7 Bar Supply Pressure |
|
Mounting Type |
Direct Mounting to Compatible Valve Positioners |
|
Mounting Configuration |
Type 4708-53 Adapter Plate |
|
Compatible Positioner Families |
SAMSON 3730, 3766, 3767, 3780, 3785, 3787 |
|
Working Medium |
Compressed Instrument Air |
|
Related Models |

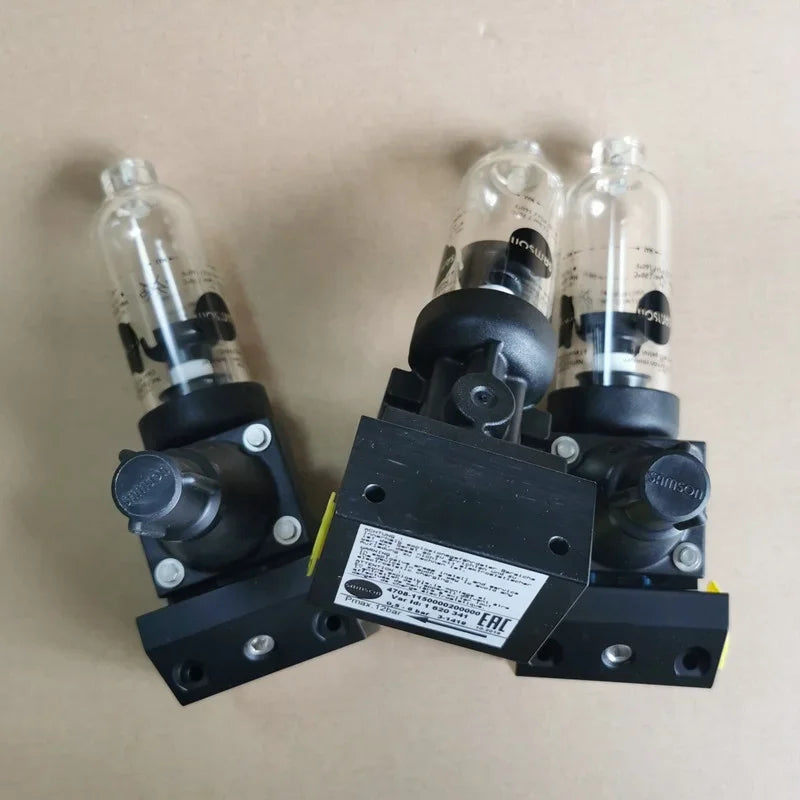

4708-5352, 4708-1150 |
|
Application Scope |
Industrial Pneumatic Pressure Control Systems |
|
Condition |
New |
|
Warranty |
12 Months |
Key Features
-
Accurate pressure reduction for consistent compressed air delivery in industrial pneumatic control systems.
-
Direct-operated, spring-loaded diaphragm mechanism for reliable downstream pressure regulation.
-
Maximum supply pressure rating of 12 bar for compatible compressed air applications.
-
Adjustable pressure control to meet the supply requirements of industrial pneumatic instrumentation.
-
Integrated filtration system for removing solid contaminants from compressed instrument air.
-
Standard 20 µm filter cartridge for protecting downstream pneumatic components.
-
Compact valve-mounted construction for installation on compatible SAMSON positioners.
-
Durable construction suitable for industrial process automation environments.
-
Low air consumption for efficient operation in continuous-duty pneumatic systems.
-
Mechanical pressure regulation without requiring an external electrical power supply.
-
Stable pressure output with low sensitivity to fluctuations in upstream supply pressure.
-
Compatible mounting arrangements for integration into industrial control valve assemblies.
Typical Applications
-
Industrial pneumatic pressure regulation systems
-
SAMSON valve positioner air supply
-
Pneumatic control valve assemblies
-
Industrial instrumentation and automation systems
-
Oil and gas processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Manufacturing and production machinery
-
Compressed instrument air distribution systems
-
Pneumatic actuator supply pressure regulation
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
