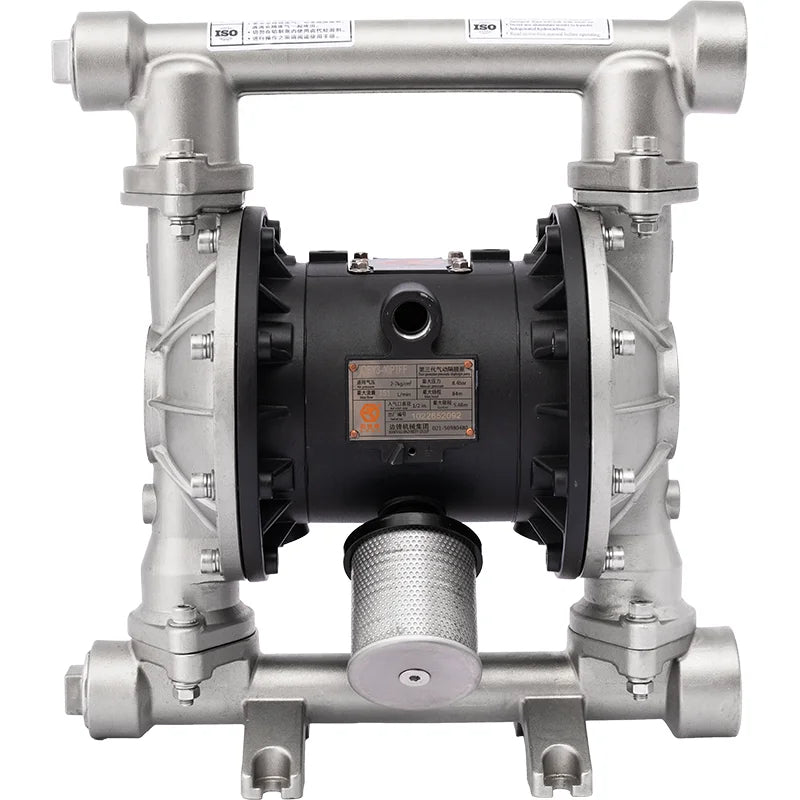

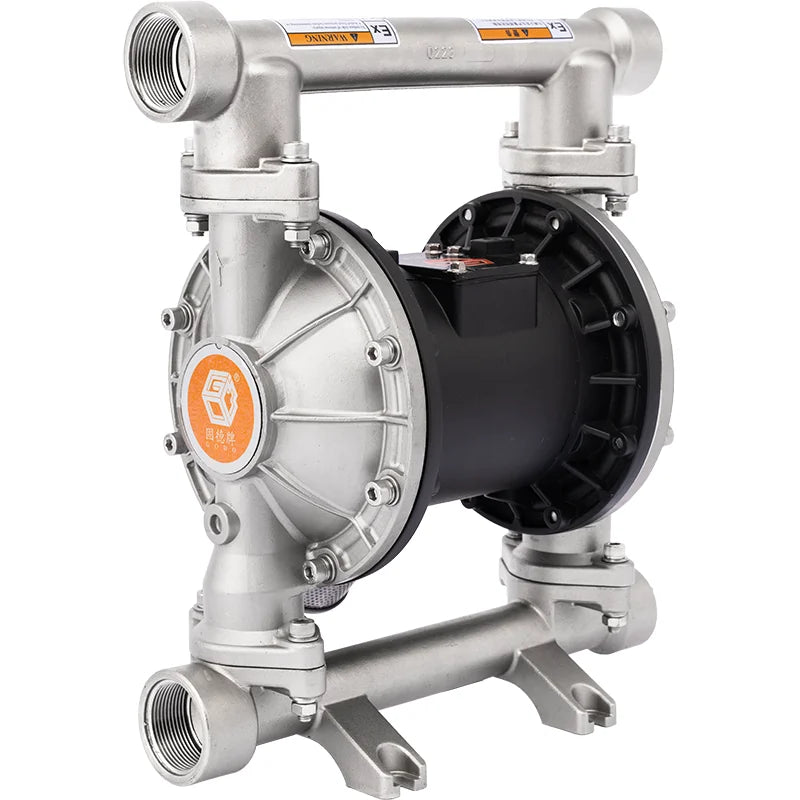

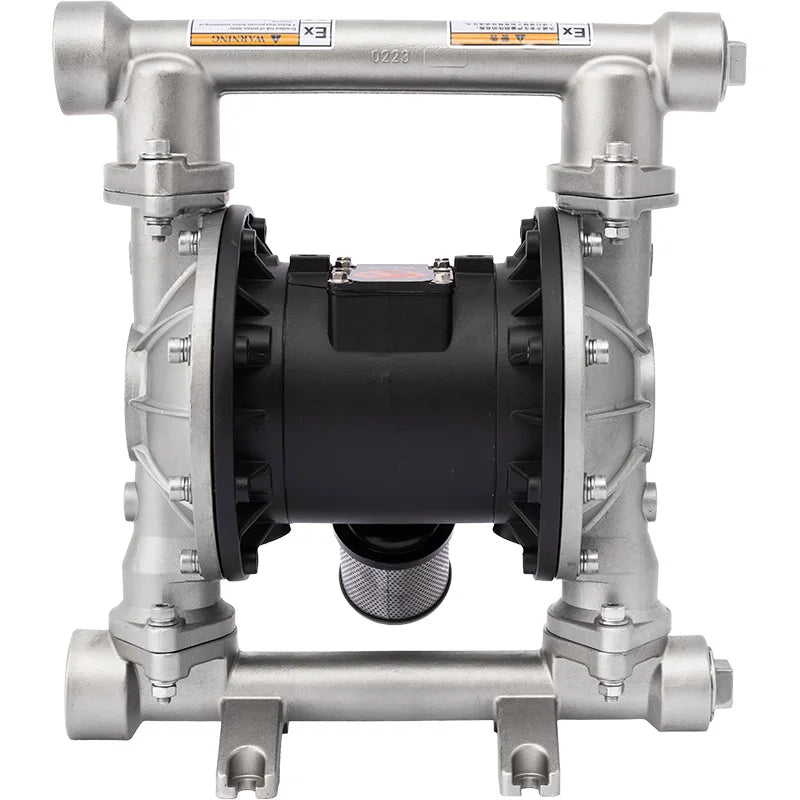

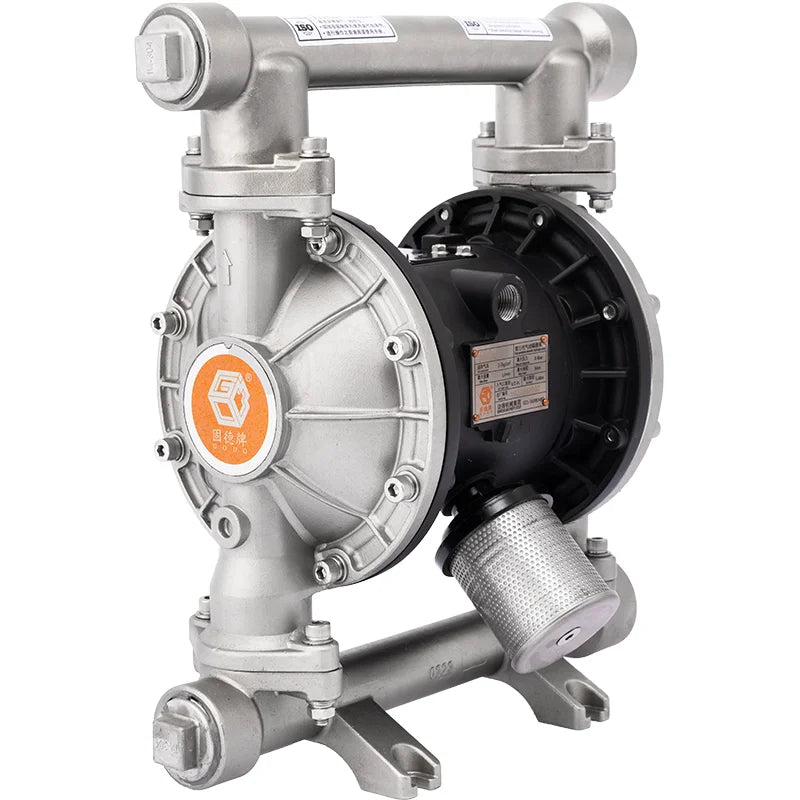

QBY3-32P GODO Pneumatic Diaphragm Pump, SS 1-1/4" 8.4Bar 170L/min
The QBY3-32P GODO pneumatic diaphragm pump is a high-performance air-operated pump designed for transferring alkaline liquids, chemicals, oil, slurry, and water in industrial and pharmaceutical environments.
- 170 L/min Flow Rate
- 8.4 Bar Max Continuous Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The QBY3-32P GODO pneumatic diaphragm pump is a high-performance air-operated pump designed for transferring alkaline liquids, chemicals, oil, slurry, and water in industrial and pharmaceutical environments. Its stainless steel construction ensures durability and corrosion resistance for demanding applications.
With a maximum pressure of 8.4 bar and flow rate up to 170 L/min, this pump provides efficient, safe, and reliable fluid handling with excellent suction capability.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pneumatic Diaphragm Pump |
| Model | QBY3-32P |
| Brand | GODO |
| Pump Type | Diaphragm Pump |
| Structure | Air-Operated Double Diaphragm |
| Pressure | Medium to High Pressure |
| Max Continuous Pressure | 8.4 Bar |
| Flow Rate | 170 L/min |
| Max Suction Height | 5.48 m |
| Max Particle Size | 3.2 mm |
| Speed Range | Air-controlled operation |
| Motor Type | Pneumatic |
| Power Source | Compressed Air |
| Voltage | Not Applicable |
| Pump Body Material | Stainless Steel |
| Outlet Size | 1-1/4" BSP (F) |
| Air Inlet Size | 1-1/4" |
| Connector Type | Threaded |
| Suitable Media | Water / Oil / Slurry / Chemicals |
| MOQ | 1 Unit |
| Standard | Standard |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Air-operated for safe operation in hazardous environments
- Stainless steel construction for corrosion resistance
- Max pressure up to 8.4 bar
- Flow rate up to 170 L/min
- Handles particles up to 3.2 mm
- Strong suction performance up to 5.48 m
Typical Applications
- Pharmaceutical processing
- Chemical transfer
- Oil and slurry handling
- Wastewater systems
- Industrial fluid transfer
- Alkaline liquid handling
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
