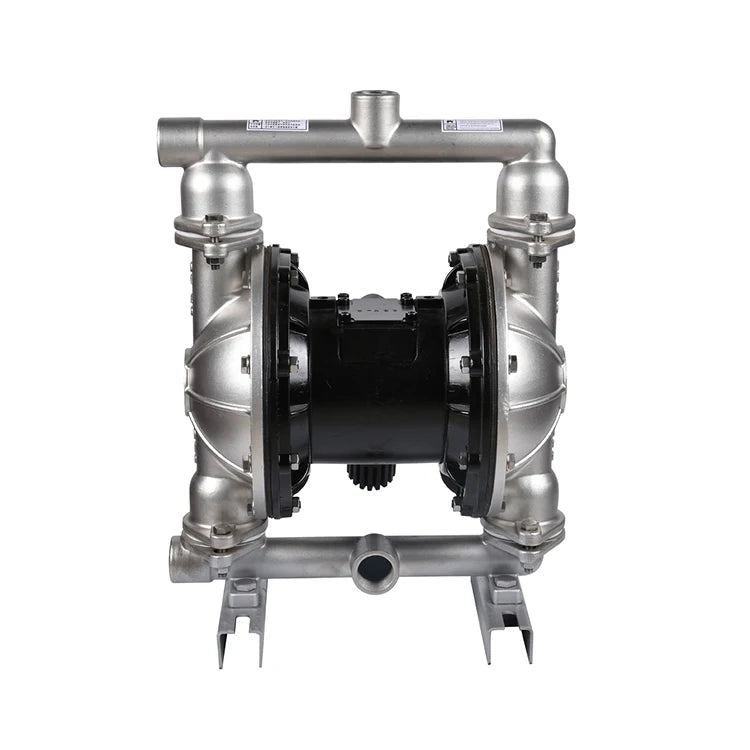

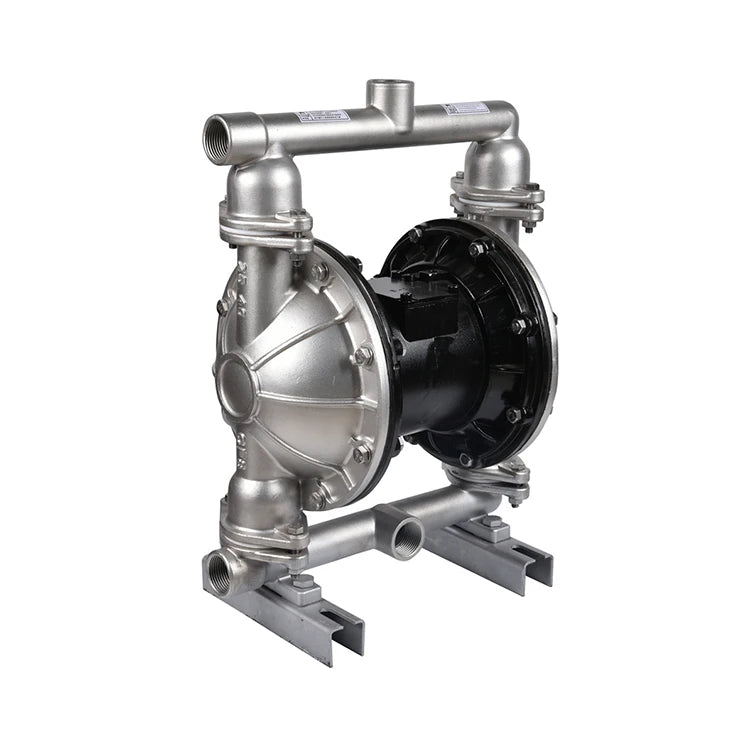

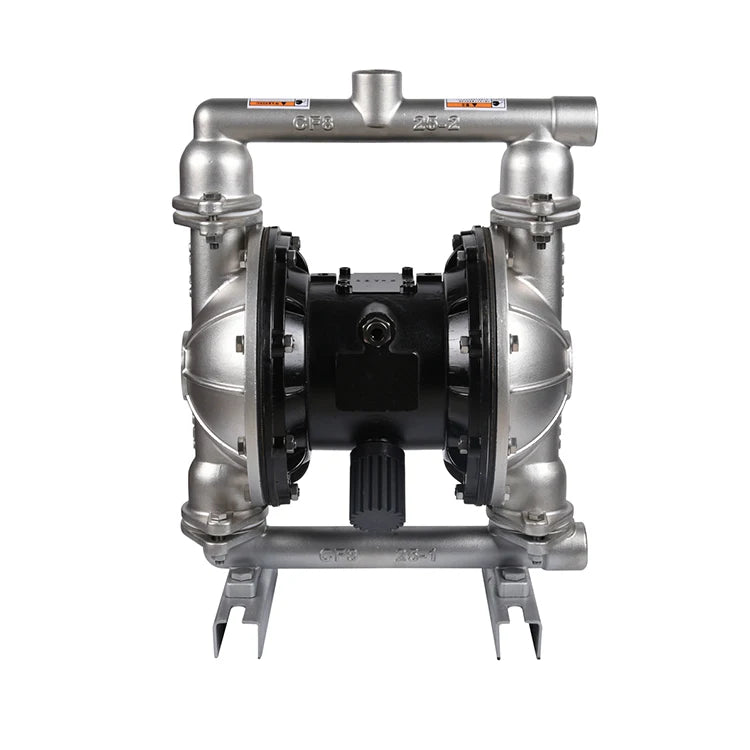

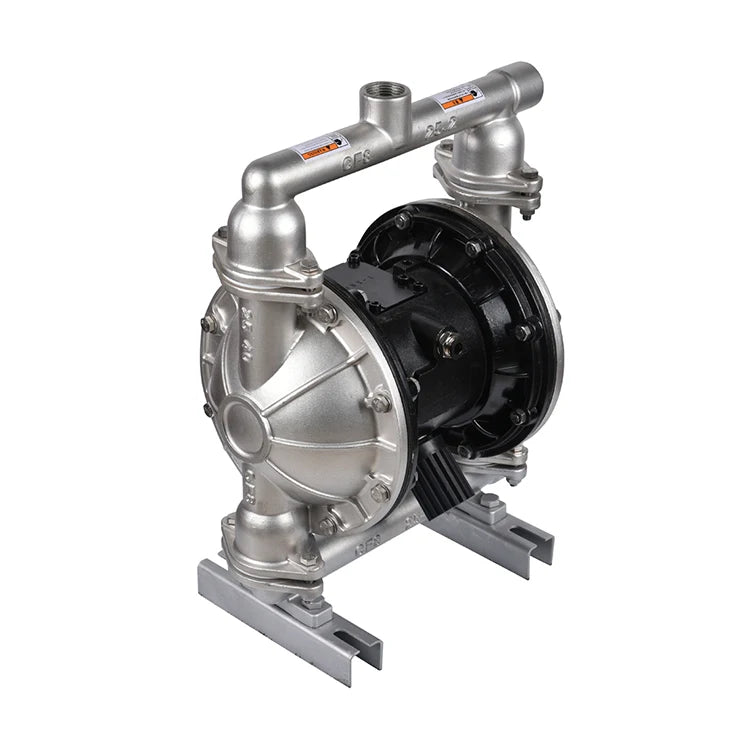

QBYK Pneumatic Diaphragm Pump, Low-Pressure AODD Pump for Chemical Water and Oil Transfer
The QBYK pneumatic diaphragm pump is a versatile air-operated double diaphragm (AODD) pump designed for reliable fluid transfer in low-pressure industrial applications.
- Up to 3747 m³/h Max Flow Rate
- Up to 8.4 Bar (120 psi / 0.84 MPa) Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 18 MonthsWarranty
Product Overview
The QBYK pneumatic diaphragm pump is a versatile air-operated double diaphragm (AODD) pump designed for reliable fluid transfer in low-pressure industrial applications. Powered by compressed air, it is ideal for safe operation in hazardous environments where electrical equipment is not suitable.

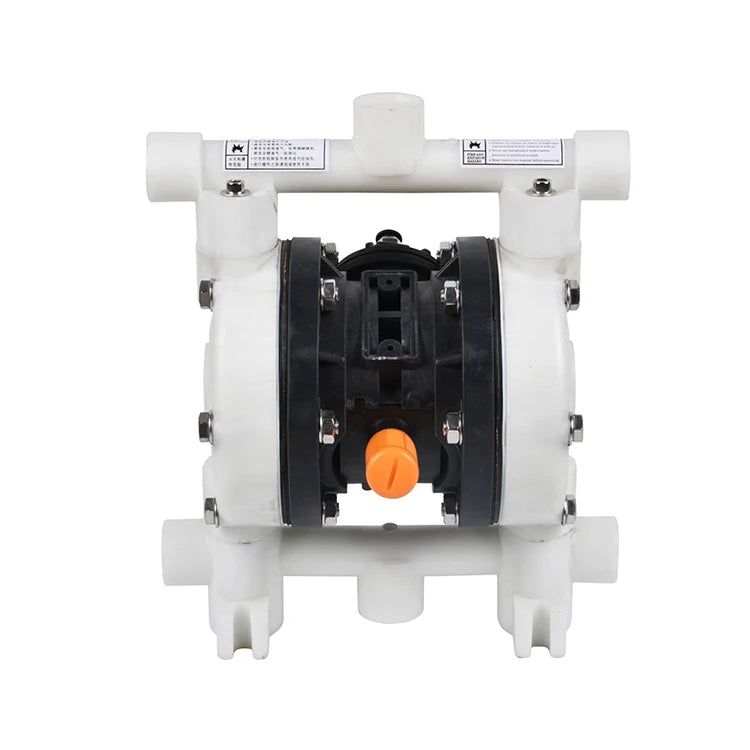

With multiple material options including PP, PTFE, aluminium alloy, and stainless steel, this pump is capable of handling water, oil, chemicals, and acids across a wide range of industries.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pneumatic Diaphragm Pump |
| Model | QBYK |
| Pump Type | AODD Pump |
| Structure | Diaphragm Pump |
| Pressure | Up to 8.4 Bar (120 psi / 0.84 MPa) |
| Power Source | Pneumatic |
| Outlet Size | 3/8", 1/2", 3/4", 1" |

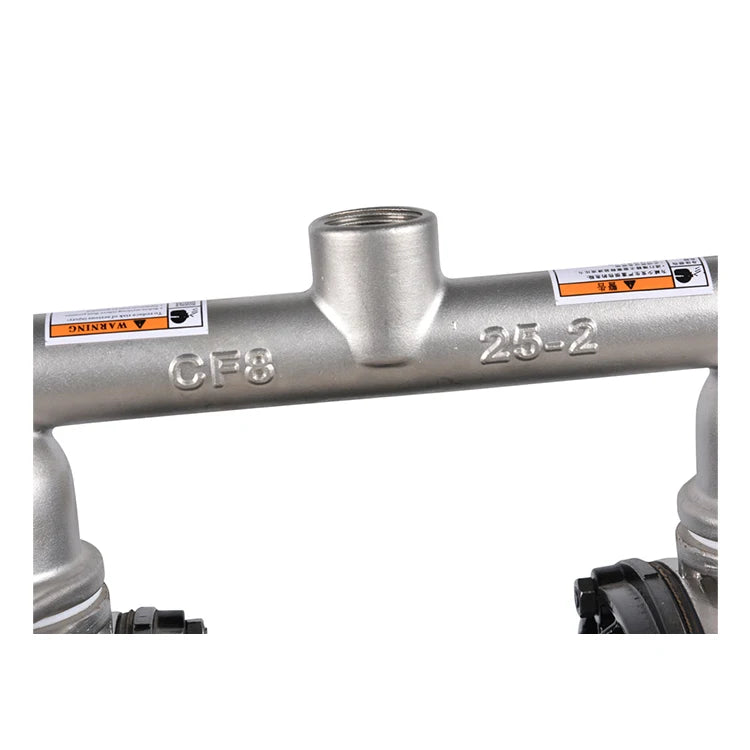

| Pump Body Material | Aluminium Alloy / Cast Steel / PP / Stainless Steel |
| Diaphragm Material | PTFE |
| Max Flow Rate | Up to 3747 m³/h |
| Operation Mode | Continuous Duty |
| Chemical Compatibility | Water / Oil / Chemicals / Acids |
| Standard | Standard |
| Application Scope | Industrial |
| Warranty | 18 Months |
Key Features
- Air-operated design for safe and explosion-proof environments
- Handles a wide range of fluids including chemicals and acids
- Multiple material options for flexibility
- Reliable low-pressure operation
- Durable and corrosion-resistant construction
- Suitable for continuous industrial use
Typical Applications
- Chemical and fluid transfer
- Water and wastewater handling
- Oil and lubricant transfer
- Automotive and machining processes
- Pharmaceutical applications
- Industrial processing systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 18-month warranty
