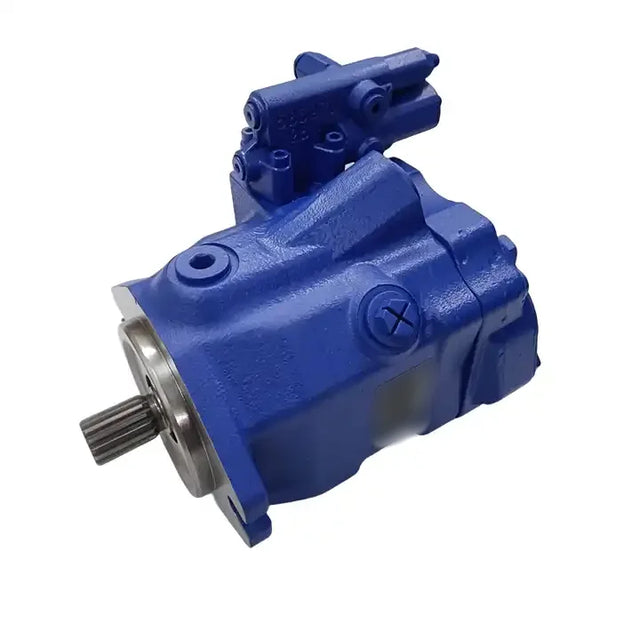

Rexroth A10VO45DRG/52R-PSC62K68 Axial Piston Pump
The Rexroth A10VO Series axial piston pump is a high-efficiency variable displacement pump designed for open circuit hydraulic systems.
- 28 / 45 / 60 / 71 / 85 cc/rev Displacement
- Up to 280 bar Max Continuous Pressure
- Right-Hand (Model Dependent) Rotation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Rexroth A10VO Series axial piston pump is a high-efficiency variable displacement pump designed for open circuit hydraulic systems. Models including A10V028, A10VO45, A10VO60, A10VO71, and A10VO85 provide reliable pressure control and stable flow output for demanding industrial and mobile machinery applications.
The A10VO45DRG/52R-PSC62K68 configuration features a swash plate design that ensures precise displacement adjustment, high volumetric efficiency, and consistent hydraulic performance. Built with a rugged cast iron housing and precision internal components, the A10VO Series is engineered for long service life in continuous-duty environments.
Technical Specifications
| Specification | Value |
|---|---|
| Series | A10VO Series (Series 52) |
| Available Models | A10V028 / A10VO45 / A10VO60 / A10VO71 / A10VO85 |
| Example Model | A10VO45DRG/52R-PSC62K68 |
| Pump Type | Axial Piston Pump (Swash Plate, Variable Displacement) |
| Circuit Type | Open Circuit |
| Displacement | 28 / 45 / 60 / 71 / 85 cc/rev |
| Control Type | DRG Pressure Control (Model Dependent) |
| Rotation | Right-Hand (Model Dependent) |
| Mounting Type | Flange Mount |
| Shaft Type | Splined Shaft |
| Max Continuous Pressure | Up to 280 bar |
| Peak Pressure | Up to 350 bar |
| Housing Material | High-Strength Cast Iron |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Swash plate axial piston design
-
Variable displacement for accurate flow regulation
-
High volumetric efficiency
-
Pressure control configuration available
-
Durable cast iron housing
-
Suitable for industrial and mobile hydraulic systems
Typical Applications
-
Industrial hydraulic power units
-
Construction machinery
-
Agricultural equipment
-
Machine tools
-
Material handling systems
-
Mobile hydraulic systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
