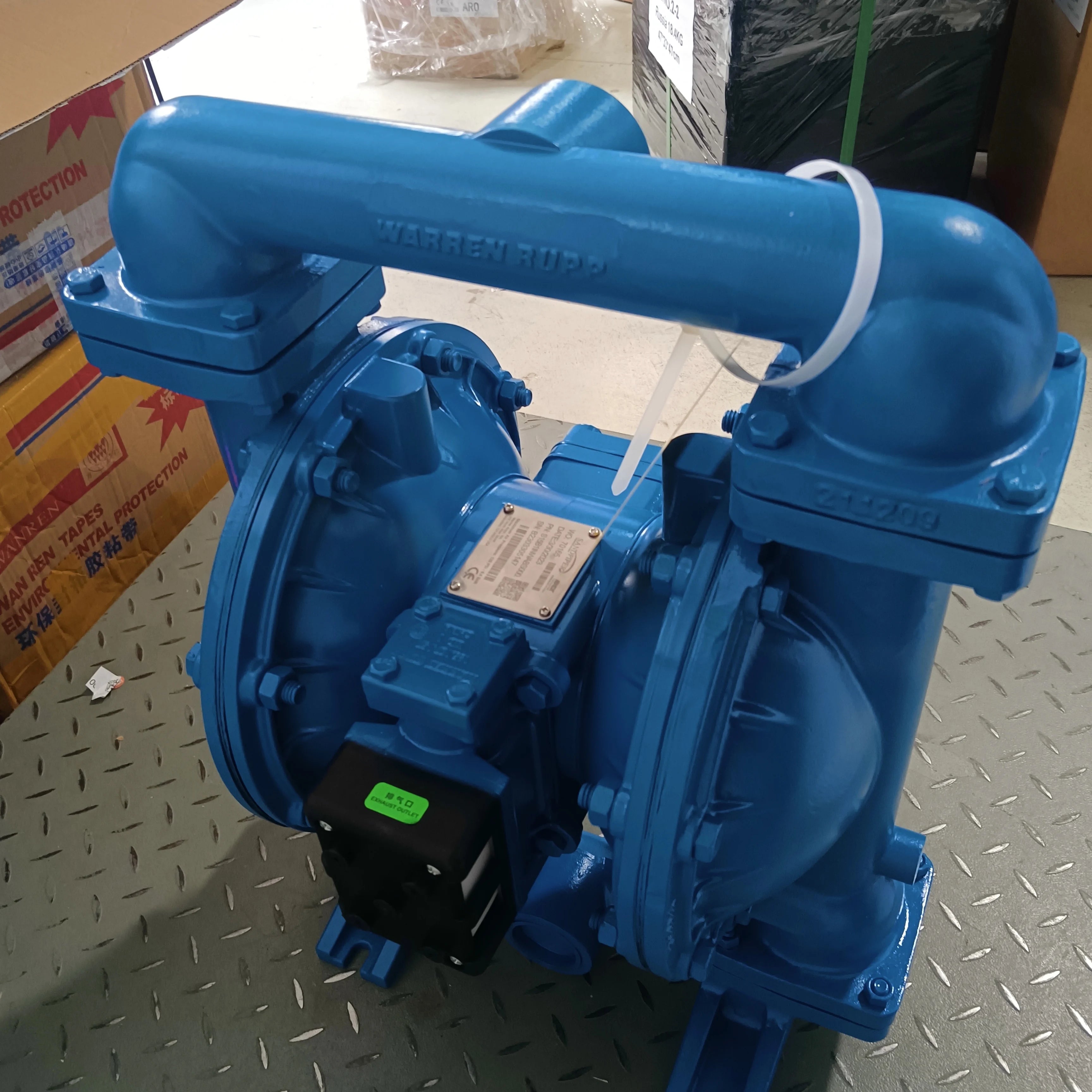

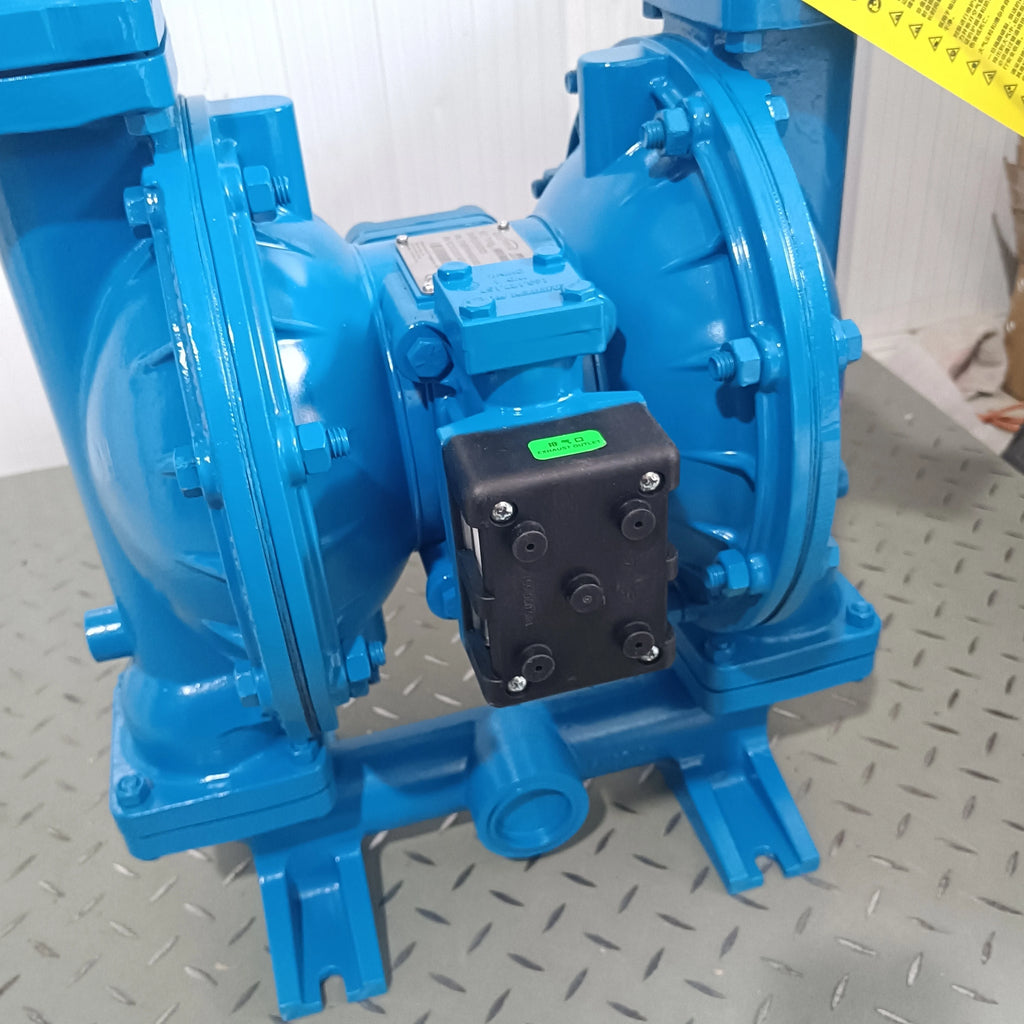

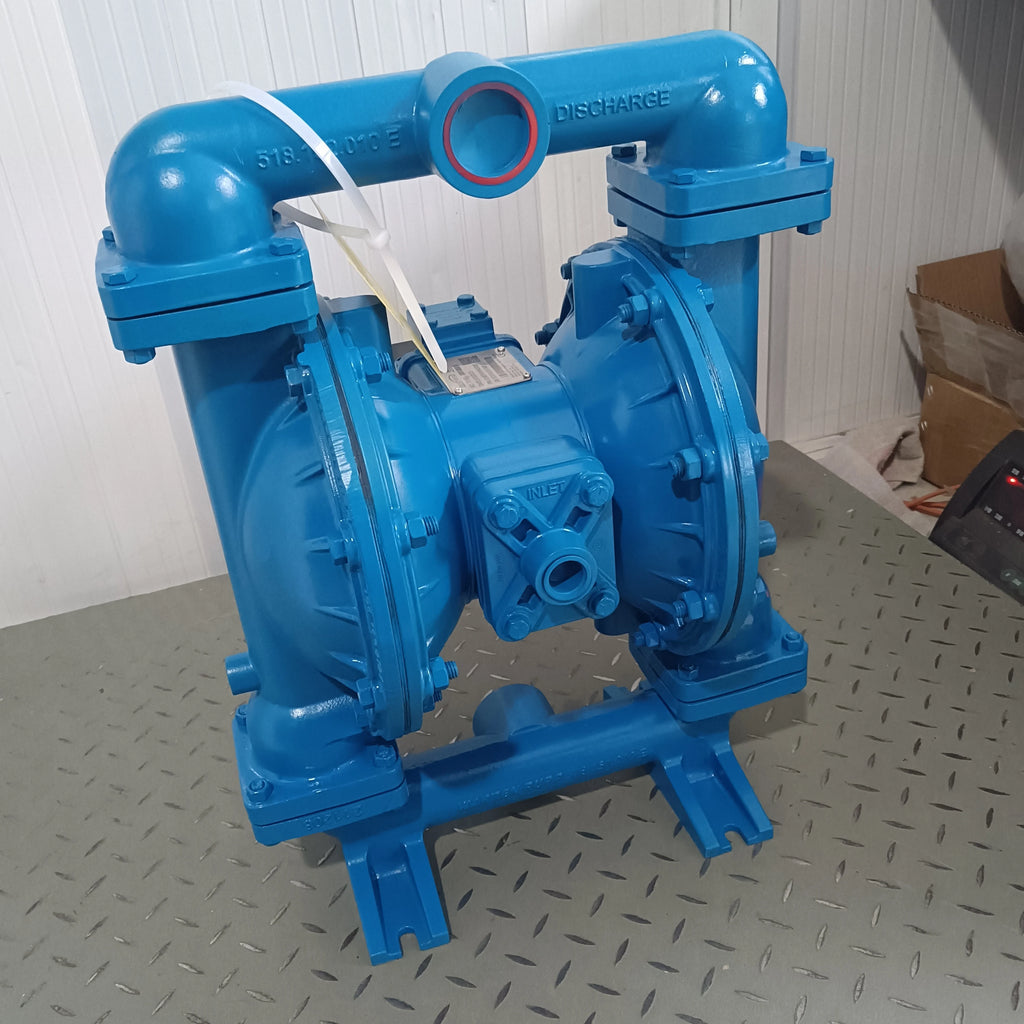

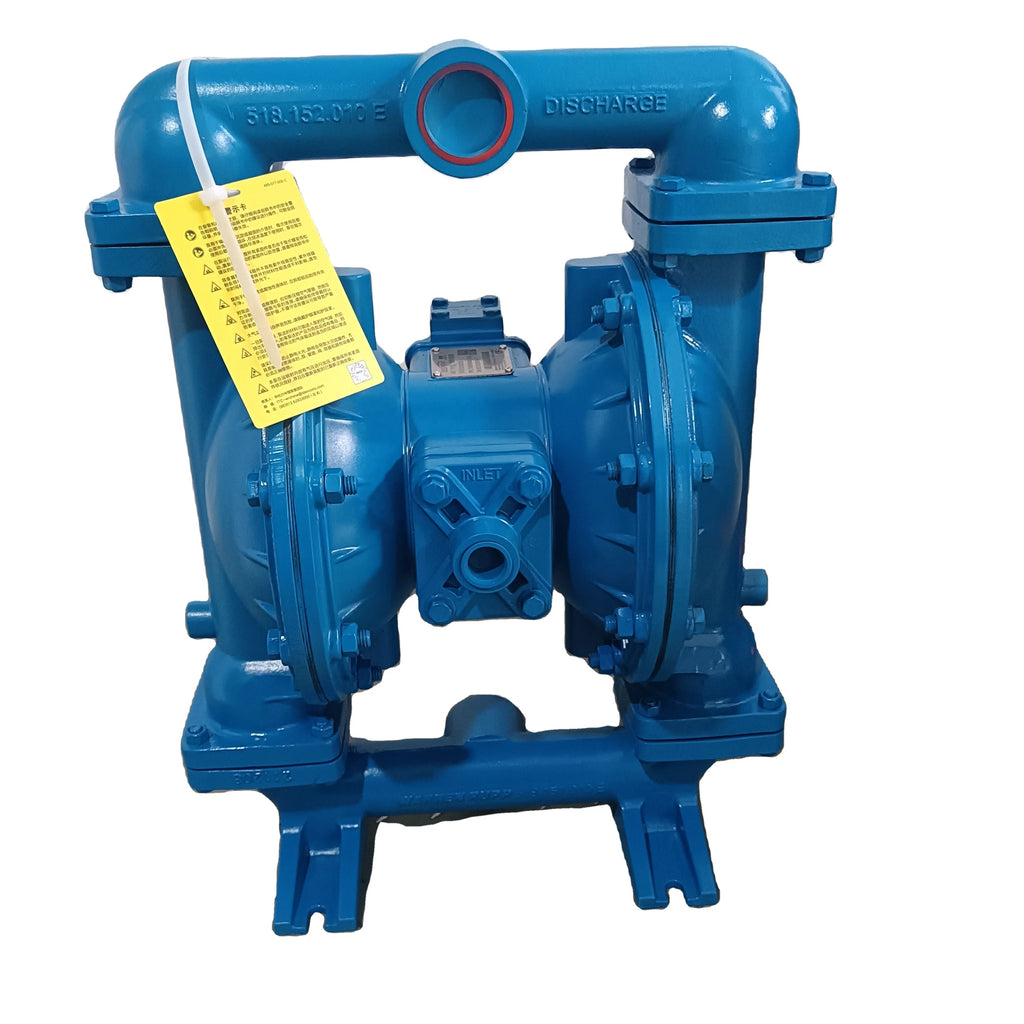

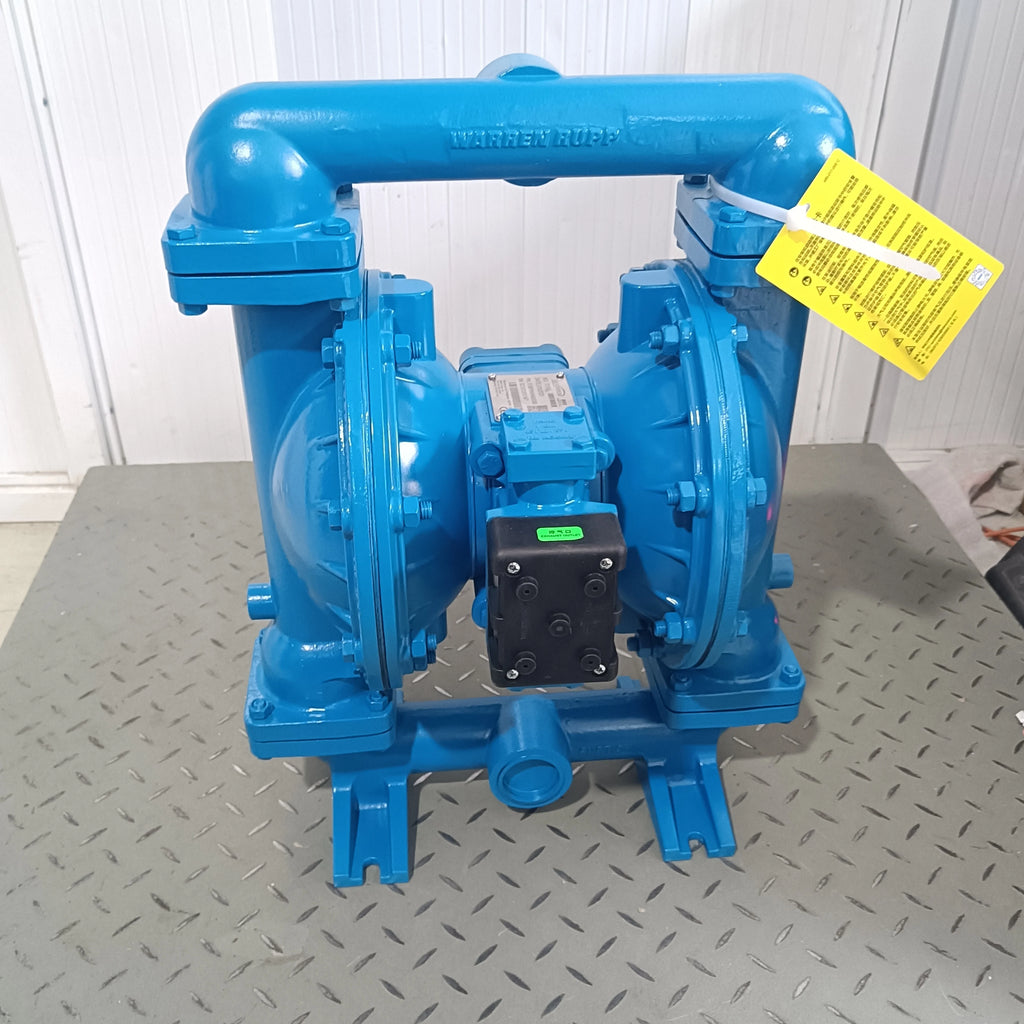

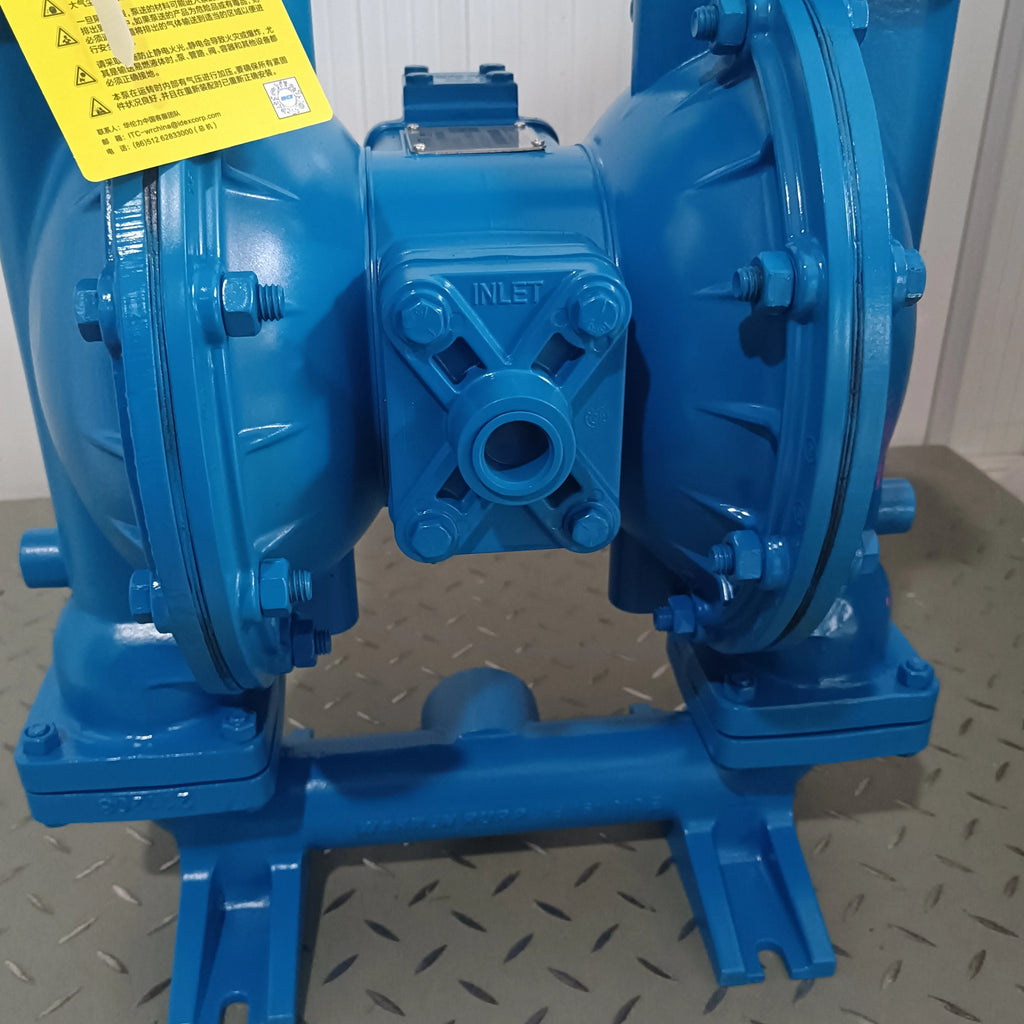

S15B1INWABS000 Sandpiper AODD Pump, 1.5-Inch 8.6Bar Cast Iron Neoprene Diaphragm Pump
The S15B1INWABS000 Sandpiper pneumatic diaphragm pump is a robust air-operated double diaphragm (AODD) pump designed for heavy-duty industrial applications.
- 8.6 Bar (125 psi) Max Operating Pressure
- 86 m Max Head
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The S15B1INWABS000 Sandpiper pneumatic diaphragm pump is a robust air-operated double diaphragm (AODD) pump designed for heavy-duty industrial applications. Built with a cast iron body and neoprene elastomers, it delivers durability and reliable performance in demanding environments.
With the ability to handle solids up to 6 mm and operate at pressures up to 8.6 bar, this pump is ideal for transferring abrasive, viscous, and contaminated fluids.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Pneumatic Diaphragm Pump (AODD) |
| Model | S15B1INWABS000 |
| Brand | Sandpiper |
| Pump Type | Diaphragm Pump |
| Structure | Air-Operated Double Diaphragm |
| Pressure | Up to 8.6 Bar |
| Max Operating Pressure | 8.6 Bar (125 psi) |
| Motor Type | Pneumatic |
| Power Source | Compressed Air |
| Pump Body Material | Cast Iron |
| Diaphragm Material | Neoprene |
| Valve Ball Material | Neoprene |
| Sealing Type | Diaphragm |
| Outlet Size | 38 mm (1.5 inch) |
| Solids Handling | Up to 6 mm |
| Max Head | 86 m |
| Weight | 42 kg |
| Certification | CE |
| Suitable Media | Slurry / Wastewater / Industrial Fluids |
| Operation Mode | Continuous Duty |
| Application Scope | Industrial |
| Warranty | 12 Months |
Key Features
- Air-operated double diaphragm (AODD) design
- Heavy-duty cast iron construction
- Neoprene diaphragm for durability
- Handles solids up to 6 mm
- Reliable performance up to 8.6 bar
- Suitable for abrasive and viscous fluids
Typical Applications
- Industrial fluid transfer
- Wastewater and sludge handling
- Mining and processing plants
- Chemical handling
- Automotive and manufacturing industries
- Cleaning and washing systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
