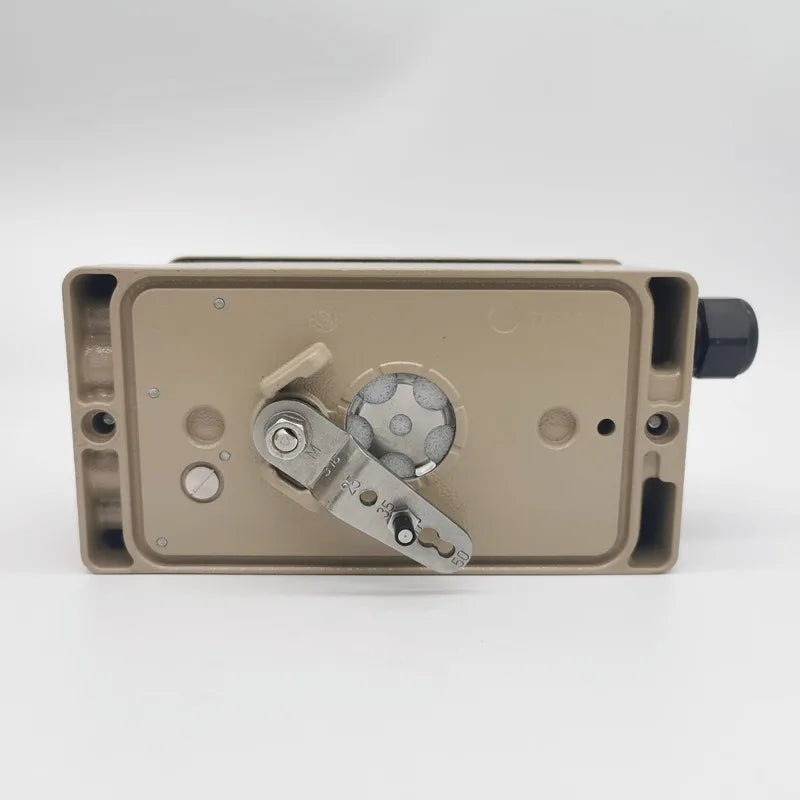

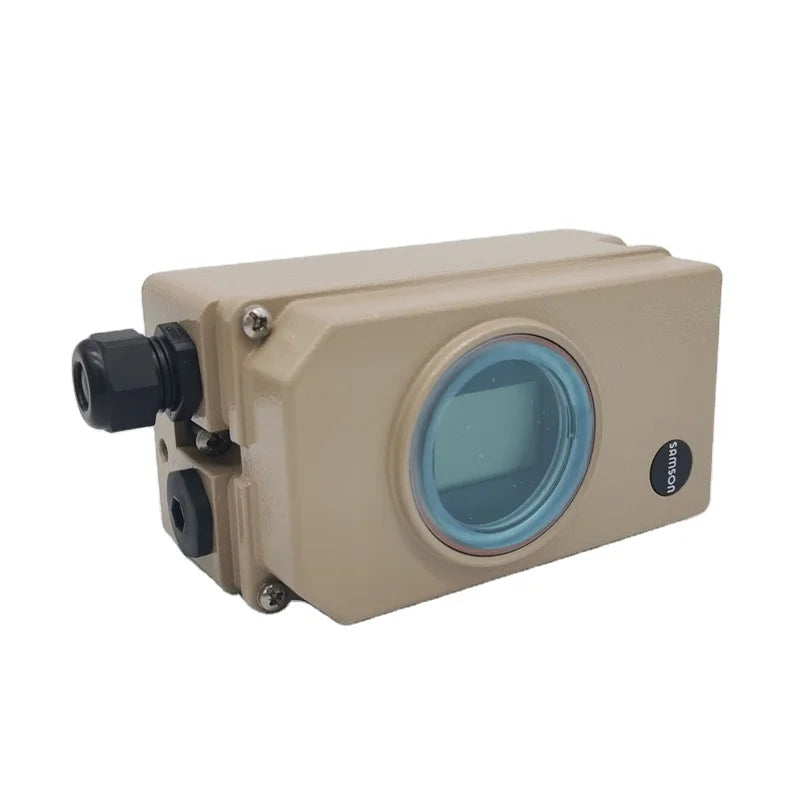

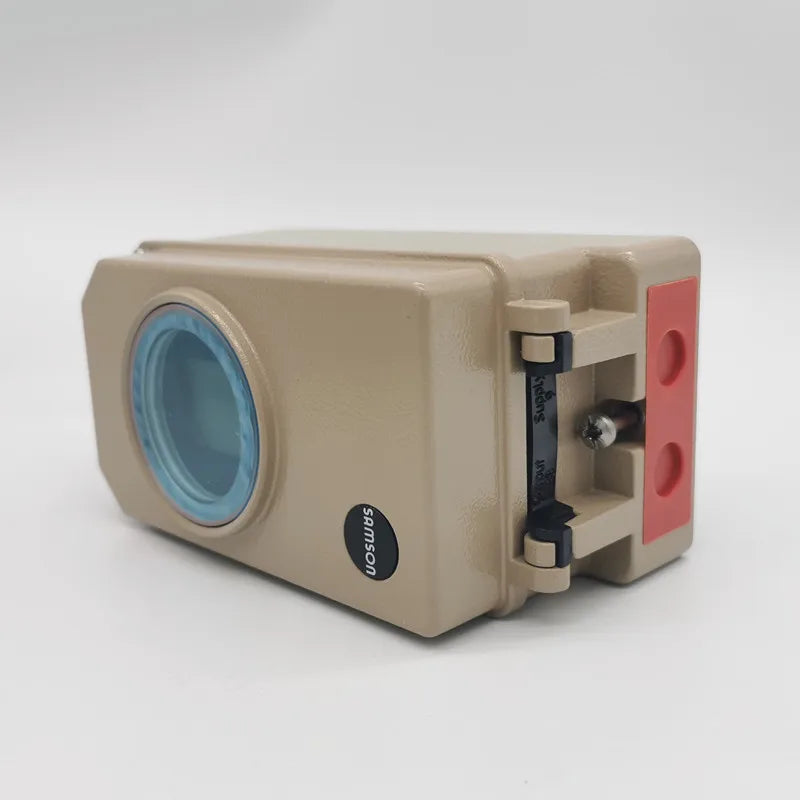

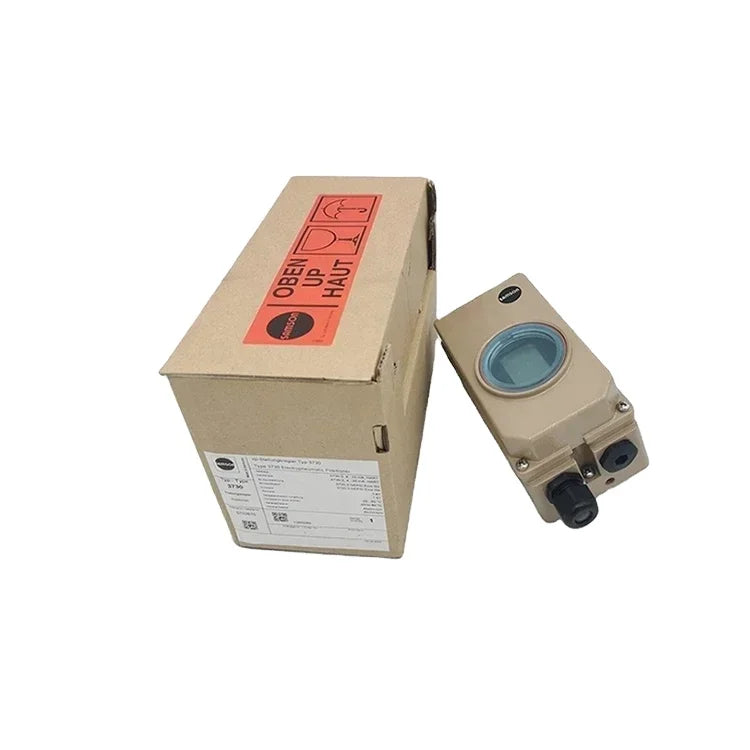

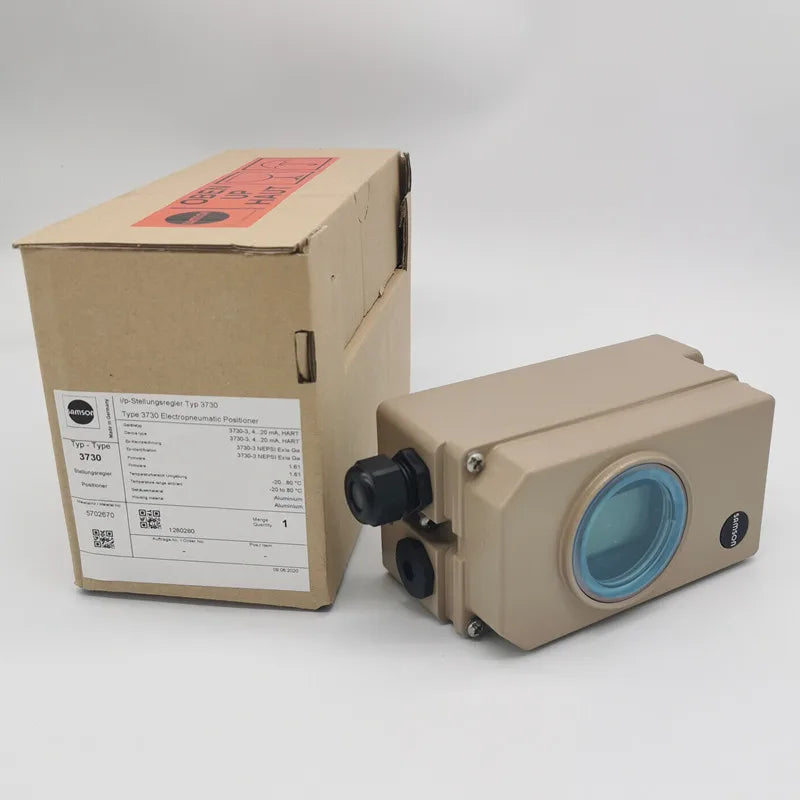

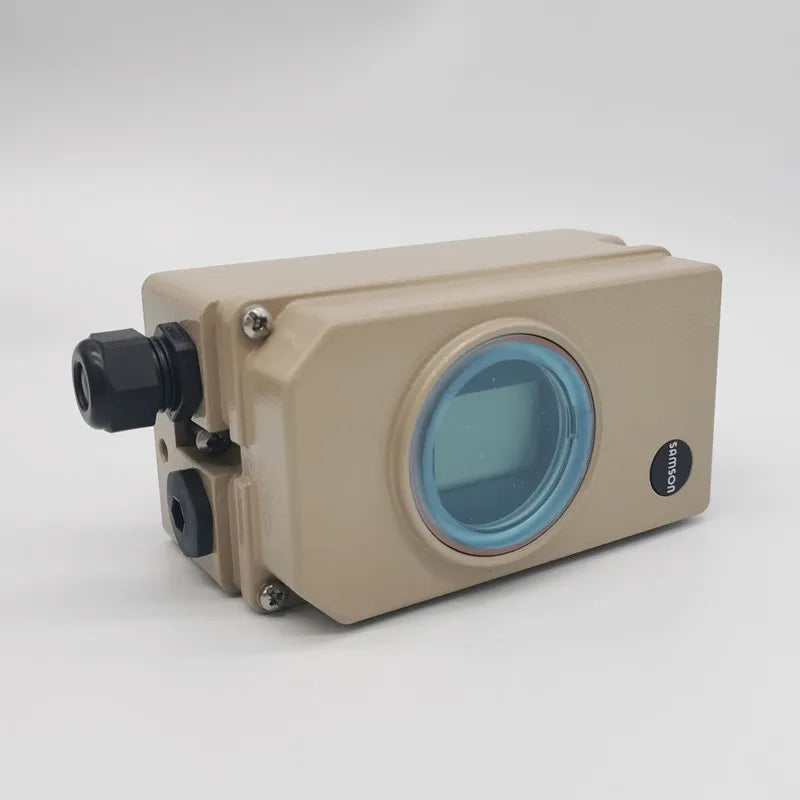

SAMSON 3730-2100100040000000.04 Smart Electropneumatic Valve Positioner Without HART
The SAMSON 3730-2100100040000000.04 Smart Electropneumatic Valve Positioner is designed for accurate positioning and automated control of pneumatic valve actuators in industrial process systems.
- Single Acting; Double Acting with Reversing Amplifier Actuator Configuration
- 1.4–7 Bar (20–105 psi) Supply Air Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The SAMSON 3730-2100100040000000.04 Smart Electropneumatic Valve Positioner is designed for accurate positioning and automated control of pneumatic valve actuators in industrial process systems. Part of the SAMSON Series 3730, this intelligent positioner operates using a standard 4–20 mA electrical control signal to regulate pneumatic output pressure and maintain precise valve positioning. Its microprocessor-based control technology supports responsive actuator movement, stable flow regulation, and reliable performance in industrial environments requiring consistent process control.
The SAMSON Type 3730-2 features automatic initialisation, an integrated LCD display, configurable control characteristics, and advanced diagnostic functions for convenient operation and maintenance. Its electropneumatic design combines an electronic control unit, current-to-pressure converter, and pneumatic air capacity booster to deliver accurate actuator control. Unlike the HART-enabled Type 3730-3, the Type 3730-2 uses local configuration and SAMSON's serial communication interface. Its versatile mounting options make it suitable for pneumatic linear and rotary actuators used in manufacturing, chemical processing, oil and gas facilities, power generation, and industrial fluid control applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Smart Electropneumatic Valve Positioner |
|
Brand |
SAMSON |
|
Manufacturer |
SAMSON Controls |
|
Model |
3730-2100100040000000.04 |
|
Series |
3730 |
|
Positioner Type |
Type 3730-2 |
|
Product Type |
Intelligent Electropneumatic Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Operating Principle |
Electronic Valve Position Control |
|
Actuator Configuration |
Single Acting; Double Acting with Reversing Amplifier |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
Without HART |
|
Local Communication |
SAMSON SSP Serial Interface |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Supply Air Pressure |
1.4–7 Bar (20–105 psi) |
|
Pneumatic Output Pressure |
0 Bar up to Supply Pressure |
|
Linear Valve Travel |
3.6–200 mm, Depending on Mounting |
|
Rotary Opening Angle |
24–100° |
|
Control Characteristic |
Linear, Equal Percentage, Reverse Equal Percentage |
|
Direction of Action |
Reversible |
|
Control Function |
Automatic Valve Position Regulation |
|
Display Type |
LCD |
|
Initialisation |
Automatic |
|
Diagnostics |
Status Monitoring, Fault Alarms and Travel Diagnostics |
|
Software Interface |
SAMSON TROVIS-VIEW |
|
Electrical Connection |
M20 × 1.5 |
|
Protection Rating |
IP66 / NEMA 4X |
|
Operating Temperature |
-20°C to +80°C, Standard Version |
|
Mounting Options |
Direct Attachment, NAMUR and Rotary Mounting |
|
Mounting Standards |
IEC 60534-6-1, VDI/VDE 3845 |
|
Working Medium |
Clean, Dry Instrument Air |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent electropneumatic positioning for accurate industrial pneumatic control valve operation.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
Microprocessor-based control technology for responsive and consistent valve positioning.
-
Automatic initialisation for simplified installation, setup, and commissioning.
-
Integrated LCD display for convenient local parameter configuration and status monitoring.
-
SAMSON SSP serial interface for configuration using compatible TROVIS-VIEW software.
-
Adjustable linear, equal percentage, and reverse equal percentage control characteristics.
-
Supply air pressure range of 1.4–7 bar for compatible pneumatic actuator systems.
-
Supports linear and rotary pneumatic control valve applications.
-
Reversible direction of action for flexible industrial valve control.
-
Integrated pneumatic air capacity booster for responsive actuator movement.
-
Configurable software limit switches and fault alarm functions for process monitoring.
-
Advanced diagnostic capabilities for monitoring valve travel, control deviations, and instrument performance.
-
IP66 enclosure protection against dust and water ingress.
-
Flexible mounting arrangements for compatible SAMSON and other industrial control valve actuators.
-
Suitable for continuous-duty industrial process automation applications.
Typical Applications
-
Industrial process automation systems
-
Pneumatic control valve assemblies
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing equipment
-
Pneumatic linear actuator positioning
-
Rotary control valve automation
-
Industrial flow and pressure regulation systems
-
Steam and process fluid control systems
-
Industrial process instrumentation
-
Automated production and fluid handling equipment
