SAMSON 6109-0001010 I/P Converter Module for Type 4763 Valve Positioners
The SAMSON 6109-0001010 I/P Converter Module is a replacement electropneumatic component intended for use in compatible SAMSON valve positioning equipment.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

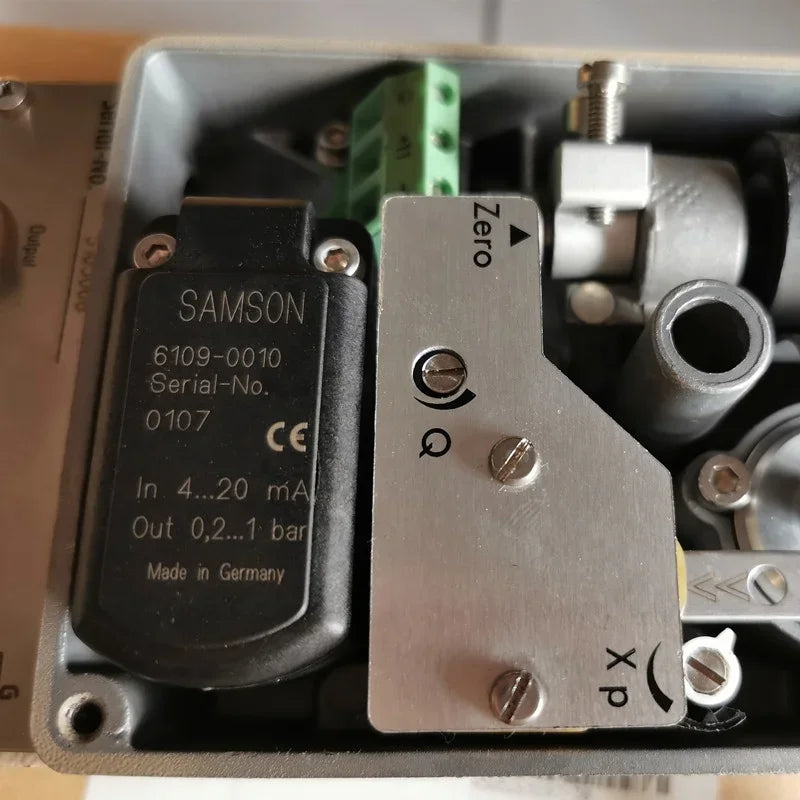

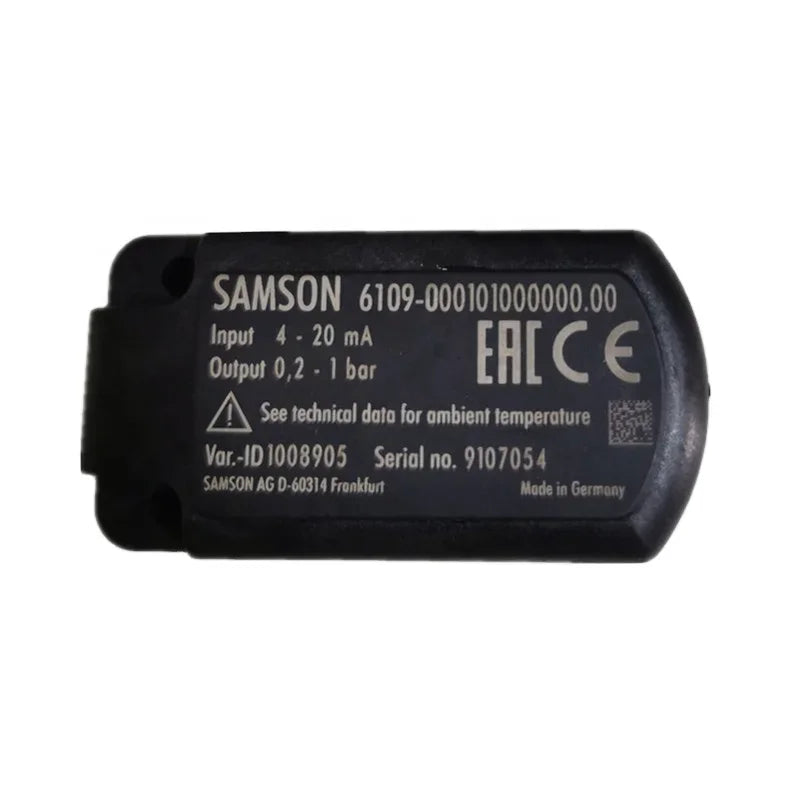

The SAMSON 6109-0001010 I/P Converter Module is a replacement electropneumatic component intended for use in compatible SAMSON valve positioning equipment. It converts an electrical current signal into a corresponding pneumatic pressure signal, allowing the positioner's control mechanism to regulate valve movement. This current-to-pressure conversion supports stable valve positioning, responsive pneumatic actuator control, and reliable operation in industrial process automation systems.

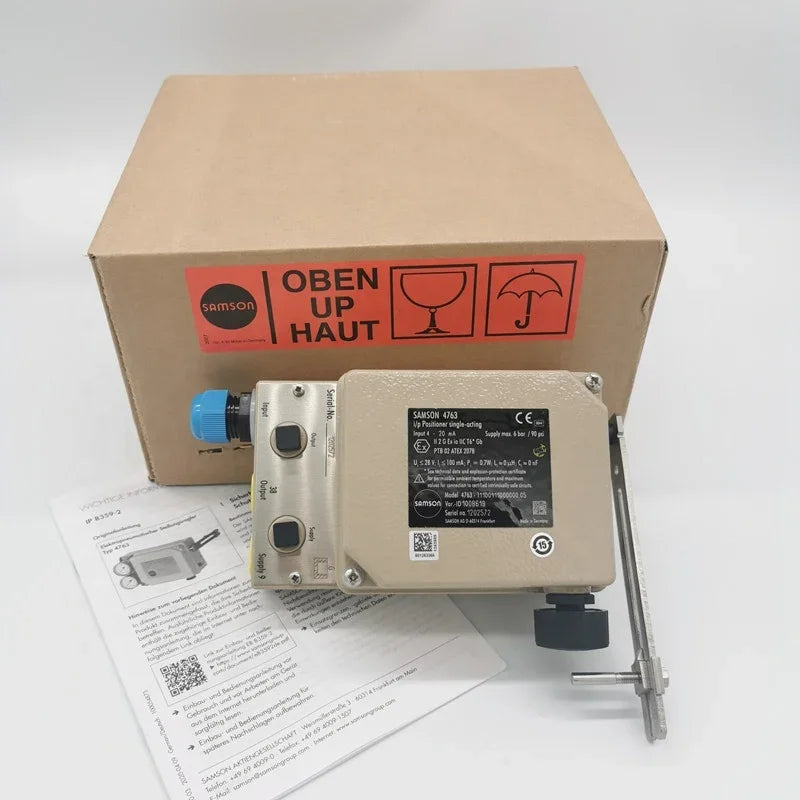

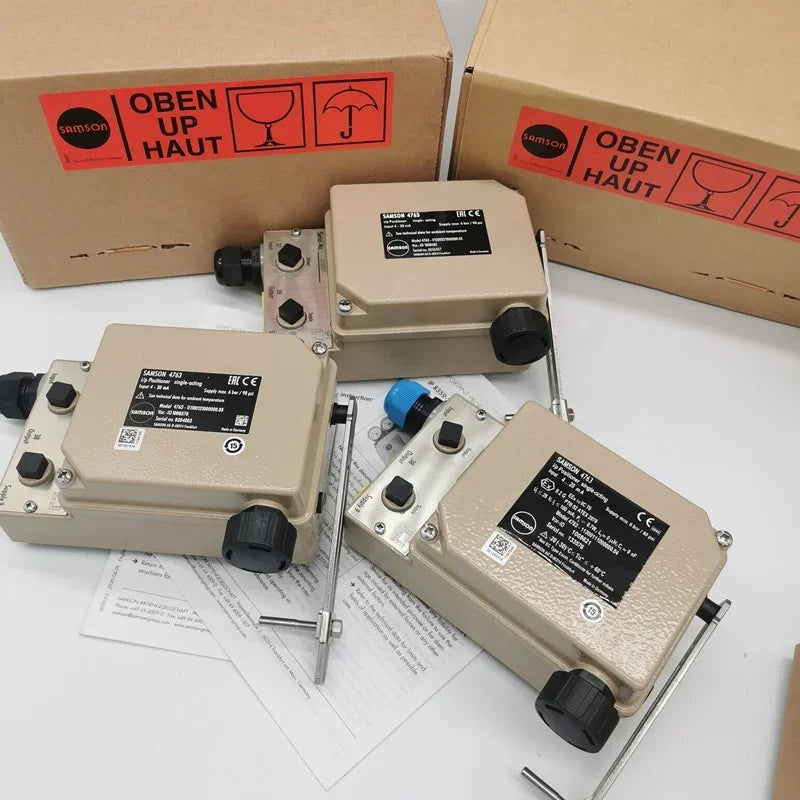

Part of the SAMSON Type 6109 converter family, the 6109-0001010 is associated with electropneumatic positioners such as the SAMSON Type 4763. The complete Type 4763 positioner combines an I/P converter with mechanical valve travel feedback, a nozzle-and-flapper control mechanism, and a pneumatic amplifier. When an I/P converter becomes defective, replacing the correctly matched module can help restore control performance without replacing the entire positioner. The component is relevant to industrial instrumentation maintenance in chemical processing, oil and gas facilities, power generation, water treatment, and manufacturing applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic I/P Converter Module |
|
Manufacturer / Brand |
SAMSON |
|
Main Part Number |
6109-0001010 |
|
Product Series |
Type 6109 |
|
Product Type |
Current-to-Pressure Converter Module |
|
Component Category |
Valve Positioner Spare Parts |
|
Operating Technology |
Electropneumatic |
|
Primary Function |
Electrical-to-Pneumatic Signal Conversion |
|
Control Principle |
Electromagnetic Current-to-Pressure Conversion |
|
Electrical Signal |
DC Current Input, Configuration Dependent |
|
Typical Positioner Input |
4–20 mA in Compatible Type 4763 Configurations |
|
Pneumatic Output |
Proportional Pneumatic Pressure Signal |
|
Associated Positioner Family |
SAMSON Type 4763 |
|
Other Associated Equipment |
Selected SAMSON Type 3760 Positioners |
|
Installation Type |
Internal Positioner Converter Component |
|
Actuator Application |
Industrial Pneumatic Control Valves |
|
Positioner Operating Principle |
Force-Balance Control with Pneumatic Amplification |
|
Working Medium |
Clean, Dry Instrument Air |
|
Maintenance Application |
Replacement of a Compatible I/P Converter |
|
Related Part Numbers |
6109-1001010, 6109-1010, 6109-0101 |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Electropneumatic I/P converter component identified by part number 6109-0001010.
-
Designed for current-to-pressure signal conversion in compatible SAMSON instruments.
-
Associated with the SAMSON Type 6109 converter family.
-
Supports proportional pneumatic pressure generation from an electrical control signal.
-
Relevant to SAMSON Type 4763 electropneumatic valve positioner maintenance.
-
Supports accurate valve positioning when incorporated into a correctly configured positioner.
-
Works with the complete positioner's mechanical feedback and pneumatic amplification system.
-
Compact component construction intended for internal instrument installation.
-
Suitable for replacing a defective or deteriorated converter module.
-
Helps restore electropneumatic control functionality in compatible valve assemblies.
-
Designed for use with clean, dry instrument air.
-
Supports industrial process control equipment servicing and refurbishment.
-
Part-number identification helps maintenance teams select replacement components.
-
Useful for preventive maintenance and scheduled plant shutdowns.
Typical Applications
-
SAMSON Type 4763 valve positioner servicing
-
Selected SAMSON Type 3760 positioner maintenance
-
Electropneumatic I/P converter replacement
-
Industrial current-to-pressure signal conversion
-
Pneumatic control valve instrumentation
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing automation
-
Industrial valve maintenance and refurbishment
-
Process instrumentation repair workshops
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
