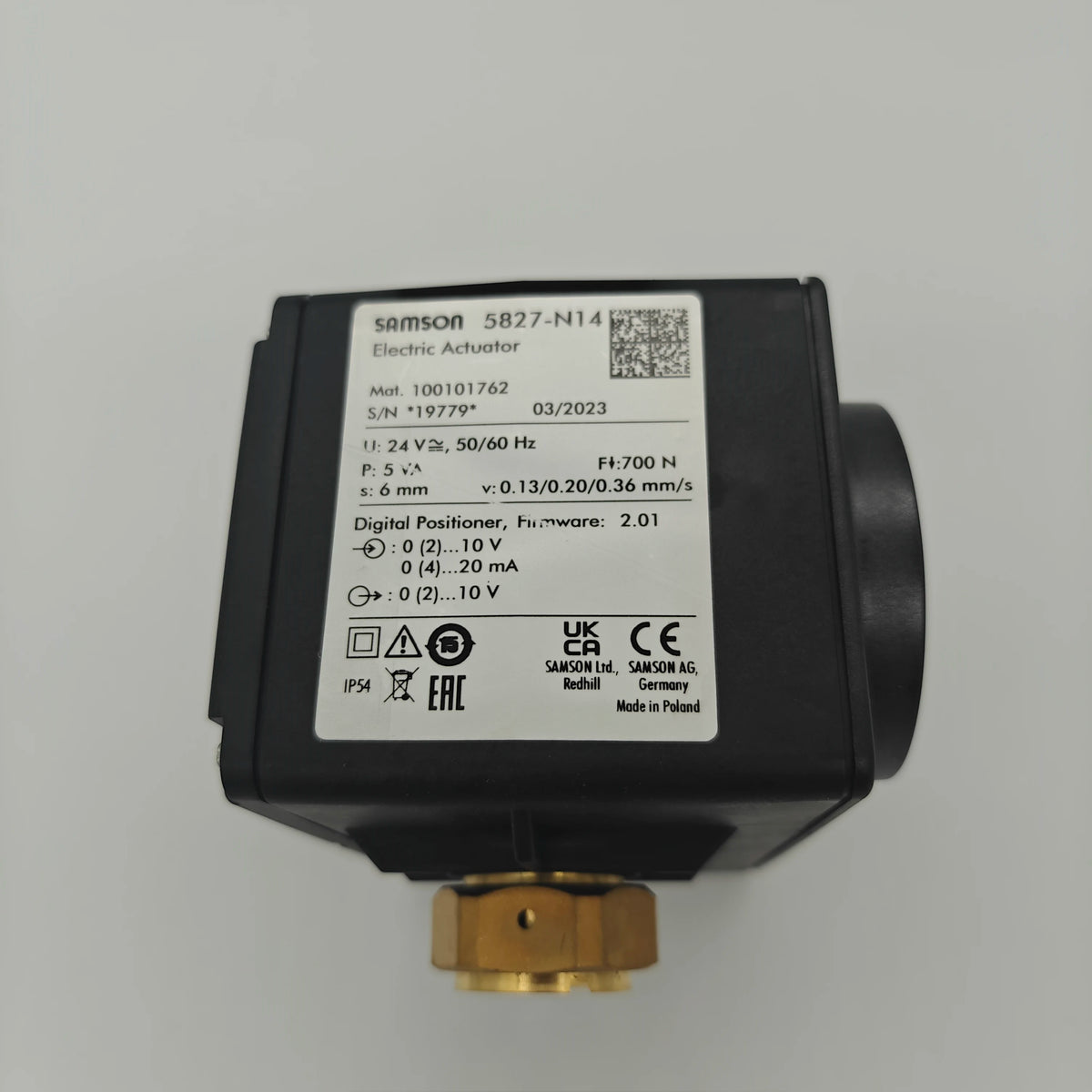

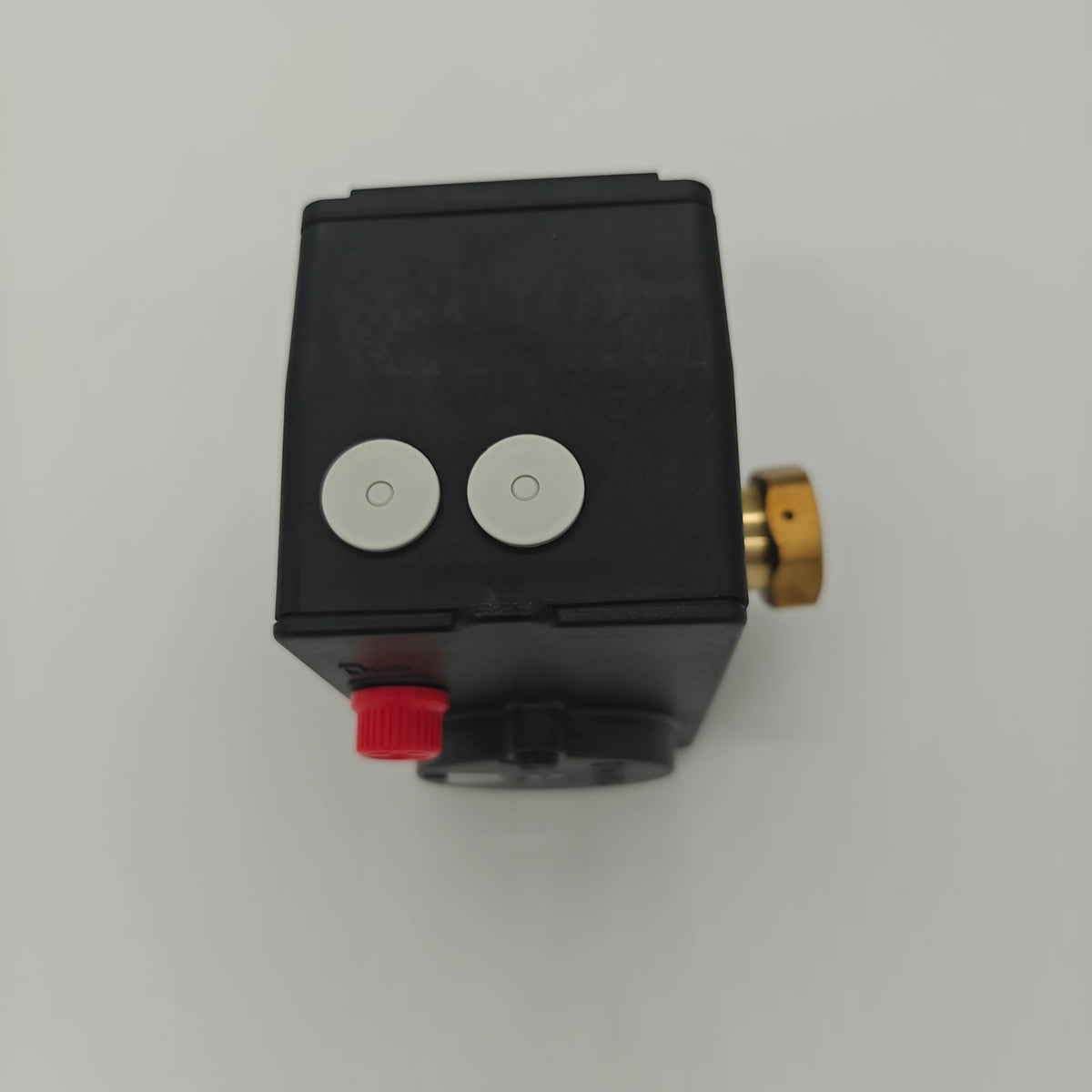

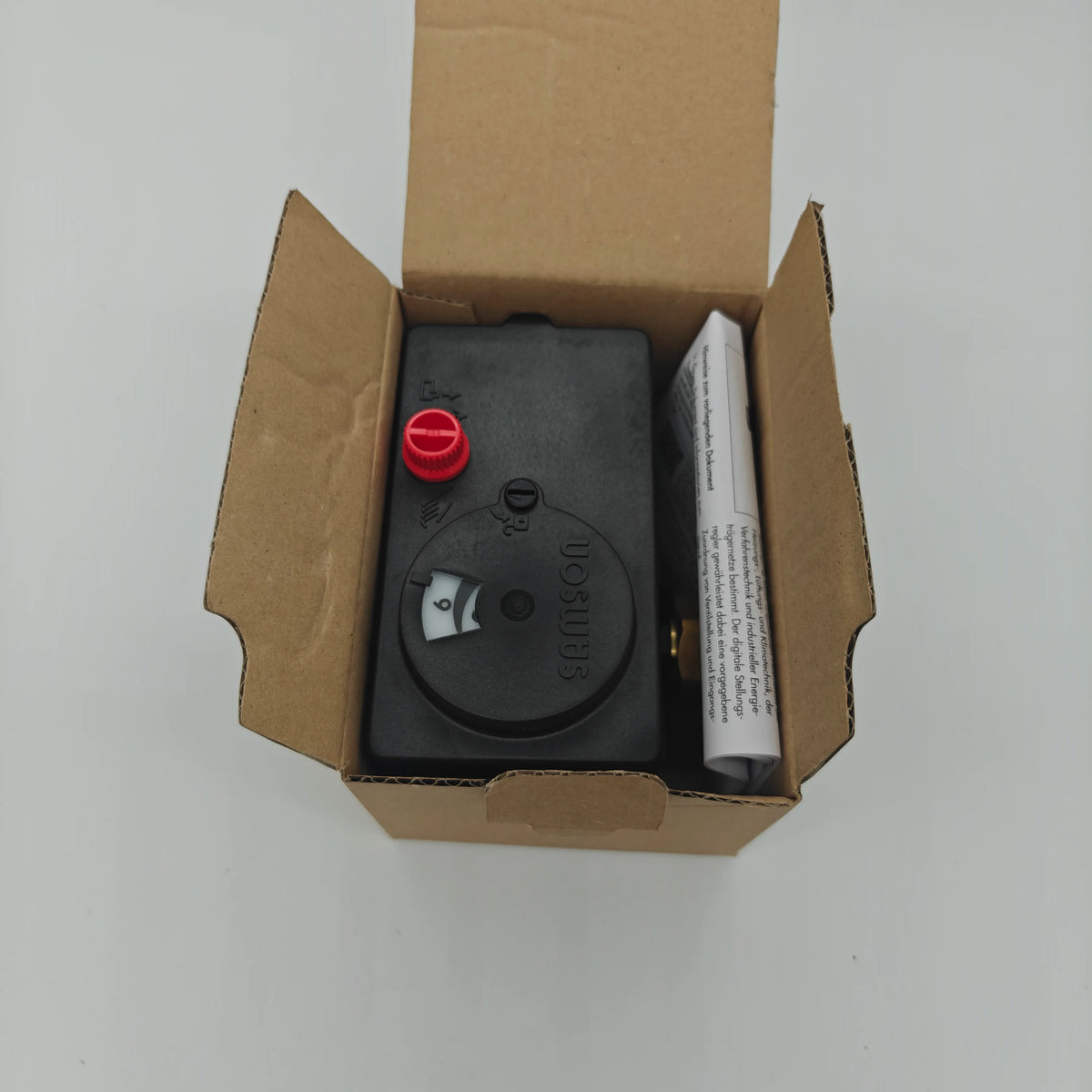

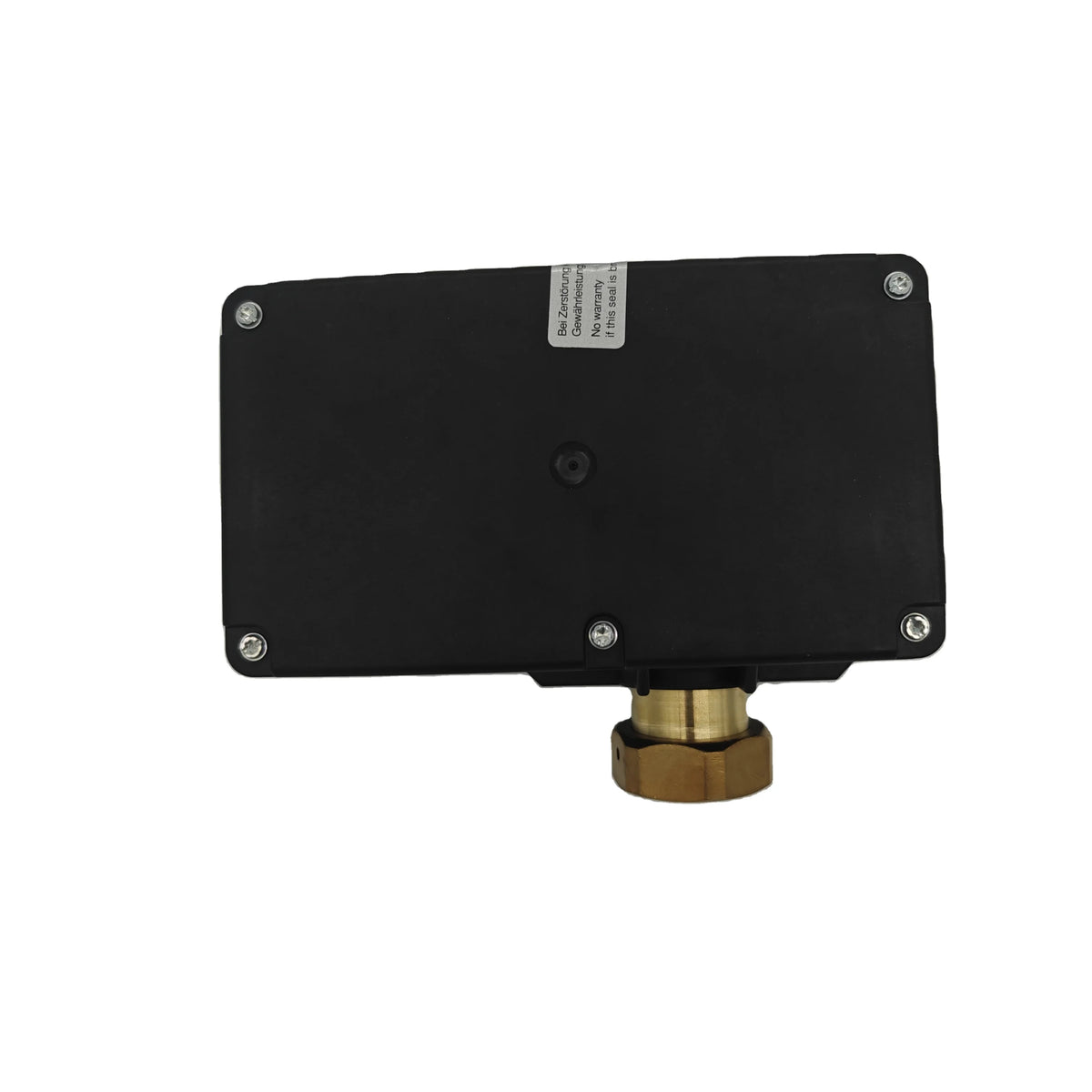

SAMSON 5827-N14 Electric Linear Actuator with Integrated Digital Positioner
The SAMSON 5827-N14 Electric Linear Actuator is designed for precise, electrically controlled operation of compatible industrial control valves.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The SAMSON 5827-N14 Electric Linear Actuator is designed for precise, electrically controlled operation of compatible industrial control valves. Manufactured by SAMSON, this actuator converts electrical control signals into linear mechanical movement to regulate valve opening and closing. Equipped with an integrated digital positioner, the 5827-N14 supports continuous valve positioning using compatible analogue control signals, making it suitable for applications requiring accurate flow, temperature and pressure regulation.
Part of the SAMSON Type 5827 Series, the 5827-N14 features a 24V AC/DC electrical supply, 6 mm rated travel and a force-locking connection to compatible valve stems. Its motor-driven planetary gearing and ball screw mechanism provide controlled stem movement, while torque-dependent switches protect the drive at its travel limits and during overload conditions. The actuator also supports manual override, automatic calibration, position feedback and configuration using SAMSON TROVIS-VIEW software. It is particularly suitable for heating, ventilation and air-conditioning systems, industrial energy transfer installations and process engineering applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electric Linear Actuator with Digital Positioner |
|
Manufacturer / Brand |
SAMSON |
|
Model |
5827-N14 |
|
Series |
Type 5827 |
|
Product Type |
Electric Linear Valve Actuator |
|
Actuator Technology |
Electromechanical |
|
Actuator Movement |
Linear |
|
Control Configuration |
Integrated Digital Positioner |
|
Fail-Safe Configuration |
Without Fail-Safe Action |
|
Rated Travel |
6 mm |
|
Valve Stem Connection |
Force-Locking |
|
Electrical Supply |
24V AC/DC |
|
Electrical Control |
Continuous Analogue Control |
|
Input Signal Options |
0/2–10V or 0/4–20 mA |
|
Position Feedback Signal |
0–10V |
|
Motor Type |
Stepper Motor |
|
Drive Mechanism |
Planetary Gearing and Ball Screw |
|
Maximum Actuating Thrust |
Up to 700 N |
|
Stroking Speed |
Adjustable |
|
Approximate Travel Time |
17–45 Seconds, Depending on Speed Setting |
|
Manual Override |
Integrated Handwheel |
|
Calibration |
Automatic Zero Calibration |
|
Motor Protection |
Torque-Dependent Switching |
|
Blocking Protection |
Available Through Digital Positioner |
|
Configuration Software |
SAMSON TROVIS-VIEW |
|
Local Status Indication |
LED Indicators |
|
Enclosure Protection |
IP54 |
|
Standard Operating Temperature |
0°C to +50°C |
|
Compatible Valve Types |
Selected SAMSON 3260, 3222, 3226, 3213, 3214 and V2001 |
|
Energy Source |
Electrical |
|
Maintenance |
Maintenance-Free Gear Mechanism |
|
Application Scope |
HVAC, Industrial Valve Automation and Energy Transfer Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Electric linear actuator designed for precise positioning of compatible SAMSON industrial control valves.
-
Integrated digital positioner for continuous and accurate valve travel control.
-
24V AC/DC electrical supply suitable for compatible industrial automation systems.
-
Standard analogue control inputs, including voltage and current signal options.
-
6 mm rated linear travel for suitable control valve assemblies.
-
Maximum actuating thrust of up to 700 N for compatible valve applications.
-
Stepper motor and maintenance-free planetary gearing for controlled mechanical movement.
-

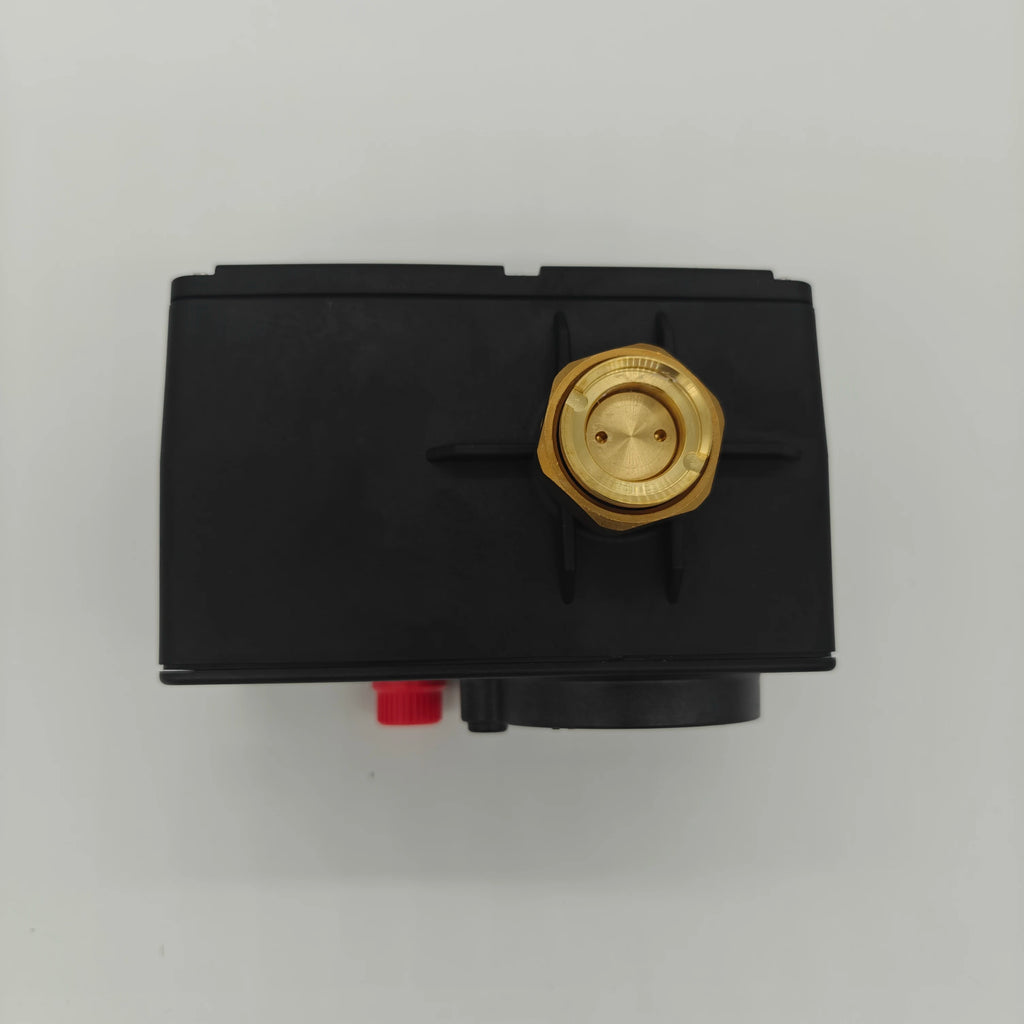

Force-locking valve stem connection for compatible SAMSON valve designs.
-
Automatic zero calibration for simplified commissioning.
-
Adjustable stroking speed for application-specific control performance.
-
Integrated 0–10V analogue position feedback for monitoring valve travel.
-

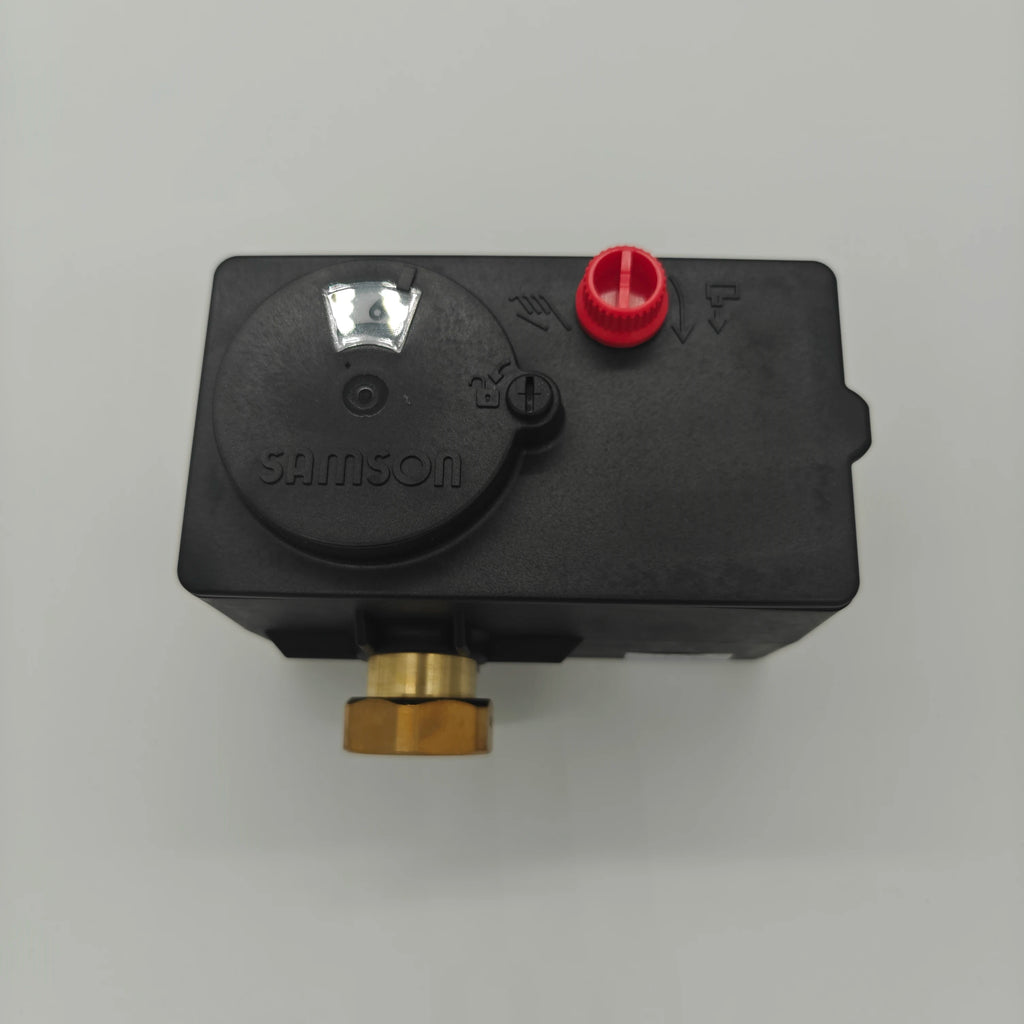

Manual override handwheel for operation during servicing or power interruption.
-
Torque-dependent switches for motor protection at travel limits and during overload.
-
Configurable operating parameters using SAMSON TROVIS-VIEW software.
-
LED indicators for monitoring actuator operating conditions and faults.
Typical Applications
-
Heating, ventilation and air-conditioning systems
-
Industrial temperature control systems
-
District heating and energy transfer stations
-
Heat exchanger control valve assemblies
-
Building automation and management systems
-
Industrial process engineering installations
-
Hot water distribution and regulation systems
-
Chilled water control systems
-
Industrial fluid flow regulation
-
SAMSON globe valve automation
-
Differential pressure and flow regulator assemblies
-
Industrial utility and energy management systems
