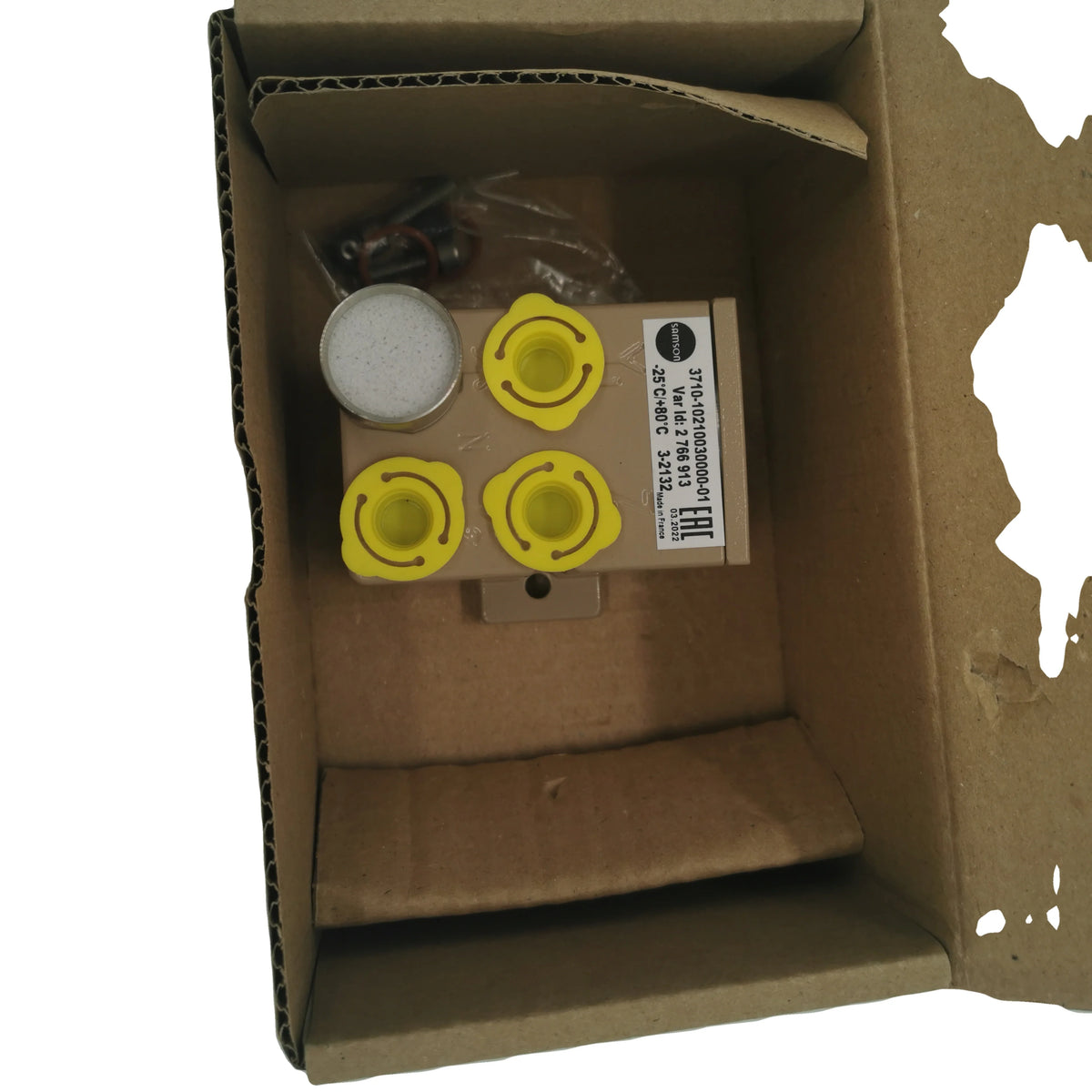

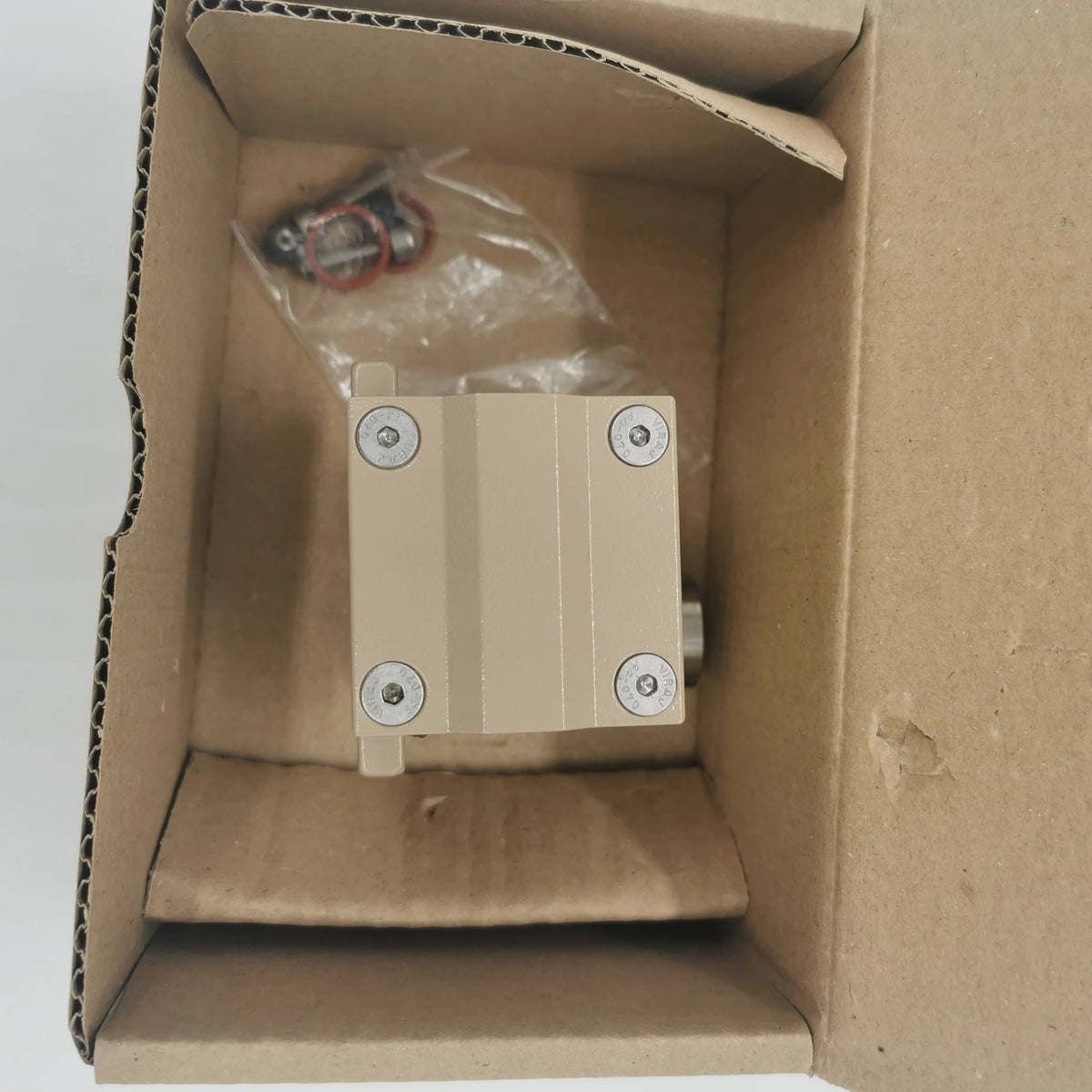

SAMSON Type 3710 Pneumatic Reversing Amplifier for Double-Acting Actuators
The SAMSON Type 3710 Pneumatic Reversing Amplifier is designed to enable double-acting pneumatic actuators to operate using a single-acting pneumatic or electropneumatic valve positioner.
- Optional One or Two Gauges Pressure Gauge Configuration
- 6 Bar (Approximately 87 psi) Maximum Supply Pressure
- 0.11 Supply Flow Coefficient (Kv)
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The SAMSON Type 3710 Pneumatic Reversing Amplifier is designed to enable double-acting pneumatic actuators to operate using a single-acting pneumatic or electropneumatic valve positioner. Manufactured by SAMSON, this pneumatic control accessory generates an opposing output pressure signal, allowing compressed air to be supplied to both actuator chambers for controlled valve opening and closing. Its mechanical pneumatic operation supports reliable actuator movement, accurate valve positioning, and consistent performance in industrial process control systems.
The SAMSON 3710 operates by using the positioner's output signal pressure (Y1) and instrument supply pressure (Z) to generate a second output pressure (Y2). The two actuator pressures maintain the relationship Y1 + Y2 = Z, allowing coordinated movement of compatible double-acting actuators. The standard version supports a maximum supply pressure of 6 bar, IP65 protection, and operating temperatures from −25°C to +80°C. Designed for use with compatible SAMSON Type 3725, 3730, 3731 and other selected positioners, the amplifier is suitable for valve automation in chemical processing, oil and gas, power generation, water treatment, and industrial manufacturing facilities.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Pneumatic Reversing Amplifier |
|
Brand |
SAMSON |
|
Manufacturer |
SAMSON AG |
|
Model |
Type 3710 |
|
Product Type |
Pneumatic Reversing Amplifier |
|
Component Category |
Valve Positioner Accessories |
|
Control Function |
Single-Acting to Double-Acting Pneumatic Signal Conversion |
|
Operating Principle |
Pneumatic Pressure Reversal |
|
Actuator Compatibility |
Double-Acting Pneumatic Actuators |
|
Positioner Compatibility |
Compatible Single-Acting Pneumatic and Electropneumatic Positioners |
|
Maximum Supply Pressure |
6 Bar (Approximately 87 psi) |
|
Pneumatic Signal Relationship |
Y1 + Y2 = Z |
|
Supply Flow Coefficient (Kv) |
0.11 |
|
Exhaust Flow Coefficient (Kv) |
0.12 |
|
Pneumatic Connection Options |
1/4-18 NPT or ISO 228/1 G 1/4 |
|
Standard Housing Material |
Powder-Coated Aluminium |
|
Optional Housing Material |
Stainless Steel 1.4404 |
|
Diaphragm Plate Material |
Aluminium |
|
Seat and Plug Material |
Brass |
|
Standard Diaphragm Material |
Silicone Rubber (FVMQ) |
|
Standard Ambient Temperature |
−25°C to +80°C |
|
Low-Temperature Versions |
−50°C to +80°C or −60°C to +80°C |
|
Degree of Protection |
IP65 |
|
Pressure Gauge Configuration |
Optional One or Two Gauges |
|
Optional Gauge Range |
0–6 Bar (0–90 psi) |
|
Standard Aluminium Version Weight |
Approximately 0.5 kg |
|
Stainless Steel Version Weight |
Approximately 1.2 kg |
|
Power Source |
Compressed Instrument Air |
|
Compatible Positioner Series |
SAMSON 3725, 3730, 3731 and Selected 3766, 3767, 3780 |
|
Related Equipment |
SAMSON Type 4708-54 Supply Pressure Regulator |
|
Working Medium |
Clean, Dry Instrument Air |
|
Application Scope |
Industrial Pneumatic Valve Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Pneumatic reversing amplifier designed for operating double-acting actuators with single-acting valve positioners.
-
Generates a second, opposing pressure signal for controlled actuator movement.
-
Maintains the pneumatic relationship Y1 + Y2 = Z for coordinated pressure distribution.
-
Maximum supply pressure of 6 bar for compatible industrial actuator installations.
-
Supports integration with SAMSON Type 3725, 3730, and 3731 positioners.
-
Compatible with selected SAMSON 3766, 3767, and 3780 positioner configurations.
-
Suitable for pneumatic actuator installations requiring two opposing pressure outputs.
-
Durable powder-coated aluminium housing in the standard configuration.
-
Stainless steel housing option for appropriately specified industrial environments.
-
IP65 enclosure protection against dust and water ingress.
-
Optional pressure gauges for monitoring pneumatic output pressures.
-
Available with G 1/4 or 1/4-inch NPT pneumatic connections.
-
Mechanical pneumatic operation without an independent electrical supply.
-
Standard operating temperature range of −25°C to +80°C.
-
Low-temperature configurations available for demanding operating environments.
-
Compact construction for mounting with compatible valve positioner assemblies.
Typical Applications
-
Double-acting pneumatic actuator control
-
SAMSON valve positioner installations
-
Industrial control valve automation
-
Rotary pneumatic actuator assemblies
-
Ball and butterfly valve automation
-
Oil and gas processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Process flow and pressure control systems
-
Pneumatic valve retrofit applications
-
Industrial instrumentation and control systems
-
Control valve maintenance and replacement projects
