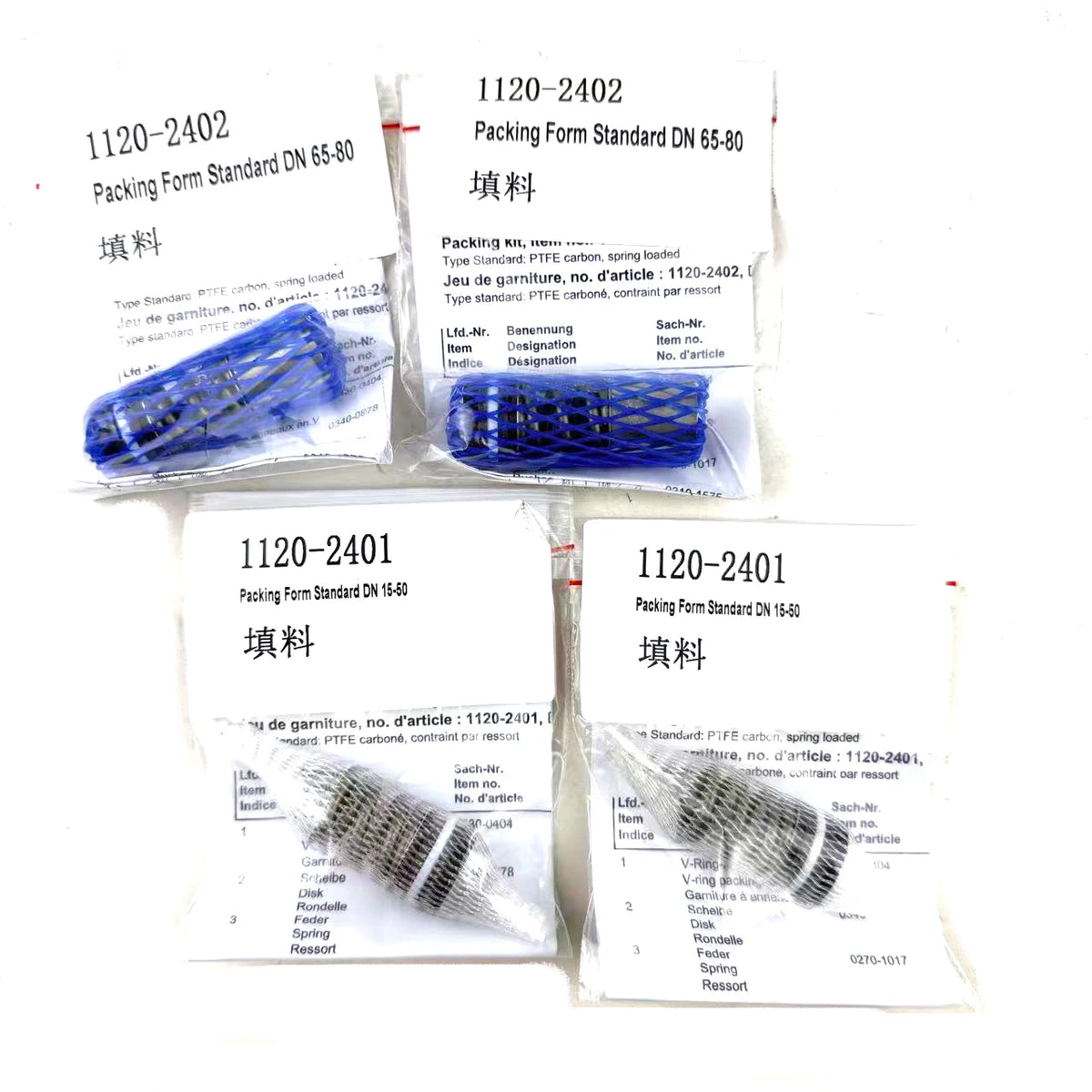

Samson Standard V-Ring Stem Packing Form 1120-2402 / 1120-2401
The Samson Form Standard Stem Packing (Part Numbers 1120-2402 and 1120-2401) is a precision-engineered sealing replacement assembly designed for industrial linear globe and control valves.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Samson Form Standard Stem Packing (Part Numbers 1120-2402 and 1120-2401) is a precision-engineered sealing replacement assembly designed for industrial linear globe and control valves. Manufactured by Samson AG, this spring-loaded V-ring packing system provides reliable dynamic stem sealing across standard valve configurations, including the flagship Samson Type 3241 and Type 3251 series. It maintains positive fluid containment along the moving valve stem while preventing fugitive emissions into the surrounding plant atmosphere.
Engineered with high-grade virgin PTFE and carbon-filled PTFE V-rings energized by an internal corrosion-resistant stainless steel compression spring, this packing assembly delivers consistent sealing force without requiring manual gland readjustment. The low friction coefficient of PTFE minimizes mechanical stem hysteresis, ensuring fast, accurate valve throttling and extended service life. The assembly is widely used across chemical processing plants, oil and gas refining, petrochemical facilities, industrial steam networks, and automated utility piping systems.
Technical Specifications
| Specification | Value |
| Product Name | Standard Valve Stem Packing Form / V-Ring Packing Kit |
| Manufacturer / Brand | Samson AG |
| Part / Model Numbers | 1120-2402 / 1120-2401 |
| Packing Form Design | Form Standard (Self-Adjusting V-Ring Configuration) |
| Component Type | Spring-Loaded Valve Stem Packing Seal Set |
| Valve Compatibility | Samson Type 3241, 3251, 3244 Globe Control Valves |
| Valve Stem Diameter | Standard 10 mm / 12 mm Stem Sizes |
| Primary Sealing Material | Virgin PTFE / Carbon-Filled PTFE V-Rings |
| Energizing Spring Material | 1.4310 / 301 Stainless Steel Spring |
| Washer & Bushing Trim | 1.4571 / 316Ti Stainless Steel |
| Operating Temperature Range | -20°C to +220°C (-4°F to +428°F) |
| Nominal Pressure Class | PN 10 to PN 40 / ANSI Class 150 to Class 300 |
| Dynamic Friction Coefficient | Ultra-Low (Prevents Stem Stick-Slip) |
| Maintenance Requirement | Self-Adjusting / Maintenance-Free Dynamic Sealing |
| Sealing Medium Compatibility | Steam, Water, Industrial Gases, Chemical Hydrocarbons |
| Condition | New |
| Warranty | 1 Year |
Key Features
Self-adjusting internal stainless steel spring maintains constant live-loading sealing pressure
Precision PTFE V-ring profile delivers low-friction performance to prevent valve stem hysteresis
Provides dependable fugitive emission containment conforming to industrial environmental standards
High thermal resilience operating smoothly across temperatures up to +220°C
Corrosion-resistant stainless steel structural trim ensures durability in aggressive media
Genuine Samson engineered dimensions provide exact drop-in replacement fitment
Self-compensating design eliminates routine manual gland tightening and plant downtime
High wear resistance delivers long operational service life in modulating control loops
Broad media compatibility across dry gases, utility steam, cooling water, and process fluids
Typical Applications
Stem sealing for Samson Type 3241 and Type 3251 pneumatic control valves
Linear globe valve overhaul, scheduled shutdown maintenance, and field repair
Chemical processing, petrochemical processing, and pharmaceutical flow control
Oil and gas upstream processing, midstream metering, and downstream refinery loops
Power plant steam distribution, feedwater regulation, and condensate lines
District heating systems, industrial boiler systems, and food processing utilities
Fugitive emission control in hazardous and volatile organic chemical services
Shipping & Support
Fast dispatch: Australia & Worldwide Shipping
Technical assistance available
1-year warranty
