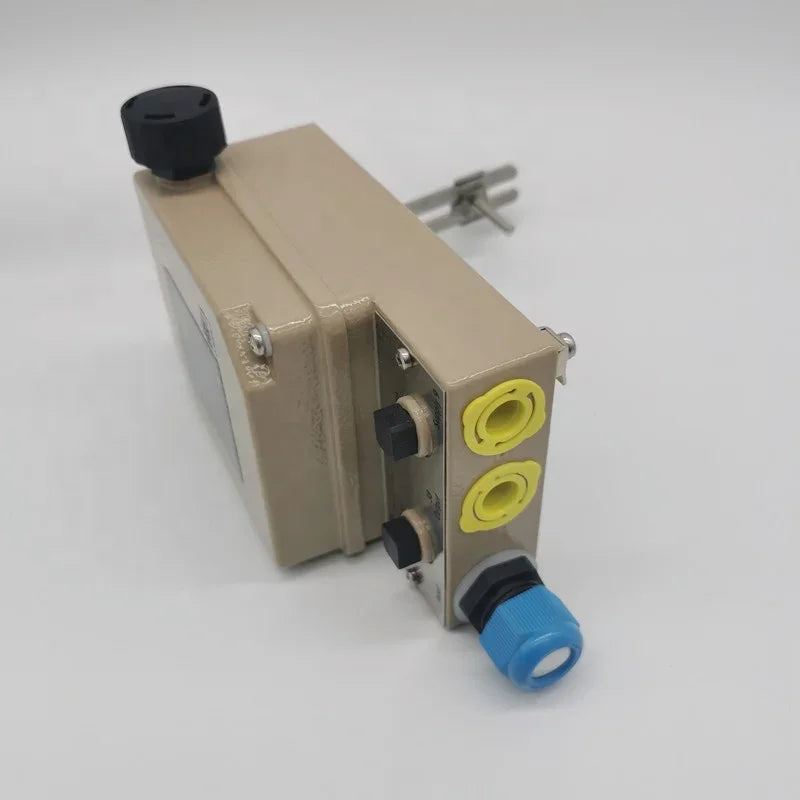

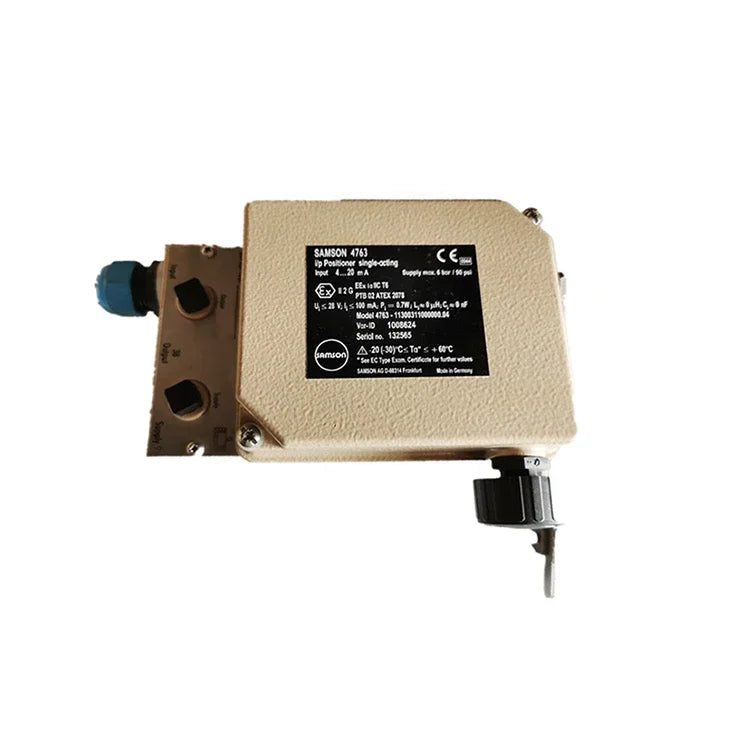

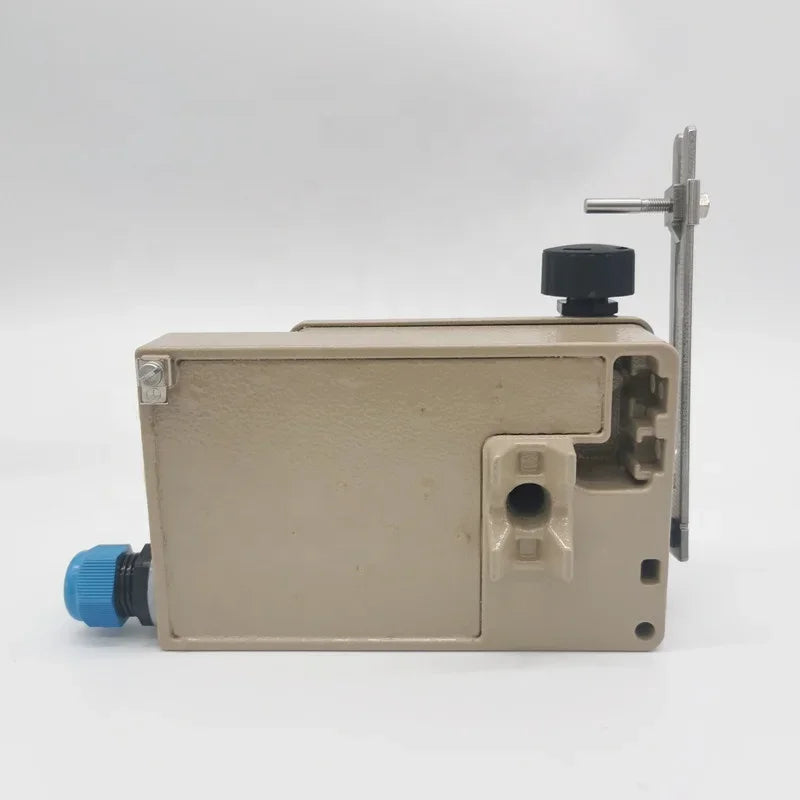

SAMSON 4763-111003111 Electropneumatic Valve Positioner
The SAMSON 4763-111003111 Electropneumatic Valve Positioner is designed for accurate positioning and automated control of single-acting pneumatic valve actuators in industrial process systems.
- Single Acting Actuator Configuration
- 1.4–6 Bar Pneumatic Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The SAMSON 4763-111003111 Electropneumatic Valve Positioner is designed for accurate positioning and automated control of single-acting pneumatic valve actuators in industrial process systems. Manufactured by SAMSON, this analogue positioner converts an electrical control signal into proportional pneumatic pressure, allowing the actuator to respond accurately to process control commands. Its mechanical feedback mechanism helps maintain consistent valve positioning, stable flow regulation, and reliable industrial operation.
Part of the SAMSON Type 4763 series, the positioner features an integrated I/P converter, nozzle-and-flapper control mechanism, adjustable proportional band, and reversible operating action. Its durable die-cast aluminium housing supports installation on compatible linear control valve actuators using NAMUR mounting arrangements. The positioner is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial automation applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
SAMSON |
|
Model Number |
4763-111003111 |
|
Series |
Type 4763 |
|
Product Type |
Analogue Electropneumatic Valve Positioner |
|
Control Technology |
Mechanical Force-Balance |
|
Input Signal |
4–20 mA DC, Configuration Dependent |
|
Communication |
Analogue, Without HART |
|
Actuator Configuration |
Single Acting |
|
Operating Principle |
I/P Conversion with Mechanical Feedback |
|
Pneumatic Supply Pressure |
1.4–6 Bar |
|
Pneumatic Output Pressure |
0–6 Bar |
|
Standard Travel Range |
7.5–60 mm |
|
Extended Travel Range |
Up to 90 mm |
|
Operating Action |
Direct or Reverse |
|
Control Characteristic |
Linear |
|
Hysteresis |
Less Than 0.5% |
|
Sensitivity |
Less Than 0.1% |
|
Housing Material |
Die-Cast Aluminium |
|
External Components |
Stainless Steel |
|
Enclosure Protection |
IP54 |
|
Optional Protection |
IP65 with Suitable Venting Accessory |
|
Mounting Standard |
IEC 60534-6 / NAMUR |
|
Positioner Weight |
Approximately 1.2 kg |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Related Models |
4763-01300321, 4763-01100121, 4763-11300111 |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Analogue electropneumatic positioning for accurate valve control
Integrated I/P converter for electrical-to-pneumatic signal conversion
Mechanical feedback system for reliable actuator positioning
Single-acting pneumatic configuration for compatible control valves
Adjustable proportional band for optimising valve response
Reversible operating action for flexible control requirements
Supports standard and split-range applications
Durable die-cast aluminium housing
NAMUR mounting compatibility for linear pneumatic actuators
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Oil and gas production and processing facilities
Chemical and petrochemical plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing and automation
Linear globe valve control systems
Industrial flow and pressure regulation
Pneumatic valve maintenance and refurbishment
