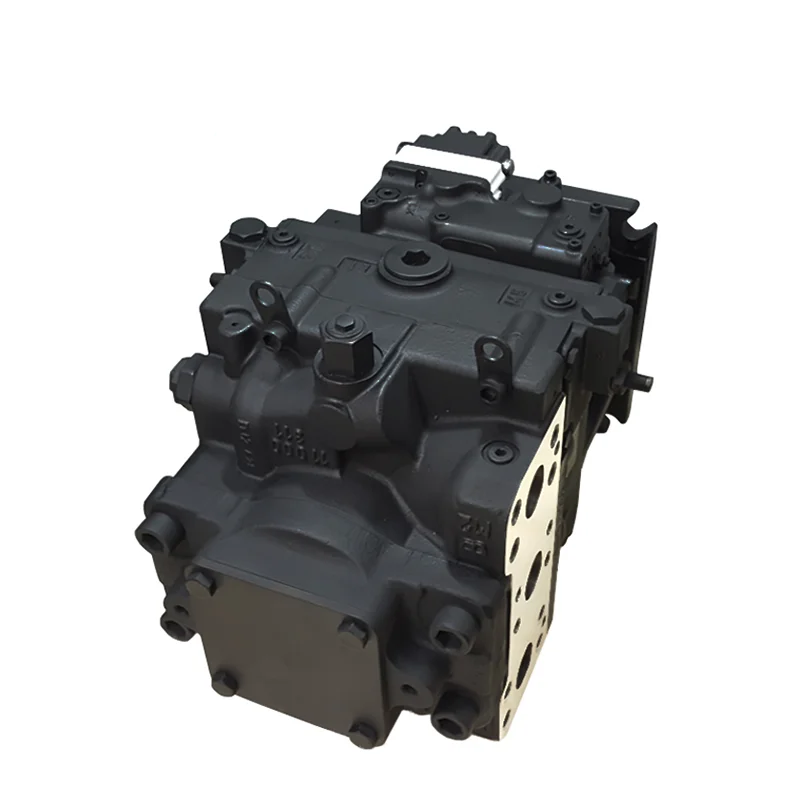

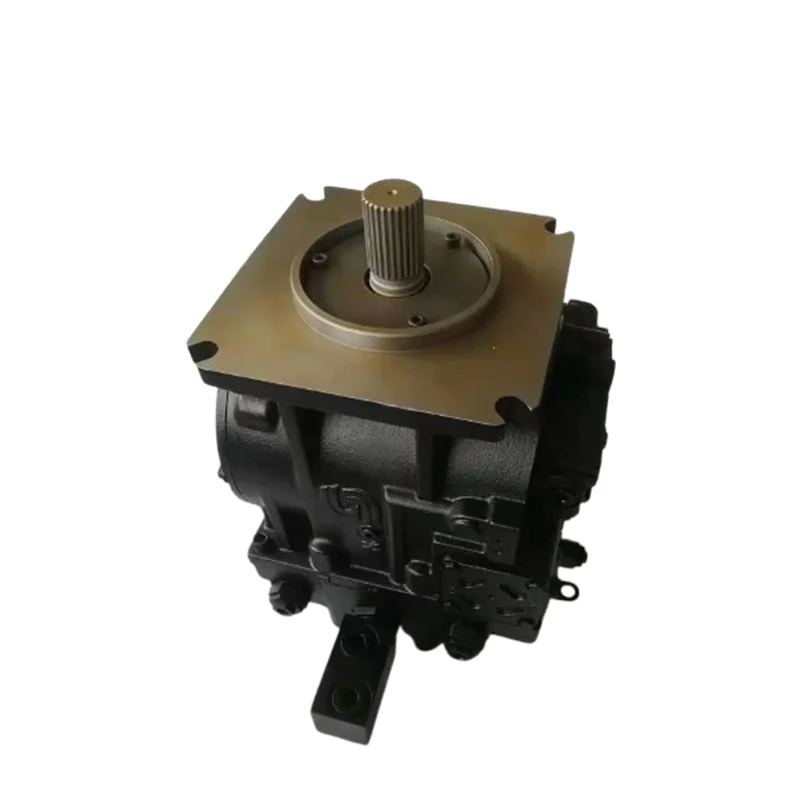

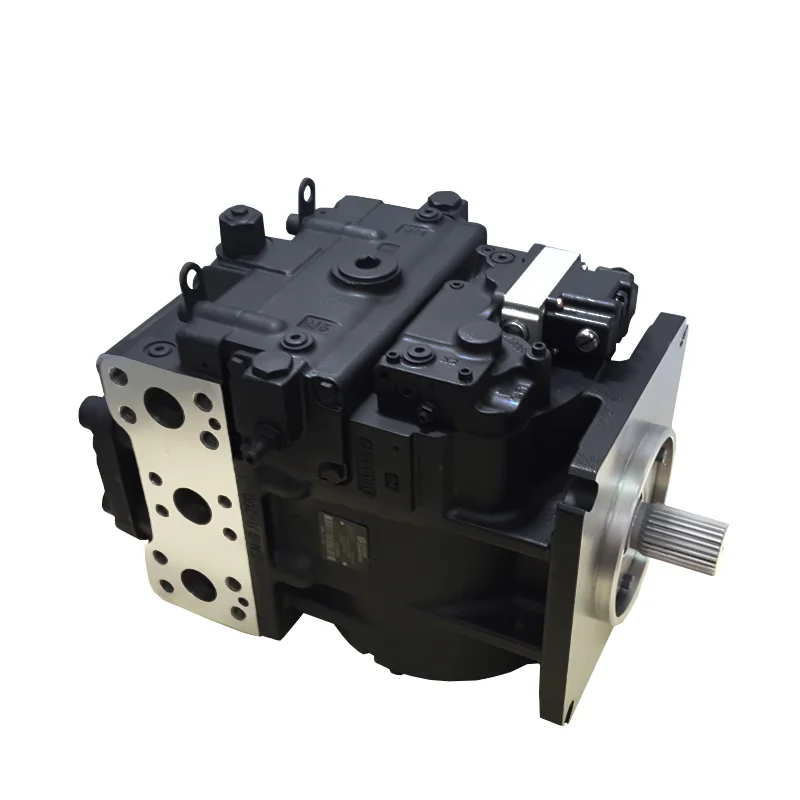

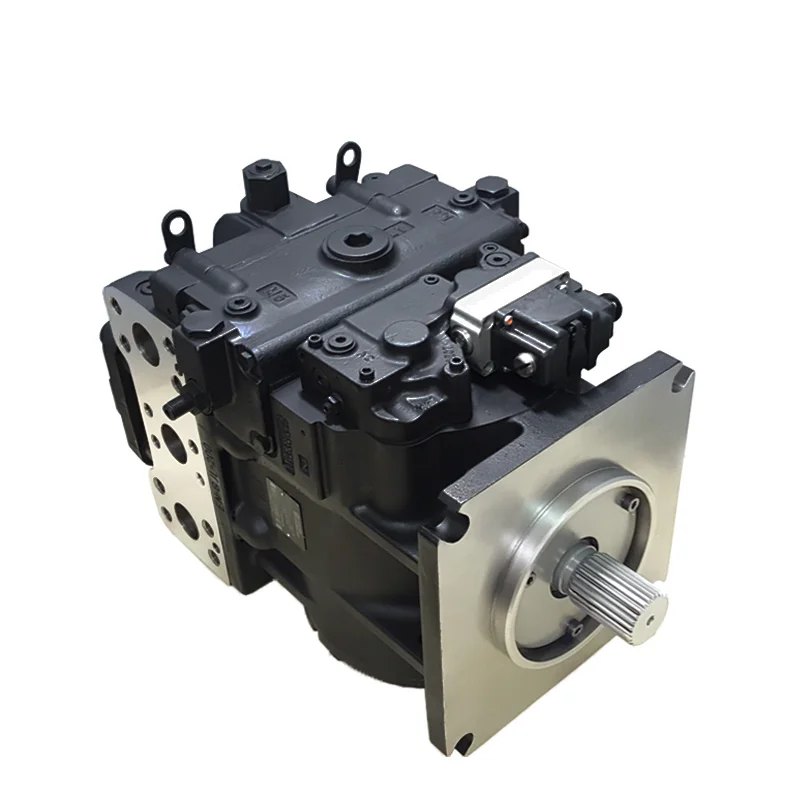

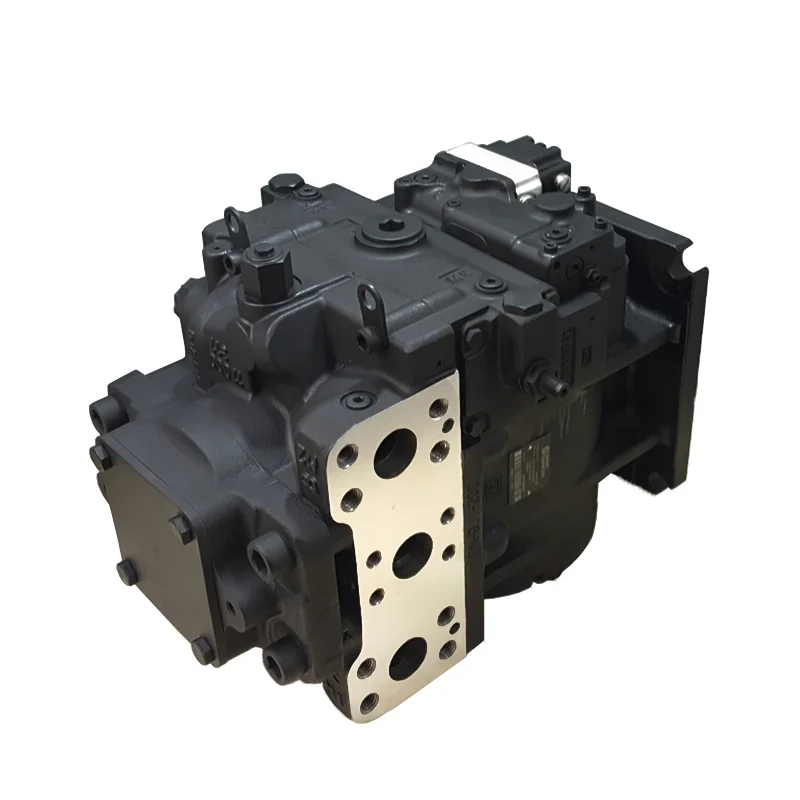

Sauer Danfoss 90R180KA5 Closed Circuit Piston Pump, 180cc
The Sauer Danfoss 90R180KA5EF80TCC8H03NNN292924 is a high-performance variable displacement axial piston pump from the Series 90 range, designed specifically for closed circuit hydrostatic transmission systems.
- 180 cc/rev Displacement
- Up to 350 bar Max Continuous Pressure
- Configuration Dependent Rotation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The Sauer Danfoss 90R180KA5EF80TCC8H03NNN292924 is a high-performance variable displacement axial piston pump from the Series 90 range, designed specifically for closed circuit hydrostatic transmission systems. With a displacement of 180cc per revolution, this pump delivers precise flow control, high efficiency, and dependable power transfer in demanding mobile machinery applications.
Engineered for heavy-duty operation, the 90R180 features a robust swashplate design, advanced hydraulic control options, and durable internal components. It is widely used in construction, agricultural, mining, and material handling equipment requiring stable hydrostatic drive performance under high-pressure conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 90R180KA5EF80TCC8H03NNN292924 |
| Series | Sauer Danfoss Series 90 |
| Pump Type | Axial Piston Pump (Variable Displacement) |
| Circuit Type | Closed Circuit |
| Displacement | 180 cc/rev |
| Control Type | Hydraulic Displacement Control (Model Dependent) |
| Rotation | Configuration Dependent |
| Mounting Type | Flange Mount |
| Shaft Type | Splined Shaft |
| Max Continuous Pressure | Up to 350 bar |
| Peak Pressure | Up to 420 bar |
| Housing Material | High-Strength Cast Iron |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Variable displacement hydrostatic piston pump
-
Designed for closed circuit systems
-
High-pressure capability for heavy-duty machinery
-
Precise hydraulic displacement control
-
Robust cast iron housing construction
-
Reliable continuous-duty performance
Typical Applications
-
Hydrostatic drive systems
-
Construction equipment
-
Agricultural machinery
-
Mining equipment
-
Forestry machinery
-
Material handling systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
