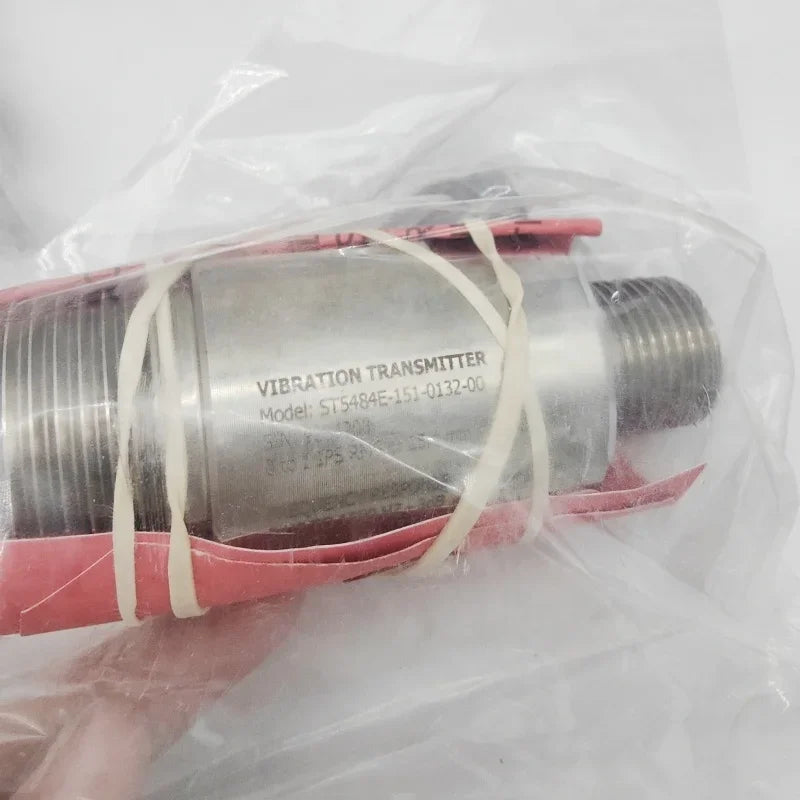

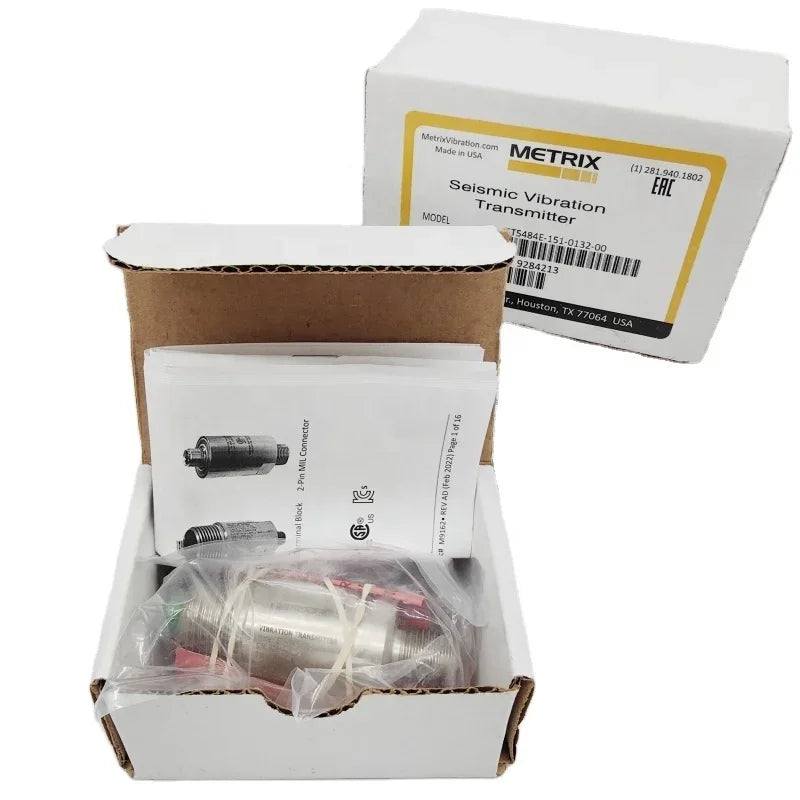

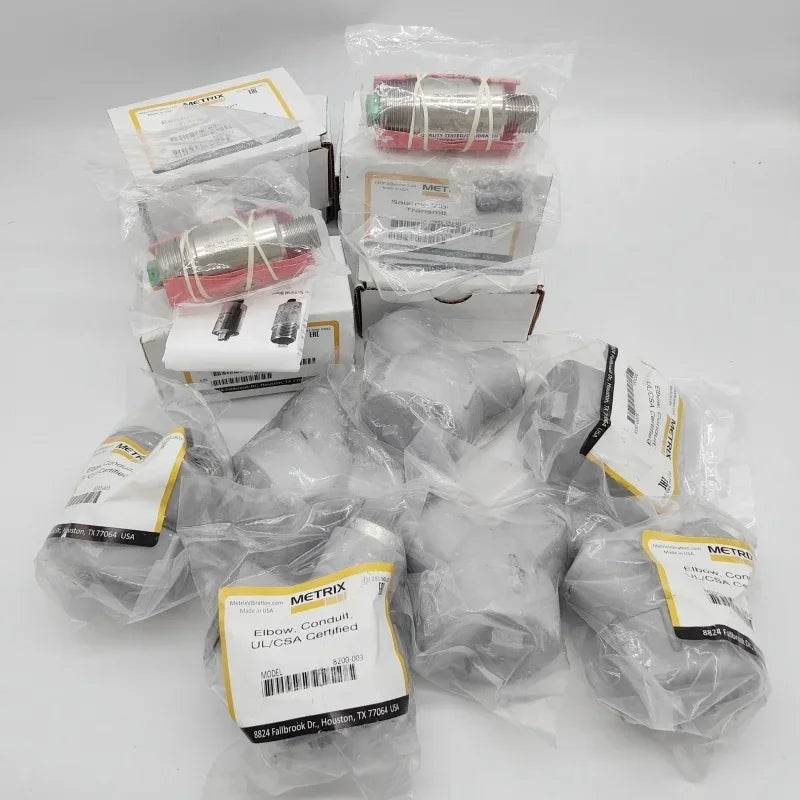

Metrix ST5484E-151-432-00 / ST5484E-151-0132-00 Seismic Vibration Transmitter
The Metrix ST5484E-151-432-00 and ST5484E-151-0132-00 Seismic Vibration Transmitters are industrial vibration monitoring instruments designed for accurate measurement of machinery vibration velocity.
- RMS Velocity Measurement Measurement Configuration
- 11–30 V DC, Subject to Certification Supply Voltage Range
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Metrix ST5484E-151-432-00 and ST5484E-151-0132-00 Seismic Vibration Transmitters are industrial vibration monitoring instruments designed for accurate measurement of machinery vibration velocity. Manufactured by Metrix, the ST5484E Series combines a piezoelectric accelerometer, signal integrator, RMS detection circuitry, and 4–20 mA signal conditioning in a compact assembly. The transmitter converts mechanical vibration into a proportional electrical signal for integration with PLC, DCS, and SCADA systems, supporting continuous equipment condition monitoring and predictive maintenance.
The ST5484E Series features rugged stainless steel construction, loop-powered operation, polarity-independent wiring, and configurable vibration measurement ranges. Its direct-mount design allows installation on machinery casings and bearing housings without separate signal conditioning equipment. The listed product references also include the Metrix 8200-003 conduit elbow accessory for compatible installations. These transmitters are suitable for industrial pumps, electric motors, compressors, fans, and rotating machinery used in manufacturing, power generation, oil and gas processing, and industrial automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Seismic Vibration Transmitter |
|
Manufacturer / Brand |
Metrix |
|
Model Number 1 |
ST5484E-151-432-00 |
|
Model Number 2 |
ST5484E-151-0132-00 |
|
Accessory Model |
8200-003 |
|
Product Series |
ST5484E |
|
Product Type |
Seismic Velocity Vibration Transmitter |
|
Sensor Technology |
Piezoelectric Accelerometer |
|
Primary Function |
Industrial Machinery Vibration Monitoring |
|
Measurement Parameter |
Vibration Velocity |
|
Signal Processing |
Integrated Acceleration and RMS Detection |
|
Output Signal |
4–20 mA DC |
|
Output Function |
Proportional to Vibration Velocity |
|
Measurement Configuration |
RMS Velocity Measurement |
|
Power Supply |
24 V DC Nominal |
|
Supply Voltage Range |
11–30 V DC, Subject to Certification |
|
Power Configuration |
Loop Powered |
|
Electrical Polarity |
Polarity Independent |
|
Signal Conditioning |
Integrated 4–20 mA Conditioner |
|
Frequency Response |
Configurable High-Pass and Low-Pass Filters |
|
Standard Frequency Range |
2–1500 Hz |
|
Housing Material |
303 Stainless Steel, Standard |
|
Alternative Housing |
316 Stainless Steel, Optional |
|
Operating Temperature |
−40°C to +100°C, Subject to Configuration |
|
Electrical Connection |
Model Dependent |
|
Mounting Configuration |
Direct Machinery or Bearing Housing Mounting |
|
Hazardous Area Approval |
Configuration Dependent |
|
Conduit Elbow |
Metrix 8200-003 |
|
Conduit Elbow Inlet |
1-inch NPT |
|
Conduit Elbow Outlet |
1/2-inch NPT |
|
Control System Compatibility |
PLC, DCS and SCADA |
|
Machinery Compatibility |
Rotating and Reciprocating Equipment |
|
Operating Application |
Industrial Vibration and Condition Monitoring |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Integrated piezoelectric vibration sensing technology
Accurate 4–20 mA vibration velocity output
RMS vibration measurement for machinery monitoring
Loop-powered operation with nominal 24 V DC supply
Direct mounting on machinery casings and bearing housings
Rugged stainless steel housing for industrial environments
Integrated signal conditioning without external converters
Polarity-independent electrical connections
Configurable high-pass and low-pass vibration filters
Compatible with PLC, DCS and SCADA monitoring systems

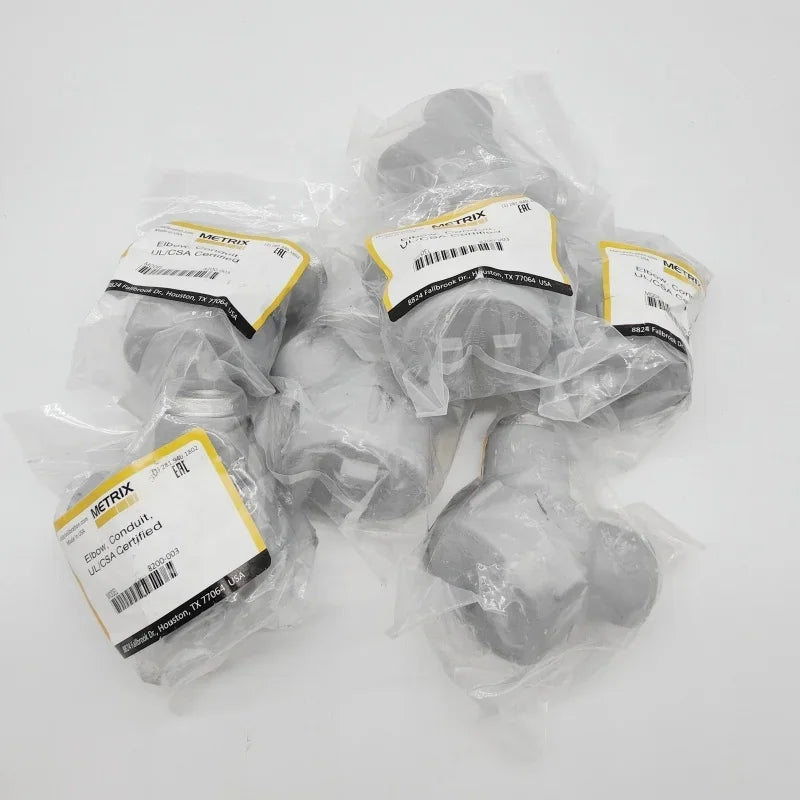

Metrix 8200-003 conduit elbow accessory for cable routing
Continuous vibration monitoring for rotating machinery
Supports predictive maintenance and equipment condition assessment
Suitable for industrial machinery maintenance and replacement
Typical Applications
Industrial pump vibration monitoring
Electric motor condition monitoring
Air compressors and industrial blowers
Industrial fans and ventilation equipment
Rotating and reciprocating machinery monitoring
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Power generation and utility systems
Industrial machinery bearing condition monitoring
Manufacturing and production equipment
Predictive maintenance and vibration analysis systems
PLC and DCS-based equipment monitoring
Industrial machinery fault detection and maintenance
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
