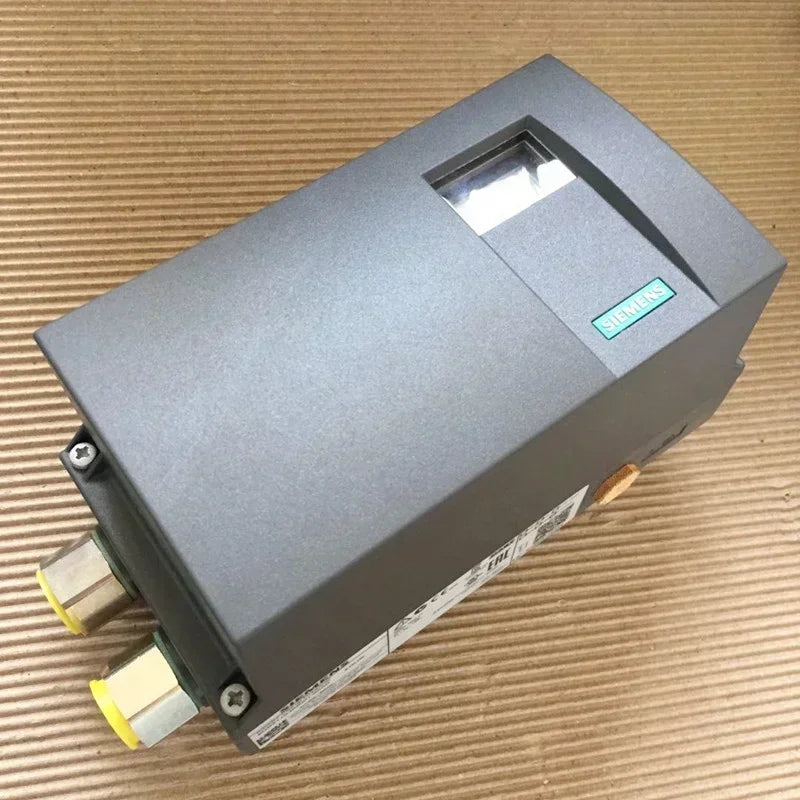

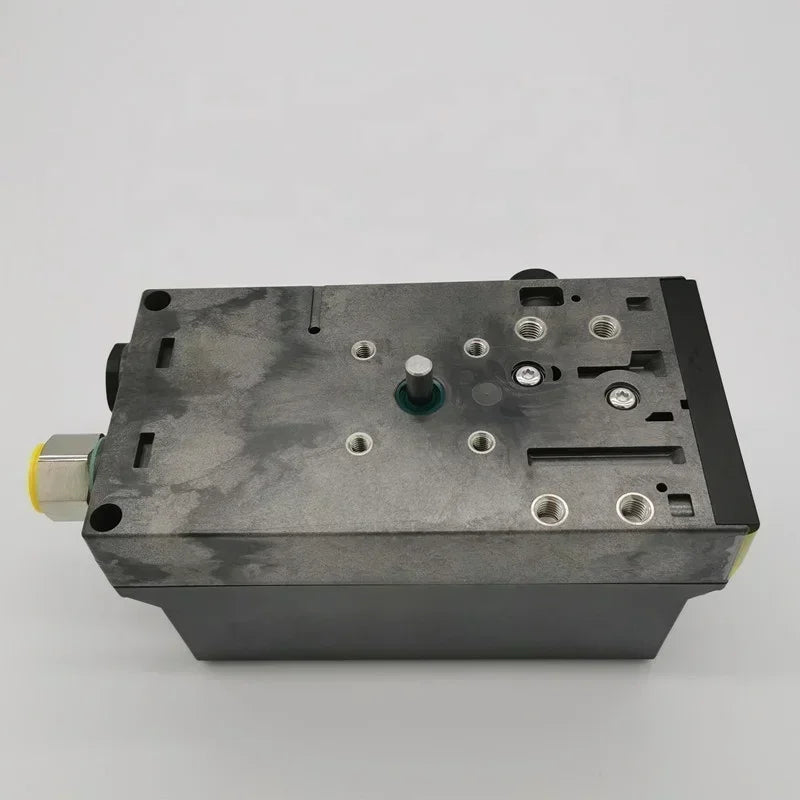

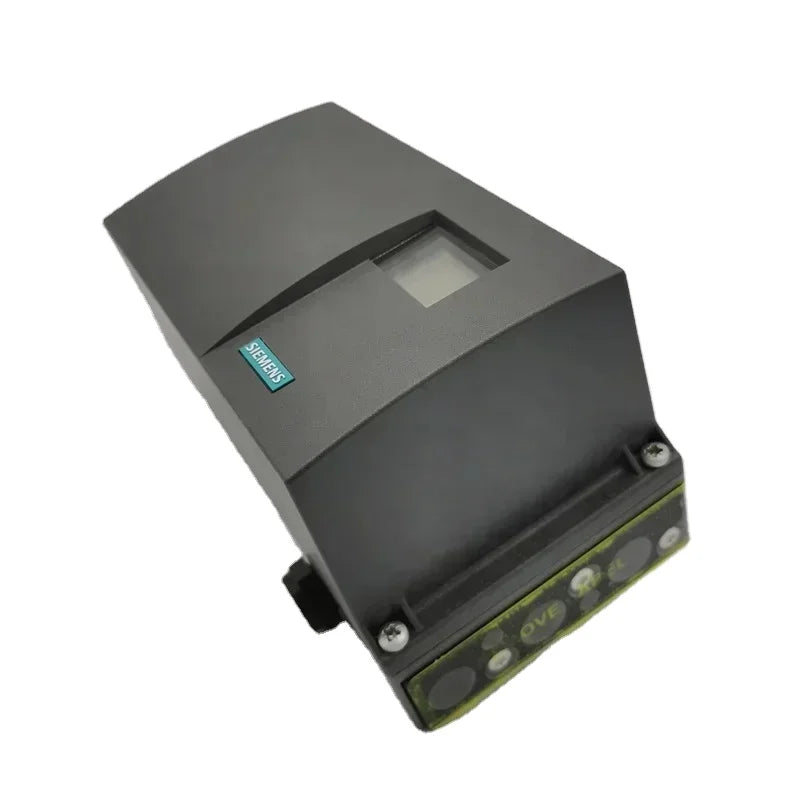

Siemens 6DR5010-0NG00-0AA0 SIPART PS2 Intelligent Electro pneumatic Valve Positioner
The Siemens 6DR5010-0NG00-0AA0 SIPART PS2 Intelligent Electropneumatic Valve Positioner is designed for precise positioning and automated control of single-acting pneumatic valve actuators in industrial process systems.
- Two-Wire Electrical Configuration
- 1.4–7 Bar Instrument Air Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Siemens 6DR5010-0NG00-0AA0 SIPART PS2 Intelligent Electropneumatic Valve Positioner is designed for precise positioning and automated control of single-acting pneumatic valve actuators in industrial process systems. Manufactured by Siemens, this smart positioner operates with a standard 4–20 mA DC control signal through a two-wire electrical connection. Its microprocessor-based control technology continuously compares the required valve position with actual actuator movement, adjusting pneumatic output pressure to deliver accurate positioning, responsive valve operation, and stable process regulation.
Part of the Siemens SIPART PS2 series, the 6DR5010-0NG00-0AA0 features non-contacting position detection (NCS), automatic initialization, and a durable polycarbonate enclosure for industrial applications. Its single-acting pneumatic configuration supports linear and part-turn actuators, while its fail-safe function depressurizes the actuator when electrical auxiliary power is lost. Equipped with M20 × 1.5 electrical and G 1/4 pneumatic connections, this positioner is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation. The specified configuration does not include HART communication or explosion protection.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
Siemens |
|
Model Number |
6DR5010-0NG00-0AA0 |
|
Product Series |
SIPART PS2 |
|
Product Type |
Smart Electropneumatic Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic Control |
|
Electrical Input Signal |
4–20 mA DC |
|
Electrical Configuration |
Two-Wire |
|
Communication Protocol |
Analogue Control Without HART |
|
HART Communication |
Not Included |
|
Actuator Configuration |
Single Acting |
|
Actuator Compatibility |
Pneumatic Linear and Part-Turn Actuators |
|
Pneumatic Output |
Single-Acting Actuator Control |
|
Position Detection |
Non-Contacting Position Sensor (NCS) |
|
Position Measurement |
Wear-Free Non-Contact Sensing |
|
Initialization |
Automatic |
|
Operating Principle |
Electrical-to-Pneumatic Position Control |
|
Enclosure Material |
Polycarbonate |
|
Enclosure Protection |
IP66 / NEMA Type 4X |
|
Explosion Protection |
None |
|
Electrical Connection |
M20 × 1.5 |
|
Pneumatic Connections |
G 1/4 |
|
Instrument Air Supply Pressure |
1.4–7 Bar |
|
Fail-Safe Function |
Actuator Depressurization on Electrical Power Failure |
|
Positioner Operating Action |
Standard / Fail-Safe |
|
Local Configuration |
Integrated Operating Controls |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Approximate Net Weight |
0.90 kg |
|
Application Scope |
Industrial Pneumatic Valve Position Control |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent electropneumatic valve positioning for accurate industrial process control
Standard 4–20 mA DC electrical input for compatibility with conventional analogue control systems
Two-wire electrical configuration for simplified instrumentation wiring
Single-acting pneumatic output designed for compatible linear and rotary actuators
Non-contacting position detection technology for wear-free actuator travel measurement
Microprocessor-based control system for stable and responsive valve positioning
Automatic initialization for simplified commissioning and setup
Durable polycarbonate housing suitable for industrial environments
IP66/NEMA Type 4X enclosure protection against dust and water ingress
M20 × 1.5 electrical connection for compatible instrument wiring
G 1/4 pneumatic connections for industrial instrument air systems
Fail-safe actuator depressurization when electrical auxiliary power is lost
Compatible with pneumatic linear and part-turn valve actuators
Integrated local controls for positioner setup and operation
Designed for use with clean and dry compressed instrument air
Suitable for maintenance, replacement, and industrial valve automation upgrades
Typical Applications
Industrial pneumatic control valve positioning
Single-acting pneumatic actuator control systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining and processing installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing and production machinery
Linear globe valve positioning
Rotary ball and butterfly valve automation
Industrial flow and pressure regulation systems
Temperature control and heat exchanger applications
Distributed control systems using analogue 4–20 mA signals
Industrial valve maintenance and equipment replacement
