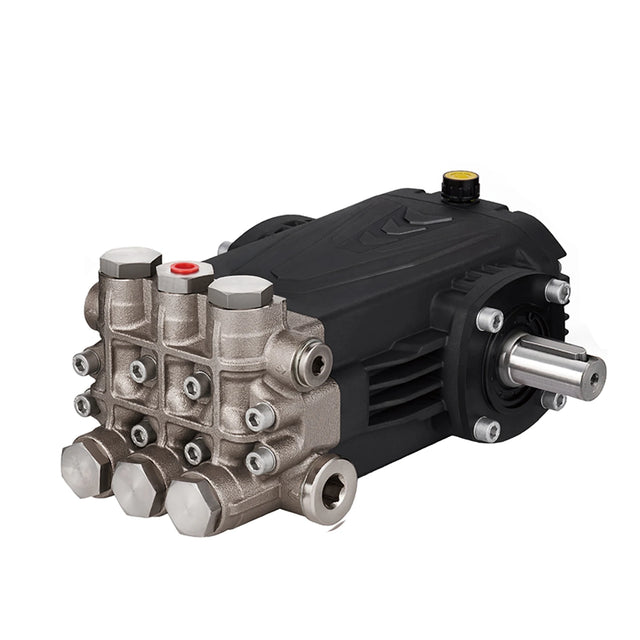

SJD2035N Shinjuess Triplex High Pressure Pump,300 Bar (35 MPa) 20 L/min
This Shinjuess triplex high-pressure pump is designed for commercial cleaning systems requiring powerful and consistent performance.
- 15 L/min (4 GPM) / 20 L/min Flow Rate
- 300 Bar (35 MPa) Working Pressure
- 14 kW Motor Power
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
This Shinjuess triplex high-pressure pump is designed for commercial cleaning systems requiring powerful and consistent performance. Built for clean water applications, it delivers up to 300 bar pressure, making it ideal for high-pressure washers and industrial cleaning equipment.
Featuring a robust piston design and a 24mm solid shaft, the pump ensures smooth operation, reduced pulsation, and long service life. Its high flow capacity and durable construction make it suitable for continuous-duty environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Triplex High Pressure Pump |
| Model | SJD2035N |
| Brand | Shinjuess |
| Pump Type | Triplex Piston Pump |
| Structure | Piston Pump |
| Material | Industrial Grade Metal |
| Flow Rate | 15 L/min (4 GPM) / 20 L/min |
| Working Pressure | 300 Bar (35 MPa) |
| Rated Speed | 1450 RPM |
| Shaft Type | Male Shaft |
| Shaft Diameter | 24 mm |
| Motor Power | 14 kW |
| Horsepower | 16 HP |
| Voltage | 380 V |
| Outlet Size | G3/8" |
| Sealing Material | NBR |
| Power Source | Electric |
| Medium | Clean Water |
| Condition | New |
| Customization Support | OEM, ODM, OBM |
| Application Scope | Industrial & Commercial |
| Warranty | 1 Year |
Key Features
- High-pressure performance up to 300 bar (35 MPa)
- Triplex piston design for smooth and stable output
- Dual flow options: 15 L/min and 20 L/min
- Strong 24mm shaft for durability and reliability
- NBR sealing for effective leak prevention
- Designed for continuous commercial operation
Typical Applications
- High-pressure washer systems
- Commercial car wash equipment
- Industrial surface cleaning
- Water blasting systems
- Cleaning machinery for factories
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
