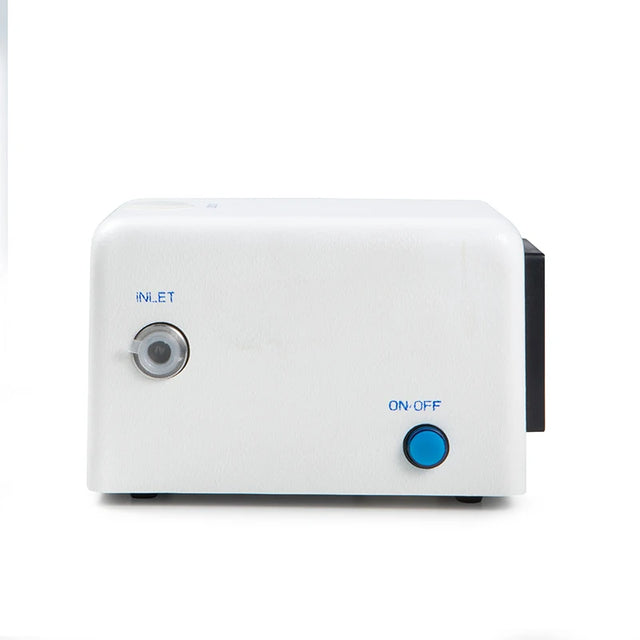

SOF-5 Super Q Scroll Vacuum Pump, 12V DC 20W 5L/min Oil-Free Dry Pump
The SOF-5 Super Q scroll vacuum pump is a compact, oil-free dry vacuum pump designed for laboratory and precision industrial applications.
- 2 – 100 L/min (Typical 5 L/min) Flow Rate
- 100 – 0.5 Pa Max Continuous Pressure
- 20 W Power Rating
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The SOF-5 Super Q scroll vacuum pump is a compact, oil-free dry vacuum pump designed for laboratory and precision industrial applications. Built with advanced scroll technology and a floating turbine design, it delivers clean, stable vacuum performance without the need for maintenance.
With a typical flow rate of 5 L/min and vacuum capability down to 0.5 Pa, this pump is ideal for micro vacuum systems and analytical equipment.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Scroll Dry Vacuum Pump |
| Model | SOF-5 |
| Brand | Super Q |
| Pump Type | Vacuum Pump |
| Structure | Scroll (Dry Oil-Free) |
| Pressure | Low / High Vacuum |
| Max Continuous Pressure | 100 – 0.5 Pa |
| Flow Rate | 2 – 100 L/min (Typical 5 L/min) |
| Speed Range | Controlled operation |
| Motor Type | DC Motor |
| Power Source | Electric |
| Power Rating | 20 W |
| Voltage | 12V DC |
| Pump Body Material | Industrial Alloy |
| Sealing Type | Dry Scroll |
| Design Feature | Floating Turbine |
| Suitable Media | Air / Gas |
| Application Scope | Laboratory / Industrial |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Oil-free scroll vacuum technology
- Vacuum capability down to 0.5 Pa
- Compact micro pump design
- Low power consumption (20 W)
- Maintenance-free operation
- Stable and clean vacuum output
Typical Applications
- Laboratory vacuum systems
- Analytical instruments
- Micro vacuum devices
- Research equipment
- Industrial testing systems
- Gas handling applications
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
