Fisher FIELDVUE DVC6205 + DVC6215 Split-Mount HART Digital Valve Positioner
The Fisher FIELDVUE DVC6205 + DVC6215 Split-Mount Digital Valve Positioner is designed for accurate positioning and automated control of pneumatic valve actuators in demanding industrial environments.
- Single or Double Acting, Depending on Relay Pneumatic Configuration
- 10 Bar (145 psi), Subject to Actuator Rating Maximum Supply Pressure
- Supported Split-Range Operation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

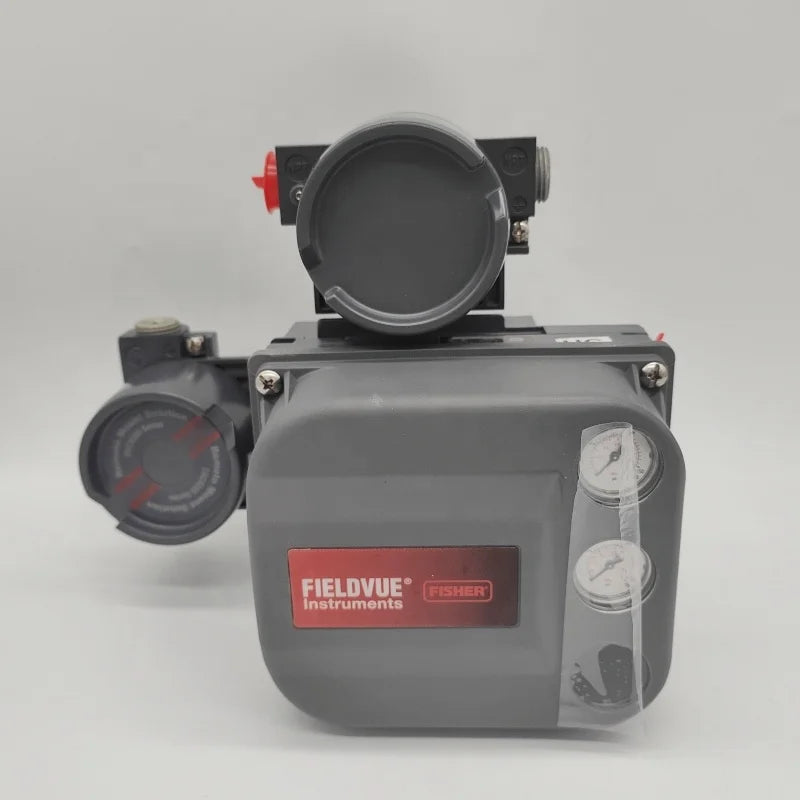

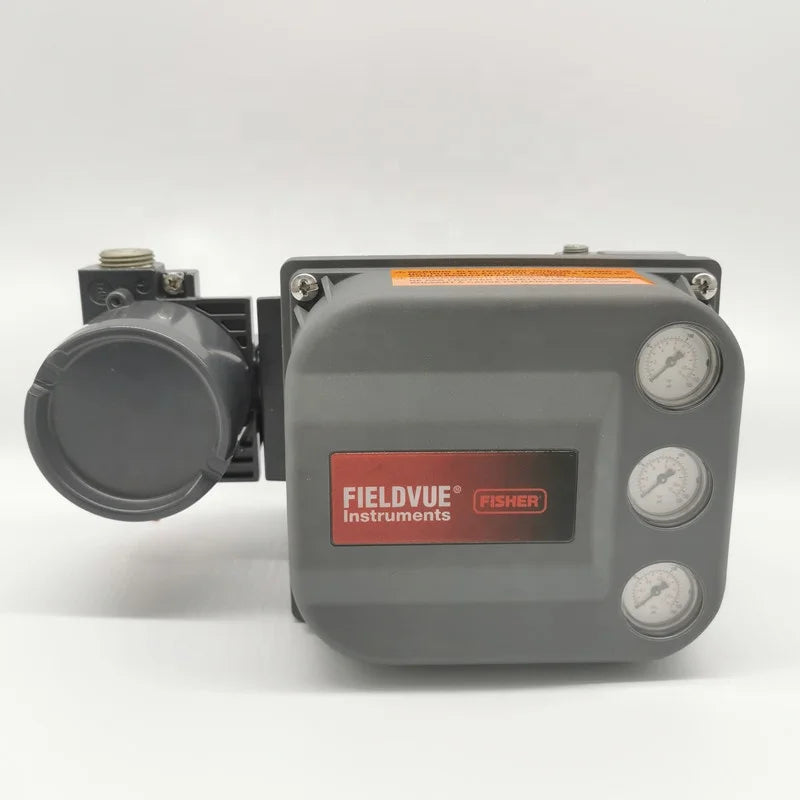

The Fisher FIELDVUE DVC6205 + DVC6215 Split-Mount Digital Valve Positioner is designed for accurate positioning and automated control of pneumatic valve actuators in demanding industrial environments. Manufactured by Fisher, an Emerson brand, this intelligent controller uses a 4–20 mA electrical input with HART communication to regulate actuator pressure and maintain precise valve positioning. Its remote-mount design separates the control electronics from the valve-mounted feedback sensor.

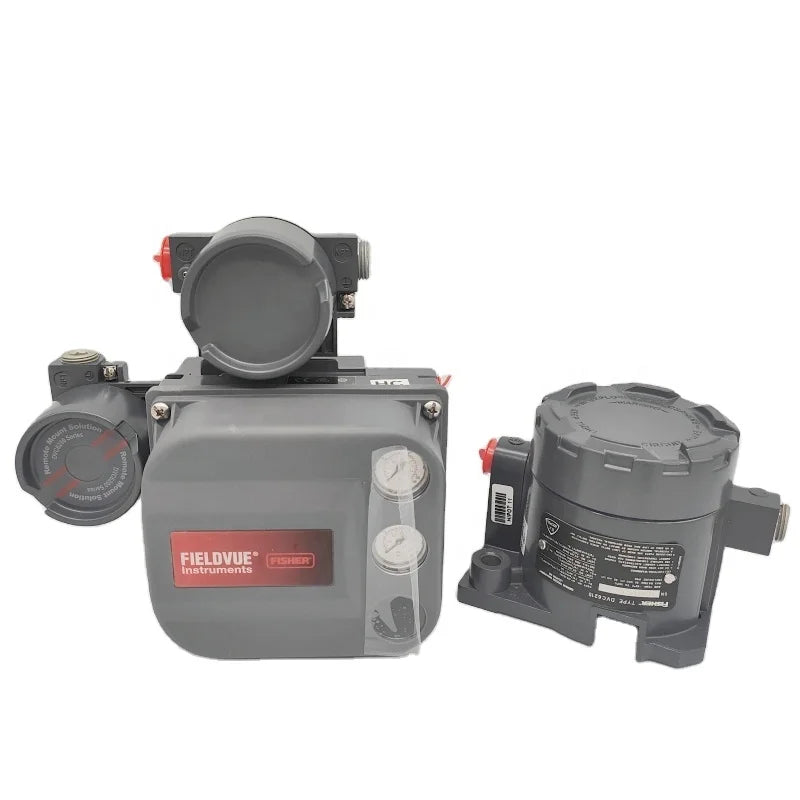

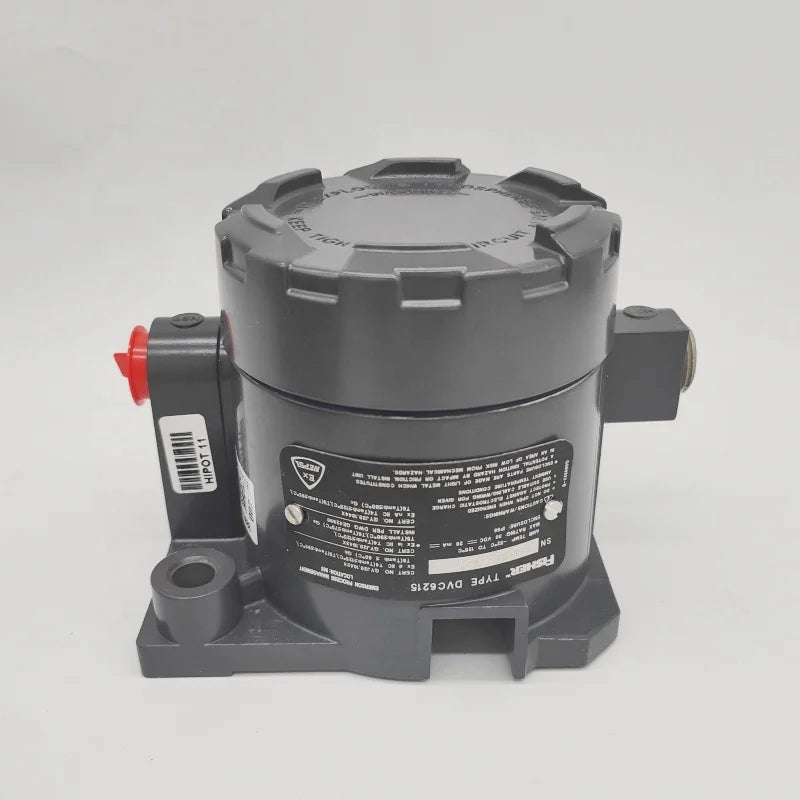

Part of the Fisher FIELDVUE DVC6200 series, the system combines the DVC6205 remote-mounted controller with the DVC6215 non-contact magnetic feedback unit. This arrangement helps protect sensitive electronics from excessive vibration and temperature exposure while maintaining reliable valve travel measurement. It is suitable for oil and gas processing, chemical manufacturing, power generation, refining, and industrial automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Split-Mount Digital Valve Positioner |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Main Model |
DVC6205 + DVC6215 |
|
Series |
FIELDVUE DVC6200 |
|
Product Type |
Remote-Mount Digital Valve Controller |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Electrical Input |
4–20 mA DC |
|
Communication Protocol |
HART 5 or HART 7 |
|
Split-Range Operation |
Supported |
|
Controller Unit |
DVC6205 |
|
Remote Feedback Unit |
DVC6215 |
|
Position Measurement |
Non-Contact Magnetic Feedback |
|
Actuator Compatibility |
Linear and Rotary Pneumatic Actuators |
|
Pneumatic Configuration |
Single or Double Acting, Depending on Relay |
|
Maximum Supply Pressure |
10 Bar (145 psi), Subject to Actuator Rating |
|
Output Signal |
Pneumatic Pressure |
|
DVC6205 Mounting |
Wall or 2-Inch Pipe Stand |
|
DVC6215 Mounting |
Compatible Valve Actuator |
|
DVC6215 Temperature Capability |
Up to +125°C |
|
Remote Feedback Wiring |
Four-Conductor Shielded Cable |
|
Calibration |
Automatic and Manual |
|
Diagnostics |
Depends on Instrument Level |
|
Configuration Software |
Fisher ValveLink |
|
Hazardous-Area Approval |
Depends on Exact Certification |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Related Models |
DVC6200HC, DVC2000, 2625, 3582i |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Split-mount design separating the controller and valve feedback unit
HART digital communication for remote monitoring and configuration
Standard 4–20 mA electrical control input
Non-contact magnetic valve travel sensing
DVC6205 controller suitable for wall or pipe mounting
DVC6215 feedback unit designed for actuator-mounted operation
Supports compatible single-acting and double-acting pneumatic actuators
Automatic calibration for simplified commissioning
Advanced diagnostics available according to instrument configuration
Suitable for high-vibration and elevated-temperature valve installations
Typical Applications
Industrial pneumatic control valve positioning
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
High-vibration valve installations
Elevated-temperature actuator environments
Linear globe valve positioning
Rotary ball and butterfly valve automation
HART-compatible industrial process control systems
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
