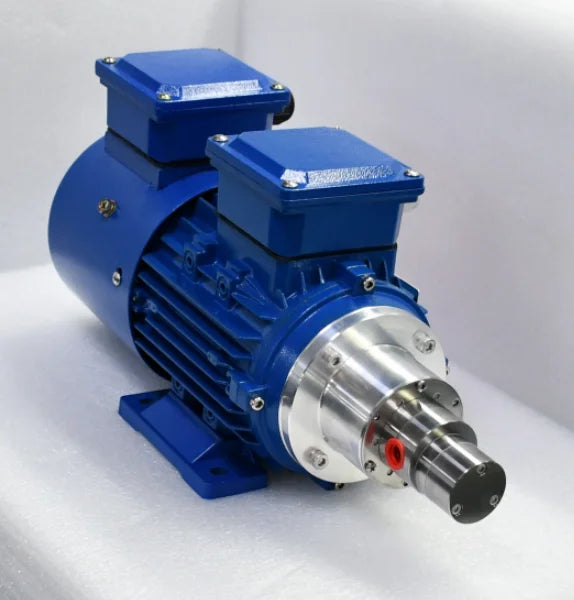

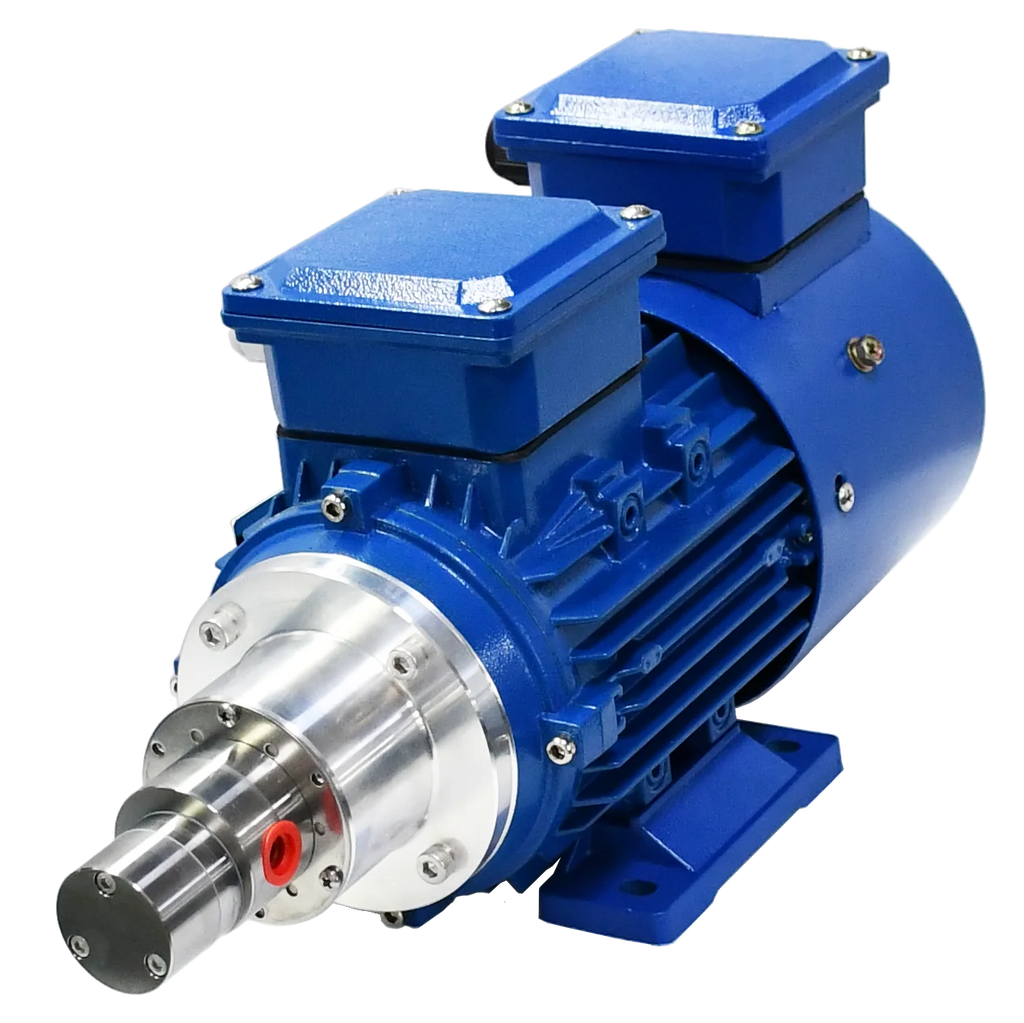

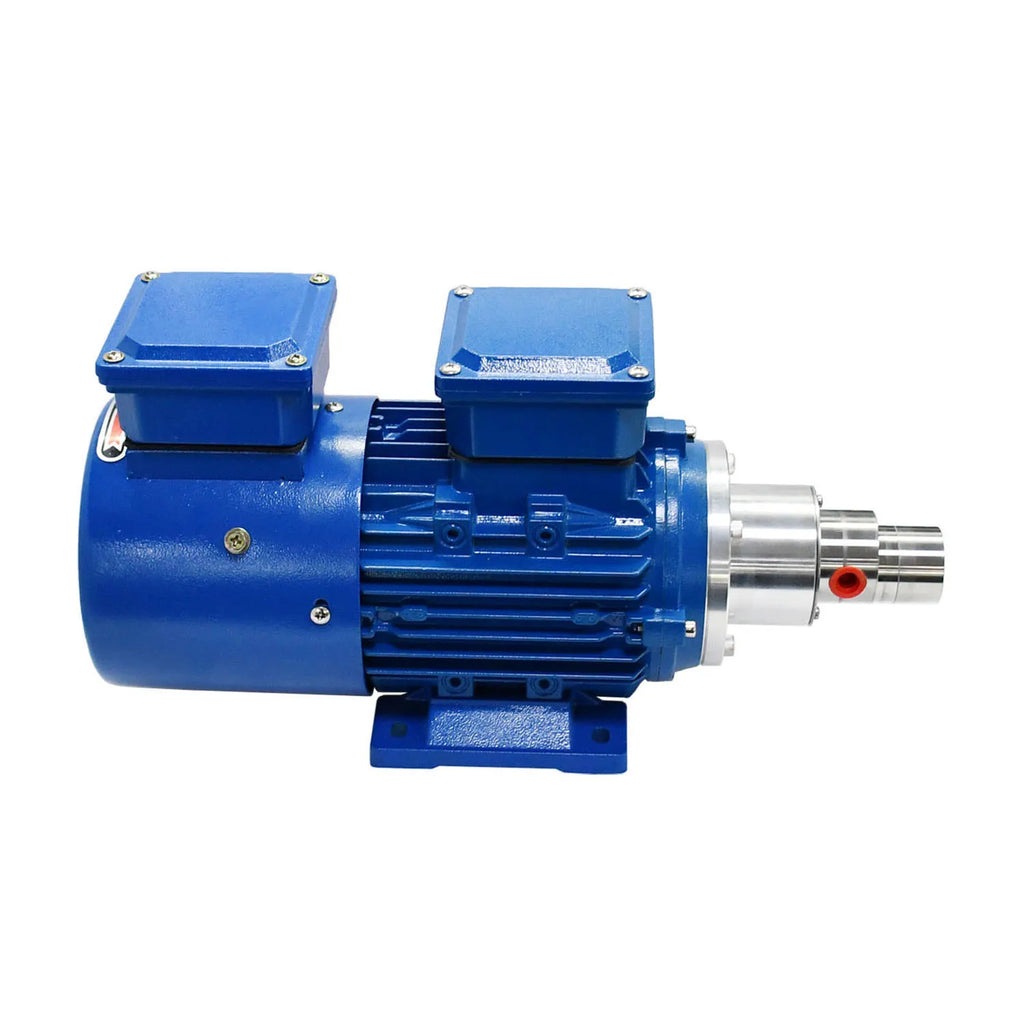

SS316L Micro Magnetic Gear Pump, 0.6ml/r, AC
The SS316L Micro Magnetic Gear Pump is designed for precision low-flow applications requiring accurate dosing and speed control. With a displacement of 0.6ml per revolution, it provides stable micro-volume delivery.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
Product Overview
The SS316L Micro Magnetic Gear Pump is designed for precision low-flow applications requiring accurate dosing and speed control. With a displacement of 0.6ml per revolution, it provides stable micro-volume delivery.
Its magnetic drive system ensures leakproof and oil-free operation.
Technical Specifications
| Specification | Value |
|---|---|
| Pump Type | Magnetic Gear Pump |
| Material | SS316L Stainless Steel |
| Displacement | 0.6 ml/rev |
| Voltage | 220V / 380V AC |
| Speed Control | Frequency Conversion |
| Drive Type | Magnetic |
| Application | Precision Metering |
| Condition | New |
Key Features
-
0.6ml per revolution precision
-
SS316L corrosion resistance
-
Frequency speed control
-
Oil-free magnetic drive
-
Compact construction
-
Stable performance
Typical Applications
-
Laboratory dosing
-
Chemical sampling
-
Beverage equipment
-
Precision liquid transfer
-
Industrial automation
Shipping & Support
-
Fast dispatch
-
Australia & world-wide shipping
-
Technical assistance available
-
Warranty available
