Stainless Steel Pneumatic AODD Pump 3/8" 1/2" 1" 1-1/2" for Paint Transfer
The stainless steel pneumatic pump is a high-performance air operated double diaphragm (AODD) pump designed for efficient paint transfer and coating applications.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview

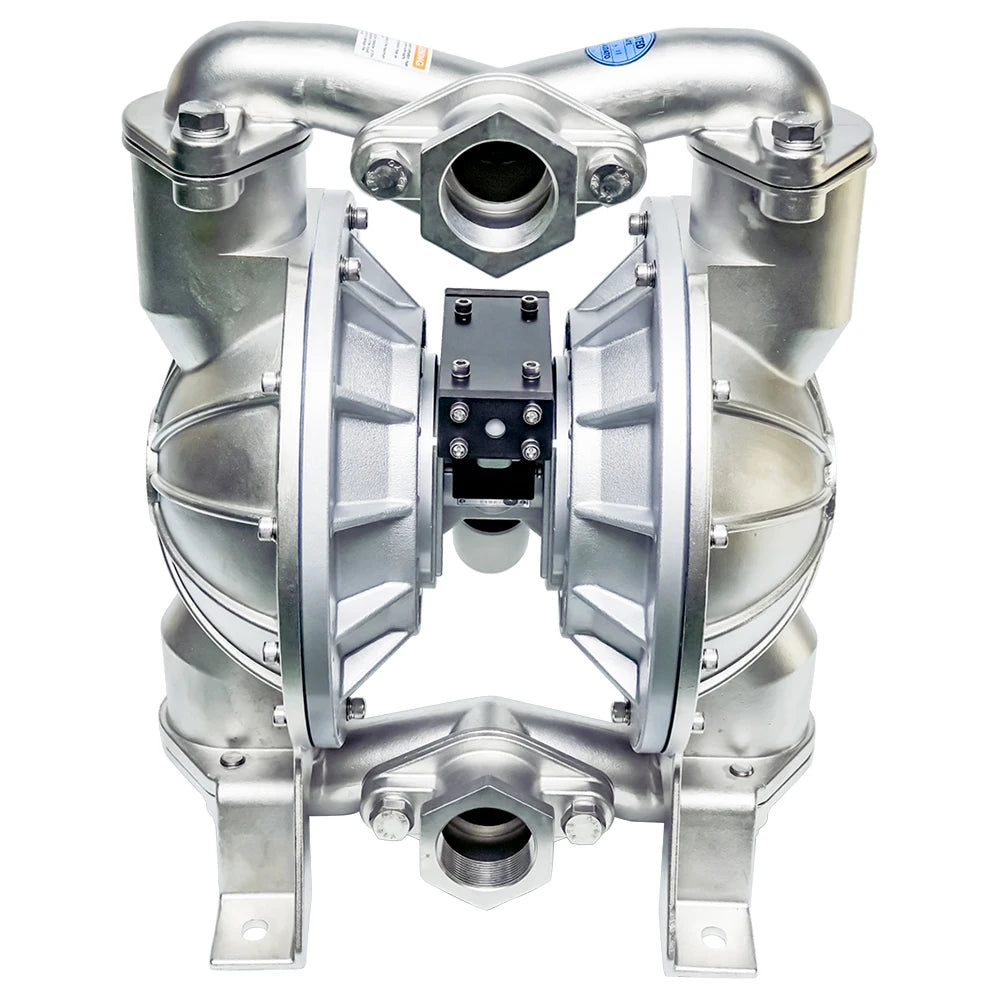

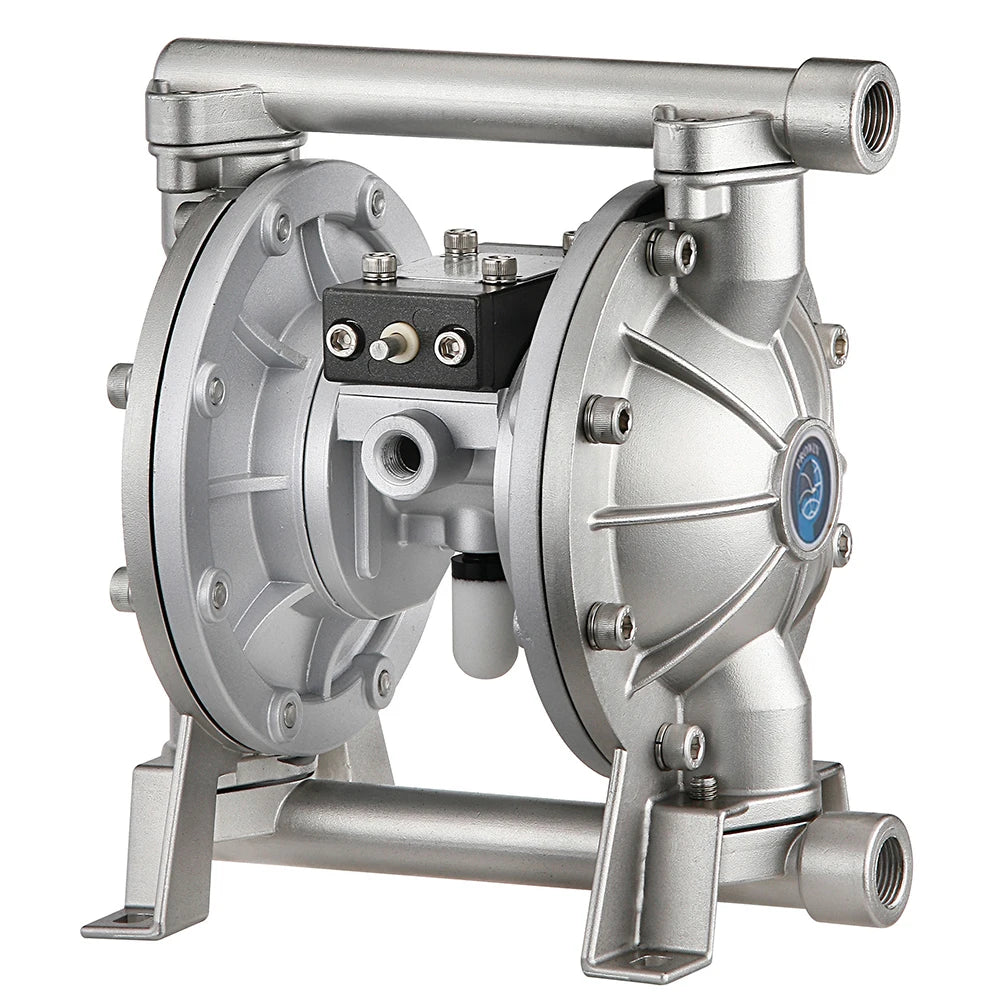

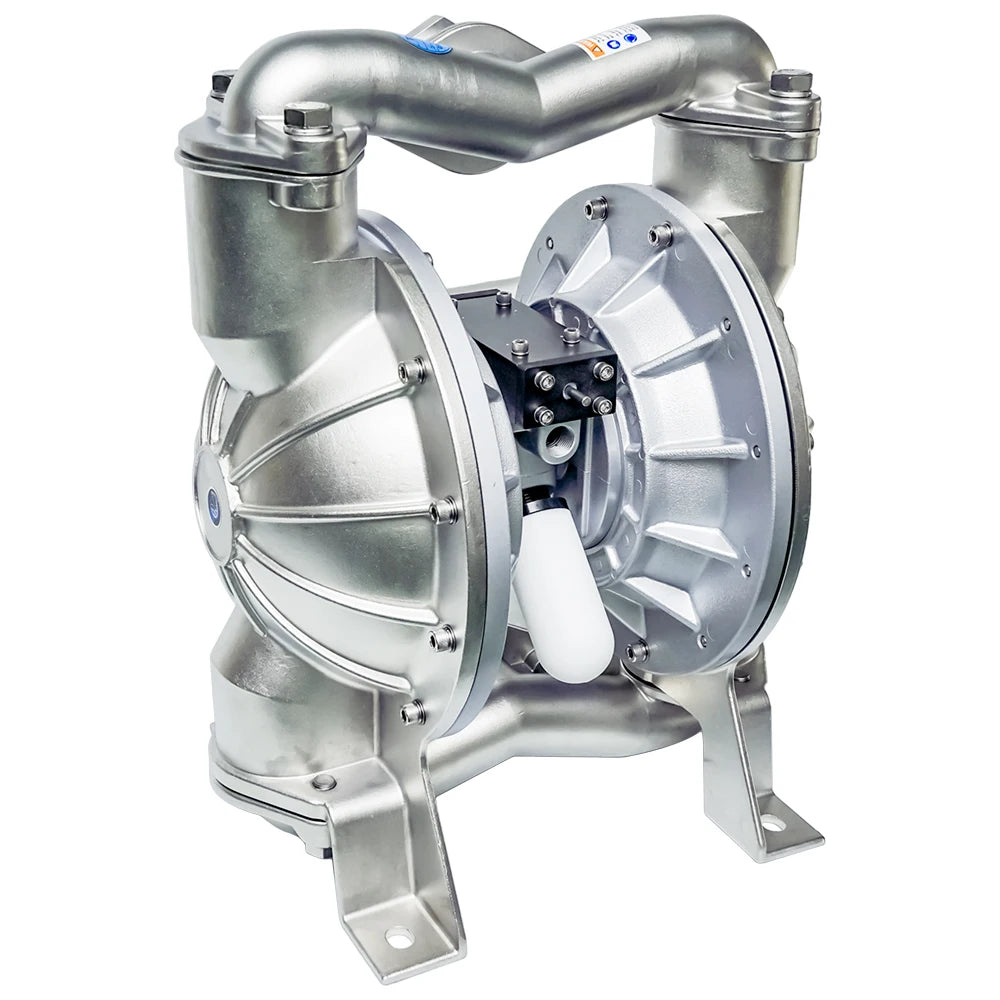

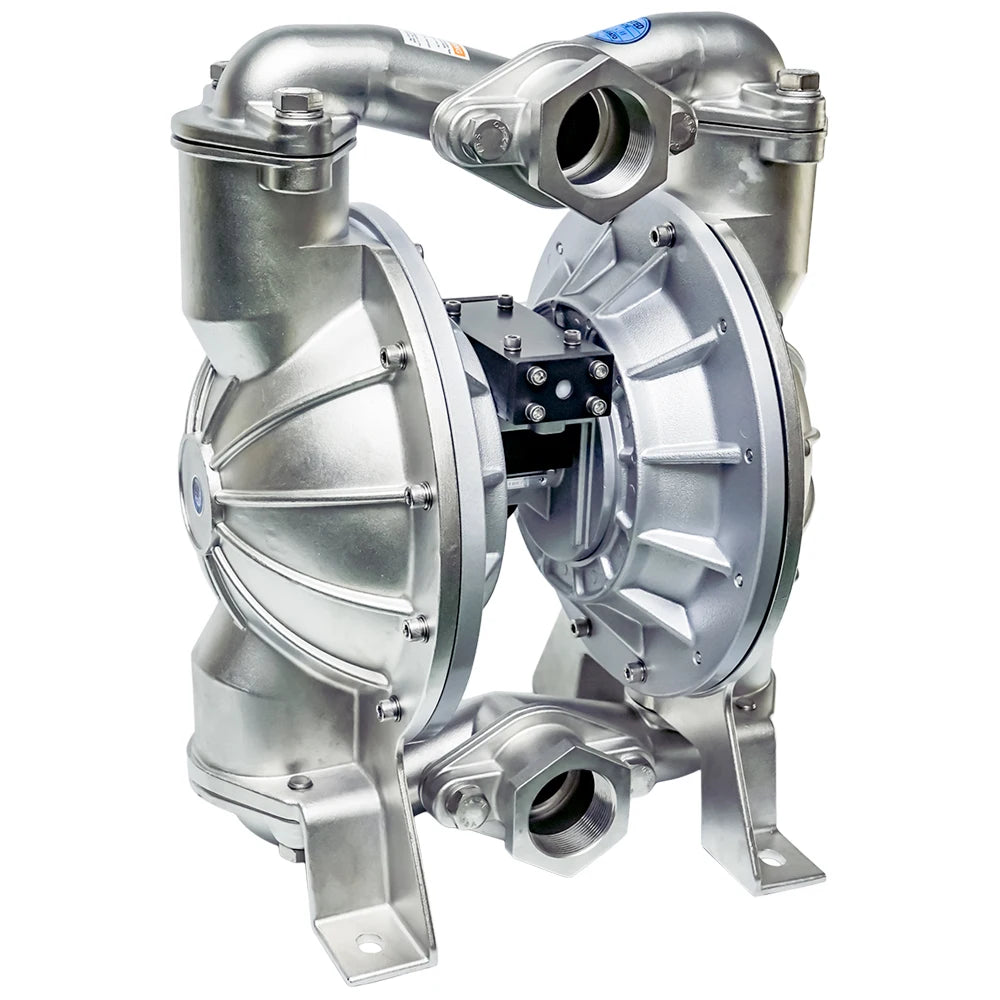

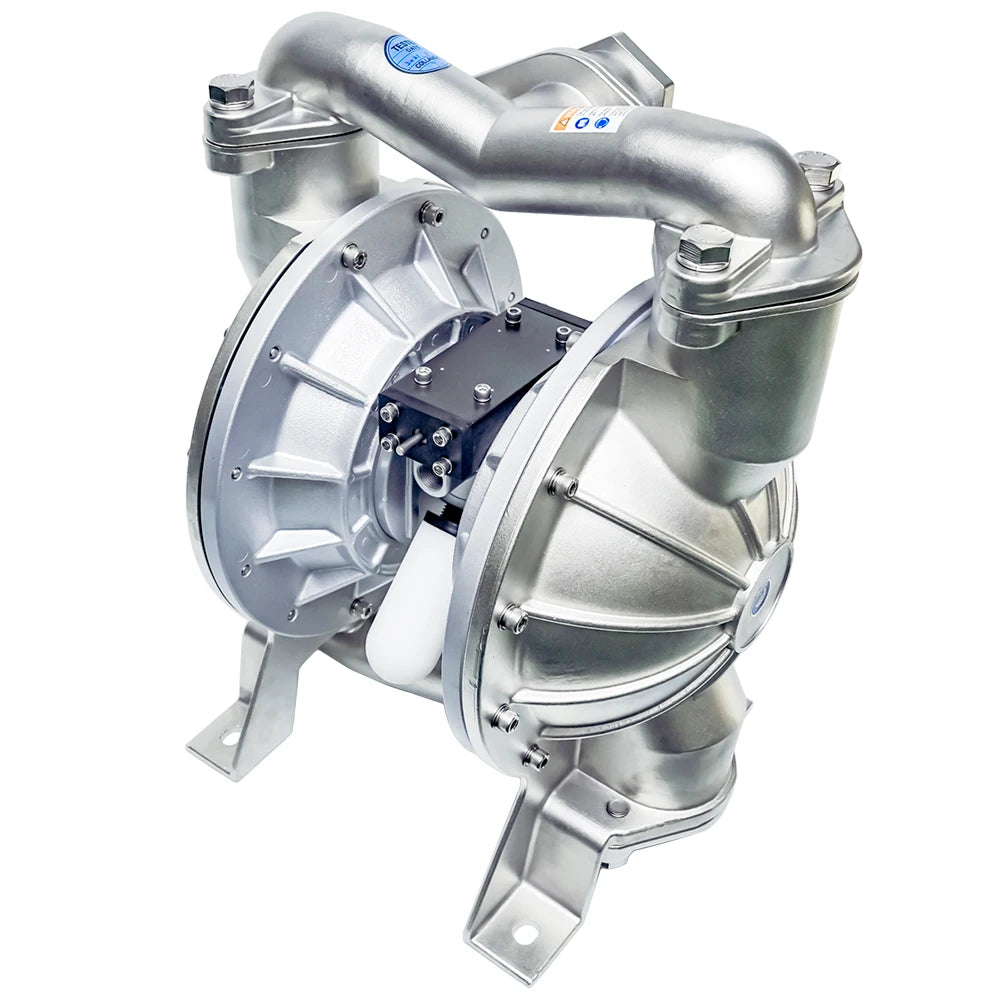

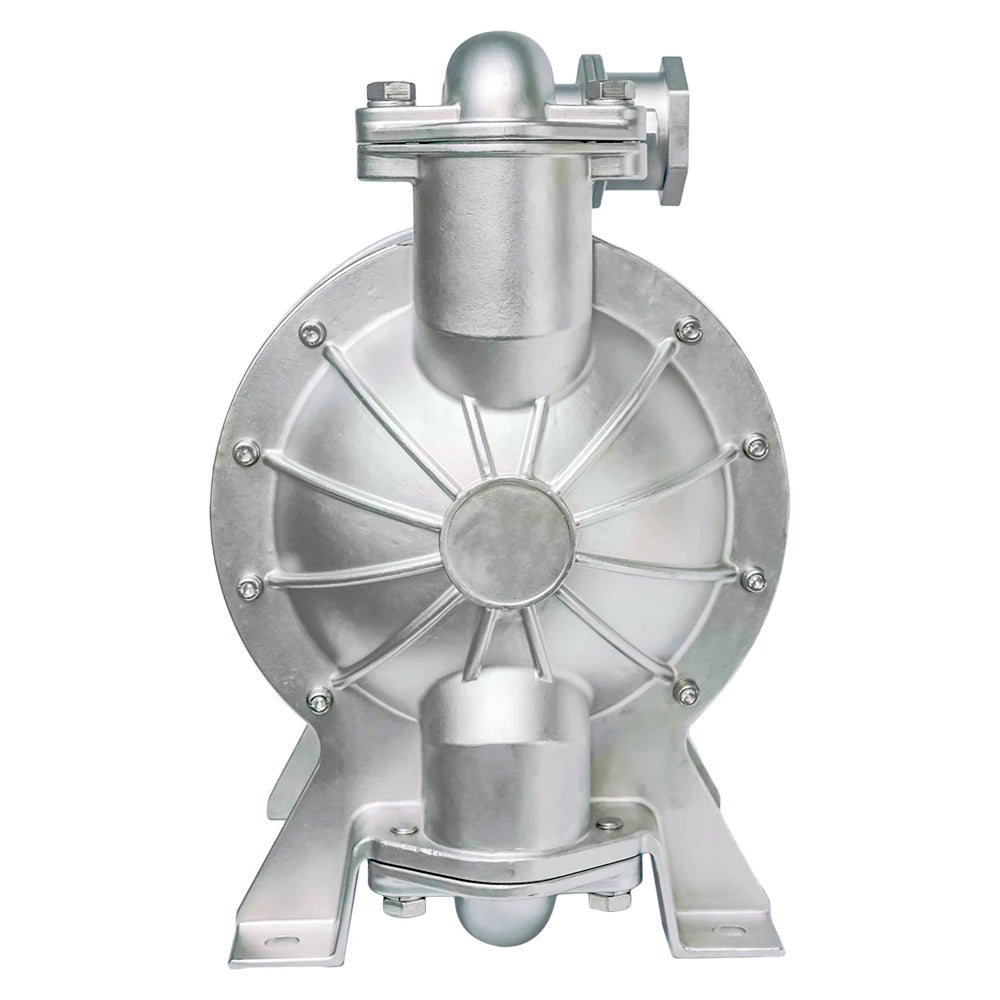

The stainless steel pneumatic pump is a high-performance air operated double diaphragm (AODD) pump designed for efficient paint transfer and coating applications. Available in 3/8", 1/2", 1", and 1-1/2" port sizes, this pump delivers consistent flow output, smooth material handling, and reliable operation in industrial finishing environments.
Engineered with corrosion-resistant stainless steel construction, the pump is suitable for water-based and solvent-based paints, coatings, and light chemical fluids. Its pneumatic operation ensures safe use in hazardous areas, while the diaphragm-driven design provides self-priming capability and dry-run protection.
Technical Specifications
| Specification | Value |
|---|---|
| Pump Type | Pneumatic AODD (Air Operated Double Diaphragm) Pump |
| Available Port Sizes | 3/8" / 1/2" / 1" / 1-1/2" |
| Body Material | Stainless Steel |
| Operation | Pneumatic (Air Driven) |
| Fluid Type | Paint / Coatings / Light Chemicals |
| Max Flow Rate | Model Dependent |
| Max Air Pressure | Up to 7 bar (Air Supply Dependent) |
| Installation | Portable / Fixed Mount |
| Application | Paint Transfer & Coating Systems |
| Condition | New |
| Warranty | 12 Months |
Key Features
-
Stainless steel pneumatic AODD paint pump
-
Available in multiple port sizes
-
Suitable for solvent and water-based coatings
-
Self-priming and dry-run capable
-
Safe operation in hazardous environments
-
Durable industrial-grade construction
Typical Applications
-
Automotive paint shops
-
Industrial coating systems
-
Spray booth operations
-
Manufacturing finishing lines
-
Chemical transfer systems
-
Printing and ink transfer systems
Shipping & Support
-
Fast dispatch - Australia & World wide shipping
-
Technical assistance available
-
12-month warranty
