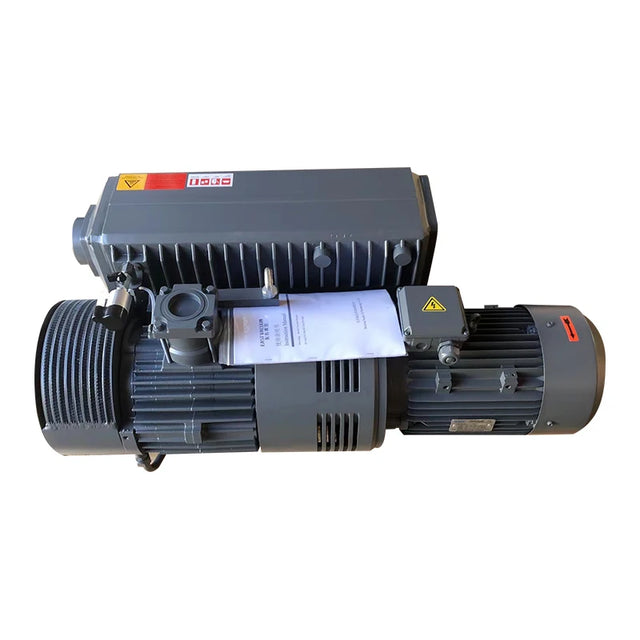

SV-063 Super Q Rotary Vane Vacuum Pump, 63m³/h 1.5kW 0.1–0.5mbar
The SV-063 Super Q rotary vane vacuum pump is a single-stage, oil-sealed vacuum pump designed for industrial, HVAC, and semiconductor applications.
- 63 m³/h Flow Rate
- 0.1 – 0.5 mbar Ultimate Pressure
- 1.5 kW Motor Power
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The SV-063 Super Q rotary vane vacuum pump is a single-stage, oil-sealed vacuum pump designed for industrial, HVAC, and semiconductor applications. Engineered for stable and efficient vacuum performance, it is suitable for continuous-duty operation in demanding environments.
With a pumping speed of 63 m³/h and an ultimate vacuum of 0.1–0.5 mbar, this pump is ideal for vacuum coating, packaging systems, and negative pressure installations.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Rotary Vane Vacuum Pump |
| Model | SV-063 |
| Brand | Super Q |
| Pump Type | Vacuum Pump |
| Structure | Single-Stage Rotary Vane |
| Pressure | Low Pressure (Vacuum) |
| Ultimate Pressure | 0.1 – 0.5 mbar |
| Flow Rate | 63 m³/h |
| Speed Range | Standard motor speed |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Motor Power | 1.5 kW |
| Voltage | 380V |
| Pump Body Material | Industrial Alloy |
| Sealing Type | Oil-Sealed |
| Cable Length | Customizable |
| Certification | CE |
| Suitable Media | Air |
| Application Scope | Industrial / HVAC |
| Dimensions | Model dependent |
| Warranty | 12 Months |
Key Features
- Oil-sealed rotary vane design
- Pumping speed of 63 m³/h
- Vacuum down to 0.1 mbar
- Stable and reliable performance
- Suitable for continuous-duty operation
- Durable industrial construction
Typical Applications
- Hospital negative pressure systems
- Automatic packaging machines
- Vacuum coating systems
- Semiconductor manufacturing
- Vapor deposition systems
- Industrial vacuum processes
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
