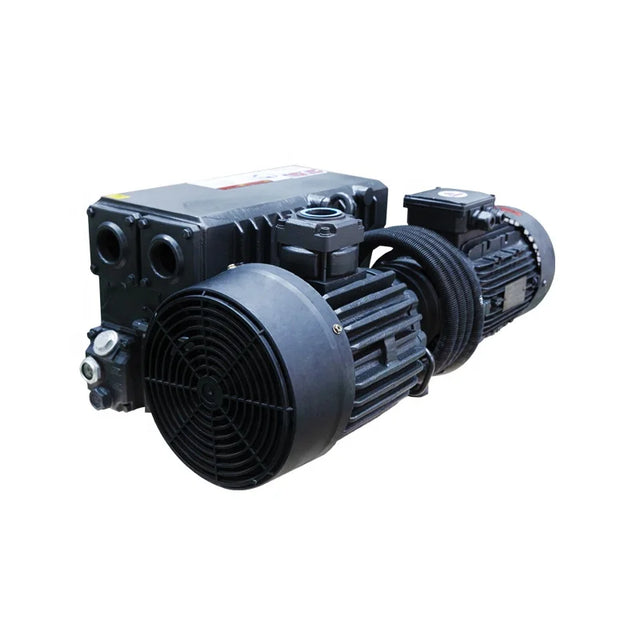

SV-100 TSVAC Double-Stage Vacuum Pump, 3kW HVAC Refrigeration Pump
The SV-100 TSVAC vacuum pump is a high-performance double-stage pump designed for HVAC, refrigeration, and industrial vacuum applications.
- 2.0 L Oil Capacity
- 3.0 kW Power Rating
- 1440 rpm Speed
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The SV-100 TSVAC vacuum pump is a high-performance double-stage pump designed for HVAC, refrigeration, and industrial vacuum applications. Engineered for deep vacuum performance, it achieves an ultimate vacuum of 0.5 Pa, making it ideal for demanding evacuation processes.
With robust steel construction, low noise operation, and compatibility with multiple fluids, this pump ensures reliable and efficient operation in commercial and industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Double-Stage Vacuum Pump |
| Model | SV-100 |
| Brand | TSVAC |
| Pump Type | Vacuum Pump |
| Structure | Double-Stage |
| Pressure | Low Pressure (Vacuum) |
| Ultimate Vacuum | 0.5 Pa |
| Flow Rate | High vacuum performance |
| Speed | 1440 rpm |
| Motor Type | Single-Phase Motor |
| Power Source | Electric |
| Power Rating | 3.0 kW |
| Voltage | 220V |
| Oil Capacity | 2.0 L |
| Noise Level | <67 dB(A) |
| Pump Body Material | Steel |
| Outer Material | Anti-corrosion plastic |
| Sealing Type | Oil-sealed |
| Inlet Size | G1 1/4" |
| Connection Type | Shaft Coupling |
| Control Method | Manual |
| Filter Material | Non-Woven Fabric |
| Hardness | 70 Shore A |
| Chemical Compatibility | Alcohol / Gasoline / Kerosene / Water / Oils |
| Dimensions | 710 × 430 × 295 mm |
| Weight | 70 kg |
| Surface Treatment | Spraying |
| Cable Length | 2 m |
| Warranty | 12 Months |
Key Features
- Double-stage design for deep vacuum performance
- Ultimate vacuum up to 0.5 Pa
- 3.0 kW high-efficiency motor
- Low noise operation (<67 dB)
- Compatible with multiple fluids
- Durable industrial construction
Typical Applications
- HVAC systems
- Refrigeration servicing
- Industrial vacuum systems
- Commercial building maintenance
- Vacuum evacuation
- Equipment servicing
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
