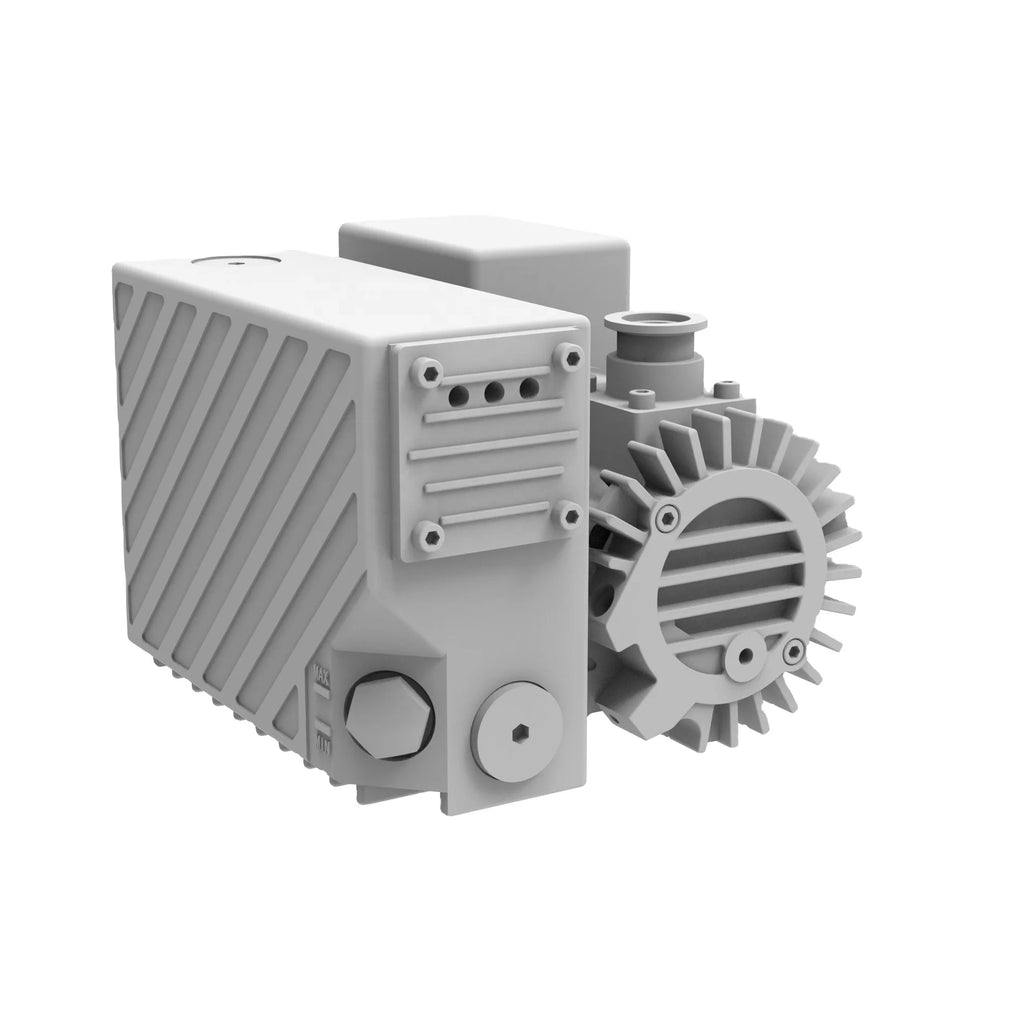

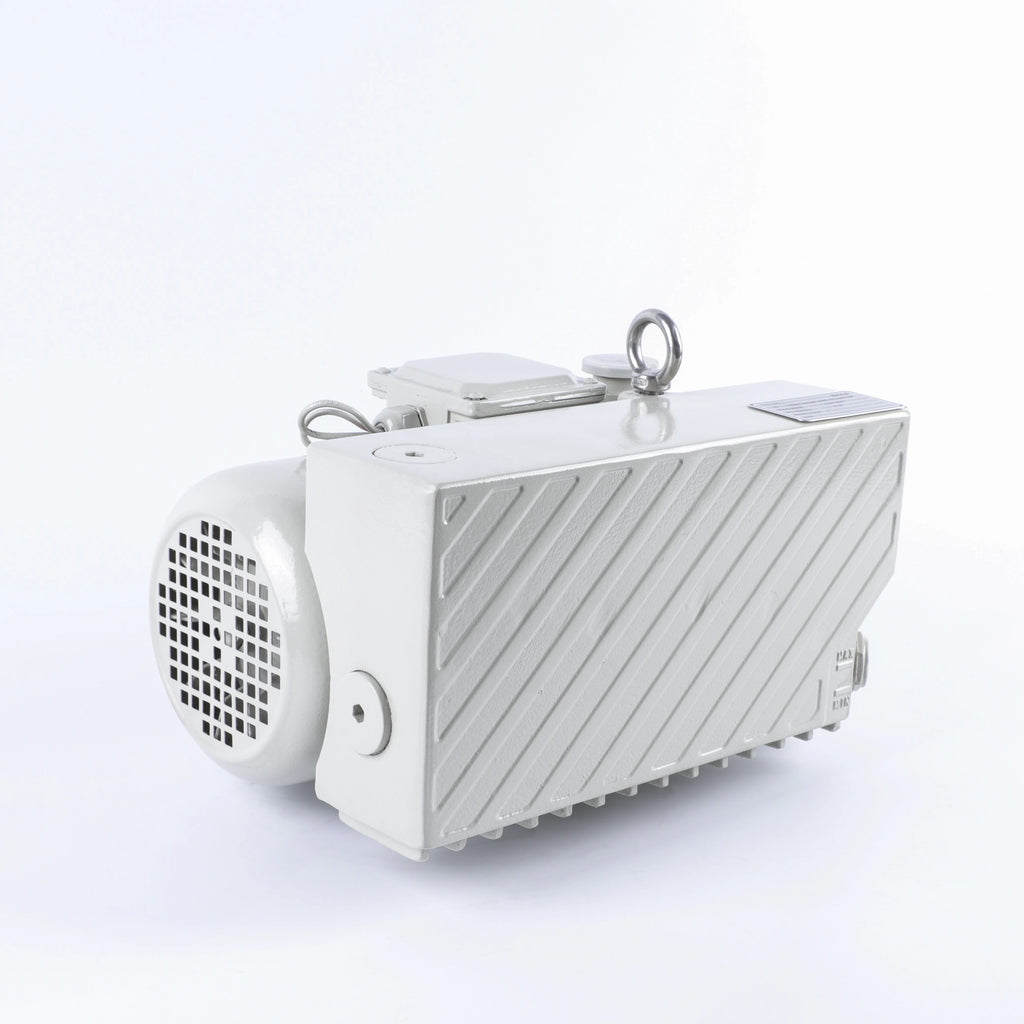

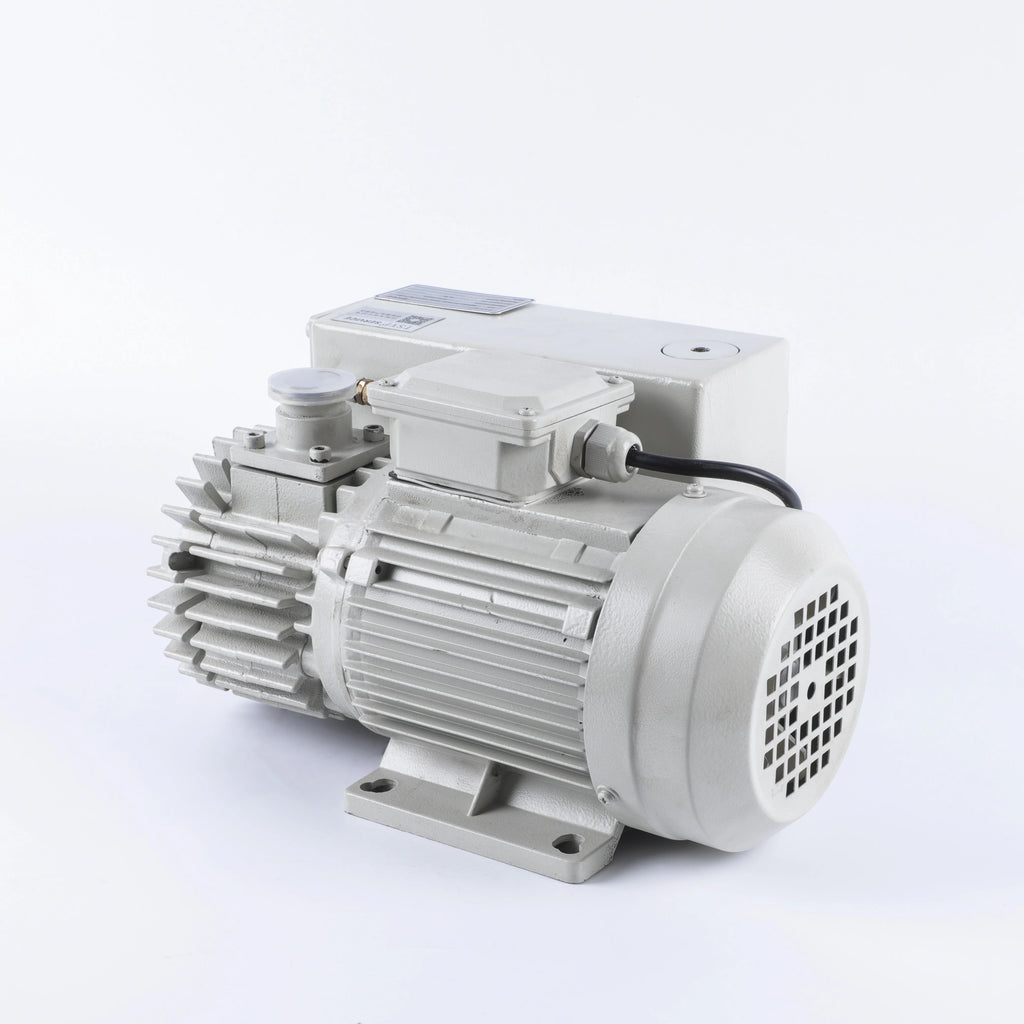

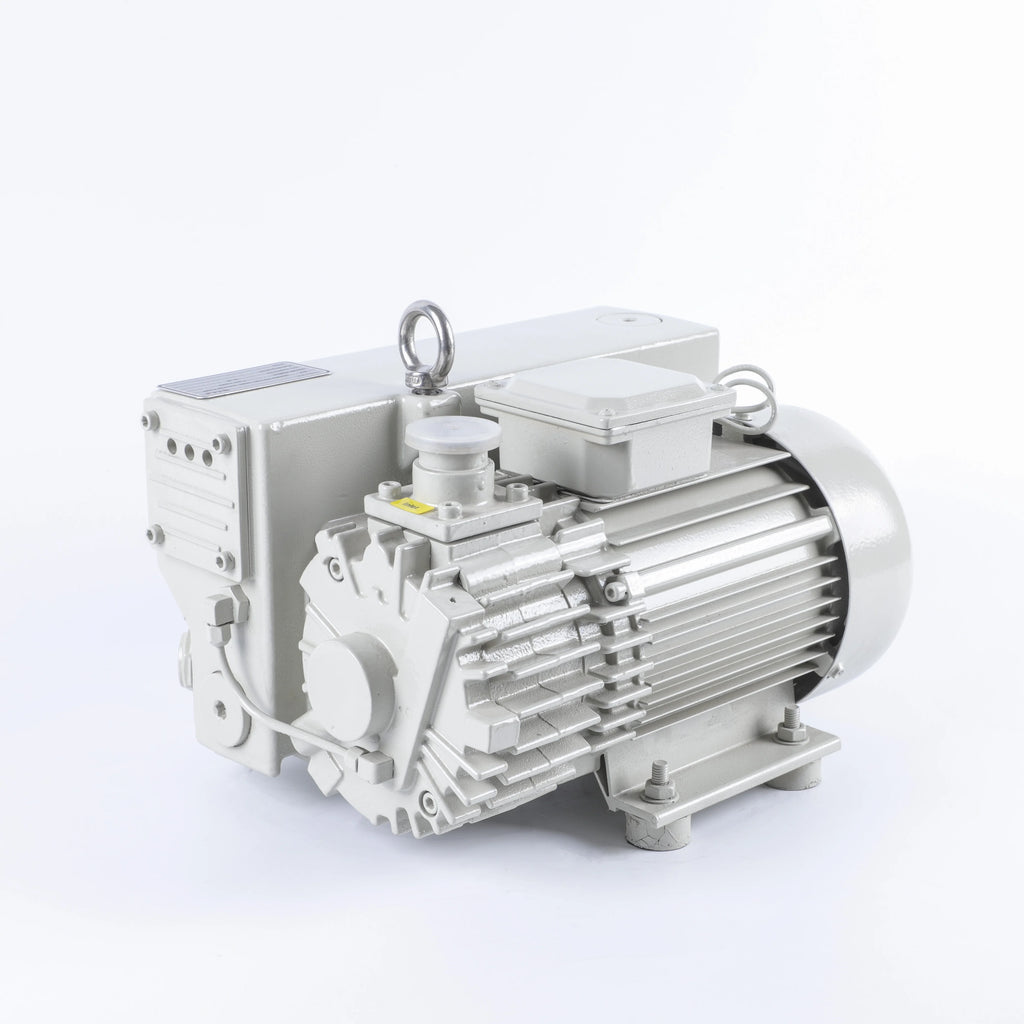

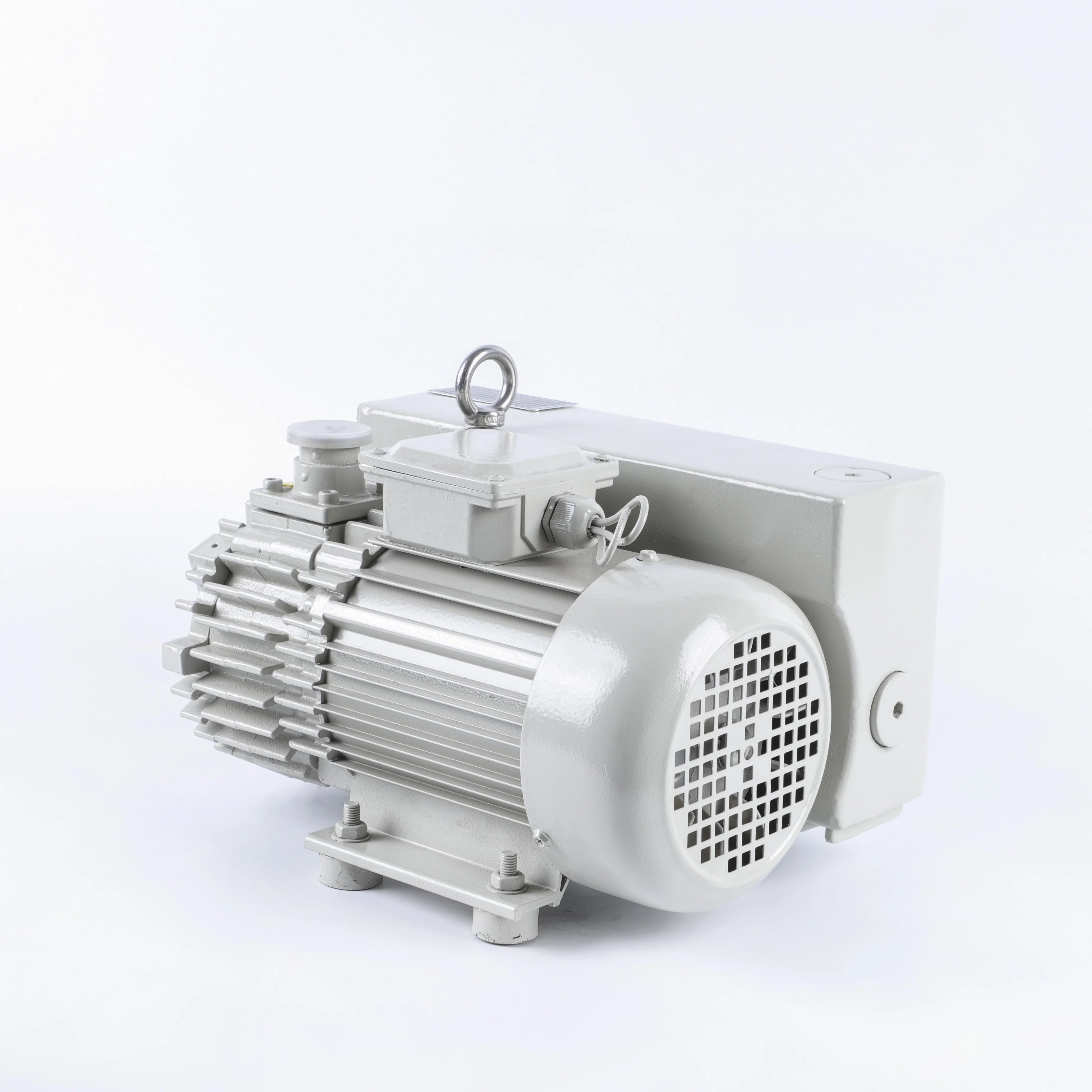

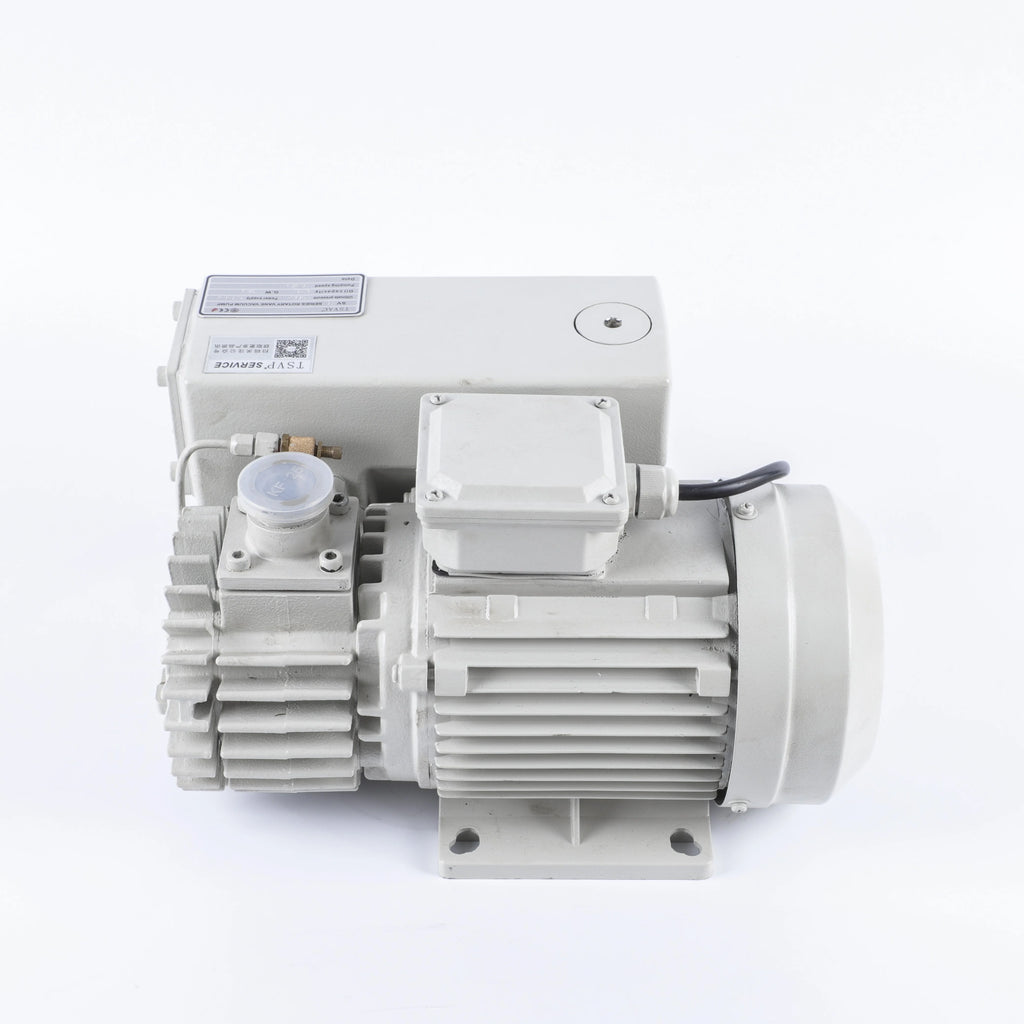

SV-10B TSVAC Rotary Vane Vacuum Pump, 20m³/h 0.75–0.9kW 150Pa Two-Stage
The SV-10B TSVAC rotary vane vacuum pump is a compact, double-stage vacuum pump designed for HVAC and refrigeration applications.
- 20 m³/h Flow Rate
- 150 Pa Ultimate Pressure
- 0.75 kW (3 Phase) / 0.9 kW (1 Phase) Motor Power
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 12 MonthsWarranty
Product Overview
The SV-10B TSVAC rotary vane vacuum pump is a compact, double-stage vacuum pump designed for HVAC and refrigeration applications. Featuring anti-return oil design and durable construction, it ensures reliable vacuum performance for air conditioning systems and commercial installations.
With a pumping speed of 20 m³/h and ultimate vacuum of 150 Pa, this pump is ideal for efficient evacuation and maintenance of refrigeration systems.
Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Rotary Vane Vacuum Pump |
| Model | SV-10B |
| Brand | TSVAC |
| Pump Type | Vacuum Pump |
| Structure | Double-Stage Rotary Vane |
| Pressure | Vacuum |
| Ultimate Pressure | 150 Pa |
| Flow Rate | 20 m³/h |
| Speed | 2800 RPM |
| Motor Type | Electric Motor |
| Power Source | Electric |
| Motor Power | 0.75 kW (3 Phase) / 0.9 kW (1 Phase) |
| Voltage | 220V / 380V |
| Pump Body Material | PPS / Anti-corrosion Plastic |
| Sealing Type | Oil-Sealed |
| Inlet Size | G1/2 inch |
| Oil Capacity | 0.3 L |
| Noise Level | 69 dB(A) |
| Weight | 18 kg |
| Dimensions | 340 × 210 × 205 mm |
| Application Scope | HVAC / Refrigeration |
| Warranty | 12 Months |
Key Features
- Double-stage rotary vane design
- Pumping speed of 20 m³/h
- Anti-return oil system for protection
- Compact and lightweight design
- Low noise operation (69 dB)
- Suitable for HVAC and refrigeration systems
Typical Applications
- Air conditioning systems
- Refrigeration maintenance
- Commercial buildings
- HVAC servicing
- Vacuum evacuation systems
- Industrial cooling systems
Shipping & Support
- Fast dispatch - Australia & World wide shipping
- Technical assistance available
- 12-month warranty
