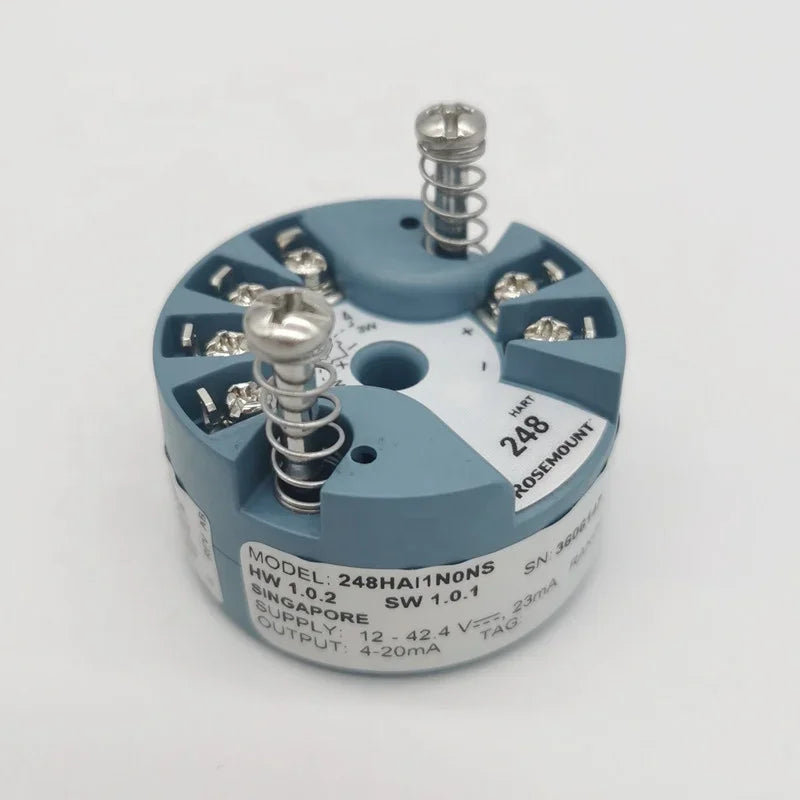

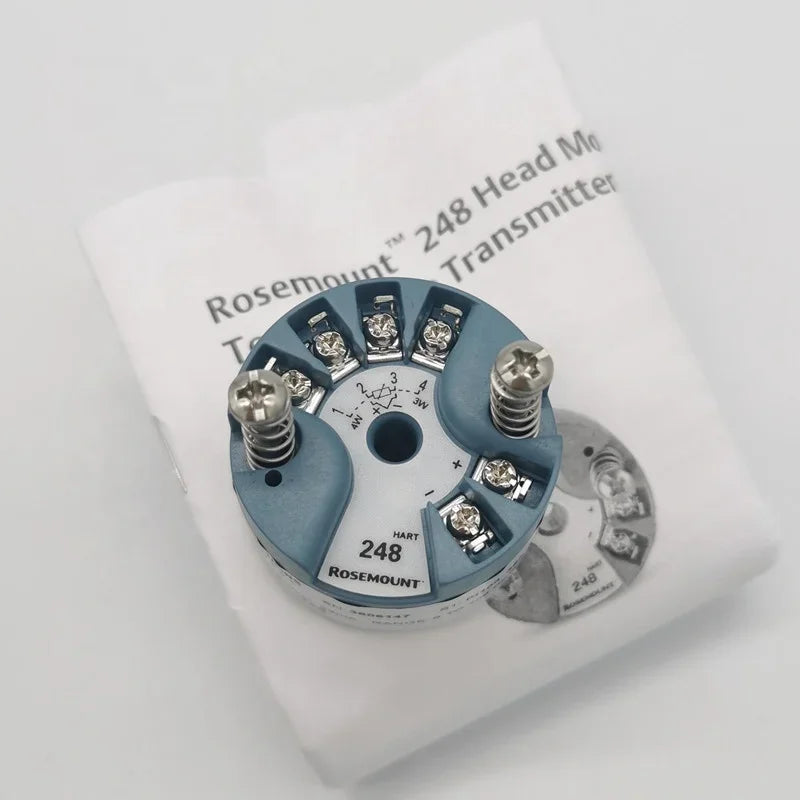

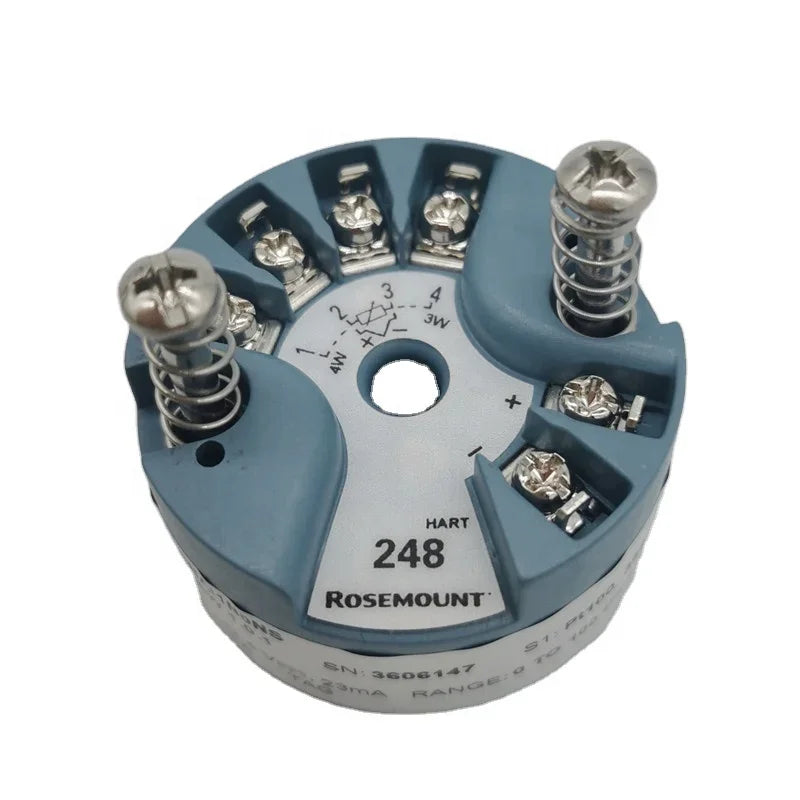

Rosemount 248HAI1N0NS HART Head-Mount Temperature Transmitter
The Rosemount 248HAI1N0NS Temperature Transmitter is designed for accurate temperature measurement and monitoring in industrial process control systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Rosemount 248HAI1N0NS Temperature Transmitter is designed for accurate temperature measurement and monitoring in industrial process control systems. Manufactured by Rosemount, an Emerson brand, this intelligent transmitter converts signals from compatible temperature sensors into a standard 4–20 mA DC output with HART digital communication. Its compact design supports reliable temperature monitoring, simplified instrument configuration, and integration with industrial automation systems.
Part of the Rosemount 248 Series, the 248HAI1N0NS features DIN B head mounting, configurable sensor inputs, open and short sensor diagnostics, and ATEX intrinsic safety certification. This configuration is supplied without an enclosure or temperature sensor, allowing installation with separately selected compatible equipment. It is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial temperature monitoring applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
HART Temperature Transmitter |
|
Manufacturer / Brand |
Rosemount / Emerson |
|
Model Number |
248HAI1N0NS |
|
Product Series |
Rosemount 248 |
|
Product Type |
Head-Mount Temperature Transmitter |
|
Mounting Configuration |
DIN B Head Mount |
|
Electrical Output |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Wiring Configuration |
Two-Wire, Loop Powered |
|
Sensor Input |
Single Sensor |
|
Supported Sensor Types |
RTD, Thermocouple, Millivolt and Resistance |
|
Sensor Configuration |
Programmable |
|
Temperature Measurement Range |
Depends on Selected Sensor |
|
Ambient Operating Temperature |
−50°C to +85°C, Series Specification |
|
Galvanic Isolation |
2.5 kVAC, Series Specification |
|
Sensor Diagnostics |
Open and Short Sensor Detection |
|
Calibration |
Configurable |
|
Digital Configuration |
Compatible HART Configuration Tools |
|
Hazardous-Area Certification |
ATEX Intrinsic Safety |
|
Certification Code |
I1 |
|
Application |
Industrial Temperature Monitoring |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Standard 4–20 mA output with HART digital communication
Compact DIN B head-mount construction
Supports RTD and thermocouple temperature sensors
Compatible with resistance and millivolt measurement inputs
ATEX intrinsically safe configuration for approved installations
Programmable sensor types and measurement ranges
Open and short sensor diagnostics for improved reliability
Two-wire loop-powered operation for simplified installation
Digital configuration using compatible HART tools
Galvanic isolation for improved electrical signal protection
Designed for integration with industrial control systems
Suitable for single-point industrial temperature monitoring
Typical Applications
Industrial process temperature monitoring
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing automation
RTD and thermocouple signal conversion
Process heating and cooling systems
HART-compatible distributed control systems
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
