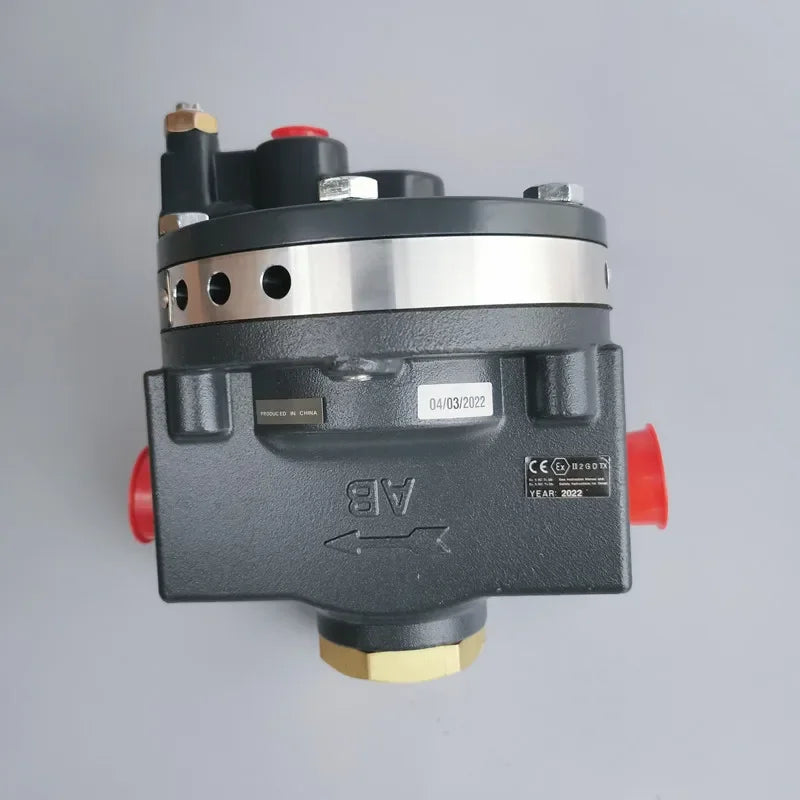

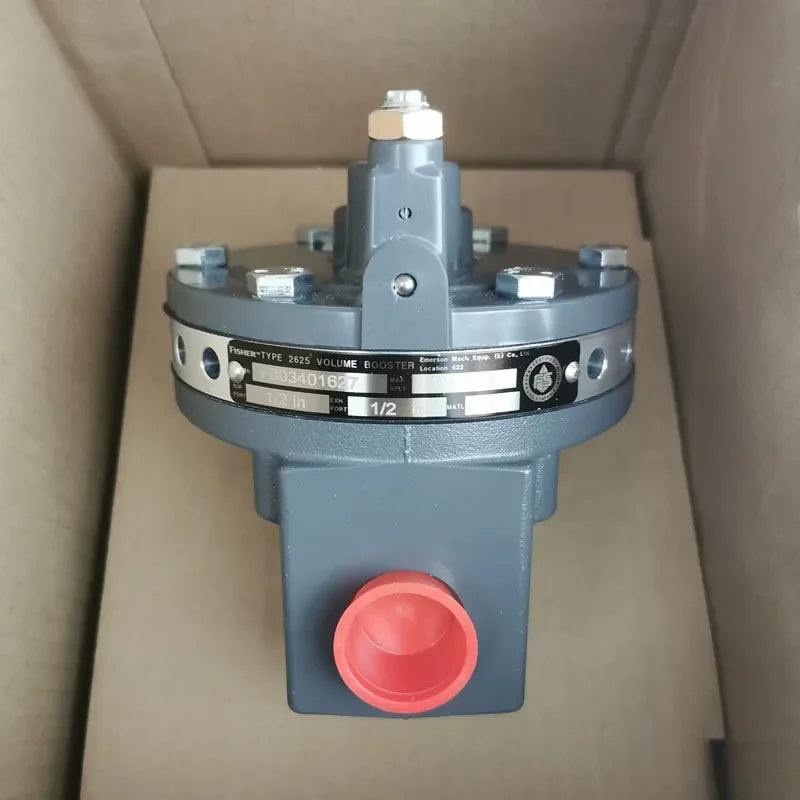

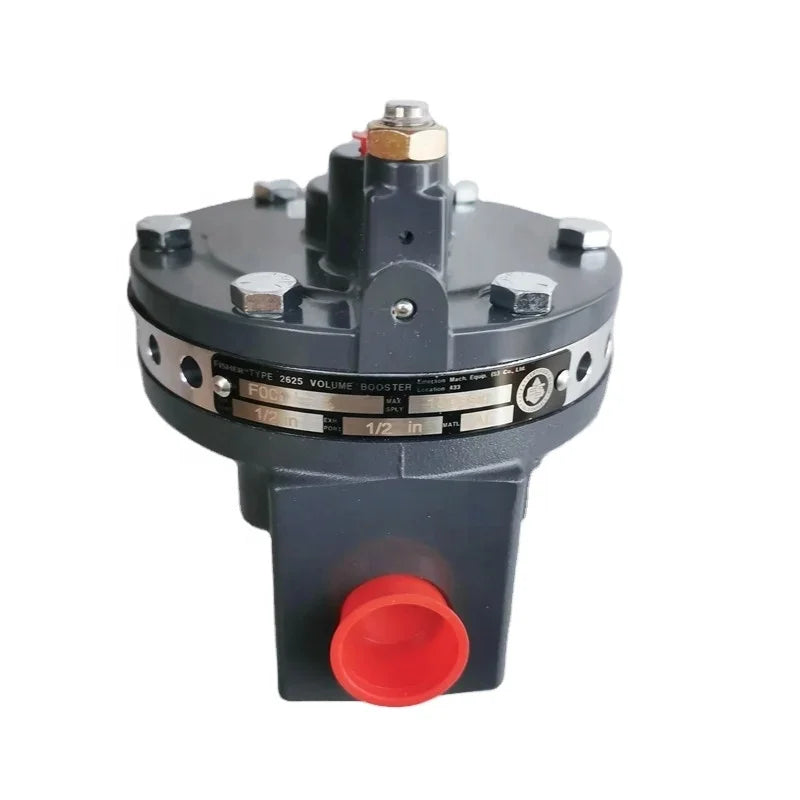

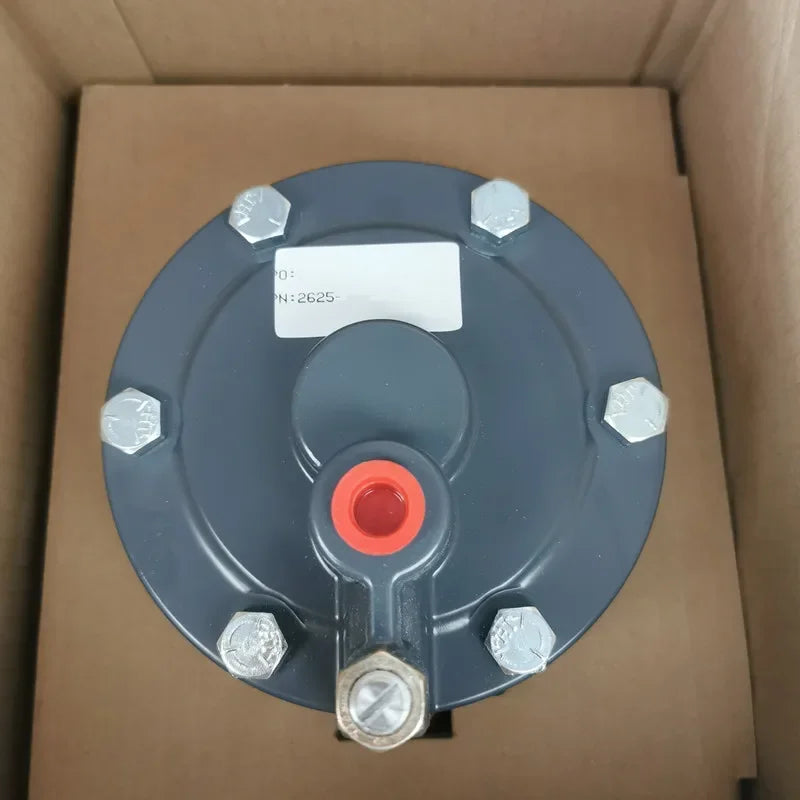

Fisher 2625-12 Pneumatic Volume Booster Relay for Industrial Valve Actuators
The Fisher 2625-12 Pneumatic Volume Booster is designed to improve the operating speed and responsiveness of pneumatic control valve actuators in industrial process automation systems.
- 0°C to +121°C High-Temperature Configuration
- 10.3 Bar (150 psig) Maximum Input Signal Pressure
- Pneumatic Airflow Boosting Control Type
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Fisher 2625-12 Pneumatic Volume Booster is designed to improve the operating speed and responsiveness of pneumatic control valve actuators in industrial process automation systems. Manufactured by Fisher, an Emerson brand, this pneumatic volume booster increases the volume of compressed air delivered to an actuator in response to pressure signals from a valve positioner. Its fixed 1:1 input-to-output pressure ratio enables rapid actuator movement while supporting accurate valve positioning, stable flow regulation, and reliable operation in demanding industrial applications.
Part of the Fisher 2625 Series, the 2625-12 features a durable pneumatic relay mechanism, an adjustable bypass restriction, and soft-seated valves that help reduce unnecessary air consumption. Its high-flow design enables faster actuator stroking during significant changes in control pressure while allowing smoother movement during smaller adjustments. Designed for integration with pneumatic valve positioners and suitable air supply regulators, the booster supports industrial automation in oil and gas processing, chemical plants, power generation, water treatment, and manufacturing facilities. The related Fisher 2625-9 is another volume booster configuration within the same product family.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Pneumatic Volume Booster |
|
Brand |
Fisher |
|
Manufacturer |
Emerson |
|
Model |
2625-12 |
|
Series |
2625 |
|
Product Type |
Pneumatic Volume Booster Relay |
|
Component Category |
Pneumatic Valve Control Accessories |
|
Operating Principle |
Pneumatic Pressure Signal Amplification |
|
Control Type |
Pneumatic Airflow Boosting |
|
Power Source |
Compressed Instrument Air |
|
Input Signal |
Pneumatic Pressure from Valve Positioner |
|
Maximum Input Signal Pressure |
10.3 Bar (150 psig) |
|
Input-to-Output Pressure Ratio |
1:1 |
|
Supply Pressure for Diaphragm Actuators |
Up to 2.8 Bar (40 psig) |
|
Supply Pressure for Piston Actuators |
Up to 10.3 Bar (150 psig) |
|
Input Signal Connection |
1/4 Inch NPT |
|
Supply Connection |
3/4 Inch NPT |
|
Output Connection |
3/4 Inch NPT |
|
Supply Port Diameter Options |
9.5 mm or 12.7 mm |
|
Exhaust Port Diameter Options |
2.4 mm, 9.5 mm or 12.7 mm |
|
Pressure Response |
Pneumatic Relay Operation |
|
Bypass Function |
Adjustable Integral Bypass Restriction |
|
Valve Seat Design |
Soft-Seated |
|
Standard Body Material |
Aluminium |
|
Standard Operating Temperature |
-40°C to +71°C |
|
High-Temperature Configuration |
0°C to +121°C |
|
Standard Seal Material |
Nitrile |
|
Approximate Weight |
2.3 kg, Aluminium Version |
|
Working Medium |
Compressed Air or Compatible Supply Gas |
|
Related Model |
2625-9 |
|
Application Scope |
Industrial Pneumatic Valve Actuator Control |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
High-capacity pneumatic volume booster designed to improve industrial control valve actuator response.
-
Fixed 1:1 input-to-output pressure ratio for proportional pneumatic pressure control.
-
Increases compressed air delivery to support faster actuator opening and closing.
-
Adjustable integral bypass restriction for maintaining smooth actuator movement during small signal changes.
-
Soft-seated valve construction helps reduce unnecessary air consumption.
-
Maximum input signal pressure of 10.3 bar for compatible pneumatic systems.
-
Available configurations support diaphragm and piston actuators operating within their rated supply pressures.
-
Durable aluminium construction for industrial operating environments.
-
Standard 1/4-inch NPT signal connection and 3/4-inch NPT supply and output connections.
-
Suitable for integration with compatible Fisher valve positioners and pneumatic control equipment.
-
Mechanical pneumatic operation without requiring an external electrical power supply.
-
Supports rapid actuator stroking during significant control signal changes.
-
Adjustable response characteristics help reduce instability in pneumatic valve positioning systems.
-
Designed for industrial process control applications requiring dependable actuator movement.
Typical Applications
-
Industrial pneumatic control valve systems
-
Pneumatic actuator speed improvement
-
Valve positioner airflow amplification
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Pneumatic diaphragm actuator assemblies
-
Pneumatic piston actuator control systems
-
Industrial flow and pressure regulation
-
Automated process control valve installations
-
Industrial instrumentation and maintenance systems
