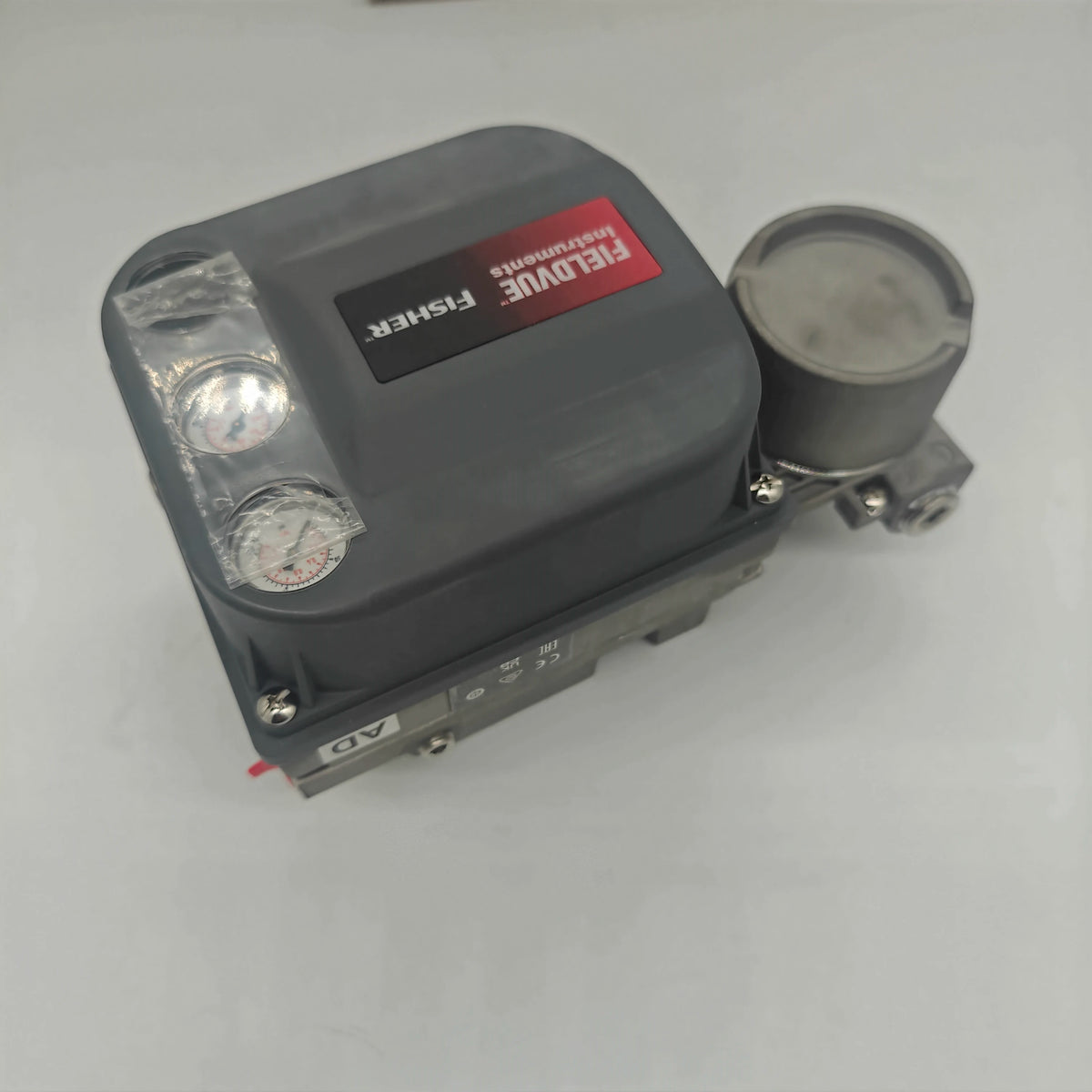

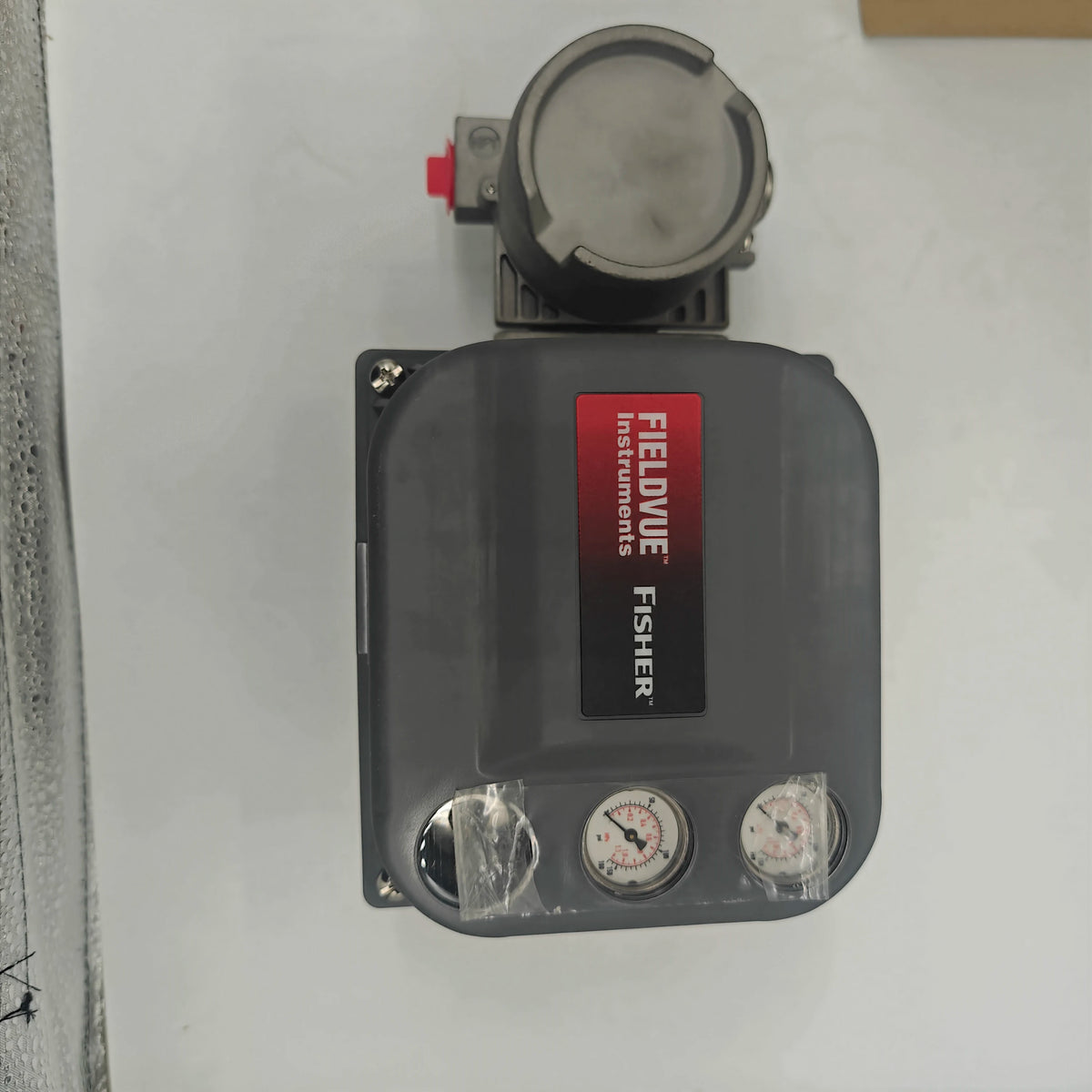

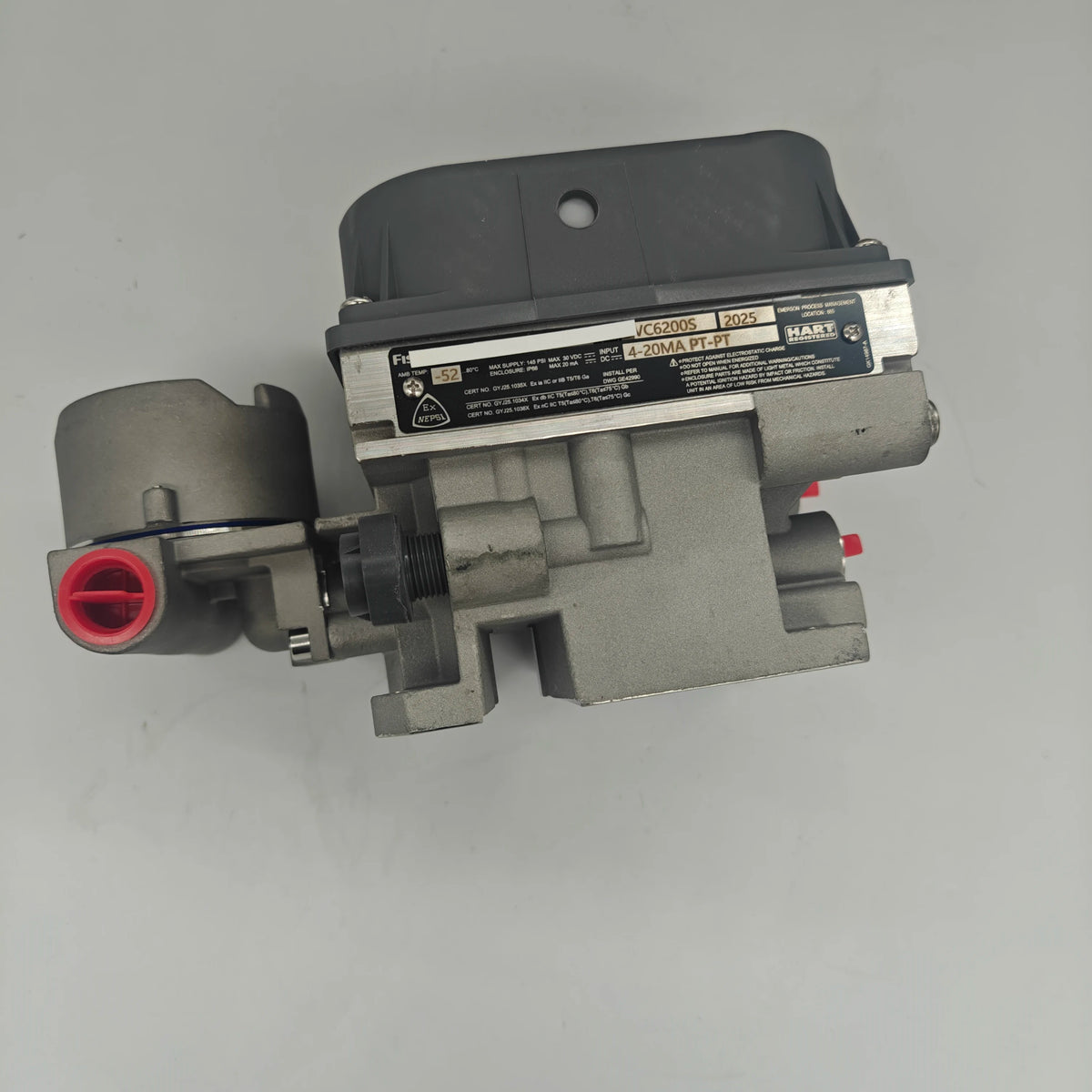

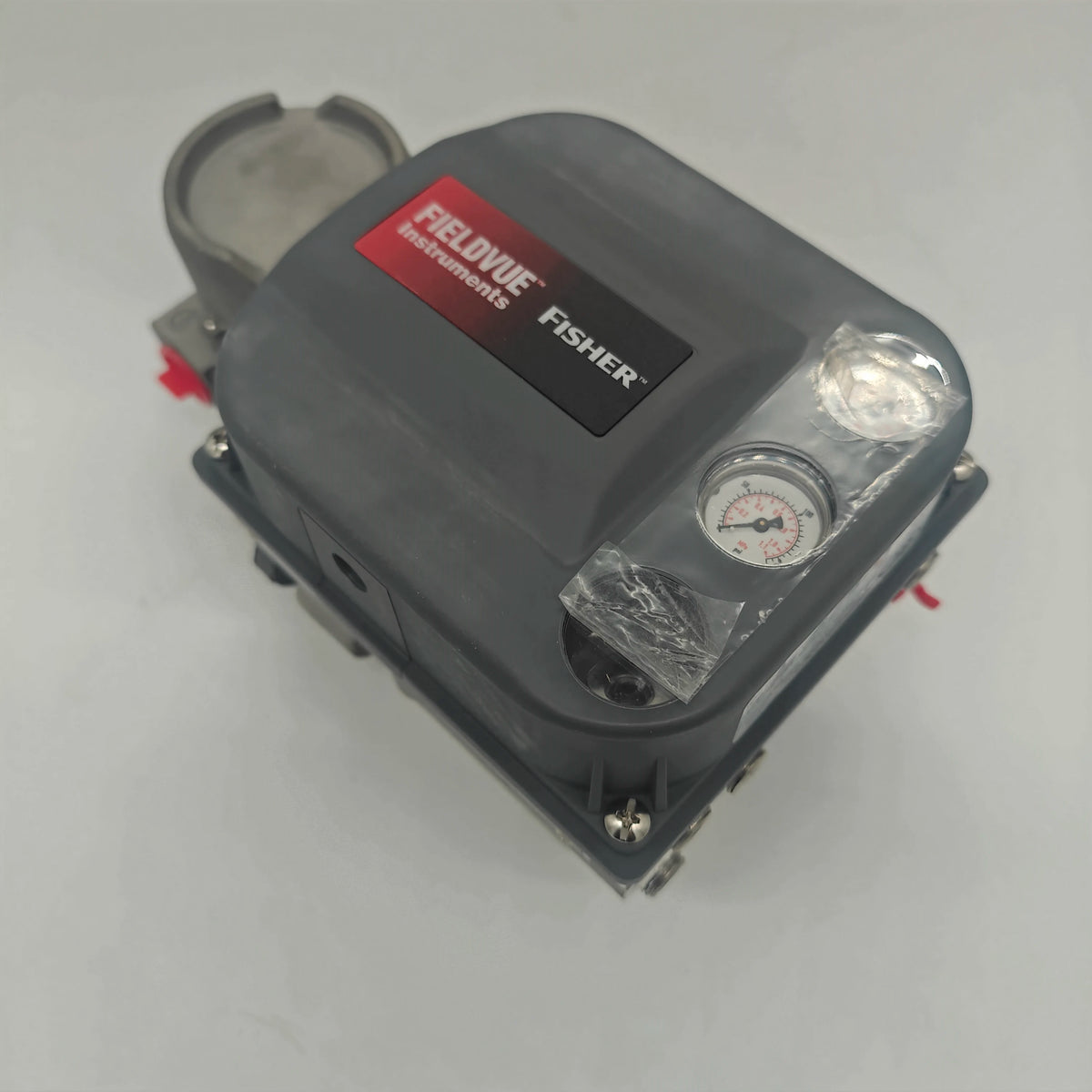

Fisher FIELDVUE DVC6200S AD Single Acting Digital Valve Controller with Feedback
The Fisher FIELDVUE DVC6200S AD Single Acting Digital Valve Controller is an intelligent electro-pneumatic instrument designed for accurate positioning and regulation of pneumatic control valve actuators.
- Single Acting Actuator Configuration
- 145 psig (10 bar), Subject to Actuator Rating Maximum Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Fisher FIELDVUE DVC6200S AD Single Acting Digital Valve Controller is an intelligent electro-pneumatic instrument designed for accurate positioning and regulation of pneumatic control valve actuators. Manufactured by Fisher, an Emerson brand, this FIELDVUE DVC6200 Series controller combines microprocessor-based control, HART digital communication, and contactless magnetic position sensing for precise valve movement. Its 4-20 mA electrical input enables integration with distributed control systems for reliable flow regulation and industrial process automation.
The DVC6200S AD configuration is intended for single-acting pneumatic actuator applications and offers advanced diagnostic capabilities for valve performance monitoring. The DVC6200S Series features a stainless steel housing, modular electronics, automatic calibration, and digital valve monitoring functions. Its feedback technology supports accurate actuator travel measurement, while compatible configurations can provide additional position retransmission. It is suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Single Acting Digital Valve Controller with Feedback |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Model Reference |
DVC6200S AD |
|
Product Series |
FIELDVUE DVC6200 |
|
Product Type |
Intelligent Digital Electro-Pneumatic Valve Controller |
|
Positioner Technology |
Microprocessor-Based Digital Control |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Actuator Configuration |
Single Acting |
|
Pneumatic Control Technology |
Electro-Pneumatic Pressure Regulation |
|
Electrical Input Signal |
4-20 mA DC |
|
Communication Protocol |
HART |
|
Power Configuration |
Two-Wire, Loop Powered |
|
Diagnostic Configuration |
Advanced Diagnostics, AD Reference |
|
Position Feedback Technology |
Contactless Magnetic Travel Sensing |
|
Position Feedback Function |
Continuous Valve Travel Monitoring |
|
Optional Analogue Feedback |
4-20 mA Position Transmitter with Suitable I/O Package |
|
Calibration |
Automatic Calibration |
|
Valve Diagnostics |
Valve Travel and Performance Monitoring |
|
Diagnostic Software |
Fisher ValveLink |
|
Pneumatic Relay Configuration |
Single Acting, Relay Dependent |
|
Relay C |
Single Acting, Direct |
|
Relay B |
Single Acting, Reverse |
|
Relay A |
Double Acting or Configurable Single Acting |
|
Maximum Supply Pressure |
145 psig (10 bar), Subject to Actuator Rating |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Housing Material |
Stainless Steel, DVC6200S Configuration |
|
Enclosure Protection |
IP66 / NEMA 4X, Applicable Configuration |
|
Electrical Connection |
1/2 NPT or M20, Depending on Configuration |
|
Pneumatic Connection |
1/4 NPT, Standard |
|
Hazardous Area Certification |
Dependent on Complete Model Code and Nameplate |
|
Actuator Compatibility |
Compatible Linear and Rotary Pneumatic Actuators |
|
Mounting Configuration |
Actuator Mounted |
|
Control System Integration |
HART-Compatible PLC and DCS Systems |
|
Operating Application |
Industrial Valve Positioning and Monitoring |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Single-acting pneumatic actuator control
Accurate 4-20 mA electrical input signal
Integrated HART digital communication technology
Contactless magnetic valve travel sensing
Advanced valve diagnostic capabilities
Continuous valve position monitoring and feedback
Optional 4-20 mA analogue position retransmission
Automatic calibration and digital valve tuning
Modular electronic design for convenient servicing
Durable stainless steel housing construction
IP66 enclosure protection for industrial environments
Configurable pneumatic relay operation
Compatible with linear and rotary pneumatic actuators
Integration with Fisher ValveLink diagnostic software
Supports industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Single-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Linear and rotary valve automation
Pneumatic actuator position feedback systems
Industrial valve diagnostics and condition monitoring
HART-compatible distributed control systems
Industrial process automation and instrumentation
Pneumatic valve maintenance and replacement
