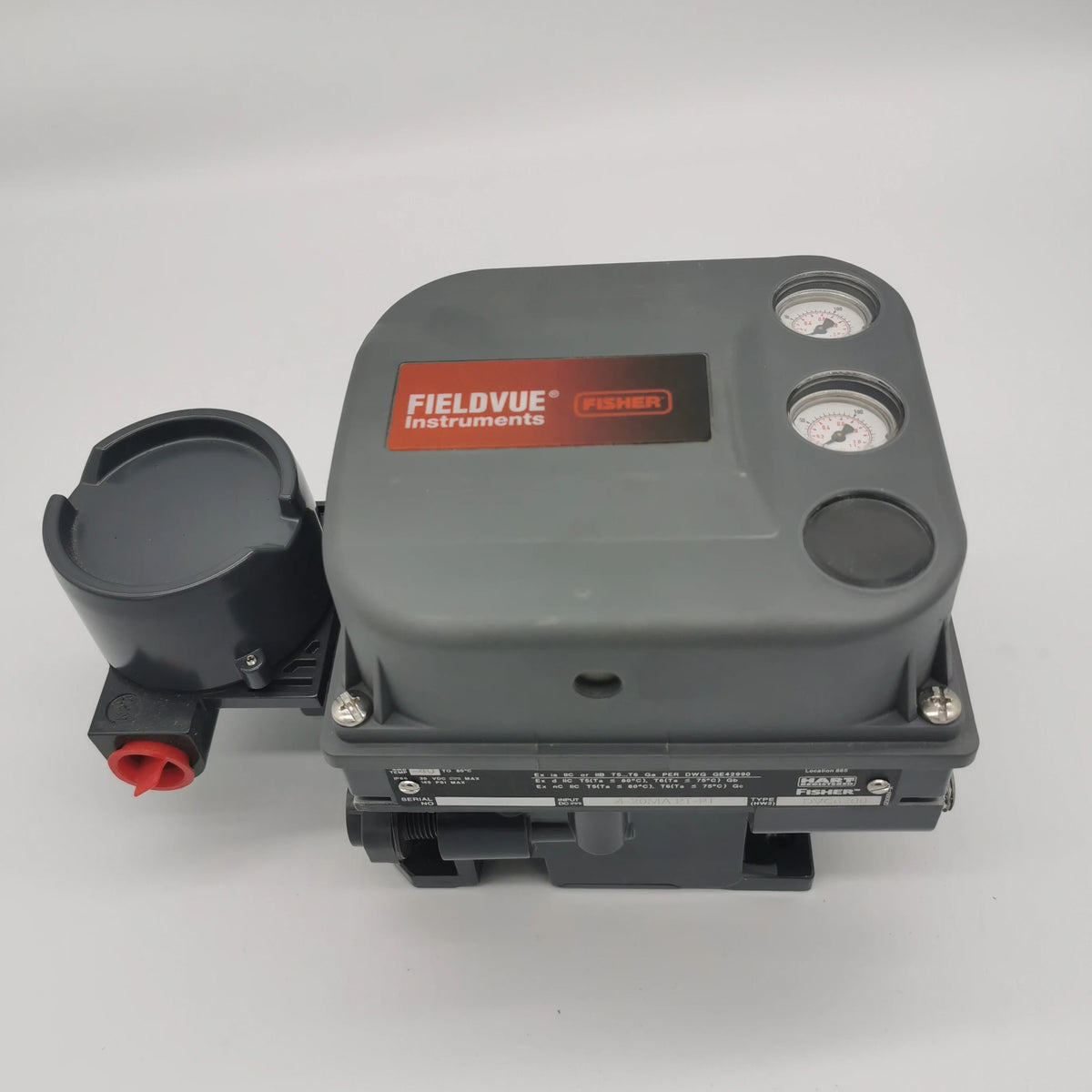

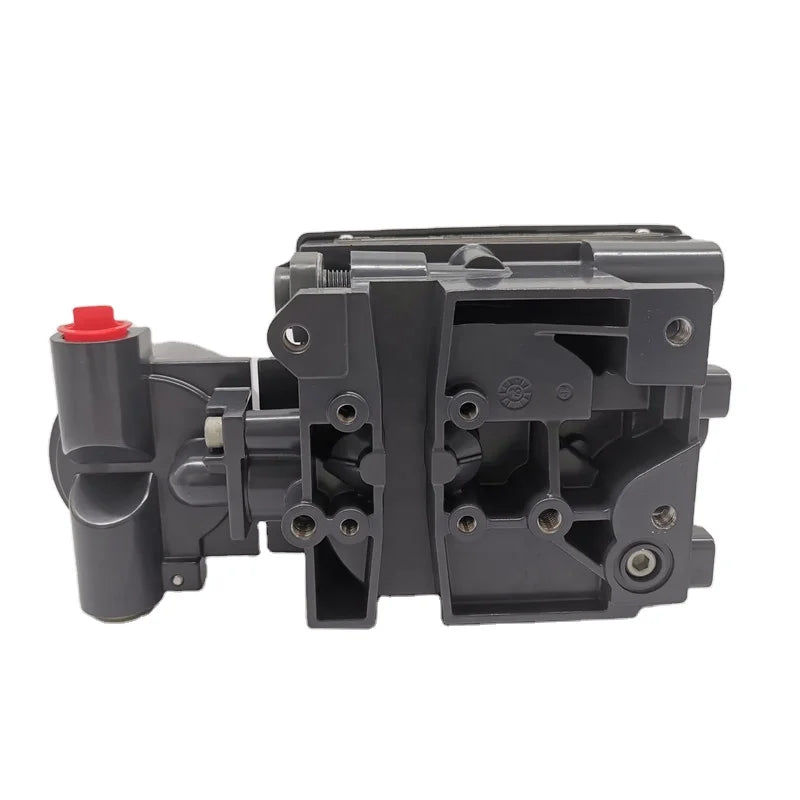

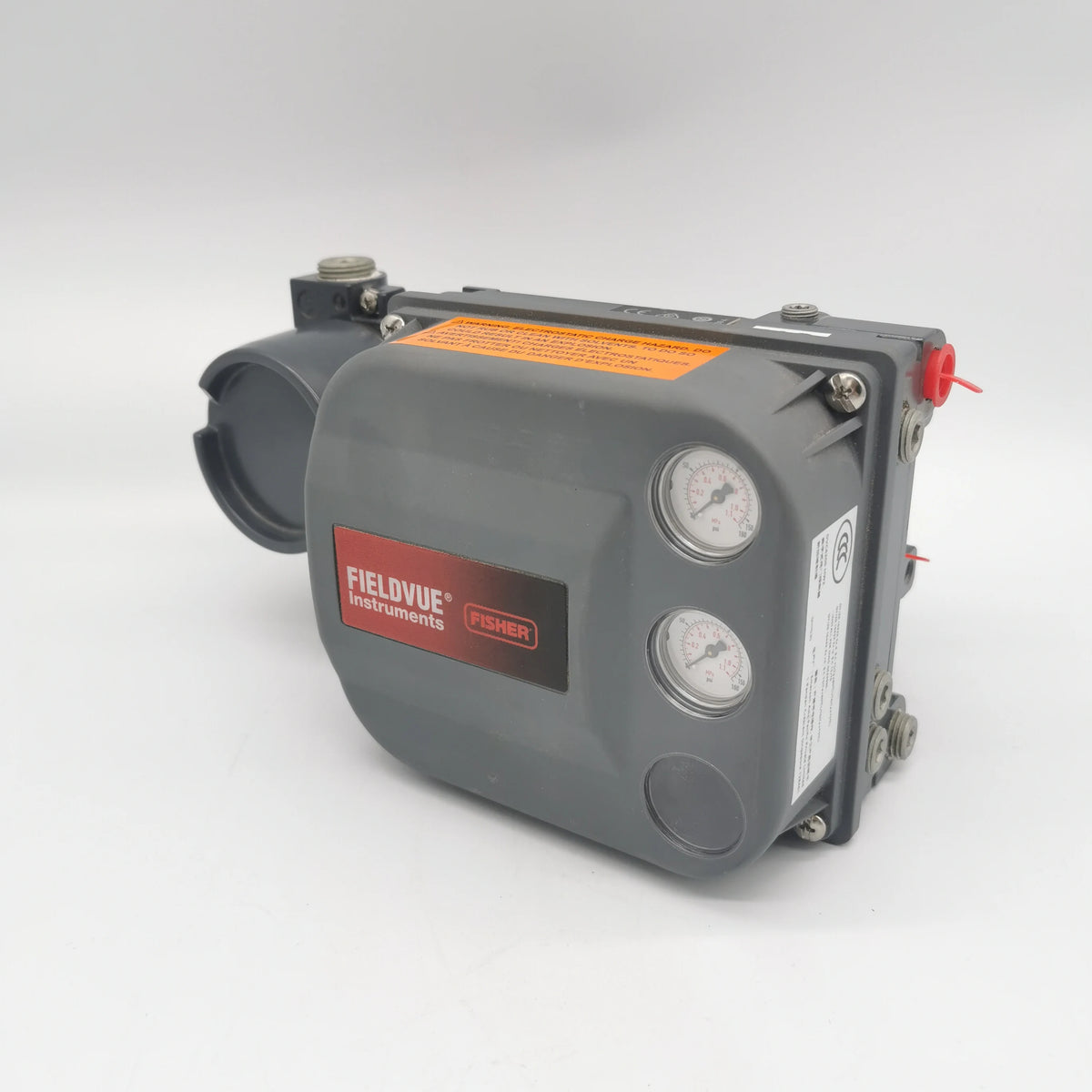

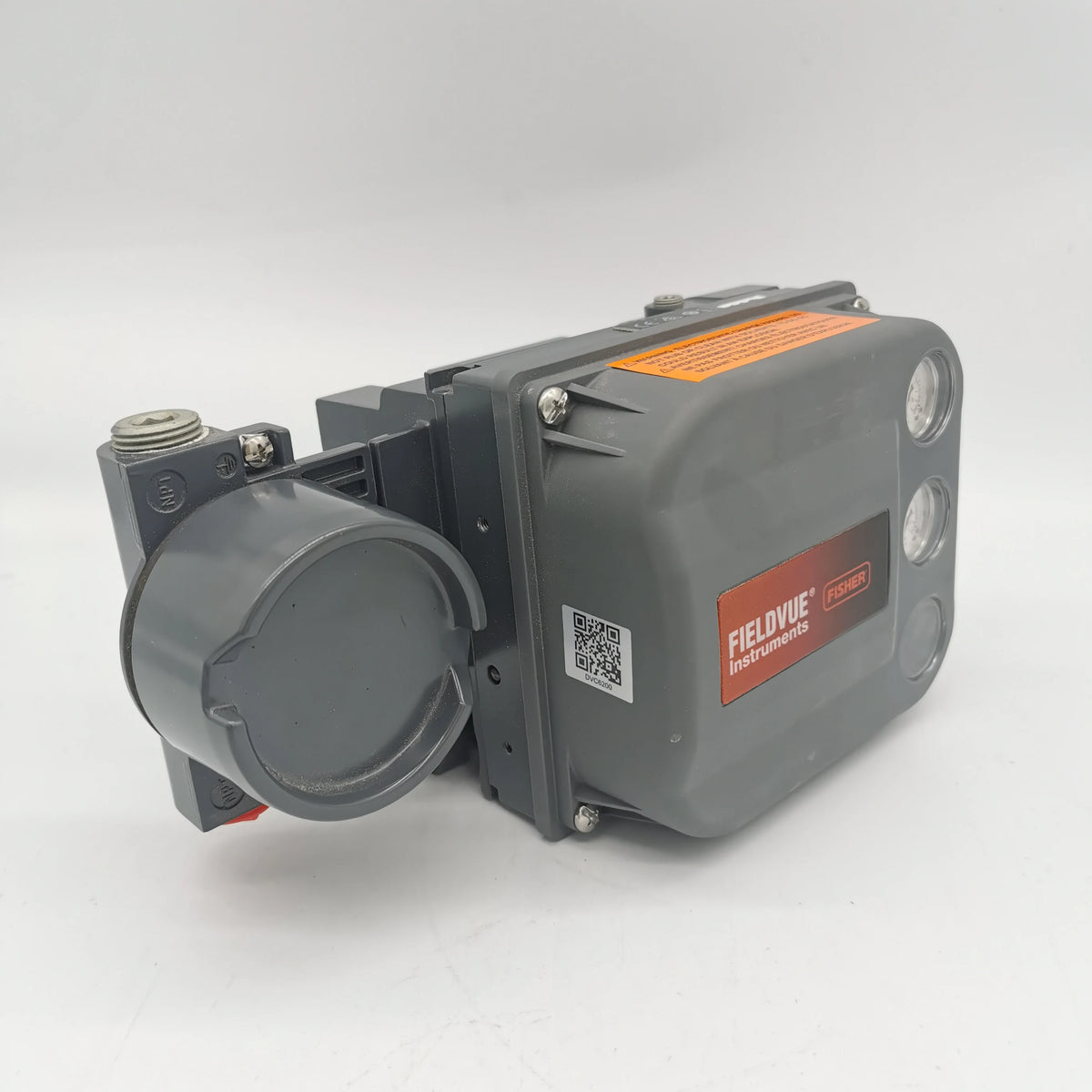

Fisher DVC6205 + DVC6215 Split Type Digital Valve Controller and Remote Mount Valve Positioner
The Fisher FIELDVUE DVC6205 + DVC6215 Split Type Digital Valve Controller is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems.
- Remote Mount / Split Type System Configuration
- 1/4 Inch NPT Supply Pressure Connection
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Fisher FIELDVUE DVC6205 + DVC6215 Split Type Digital Valve Controller is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems. Manufactured by Fisher, an Emerson brand, this remote-mounted valve positioner system separates the digital control unit from the valve travel feedback sensor, allowing sensitive electronic and pneumatic control components to be installed away from high-temperature or high-vibration environments. Its intelligent control technology enables accurate valve positioning, responsive actuator movement, and reliable process regulation in demanding industrial applications.
Part of the Fisher FIELDVUE DVC6200 series, the system combines the DVC6205 base unit with the DVC6215 remote feedback unit. The DVC6205 houses the electronic control components, current-to-pressure converter, and pneumatic relay, while the DVC6215 provides non-contact magnetic valve travel feedback. This split configuration supports flexible installation, improved vibration resistance, and reliable monitoring of pneumatic valve movement. The system supports HART, FOUNDATION Fieldbus, and PROFIBUS communication options, depending on the selected configuration. Related components include the Fisher DVC6200HC and DVC2000 valve controllers, 2625 volume booster, and 67CFR pressure-reducing filter regulator.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Remote Mount Digital Valve Controller |
|
Brand |
Fisher |
|
Manufacturer |
Emerson |
|
Model |
DVC6205 + DVC6215 |
|
Series |
FIELDVUE DVC6200 |
|
Product Type |
Split Type Digital Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
System Configuration |
Remote Mount / Split Type |
|
Base Unit Model |
DVC6205 |
|
Remote Feedback Unit |
DVC6215 |
|
Control Function |
Automatic Valve Position Regulation |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Actuator Configuration |
Single Acting or Double Acting, Depending on Relay |
|
Input Signal |
4–20 mA DC for Analogue / HART Configuration |
|
Communication Options |
HART, FOUNDATION Fieldbus, PROFIBUS |
|
Position Detection |
Non-Contact Magnetic Travel Feedback |
|
Base Unit Components |
I/P Converter, Pneumatic Relay and Electronic Control Board |
|
Base Unit Mounting |
Panel or Pipe Stand |
|
Feedback Unit Mounting |
Direct Actuator Mounting |
|
Remote Sensor Distance |
Up to 30 m Without Performance Degradation |
|
Base Unit Operating Temperature |
-52°C to +85°C |
|
Remote Sensor Operating Temperature |
-52°C to +125°C |
|
Housing Material |
Low-Copper Aluminium Alloy |
|
Cover Material |
Thermoplastic Polyester |
|
Supply Pressure Connection |
1/4 Inch NPT |
|
Pneumatic Output Connection |
1/4 Inch NPT |
|
Recommended Pneumatic Tubing |
3/8 Inch |
|
Vent Connection |
3/8 Inch NPT |
|
Electrical Connection |
1/2 Inch NPT or M20 |
|
Positioner Configuration |
Digital Configuration and Calibration |
|
Related Valve Controllers |
DVC6200HC, DVC2000 |
|
Related Pneumatic Accessories |
Fisher 2625, Fisher 67CFR |
|
Working Medium |
Clean, Dry Instrument Air |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Remote-mount digital valve controller designed for accurate pneumatic actuator positioning.
-
Split-type configuration with separate DVC6205 control unit and DVC6215 travel feedback sensor.
-
Non-contact magnetic feedback technology for reliable valve position measurement and reduced mechanical wear.
-
Supports single-acting and double-acting pneumatic actuator configurations with the appropriate relay.
-
Standard 4–20 mA electrical control input for analogue and HART-enabled configurations.
-
HART, FOUNDATION Fieldbus, and PROFIBUS communication options across the product family.
-
Remote feedback sensor installation up to 30 metres from the base unit without performance degradation.
-
DVC6205 base unit suitable for panel or pipe stand mounting.
-
High-temperature remote feedback sensor suitable for operating environments up to +125°C.
-
Durable low-copper aluminium alloy housing for demanding industrial environments.
-
Integrated I/P converter and pneumatic relay for responsive pneumatic pressure regulation.
-
Digital valve monitoring and diagnostic functions for industrial process automation.
-
Compatible mounting arrangements for pneumatic linear and rotary valve actuators.
-
Supports integration with compatible Fisher 67CFR instrument air regulators.
-
Modular design that facilitates maintenance of control components and industrial instrumentation.
Typical Applications
-
Industrial process automation systems
-
Remote-mounted pneumatic valve control systems
-
High-temperature control valve installations
-
High-vibration industrial equipment
-
Oil and gas processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing equipment
-
Pneumatic linear and rotary actuator control
-
Industrial flow and pressure regulation systems
-
Distributed control systems with digital valve communication
-
Industrial valve monitoring and process instrumentation
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
