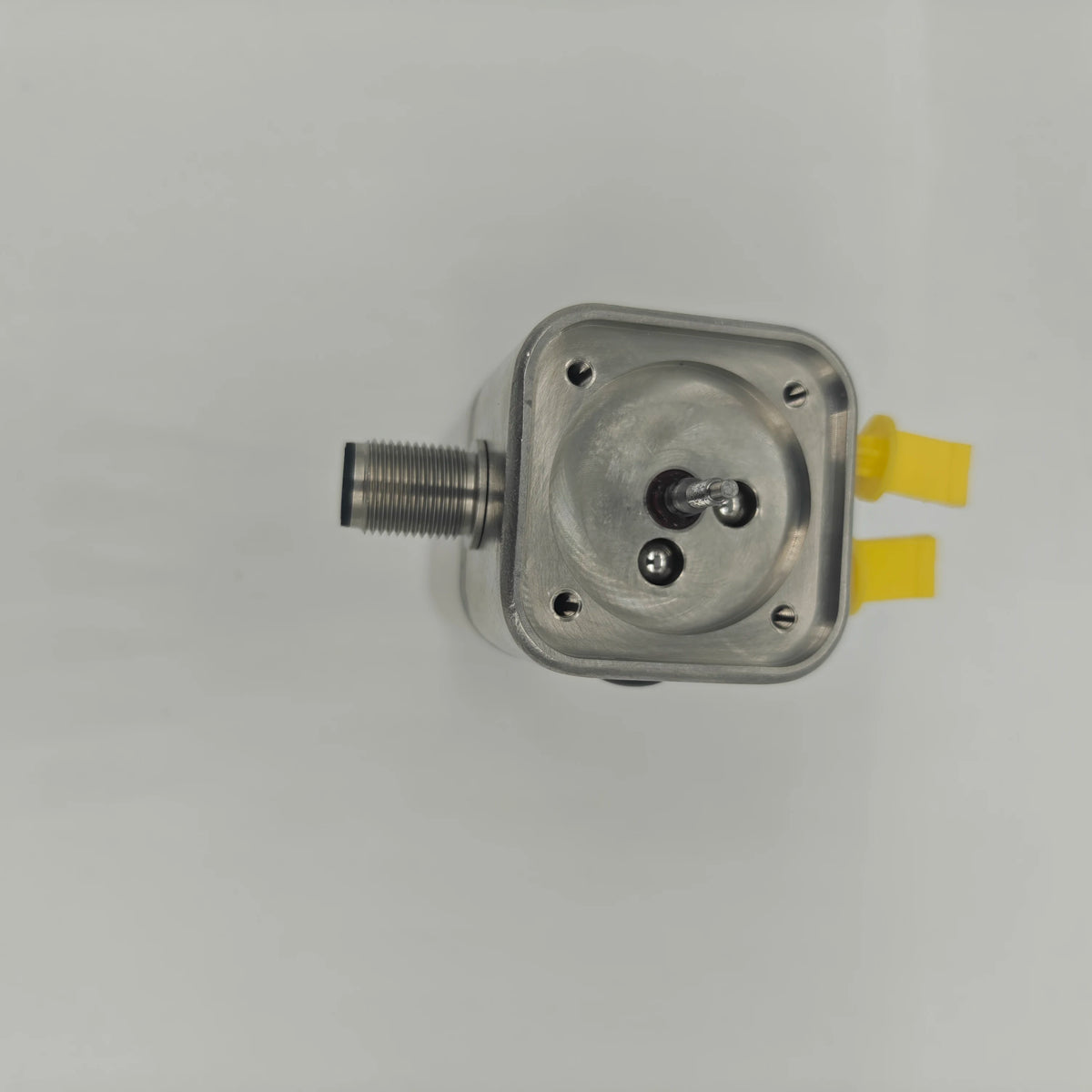

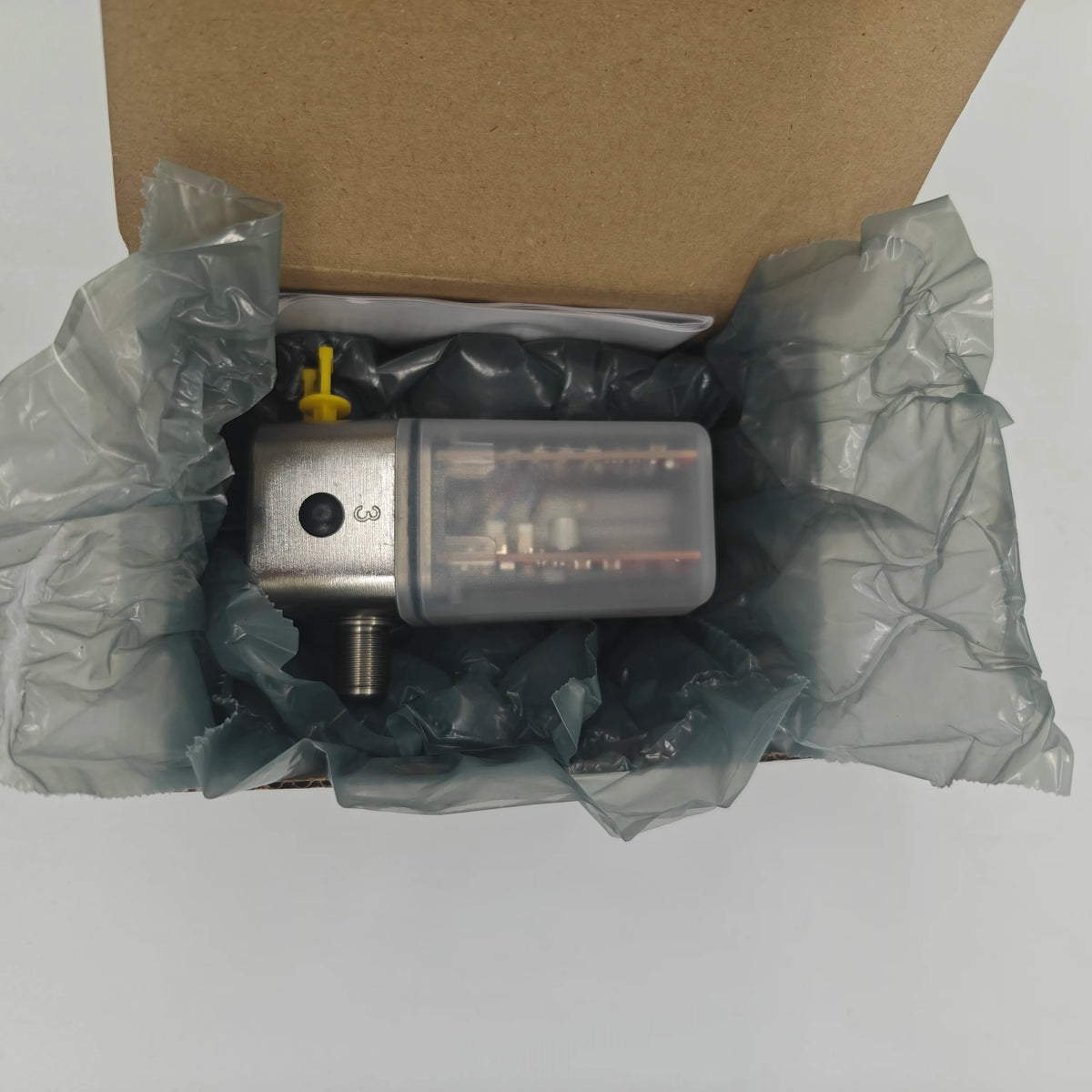

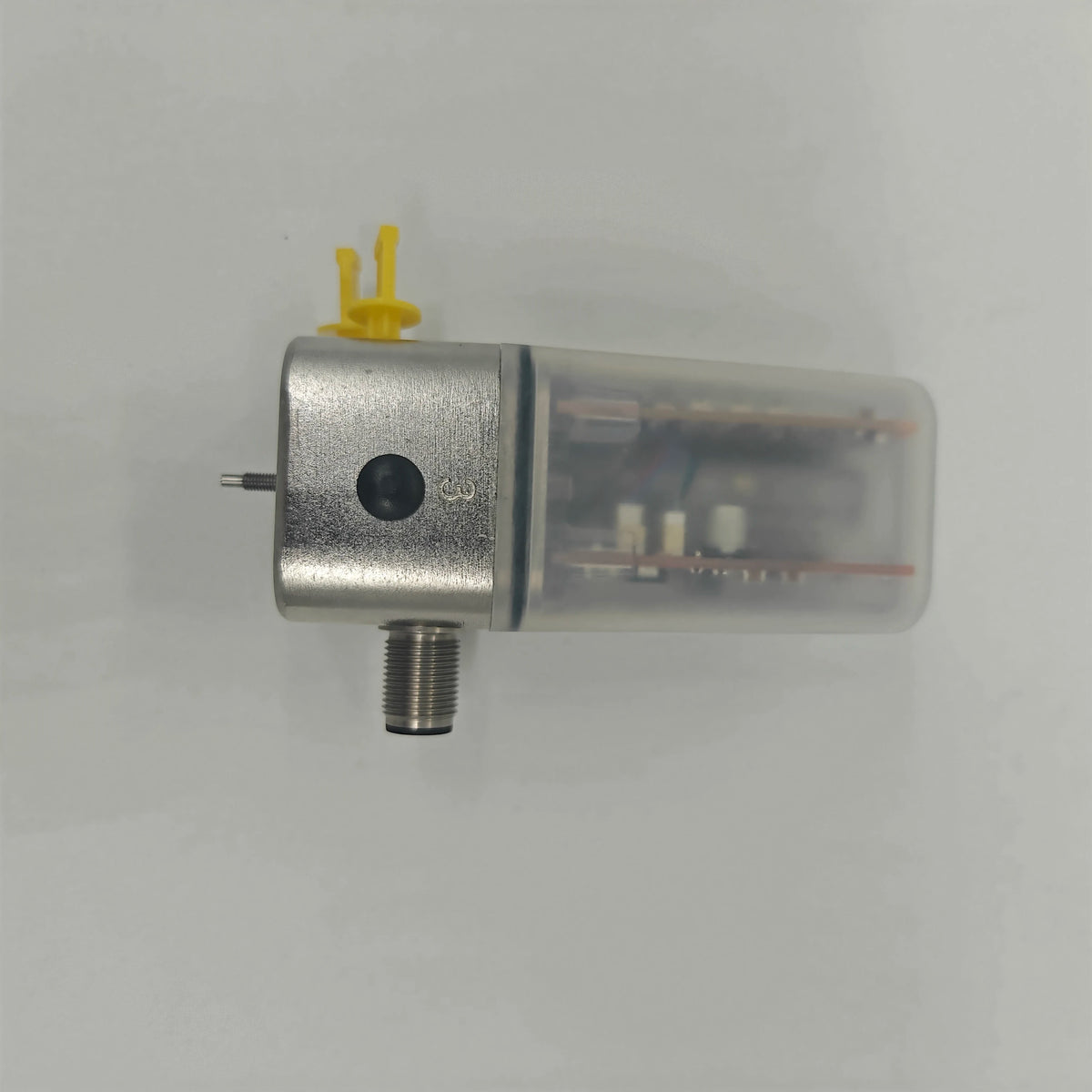

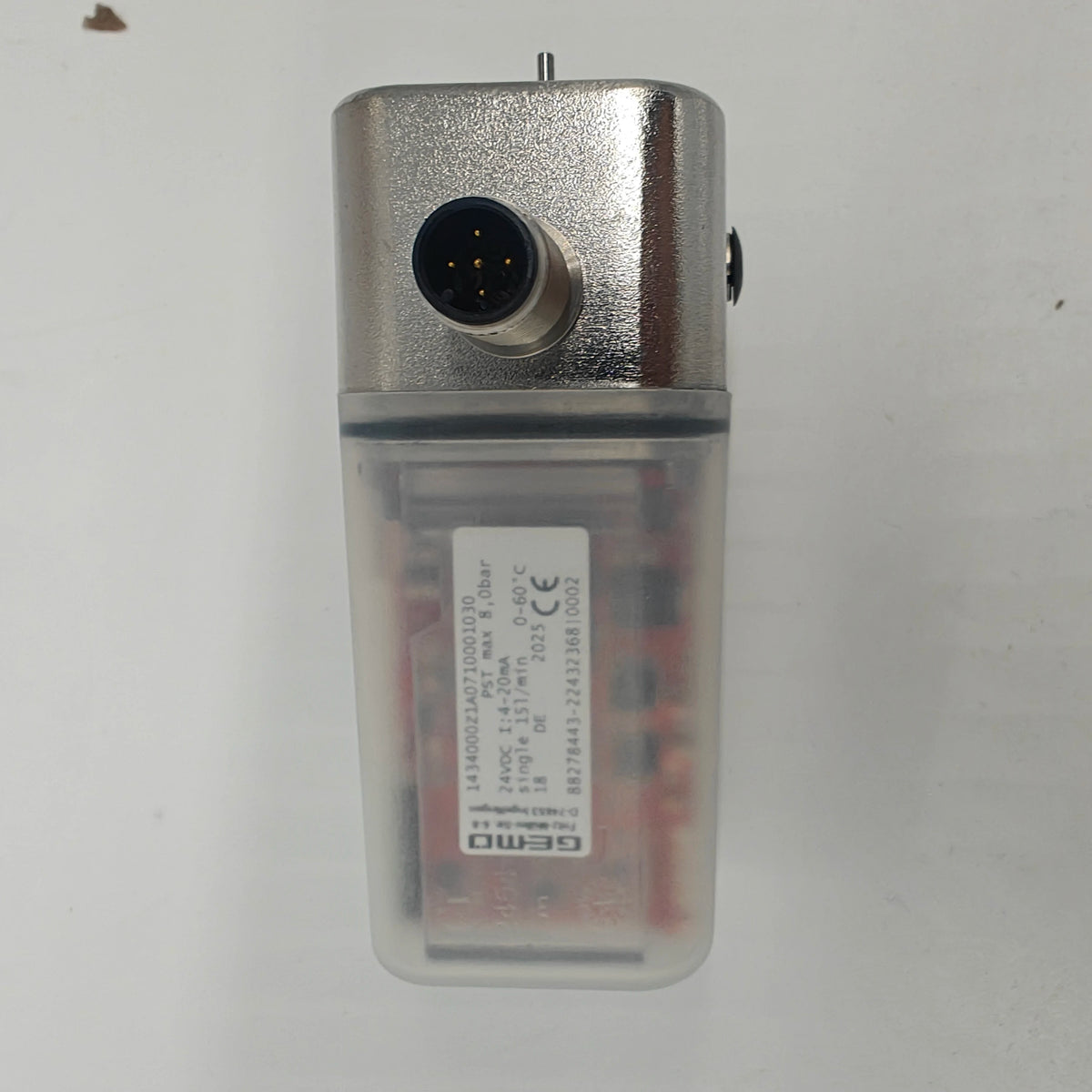

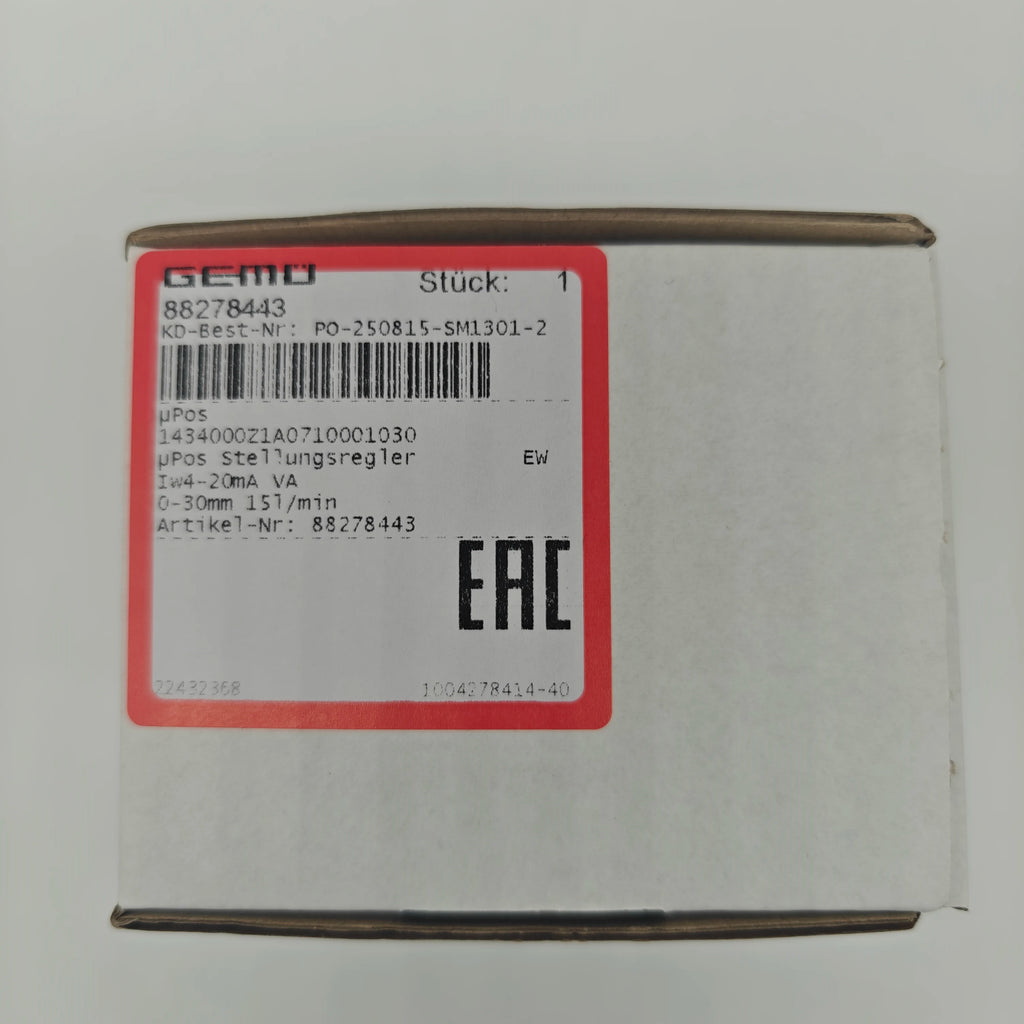

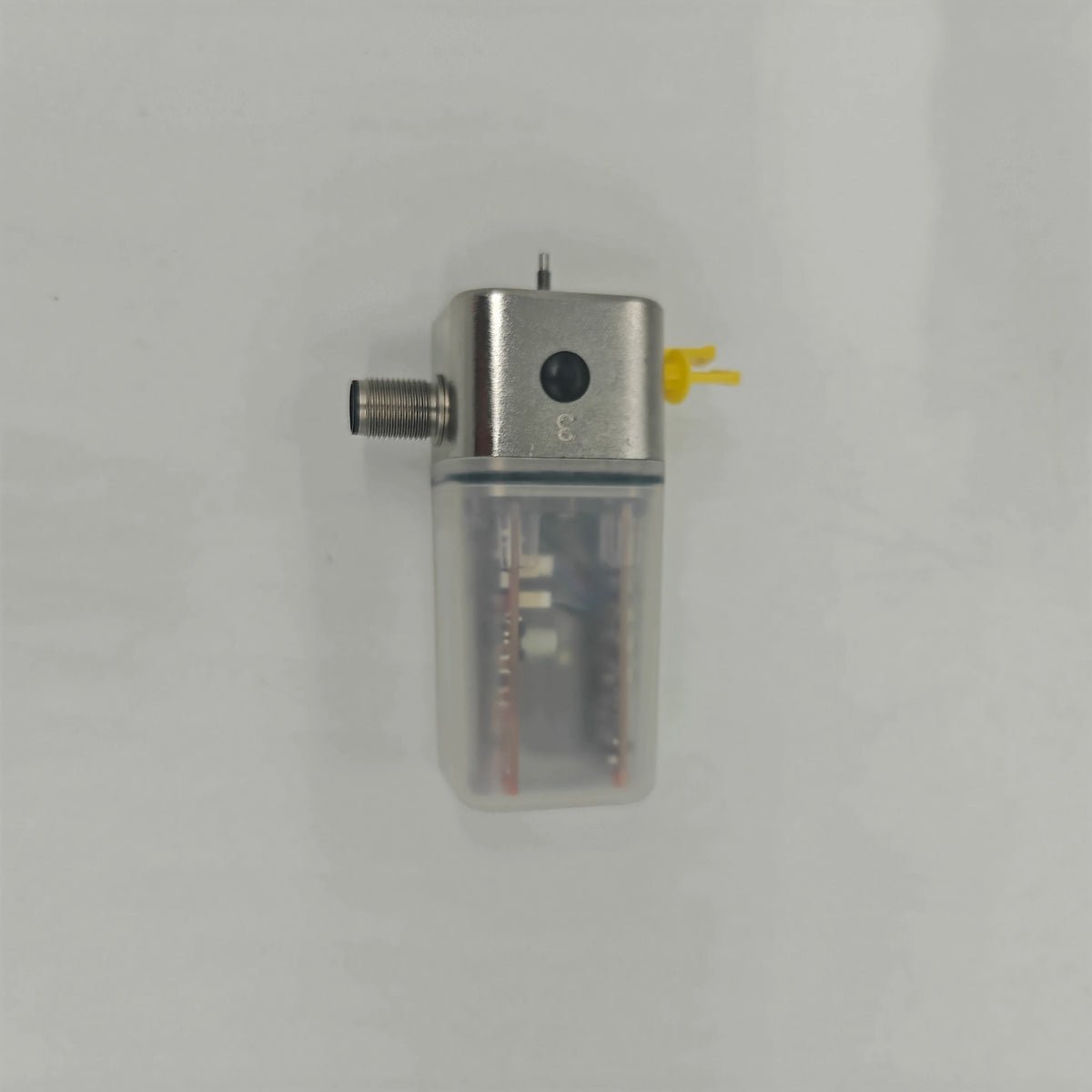

Digital Valve Positioner 1434000Z1A0710001030
The GEMÜ 1434000Z1A0710001030 Digital Valve Positioner is an intelligent electro-pneumatic control instrument designed for precise positioning of single-acting pneumatic valve actuators.
- Single Acting Actuator Configuration
- 0–10 bar at up to 40°C; 0–8 bar at up to 60°C Operating Pressure
- 15 Nl/min Pneumatic Flow Capacity
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The GEMÜ 1434000Z1A0710001030 Digital Valve Positioner is an intelligent electro-pneumatic control instrument designed for precise positioning of single-acting pneumatic valve actuators. Manufactured by GEMÜ, this Type 1434 Series positioner uses electronic control technology and integrated potentiometric travel sensing to regulate valve movement accurately. Its 4–20 mA electrical setpoint input and 24 V DC supply enable integration with industrial process control systems for dependable flow, pressure, and fluid regulation.
The 1434000Z1A0710001030 features a 15 Nl/min pneumatic flow capacity, 30 mm integrated potentiometer travel sensor, stainless steel housing base, and M5 pneumatic connections. Its compact design includes LED status indicators, automatic initialization, and zero air consumption during idle operation. Designed for small to medium process valves with single-acting linear actuators, it is suitable for chemical processing, water treatment, pharmaceutical manufacturing, food processing, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Digital Electro-Pneumatic Valve Positioner |
|
Manufacturer / Brand |
GEMÜ |
|
Model Number |
1434000Z1A0710001030 |
|
Product Series |
GEMÜ 1434 µPos |
|
Product Type |
Intelligent Electro-Pneumatic Valve Positioner |
|
Positioner Technology |
Electronic Pneumatic Position Control |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Actuator Configuration |
Single Acting |
|
Actuator Compatibility |
Single-Acting Linear Pneumatic Actuators |
|
Electrical Setpoint Input |
4–20 mA DC |
|
Supply Voltage |
24 V DC |
|
Electrical Configuration |
Three-Wire |
|
Fieldbus Communication |
Not Included |
|
Pneumatic Flow Capacity |
15 Nl/min |
|
Operating Pressure |
0–10 bar at up to 40°C; 0–8 bar at up to 60°C |
|
Operating Medium |
Clean Compressed Air or Suitable Inert Gas |
|
Pneumatic Supply Connection |
M5 Thread |
|
Pneumatic Output Connection |
M5 Thread |
|
Position Feedback Technology |
Integrated Potentiometric Travel Sensor |
|
Travel Sensor Length |
30 mm |
|
Travel Measurement Range |
0–30 mm |
|
Potentiometer Resistance |
3 kΩ |
|
Analogue Position Retransmission |
Not Included, Option Code 00 |
|
Position Calibration |
Automatic Initialization |
|
Fast Initialization |
Speed-AP Function |
|
Local Status Indication |
Integrated LED Indicators |
|
Local Display |
Not Included |
|
Operator Pushbuttons |
Not Included |
|
Housing Base Material |
Stainless Steel |
|
Enclosure Protection |
IP65 |
|
Optional Protection Arrangement |
IP67 with Specified Piped Exhaust Configuration |
|
Electrical Connection |
M12 Connector |
|
Ambient Operating Temperature |
0°C to +60°C |
|
Storage Temperature |
−10°C to +60°C |
|
Air Consumption at Idle |
0 Nl/min |
|
Power Consumption |
Maximum 4 W |
|
Approximate Weight |
220 g |
|
Mounting Configuration |
Direct Actuator Mounting with Suitable Kit |
|
Manufacturer Item Reference |
88290176 for 2442 Configuration |
|
Operating Application |
Industrial Pneumatic Valve Positioning |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Single-acting pneumatic actuator control
Accurate 4–20 mA electrical setpoint input
24 V DC electrical power supply
15 Nl/min pneumatic flow capacity
Integrated 30 mm potentiometric travel sensor
Automatic initialization for simplified commissioning
Speed-AP function for rapid setup
Zero compressed air consumption during idle operation
Durable stainless steel housing base
Compact construction for restricted installation spaces
IP65 protection against dust and water ingress
Integrated LED status indicators
M5 threaded pneumatic supply and output connections
Three-wire electrical configuration
Compatible with small to medium linear pneumatic actuators
Reliable integration with industrial process control systems
Suitable for pneumatic valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Single-acting linear pneumatic actuator systems
Chemical and petrochemical processing facilities
Water and wastewater treatment plants
Pharmaceutical manufacturing equipment
Food and beverage processing systems
Industrial flow and pressure regulation
Pneumatic diaphragm valve automation
Industrial fluid handling and processing systems
Automated manufacturing and production equipment
Industrial valve travel measurement and monitoring
Process control and instrumentation systems
Pneumatic valve maintenance and replacement
