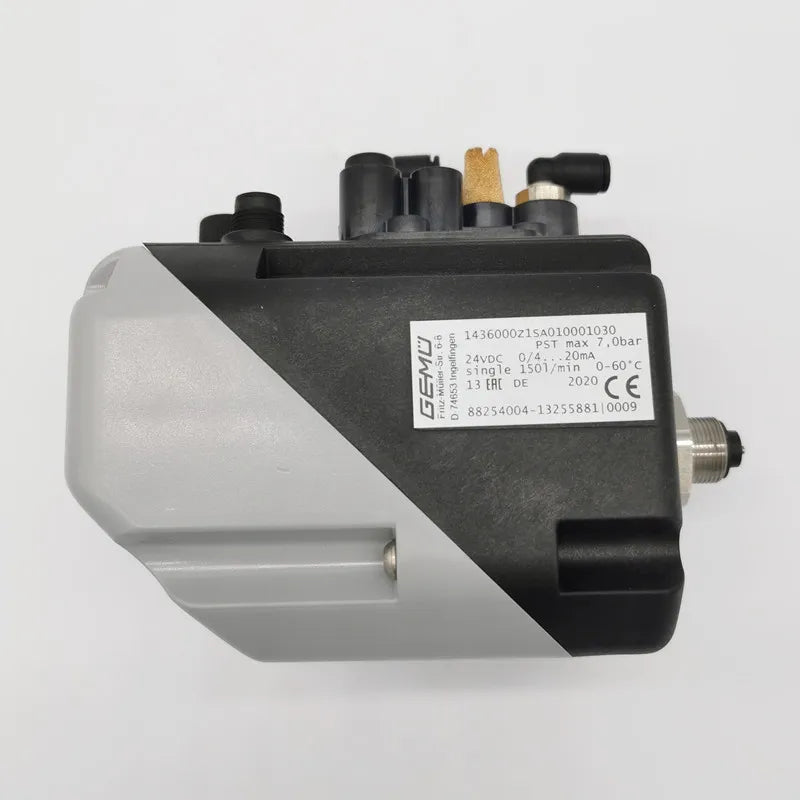

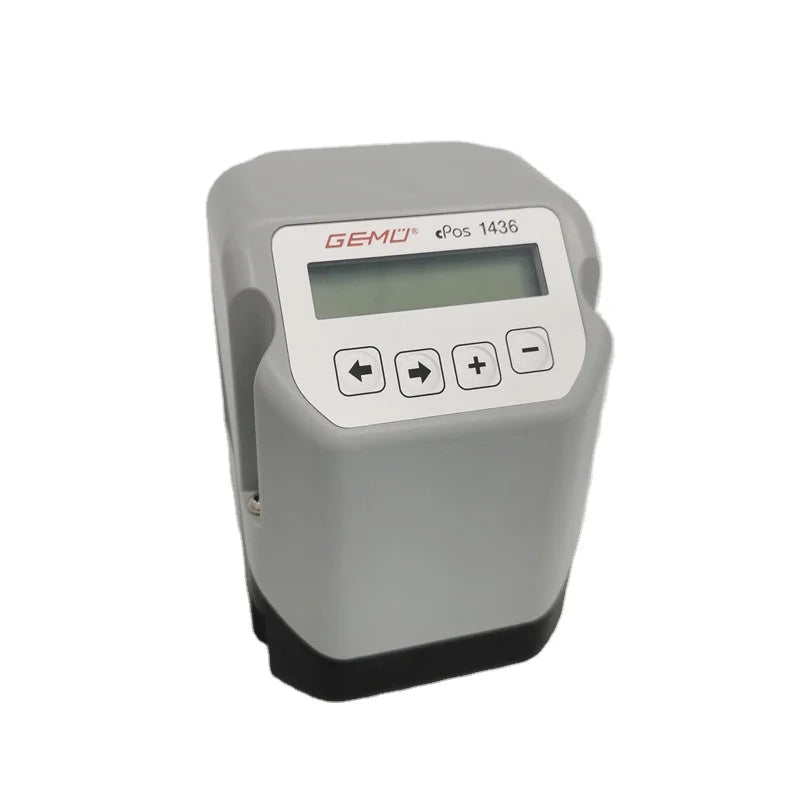

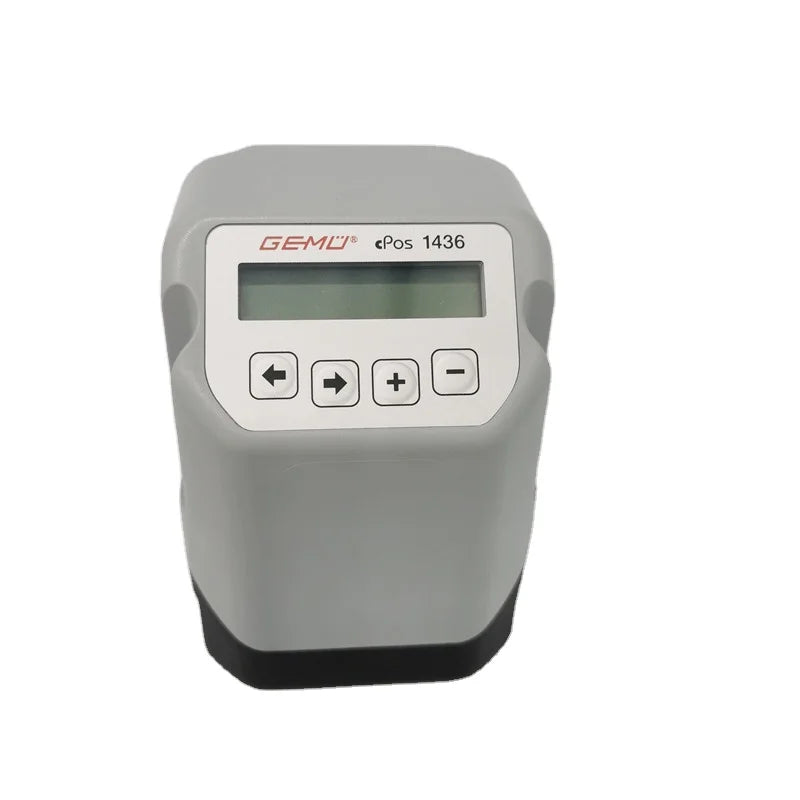

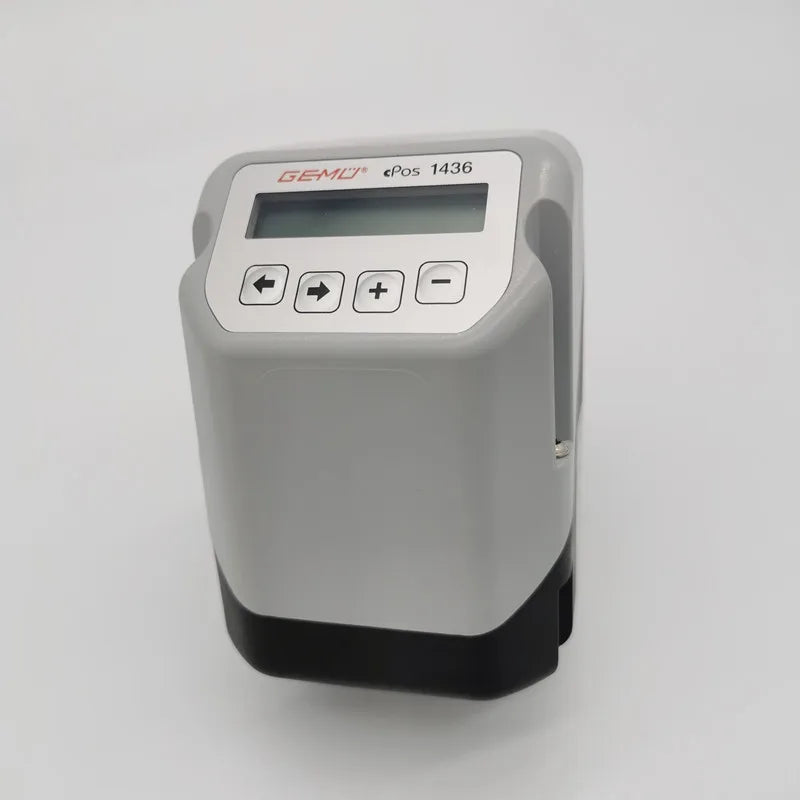

Valve Positioner 1436000z1SA010001030 Brand new and original
The GEMÜ 1436000Z1SA010001030 cPos Digital Valve Positioner is an intelligent electro-pneumatic control instrument designed for accurate positioning of pneumatic valve actuators in industrial process systems.
- Single Acting Actuator Configuration
- 1.5–7 bar Pneumatic Operating Pressure
- 150 L/min Pneumatic Flow Rate
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The GEMÜ 1436000Z1SA010001030 cPos Digital Valve Positioner is an intelligent electro-pneumatic control instrument designed for accurate positioning of pneumatic valve actuators in industrial process systems. Manufactured by GEMÜ, this 1436 cPos Series positioner combines electronic valve control, integrated travel measurement, and pneumatic pressure regulation to deliver precise valve movement. Its 0/4–20 mA setpoint interface and 24 V DC supply support integration with industrial automation and process control equipment.
The 1436000Z1SA010001030 features single-acting pneumatic operation, a 150 L/min airflow capacity, and a 30 mm potentiometer travel sensor for accurate valve position monitoring. Its robust aluminium housing, integrated LCD display, local operating keys, and automatic initialization simplify installation and commissioning. With IP65 enclosure protection and low idle air consumption, it is suitable for chemical processing, water treatment, pharmaceutical manufacturing, food processing, and industrial pneumatic valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Digital Electro-Pneumatic Valve Positioner |
|
Manufacturer / Brand |
GEMÜ |
|
Model Number |
1436000Z1SA010001030 |
|
Product Series |
GEMÜ 1436 cPos |
|
Product Type |
Intelligent Electro-Pneumatic Positioner |
|
Positioner Technology |
Electronic Pneumatic Valve Control |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Actuator Configuration |
Single Acting |
|
Pneumatic Flow Rate |
150 L/min |
|
Supply Voltage |
24 V DC |
|
Electrical Setpoint Signal |
0/4–20 mA |
|
Position Feedback Technology |
Potentiometric Travel Sensing |
|
Travel Sensor |
30 mm Potentiometer |
|
Device Configuration |
SA01 Position Controller |
|
Pneumatic Operating Pressure |
1.5–7 bar |
|
Maximum Control Pressure |
7 bar |
|
Operating Medium |
Compressed Air or Suitable Inert Gas |
|
Air Consumption at Idle |
0 Nl/min |
|
Operating Temperature |
0°C to +60°C |
|
Storage Temperature |
0°C to +60°C |
|
Housing Material |
Aluminium |
|
Enclosure Protection |
IP65 |
|
Approximate Weight |
600 g |
|
Local Display |
Integrated LCD |
|
Operator Interface |
Four Operating Keys |
|
Calibration |
Automatic Initialization |
|
Installation |
Actuator Mounted |
|
Actuator Compatibility |
Compatible Single-Acting Pneumatic Actuators |
|
Valve Compatibility |
Compatible Linear and Quarter-Turn Valves |
|
Operating Application |
Industrial Valve Positioning and Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Specifications are based on the GEMÜ 1436 cPos operating instructions, which include a manufacturer nameplate example for the exact part number.
Key Features
Intelligent digital electro-pneumatic valve positioning
Single-acting pneumatic actuator control
150 L/min pneumatic airflow capacity
24 V DC electrical power supply
0/4–20 mA industrial setpoint signal
Integrated 30 mm potentiometer travel sensor
Automatic valve initialization and calibration
LCD display for operating information and configuration
Four local operating keys for parameter adjustment
Durable aluminium housing with IP65 protection
Low air consumption during idle operation
Pneumatic operating pressure range of 1.5–7 bar
Precise electronic valve position monitoring
Compatible with suitable linear and quarter-turn valves
Reliable integration with industrial automation systems
Suitable for pneumatic valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Single-acting pneumatic actuator systems
Chemical and petrochemical processing facilities
Water and wastewater treatment plants
Pharmaceutical manufacturing equipment
Food and beverage processing systems
Industrial flow and pressure regulation
Pneumatic diaphragm valve automation
Industrial fluid handling and processing systems
Automated manufacturing and production equipment
Industrial valve travel measurement and monitoring
Process control and instrumentation systems
Pneumatic valve maintenance and replacement
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
