Product Overview

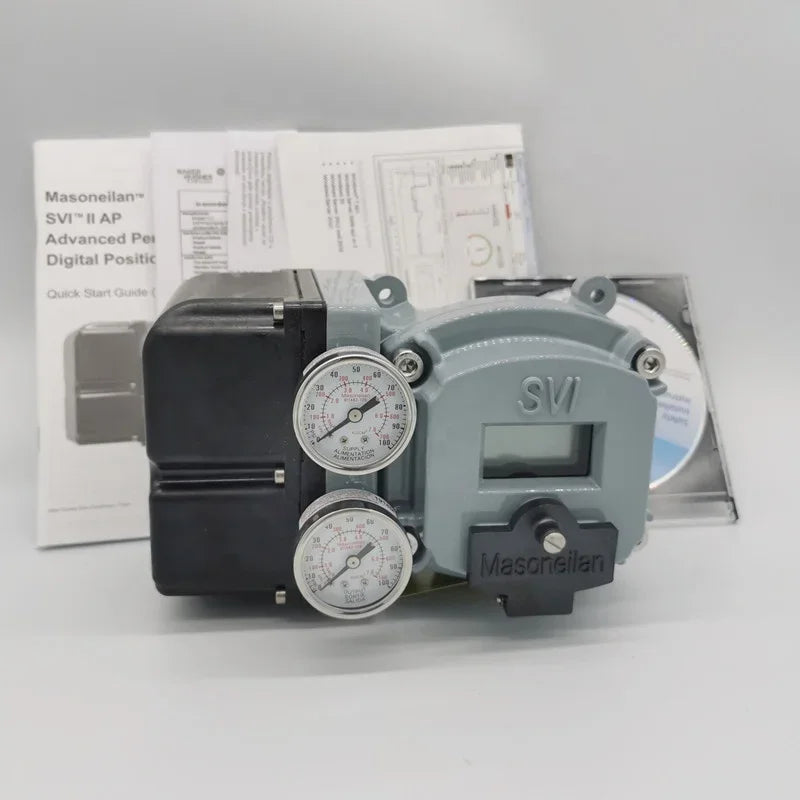

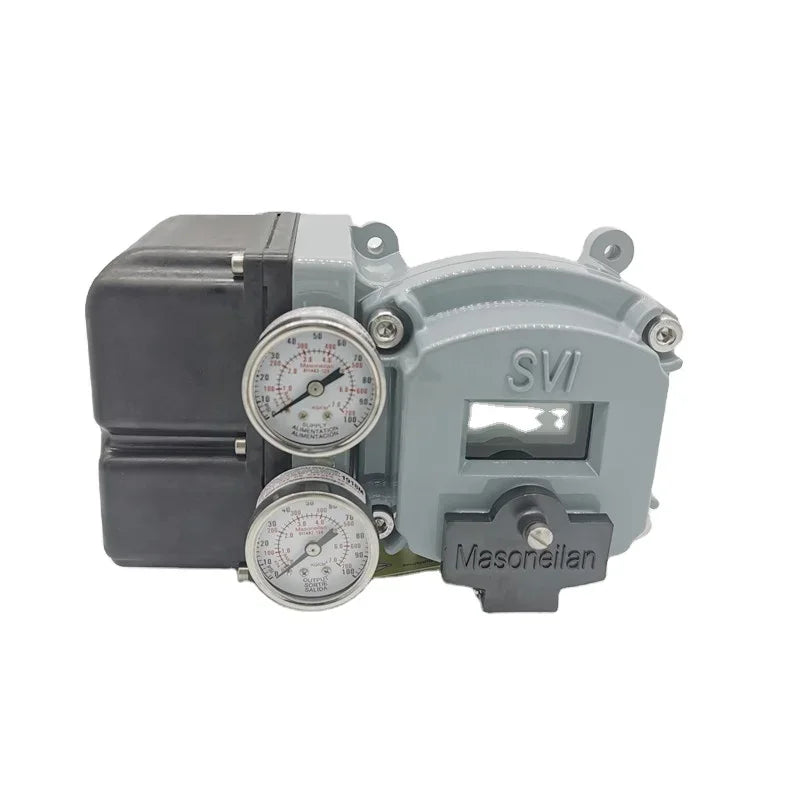

The Masoneilan SVI2-21123121, SVI2-22113121, and SVI2-21123111 Intelligent Digital Valve Positioners are advanced electro-pneumatic instruments designed for accurate positioning and control of pneumatic valve actuators in industrial process systems. Manufactured by Masoneilan, a Baker Hughes brand, these SVI II AP Series positioners combine microprocessor-based control, HART digital communication, and contactless magnetic position sensing to deliver reliable valve positioning. Their 4–20 mA electrical input enables integration with distributed control systems for precise flow and pressure regulation.

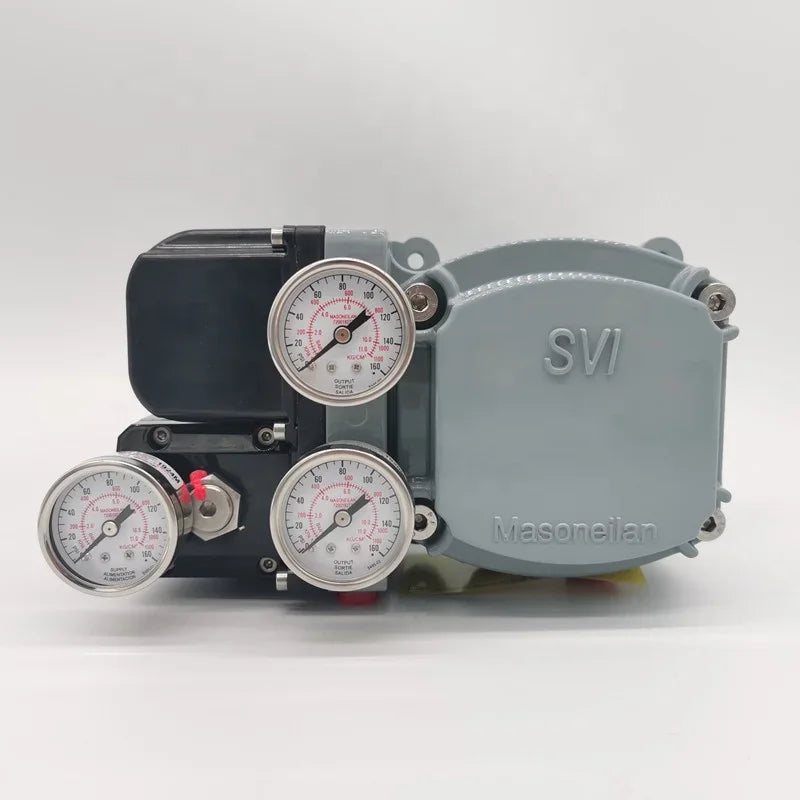

The SVI2-21123121 features single-acting pneumatic operation, an integrated LCD display, position retransmission, and limit switch outputs. The SVI2-22113121 provides double-acting pneumatic control without a local display, while the SVI2-21123111 offers single-acting operation with an LCD display but without the optional feedback board. All three configurations support standard valve diagnostics, automatic calibration, and reliable industrial process control. They are suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Manufacturer / Brand |
Masoneilan / Baker Hughes |
|
Model Number 1 |
SVI2-21123121 |
|
Model Number 2 |
SVI2-22113121 |
|
Model Number 3 |
SVI2-21123111 |
|
Product Series |
SVI II AP |
|
Product Type |
Intelligent Electro-Pneumatic Valve Positioner |
|
Positioner Technology |
Microprocessor-Based Digital Control |
|
Diagnostic Configuration |
Standard Diagnostics |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
SVI2-21123121 Actuator Operation |
Single Acting |
|
SVI2-22113121 Actuator Operation |
Double Acting |
|
SVI2-21123111 Actuator Operation |
Single Acting |
|
Pneumatic Flow Configuration |
Standard Flow |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Power Configuration |
Two-Wire, Loop Powered |
|
Position Sensing Technology |
Contactless Magnetic Position Sensor |
|
Position Feedback, 21123121 |
4–20 mA Position Retransmission |
|
Position Feedback, 22113121 |
4–20 mA Position Retransmission |
|
Limit Switches, 21123111 |
Not Included |
|
Local Display, 21123121 |
LCD Display and Pushbuttons |
|
Local Display, 22113121 |
Without Display or Pushbuttons |
|
Local Display, 21123111 |
LCD Display and Pushbuttons |
|
Electronics Configuration |
Plug-In Electronics Module |
|
Calibration |
Automatic Calibration and Tuning |
|
Diagnostic Functions |
Standard Valve and Positioner Diagnostics |
|
Single-Acting Supply Pressure |
20–100 psi (1.4–6.9 bar) |
|
Double-Acting Supply Pressure |
20–150 psi (1.4–10.3 bar) |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Operating Temperature |
−50°C to +85°C |
|
Housing Material |
Industrial Aluminium Housing |
|
Hazardous Area Approval Code |
Agency Approval Code 1; Certification per Nameplate |
|
Actuator Compatibility |
Linear and Rotary Pneumatic Actuators |
|
Control System Integration |
HART-Compatible DCS and Asset Management Systems |
|
Installation |
Pneumatic Actuator Mounted |
|
Operating Application |
Industrial Valve Positioning and Process Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Accurate 4–20 mA electrical control input
Integrated HART digital communication technology
Single-acting pneumatic control on SVI2-21123121 and SVI2-21123111
Double-acting pneumatic control on SVI2-22113121
Standard-flow pneumatic output configuration
Contactless magnetic valve position sensing
4–20 mA position retransmission on selected models
Integrated limit switch outputs on selected configurations
LCD display and pushbutton operation on SVI2-21123121 and SVI2-21123111
Automatic calibration and digital positioner tuning
Standard diagnostics for valve performance monitoring
Microprocessor-based positioning for reliable actuator control
Durable aluminium enclosure for industrial environments
Compatible with linear and rotary pneumatic actuators
Supports integration with industrial process control systems
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Single-acting and double-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Linear and rotary valve automation
Pneumatic actuator position feedback systems
Industrial valve diagnostics and condition monitoring
Distributed control system integration
Manufacturing and industrial process automation
Industrial valve maintenance and replacement
