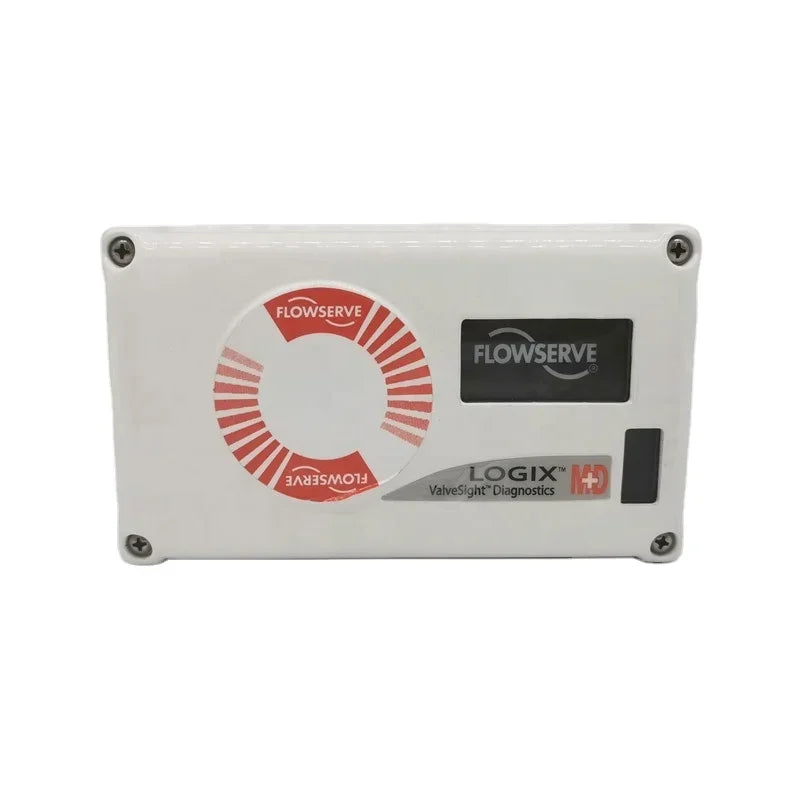

Flowserve Logix 520MD+14-W2D200-GM3-0000 HART Digital Valve Positioner
The Flowserve Logix 520MD+14-W2D200-GM3-0000 HART Digital Valve Positioner is an intelligent electro-pneumatic instrument designed for precise positioning and control of pneumatic valve actuators in industrial process systems. Manufactured by Flowserve, this Logix...
- Up to 87 psi for Single Acting or 150 psi for Double Acting Configurations Pneumatic Supply Pressure
- Pneumatic, Configuration Dependent Actuator Operation
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Flowserve Logix 520MD+14-W2D200-GM3-0000 HART Digital Valve Positioner is an intelligent electro-pneumatic instrument designed for precise positioning and control of pneumatic valve actuators in industrial process systems. Manufactured by Flowserve, this Logix 520MD+ Series positioner combines advanced piezoelectric technology with HART digital communication to deliver accurate valve positioning, responsive pneumatic control, and reliable performance. Its 4–20 mA input signal enables integration with distributed control systems and industrial automation equipment.
The 520MD+14-W2D200-GM3-0000 features microprocessor-based control, automatic calibration, local LED status indication, and advanced diagnostic capabilities for monitoring valve and actuator performance. Its robust construction supports operation in demanding industrial environments, while compatibility with linear and rotary pneumatic actuators provides installation flexibility. It is suitable for diaphragm-operated control valves, oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial process automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
HART Digital Valve Positioner |
|
Manufacturer / Brand |
Flowserve |
|
Model Number |
520MD+14-W2D200-GM3-0000 |
|
Product Series |
Logix 520MD+ |
|
Product Type |
Intelligent Electro-Pneumatic Valve Positioner |
|
Positioner Technology |
Digital Microprocessor-Based Control |
|
Pneumatic Control Technology |
Piezoelectric |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Communication Protocol |
HART |
|
Supported HART Versions |
HART 5, 6 and 7 |
|
Input Signal |
4–20 mA DC |
|
Actuator Operation |
Pneumatic, Configuration Dependent |
|
Actuator Compatibility |
Linear and Rotary Pneumatic Actuators |
|
Valve Compatibility |
Compatible Diaphragm-Actuated Control Valves |
|
Calibration |
Automatic Calibration |
|
Diagnostic Capability |
Valve, Actuator and Positioner Monitoring |
|
Diagnostic Software |
Flowserve ValveSight DTM |
|
Diagnostic Alerts |
Over 130 Available Warning Alarms |
|
Local Status Indication |
LED Indicators |
|
LCD Display |
Optional, Configuration Dependent |
|
Pneumatic Supply Pressure |
Up to 87 psi for Single Acting or 150 psi for Double Acting Configurations |
|
Operating Temperature |
−52°C to +85°C |
|
Hazardous Area Approval |
Configuration and Certification Dependent |
|
Mounting Compatibility |
Linear Sliding-Stem and Rotary Actuators |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Control System Integration |
Industrial DCS and HART Communication Systems |
|
Operating Application |
Industrial Valve Positioning and Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Integrated HART communication technology
Accurate 4–20 mA electrical input signal
Advanced piezoelectric pneumatic control technology
Automatic calibration for precise valve positioning
Microprocessor-based position control and monitoring
Over 130 available diagnostic warning alarms
Local LED status indication for operational monitoring
Compatibility with Flowserve ValveSight diagnostic software
High pneumatic control capacity with low air consumption
Supports compatible diaphragm-operated control valves
Suitable for linear and rotary pneumatic actuators
Durable construction for demanding industrial environments
Simplified installation, calibration and maintenance
Reliable valve positioning for industrial process automation
Typical Applications
Industrial pneumatic control valve positioning
Diaphragm-operated control valve systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Pneumatic actuator positioning systems
Distributed control system integration
Process automation and instrumentation systems
Industrial valve maintenance and replacement
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
