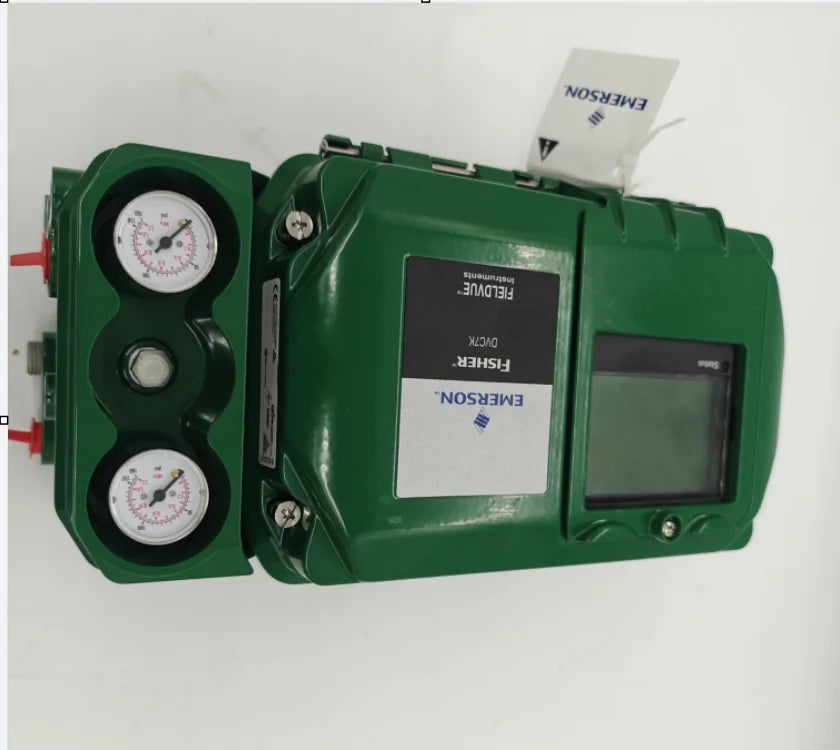

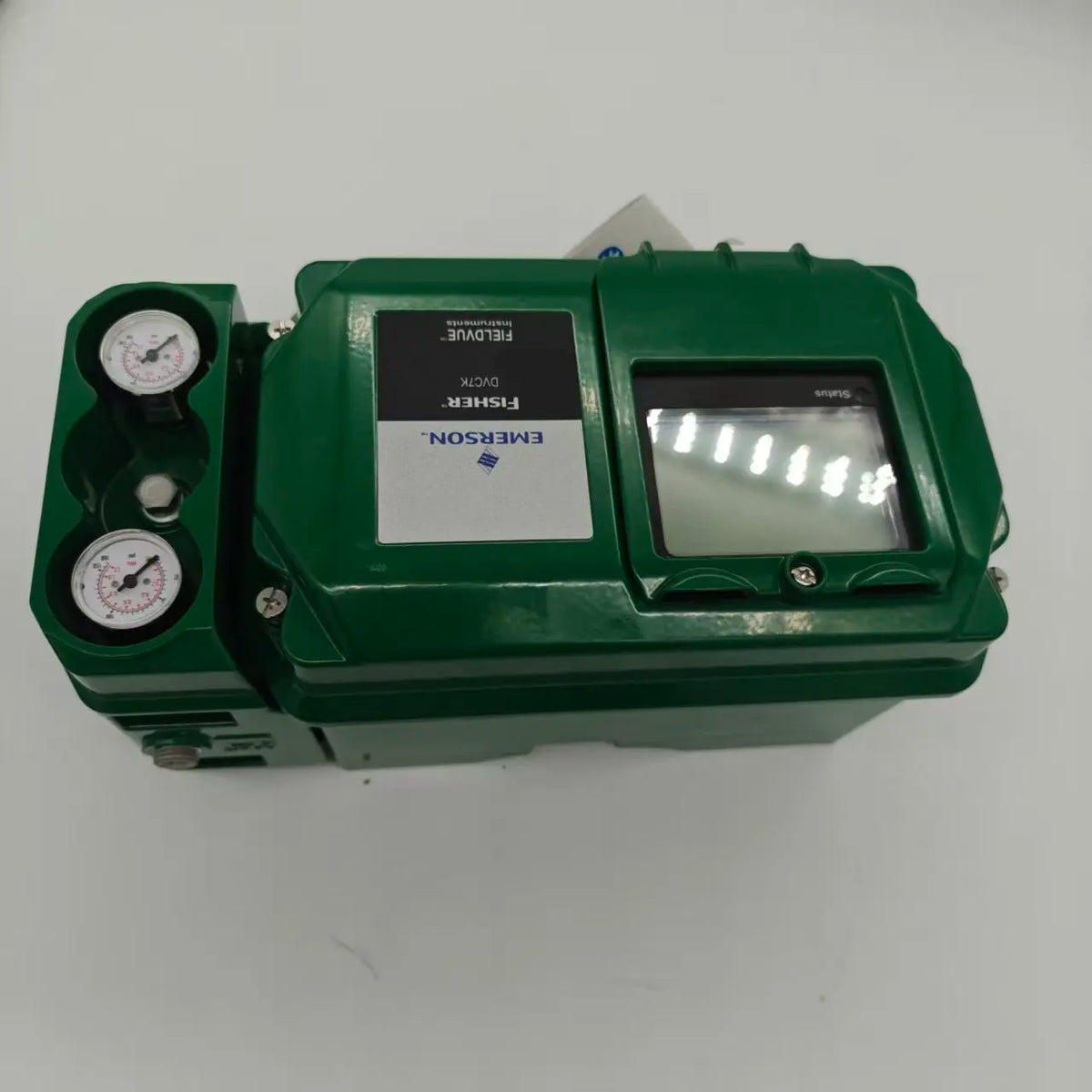

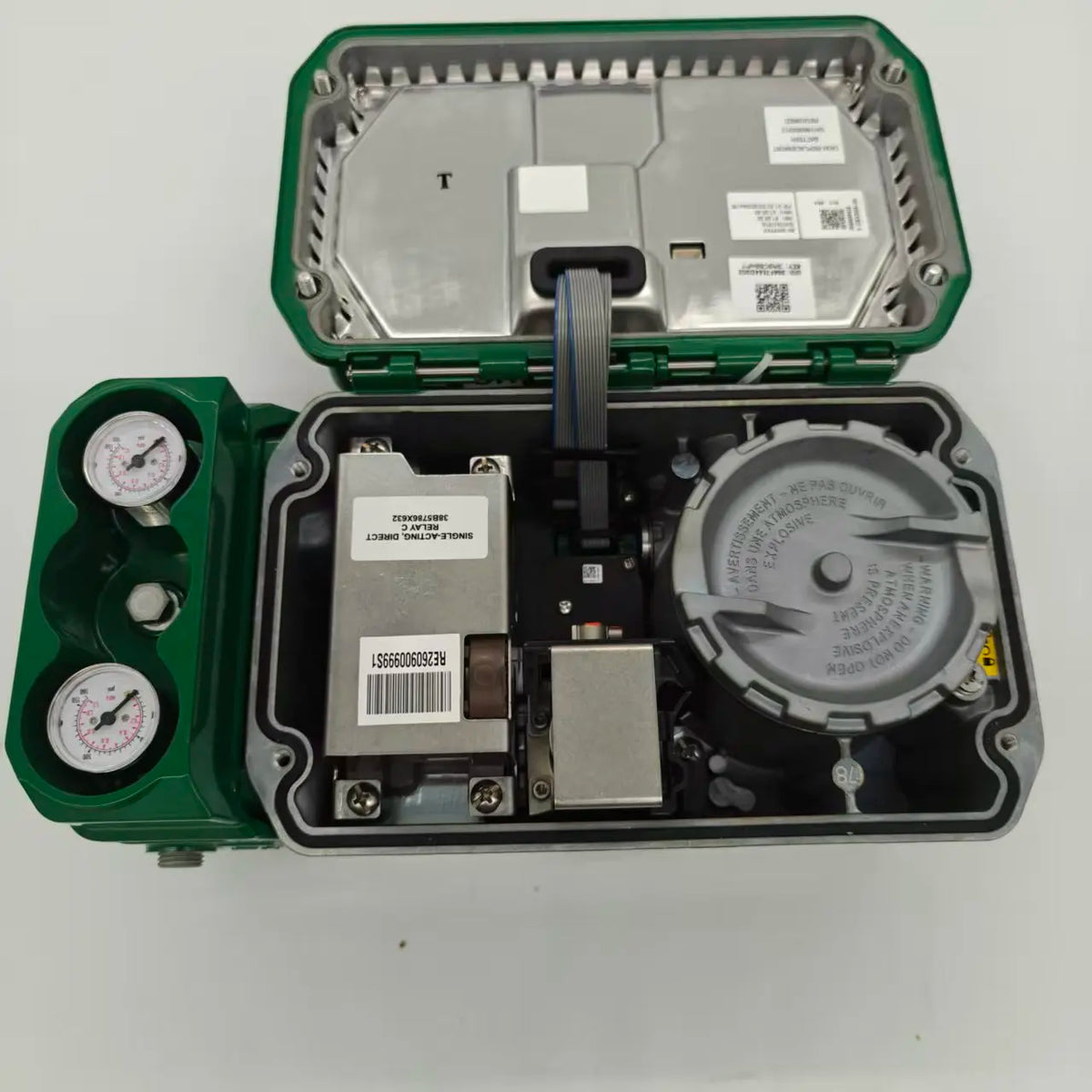

Fisher FIELDVUE DVC7K HART Digital Valve Controller Without Signal Output
The Fisher FIELDVUE DVC7K HART Digital Valve Controller is an intelligent electro-pneumatic instrument designed for precise positioning and regulation of pneumatic control valve actuators.
- Relay and Actuator Dependent Pneumatic Configuration
- 10 bar / 145 psi Maximum Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Fisher FIELDVUE DVC7K HART Digital Valve Controller is an intelligent electro-pneumatic instrument designed for precise positioning and regulation of pneumatic control valve actuators. Manufactured by Fisher, an Emerson brand, this DVC7K Series controller uses a 4-20 mA electrical input and HART communication to deliver accurate pneumatic pressure control. Its digital technology supports reliable valve movement, process automation, and equipment monitoring.
The DVC7K features contactless magnetic travel sensing, automatic calibration, integrated diagnostics, and configurable pneumatic control. This configuration is specified without optional signal output, meaning it does not include an independent 4-20 mA position transmitter or discrete switch outputs. It is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
HART Digital Valve Controller |
|
Manufacturer / Brand |
Fisher / Emerson |
|
Model Number |
DVC7K |
|
Product Series |
FIELDVUE DVC7K |
|
Product Type |
Intelligent Electro-Pneumatic Valve Positioner |
|
Control Technology |
Microprocessor-Based Digital Control |
|
Communication Protocol |
HART 7 |
|
Electrical Input |
4-20 mA DC |
|
Position Sensing |
Contactless Magnetic Travel Sensing |
|
Optional Signal Output |
Not Included |
|
Analogue Position Retransmission |
Not Included |
|
Discrete Switch Outputs |
Not Included |
|
Pneumatic Configuration |
Relay and Actuator Dependent |
|
Maximum Supply Pressure |
10 bar / 145 psi |
|
Calibration |
Automatic |
|
Diagnostics |
Integrated Valve Diagnostics |
|
Local Interface |
Configuration Dependent |
|
Actuator Compatibility |
Linear and Rotary Pneumatic Actuators |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Standard Operating Temperature |
-40 to +85 Degrees Celsius |
|
Mounting |
Actuator Mounted |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent electro-pneumatic valve positioning
Integrated HART 7 digital communication
Accurate 4-20 mA electrical control input
Contactless magnetic valve travel sensing
Automatic valve calibration and configuration
Integrated valve performance diagnostics
Pneumatic actuator pressure regulation
Configuration without optional signal outputs
Compatible with linear and rotary pneumatic actuators
Reliable industrial process control integration
Typical Applications
Industrial pneumatic control valve positioning
Oil and gas processing facilities
Chemical and petrochemical manufacturing
Petroleum refining operations
Power generation and utility systems
Water and wastewater treatment plants
Industrial flow and pressure regulation
Valve automation and process instrumentation
Shipping & Support
Fast dispatch, Australia and Worldwide Shipping
Technical assistance available
1-year warranty
