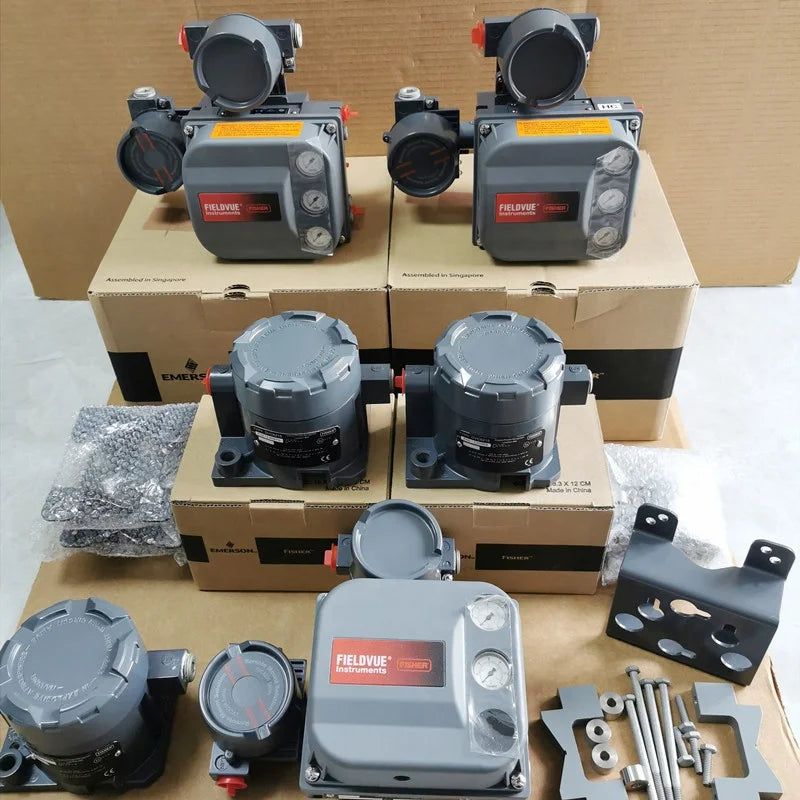

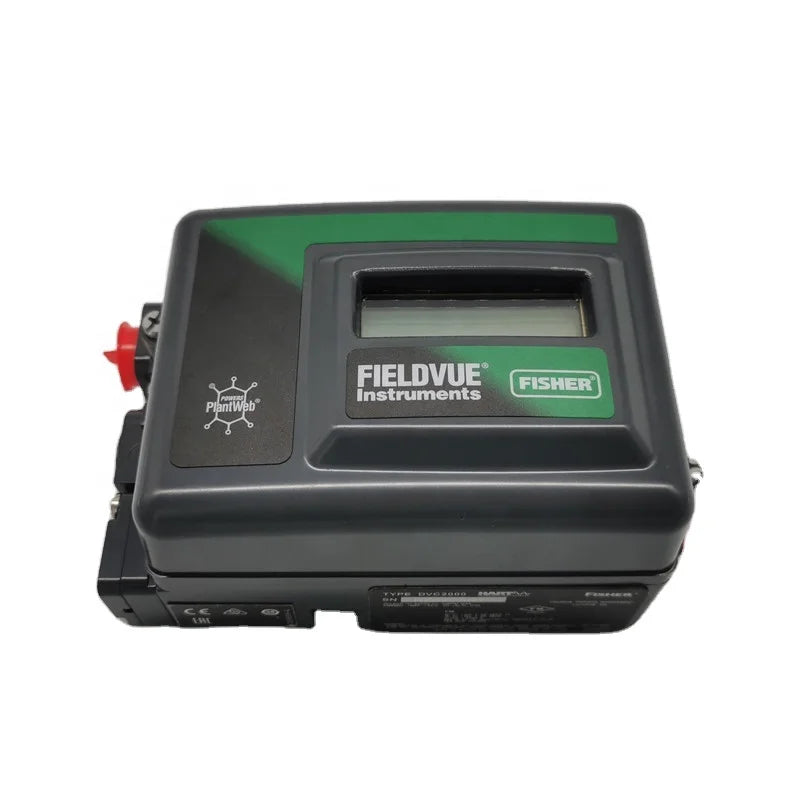

Fisher DVC2000 FIELDVUE Digital Valve Positioner with HART Without Signal Output
The Fisher FIELDVUE DVC2000 Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process control systems.
- Single Acting Actuator Configuration
- 7 Bar (101 psi) Maximum Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year (12 Months)Warranty
Product Overview
The Fisher FIELDVUE DVC2000 Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process control systems. Manufactured by Fisher, an Emerson brand, this intelligent valve controller uses a standard 4–20 mA electrical input signal with HART digital communication to regulate pneumatic output pressure and maintain accurate valve movement. Its single-acting configuration supports reliable actuator positioning, stable flow regulation, and consistent performance in industrial automation applications.
Part of the Fisher FIELDVUE DVC2000 series, this valve positioner features microprocessor-based control, non-contact magnetic travel sensing, and an integrated LCD interface for convenient configuration and calibration. This version operates without a separate analogue position transmitter signal output, while retaining its internal valve position sensing and HART communication capabilities. Its compact construction, automatic calibration functions, and flexible actuator mounting options make it suitable for chemical processing, oil and gas facilities, water treatment, power generation, and industrial pneumatic control systems.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Digital Valve Positioner Without Signal Output |
|
Brand |
Fisher |
|
Manufacturer |
Emerson |
|
Model |
DVC2000 |
|
Series |
FIELDVUE DVC2000 |
|
Product Type |
Digital Valve Controller |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Actuator Configuration |
Single Acting |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Pneumatic Output |
Single Acting, Direct |
|
Position Transmitter |
Without Optional 4–20 mA Transmitter |
|
Position Detection |
Non-Contact Magnetic Travel Sensing |
|
Maximum Supply Pressure |
7 Bar (101 psi) |
|
Pneumatic Output Span |
0.5–7 Bar |
|
Working Medium |
Clean, Dry Instrument Air or Compatible Non-Corrosive Gas |
|
Operating Temperature |
-40°C to +80°C |
|
Display Type |
LCD with Local User Interface |
|
Calibration |
Automatic Travel Calibration |
|
Control Function |
Automatic Valve Position Regulation |
|
Mounting Type |
Direct Actuator Mounting |
|
Mounting Compatibility |
Fisher 657/667, GX and Compatible Actuators |
|
Position Feedback |
Internal Non-Contact Travel Feedback |
|
Diagnostic Functions |
Valve Travel Monitoring and Instrument Diagnostics |
|
Approximate Weight |
1.5 kg |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year (12 Months) |
Key Features
-
Precise digital valve positioning for industrial pneumatic control valve systems.
-
Single-acting pneumatic output for reliable control of compatible valve actuators.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
HART digital communication for instrument configuration, monitoring, and diagnostics.
-
Operates without a separate analogue position signal output.
-
Non-contact magnetic travel sensing for accurate internal valve position measurement.
-
Microprocessor-based control technology for responsive valve movement and consistent positioning.
-
Integrated LCD display and local user interface for convenient operation and configuration.
-
Automatic travel calibration for simplified setup and commissioning.
-
Maximum supply pressure of 7 bar for compatible pneumatic actuator applications.
-
Compact actuator-mounted construction for installation on compatible linear and rotary valves.
-
Two-wire, loop-powered operation without requiring a separate controller power supply.
-
Supports digital valve monitoring and diagnostic functions through compatible HART communication tools.
-
Suitable for continuous industrial process automation and pneumatic valve control applications.
Typical Applications
-
Industrial process automation systems
-
Pneumatic control valve assemblies
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Water and wastewater treatment facilities
-
Power generation and utility systems
-
Manufacturing and production equipment
-
Pneumatic linear actuator control
-
Rotary valve actuator positioning
-
Industrial flow and pressure regulation systems
-
Distributed control systems with HART communication
-
Industrial instrumentation and valve automation equipment
