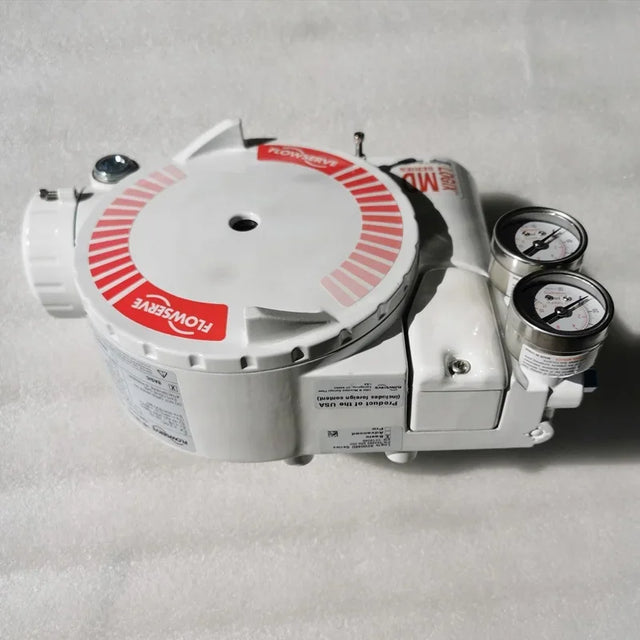

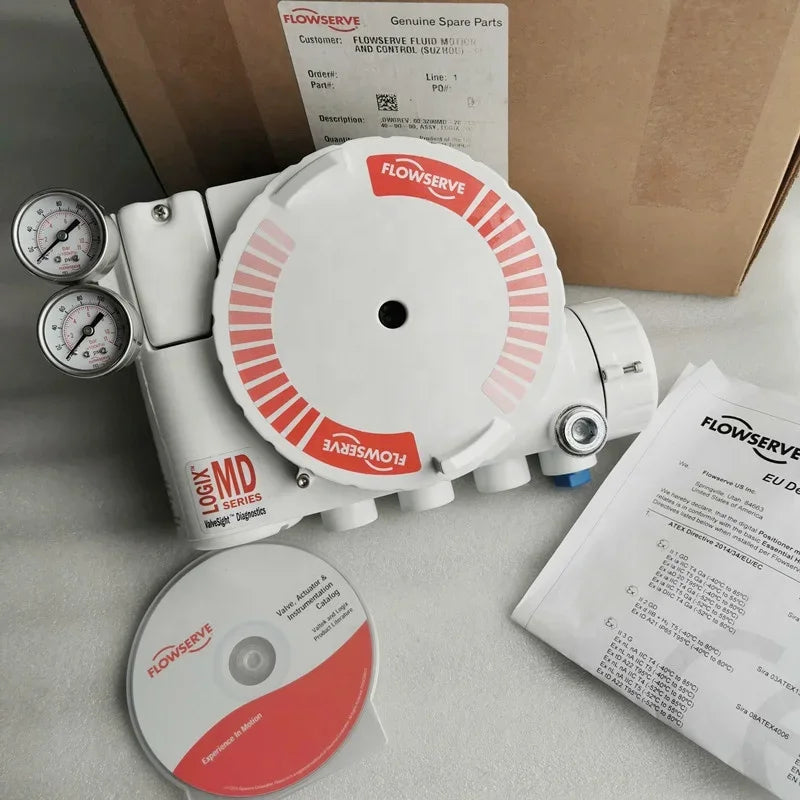

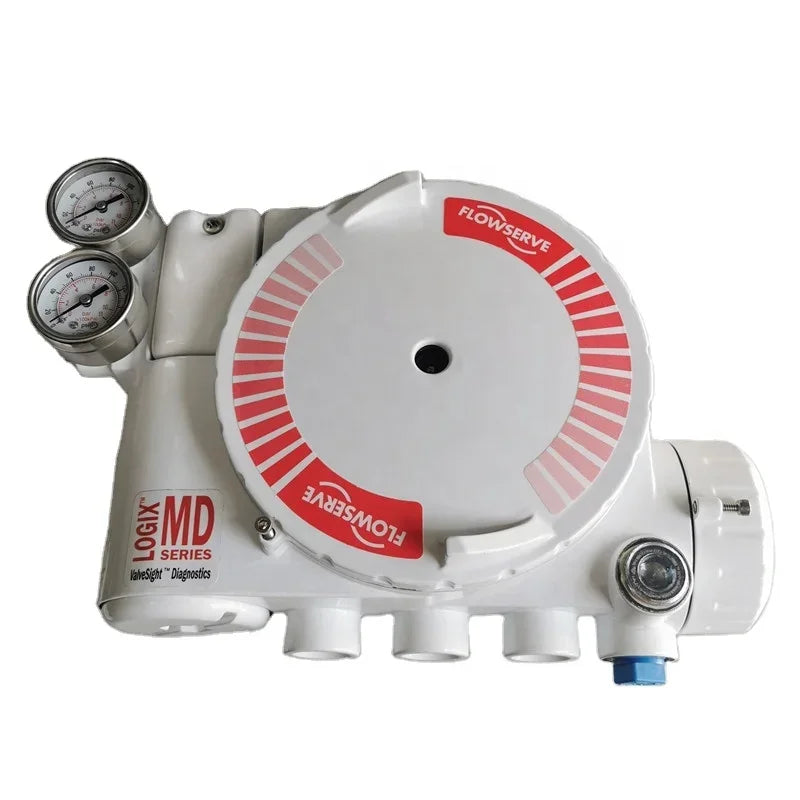

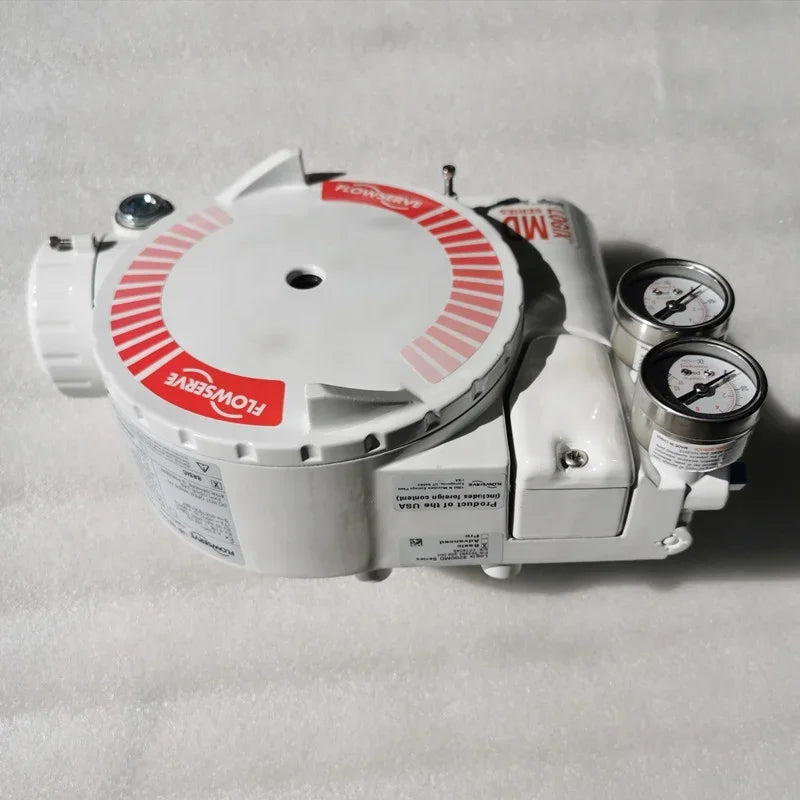

Flowserve Logix 3200MD-28-D6-E-04-40-0G-00 / 0F Digital Valve Positioners
The Flowserve Logix 3200MD-28-D6-E-04-40-0G-00 and 3200MD-28-D6-E-04-40-0G-0F Digital Valve Positioners are intelligent electro-pneumatic instruments designed for precise control of double-acting pneumatic valve actuators. Manufactured by Flowserve, these Logix 3200MD Series positioners combine HART...
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Flowserve Logix 3200MD-28-D6-E-04-40-0G-00 and 3200MD-28-D6-E-04-40-0G-0F Digital Valve Positioners are intelligent electro-pneumatic instruments designed for precise control of double-acting pneumatic valve actuators. Manufactured by Flowserve, these Logix 3200MD Series positioners combine HART digital communication, microprocessor-based control, and piezoelectric pneumatic technology to deliver accurate valve positioning. Their 4–20 mA electrical input supports integration with distributed control systems and industrial process automation equipment.
The 3200MD-28-D6-E-04-40-0G-00 features standard diagnostics and double-acting pneumatic control, while the 3200MD-28-D6-E-04-40-0G-0F additionally incorporates a 4–20 mA analogue position feedback output. Both configurations feature ATEX hazardous-area certification options, a 316 stainless steel feedback shaft, integrated pressure gauges, automatic calibration, and durable aluminium construction. They are suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Digital Electro-Pneumatic Valve Positioner |
|
Manufacturer / Brand |
Flowserve |
|
Model Number 1 |
3200MD-28-D6-E-04-40-0G-00 |
|
Model Number 2 |
3200MD-28-D6-E-04-40-0G-0F |
|
Product Series |
Logix 3200MD |
|
Product Type |
Intelligent Digital Valve Positioner |
|
Positioner Technology |
Microprocessor-Based Electro-Pneumatic Control |
|
Pneumatic Control Technology |
Piezoelectric Valve and Spool Relay |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Communication Protocol |
HART |
|
Electrical Input Signal |
4–20 mA DC |
|
Power Configuration |
Two-Wire, Loop Powered |
|
Electrical Supply Range |
10–30 V DC |
|
Minimum Operating Current |
3.6 mA, Without Analogue Output Board |
|
Diagnostic Configuration |
Standard Diagnostics |
|
Pneumatic Configuration |
Four-Way, Double Acting |
|
Position Sensing Technology |
Contactless Hall-Effect Sensor |
|
Position Feedback, 0G-00 |
Digital Position Monitoring via HART |
|
Position Feedback, 0G-0F |
Additional 4–20 mA Analogue Position Feedback |
|
Feedback Shaft |
DD 316 Stainless Steel |
|
Shaft Configuration |
Valtek Standard |
|
Electrical Connection |
1/2-inch NPT |
|
Temperature Configuration |
Low Temperature |
|
Operating Temperature |
−40°C to +80°C |
|
Pressure Gauges |
Stainless Steel with Brass Internals |
|
Gauge Units |
psi, bar and kPa |
|
Housing Material |
Aluminium |
|
Housing Finish |
White Paint, Valtek Configuration |
|
Hazardous Area Certification |
ATEX Multiple Protection Configuration, Code 28 |
|
Explosion Protection |
Ex d, According to Applicable Certification |
|
Intrinsic Safety |
Ex ia, According to Applicable Certification |
|
Enclosure Protection |
IP65, Applicable Certified Configuration |
|
Automatic Calibration |
QUICK-CAL Function |
|
Local Configuration |
DIP Switches, Jog Buttons and Gain Selector |
|
Status Indication |
LED Diagnostic Indicators |
|
Diagnostic Software |
Flowserve ValveSight Compatibility |
|
Actuator Compatibility |
Compatible Double-Acting Pneumatic Actuators |
|
Valve Compatibility |
Linear and Rotary Control Valve Assemblies |
|
Control System Integration |
HART-Compatible DCS and Asset Management Systems |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Operating Application |
Industrial Valve Positioning and Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Double-acting pneumatic control with four-way spool valve
Accurate 4–20 mA electrical control input
Integrated HART digital communication technology
Contactless Hall-effect valve position sensing
Optional 4–20 mA analogue position feedback on 0G-0F
Standard valve and positioner diagnostic functions
Automatic QUICK-CAL calibration and digital tuning
Integrated LED indicators for operational status monitoring
ATEX hazardous-area certification configuration
Durable aluminium housing with protective white coating
316 stainless steel position feedback shaft
Integrated stainless steel pressure gauges
Low-temperature operation from −40°C to +80°C
Compatible with suitable linear and rotary valve actuators
Reliable integration with industrial process control systems
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Double-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Linear and rotary valve automation
Pneumatic actuator position monitoring
Industrial valve calibration and diagnostics
Distributed control system integration
Hazardous-area valve control with certified configurations
Manufacturing and industrial process automation
Industrial valve maintenance and replacement
