Flowserve Logix 3200MD-28-D6-E-04-40-0S-00 and PMV D30AHN2-U39PVA-U5X0XN Digital Valve Positioners
The Flowserve Logix 3200MD-28-D6-E-04-40-0S-00 and PMV D30AHN2-U39PVA-U5X0XN Digital Valve Positioners are intelligent electro-pneumatic instruments designed for accurate positioning and regulation of industrial pneumatic control valves. Manufactured by Flowserve, these positioners use 4-20...
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Flowserve Logix 3200MD-28-D6-E-04-40-0S-00 and PMV D30AHN2-U39PVA-U5X0XN Digital Valve Positioners are intelligent electro-pneumatic instruments designed for accurate positioning and regulation of industrial pneumatic control valves. Manufactured by Flowserve, these positioners use 4-20 mA electrical control signals, HART communication, and digital positioning technology to regulate actuator movement and support reliable process automation.

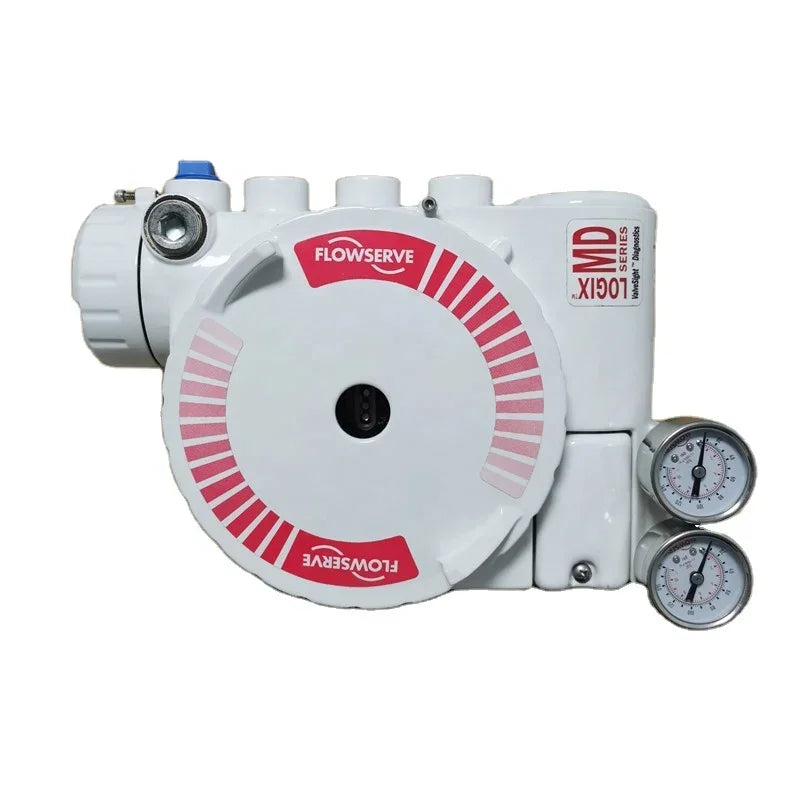

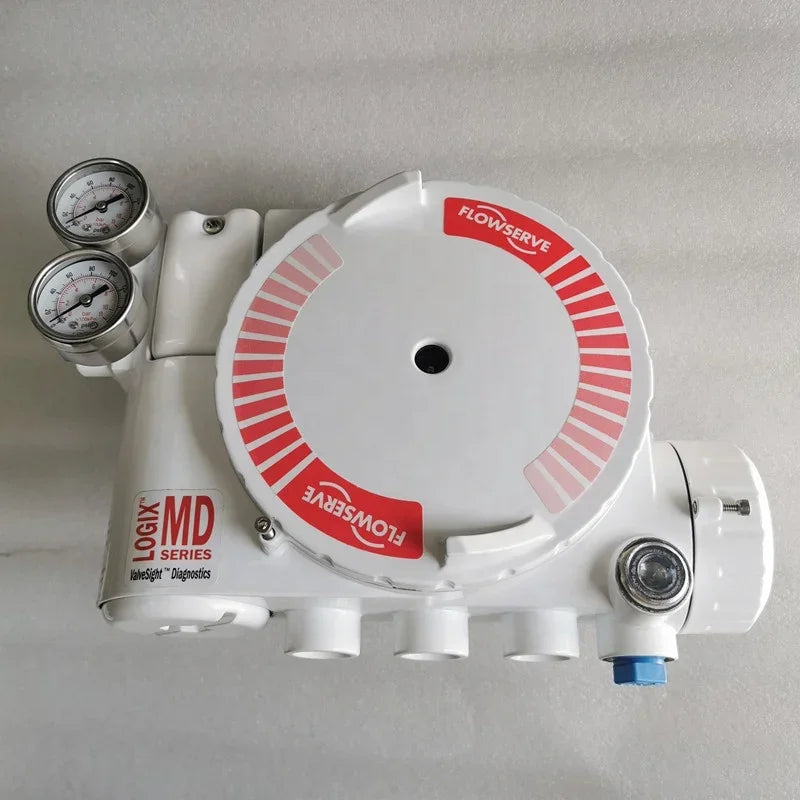

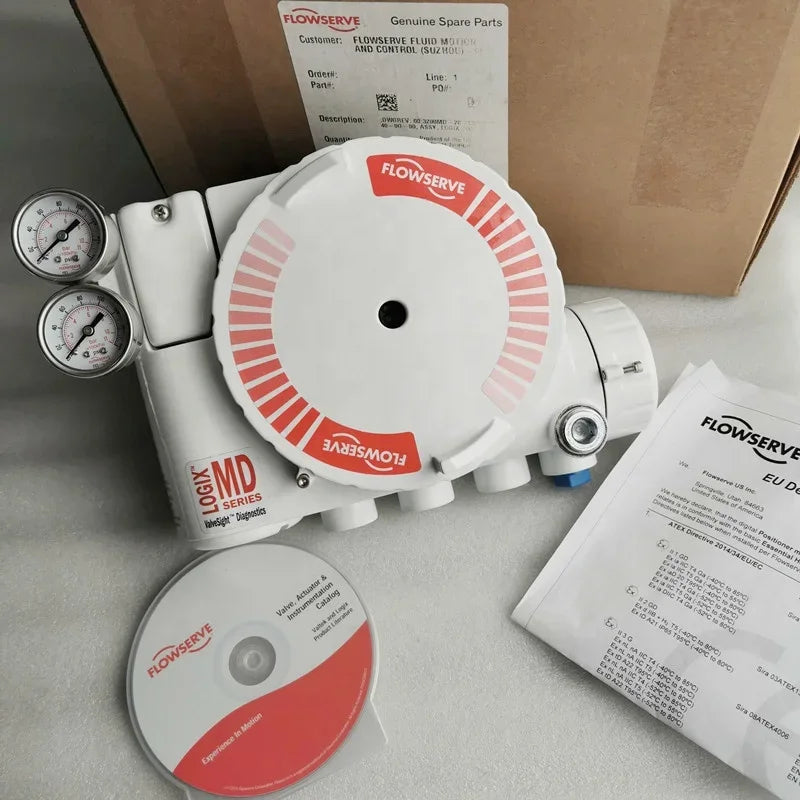

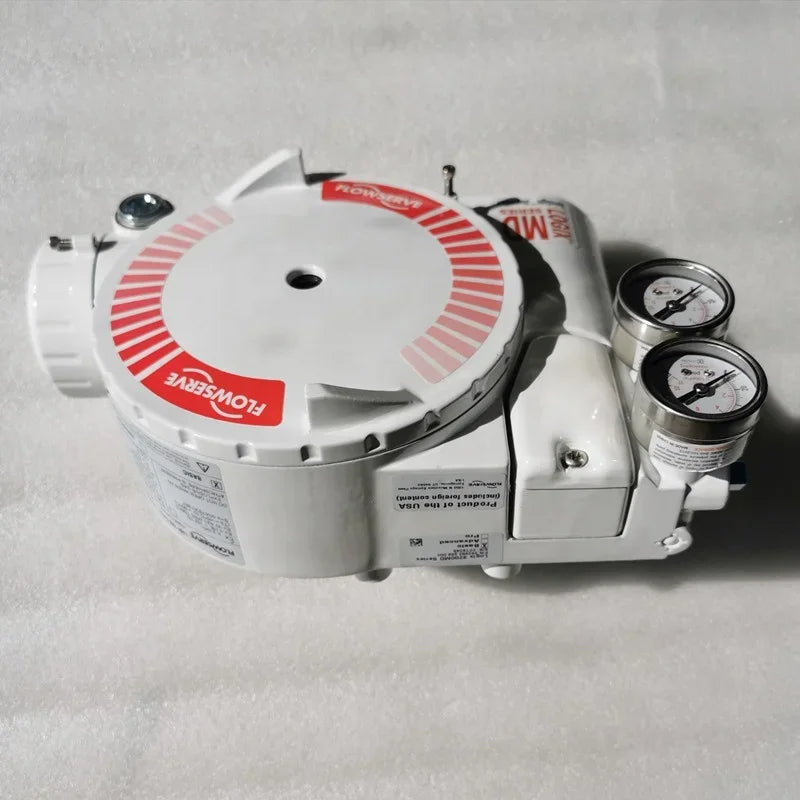

The Logix 3200MD features double-acting pneumatic control, standard diagnostics, a stainless steel feedback shaft, and integrated pressure gauges. The PMV D30 offers a high-flow pneumatic spool valve, LCD display, automatic calibration, and a durable aluminium enclosure. Both models support industrial valve automation in oil and gas processing, chemical manufacturing, power generation, and water treatment.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Digital Electro-Pneumatic Valve Positioner |
|
Manufacturer / Brand |
Flowserve |
|
Model Number 1 |
3200MD-28-D6-E-04-40-0S-00 |
|
Model Number 2 |
D30AHN2-U39PVA-U5X0XN |
|
Product Series |
Logix 3200MD / PMV D30 |
|
Product Type |
Intelligent Digital Valve Positioner |
|
Control Technology |
Microprocessor-Based Electro-Pneumatic Control |
|
Input Signal |
4-20 mA DC |
|
Communication Protocol |
HART |
|
Pneumatic Configuration, 3200MD |
Double Acting, Four-Way |
|
Pneumatic Configuration, D30 |
High-Flow Spool Valve, Single or Double Acting |
|
Position Sensing |
Electronic Valve Position Feedback |
|
Calibration |
Automatic |
|
Diagnostics |
Standard Diagnostics |
|
3200MD Housing |
Aluminium |
|
3200MD Feedback Shaft |
316 Stainless Steel |
|
3200MD Electrical Connection |
1/2-inch NPT |
|
3200MD Pressure Gauges |
Stainless Steel with Stainless Steel Internals |
|
3200MD Temperature Range |
-40 to +80 Degrees Celsius |
|
3200MD Certification Code |
ATEX, Code 28 |
|
D30 Housing |
Powder-Coated Aluminium |
|
D30 Pneumatic Connection |
1/4-inch NPT |
|
D30 Electrical Connection |
1/2-inch NPT |
|
D30 Mounting Configuration |
IEC 534-6, Flat D Shaft |
|
D30 Local Display |
LCD with LED Status Indicators |
|
D30 Position Transmitter Output |
Not Included |
|
D30 Temperature Range |
-40 to +80 Degrees Celsius |
|
D30 Approval Configuration |
ATEX, Code A |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Actuator Compatibility |
Compatible Linear and Rotary Pneumatic Actuators |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Accurate 4-20 mA electrical control input
Integrated HART digital communication
Double-acting pneumatic control on Logix 3200MD
High-flow pneumatic spool valve on PMV D30
Automatic valve calibration and initialization
Integrated valve position monitoring and diagnostics
Stainless steel pressure gauges on Logix 3200MD
LCD display and LED indicators on PMV D30
Durable industrial aluminium enclosure
Compatible with linear and rotary pneumatic actuators
Reliable industrial process control integration
Typical Applications
Industrial pneumatic control valve positioning
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment plants
Industrial flow and pressure regulation
Pneumatic actuator automation
Industrial valve maintenance and replacement
Shipping & Support
Fast dispatch, Australia and Worldwide Shipping
Technical assistance available
1-year warranty
