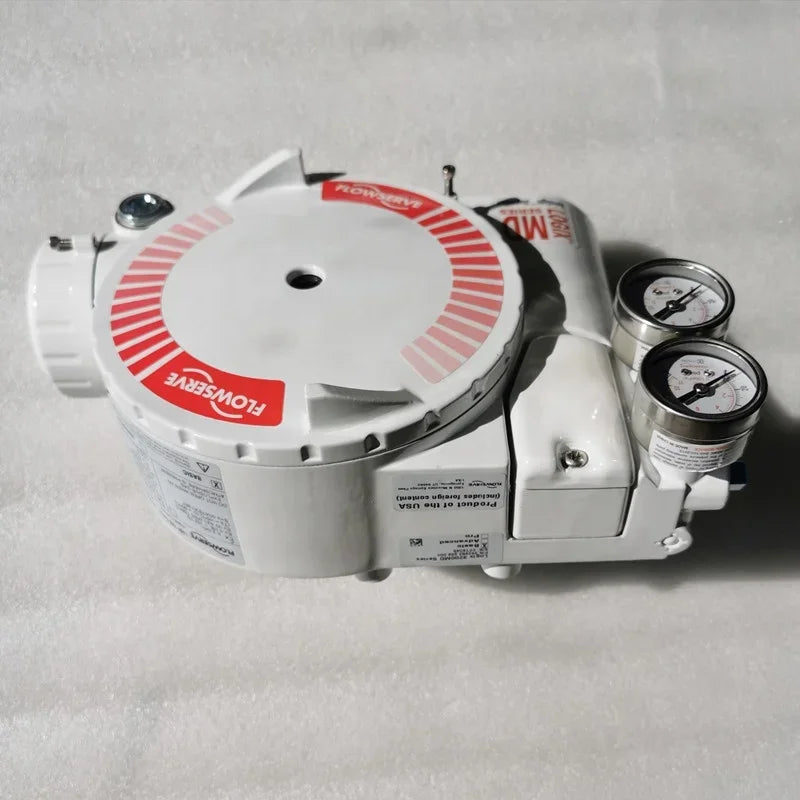

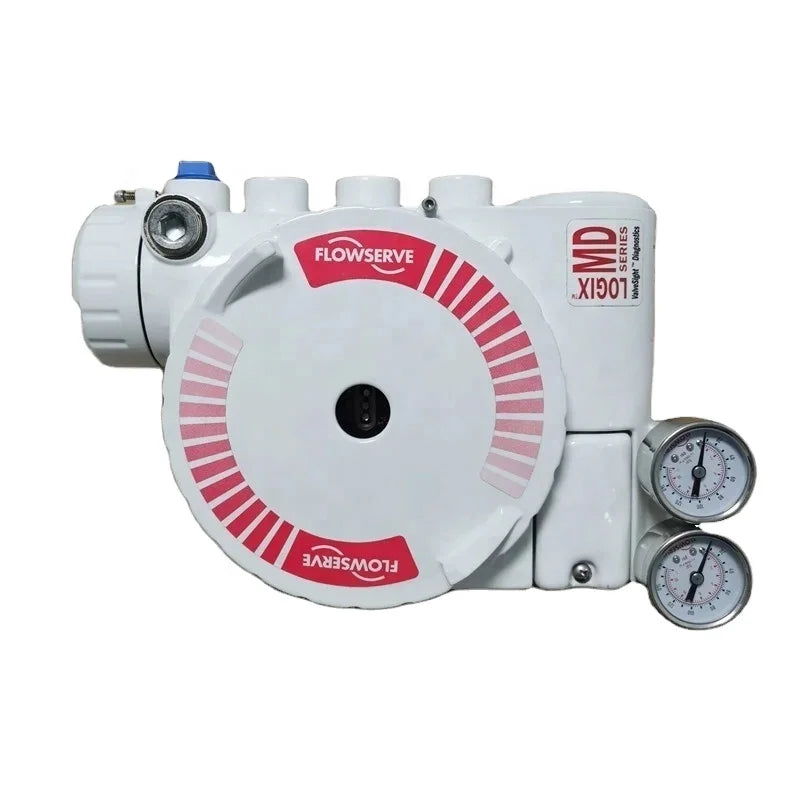

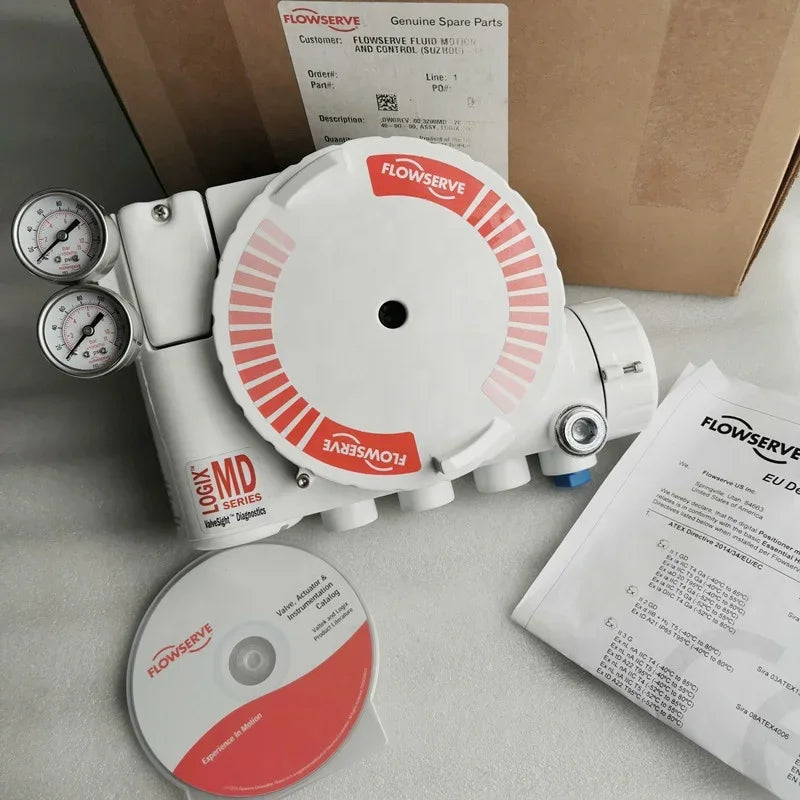

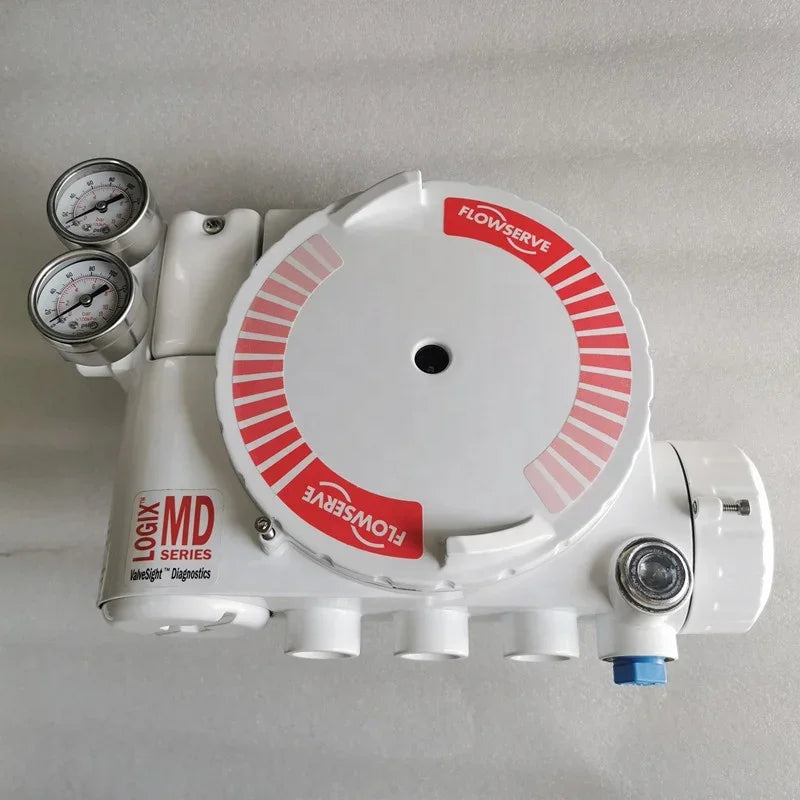

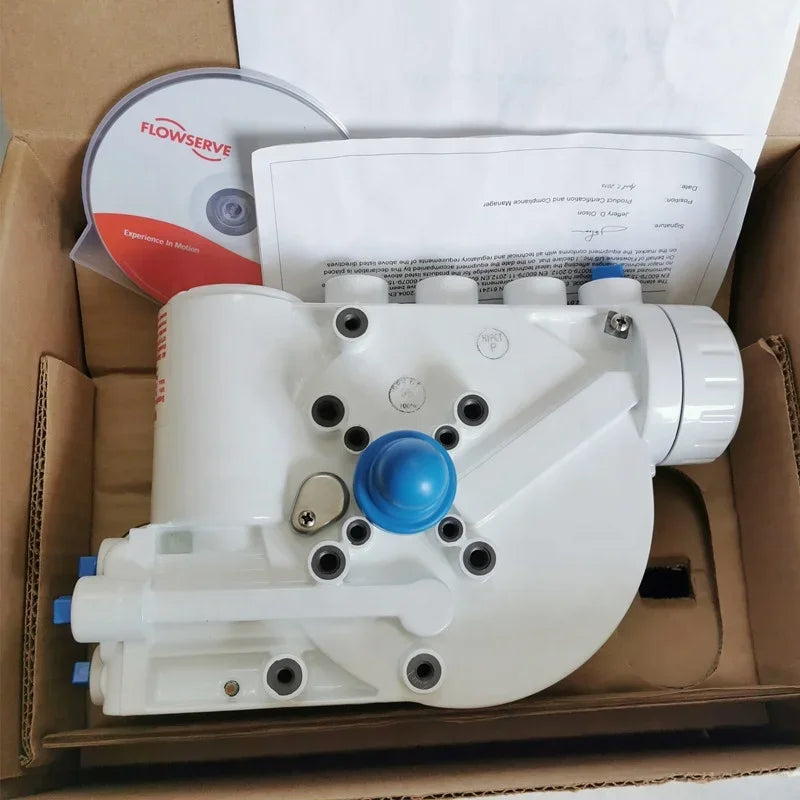

Flowserve 3200MD-28-D6-E-04-40-0S-00 Logix Digital Valve Positioner with HART
The Flowserve 3200MD-28-D6-E-04-40-0S-00 Logix Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems.
- Double Acting Actuator Configuration
- Compressed Instrument Air Actuation Medium
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Flowserve 3200MD-28-D6-E-04-40-0S-00 Logix Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems. Manufactured by Flowserve, this intelligent electropneumatic positioner uses a standard 4–20 mA electrical input signal with HART digital communication to regulate pneumatic output pressure and maintain accurate valve positioning. Its four-way, double-acting configuration supports controlled air delivery to compatible pneumatic actuators, ensuring responsive valve movement, stable flow regulation, and dependable performance in demanding industrial environments.
Part of the Flowserve Logix 3200MD series, the 3200MD-28-D6-E-04-40-0S-00 features microprocessor-based control technology, piezoelectric pneumatic regulation, automatic calibration, and digital diagnostic capabilities. This configuration includes an aluminium housing with a protective white finish, a 316 stainless steel feedback shaft, and stainless steel pressure gauges with stainless steel internals. Its ATEX multiple-concept certification configuration supports suitably approved hazardous-area installations, while the double-acting pneumatic output makes it suitable for industrial control valves used in oil and gas processing, chemical manufacturing, power generation, and automated fluid handling systems.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Digital Electropneumatic Valve Positioner |
|
Brand |
Flowserve |
|
Manufacturer |
Flowserve Corporation |
|
Model |
3200MD-28-D6-E-04-40-0S-00 |
|
Series |
Logix 3200MD |
|
Product Type |
Intelligent Digital Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Pneumatic Technology |
Piezoelectric |
|
Actuator Configuration |
Double Acting |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Electrical Supply |
10–30 V DC |
|
Diagnostic Configuration |
Standard Diagnostics |
|
Pneumatic Relay Type |
Four-Way, Double Acting |
|
Actuation Medium |
Compressed Instrument Air |
|
Housing Material |
Aluminium |
|
Housing Finish |
White Paint, Valtek Configuration |
|
Certification Code |
28 |
|
Hazardous Area Protection |
ATEX Multiple-Concept Certification |
|
Electrical Conduit Connection |
1/2 Inch NPT |
|
Feedback Shaft Material |
316 Stainless Steel |
|
Feedback Shaft Configuration |
DD Valtek Standard |
|
Temperature Configuration |
Low Temperature |
|
Operating Temperature |
-40°C to +80°C |
|
Pressure Gauge Configuration |
Stainless Steel Gauges with Stainless Steel Internals |
|
Pressure Gauge Units |
psi and bar/kPa |
|
Position Feedback Output |
No Separate 4–20 mA Transmitter |
|
Position Measurement |
Electronic Valve Travel Feedback |
|
Calibration |
Automatic Calibration |
|
Control Function |
Automatic Valve Position Regulation |
|
Working Medium |
Clean, Dry Instrument Air |
|
Related Model |
3200MD-28-D6-E-04-40-0G-0F |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital valve positioning for precise industrial pneumatic actuator control.
-
Double-acting, four-way pneumatic configuration for reliable bidirectional actuator movement.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
HART digital communication for remote configuration, monitoring, and instrument diagnostics.
-
Microprocessor-based control technology for accurate and responsive valve positioning.
-
Piezoelectric pneumatic control mechanism for efficient instrument air regulation.
-
Automatic calibration for simplified installation, setup, and commissioning.
-
Standard diagnostic functions for monitoring valve position and instrument operating conditions.
-
Durable aluminium housing with a protective white finish for industrial applications.
-
316 stainless steel feedback shaft for reliable mechanical integration.
-
Stainless steel pressure gauges with stainless steel internals for pneumatic pressure monitoring.
-
ATEX multiple-concept hazardous-area certification configuration for appropriately certified installations.
-
Low-temperature construction designed for operation from -40°C to +80°C.
-
Two-wire, loop-powered operation without requiring a separate instrument power supply.
-
Compatible with suitable pneumatic linear and rotary control valve actuators.
-
Compact construction for integration into industrial valve assemblies.
-
Designed for dependable operation in demanding industrial process automation environments.
Typical Applications
-
Industrial process automation systems
-
Double-acting pneumatic control valve assemblies
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Pneumatic linear and rotary actuator control
-
Ball and butterfly valve automation
-
Industrial flow and pressure regulation systems
-
Distributed control systems with HART communication
-
Hazardous-area process instrumentation
-
Industrial valve performance monitoring
-
Automated fluid handling and process control equipment
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
