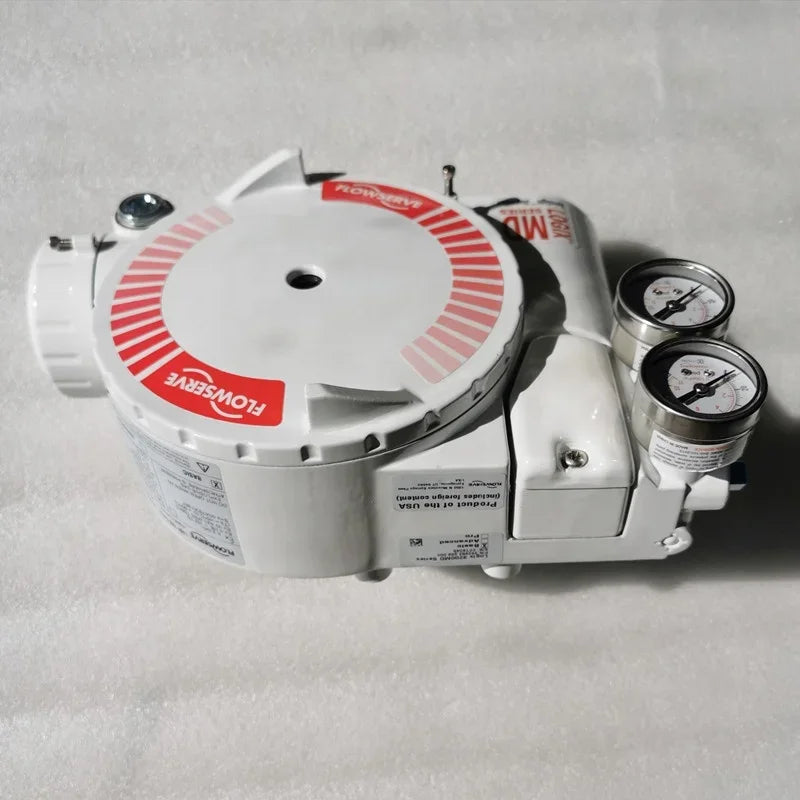

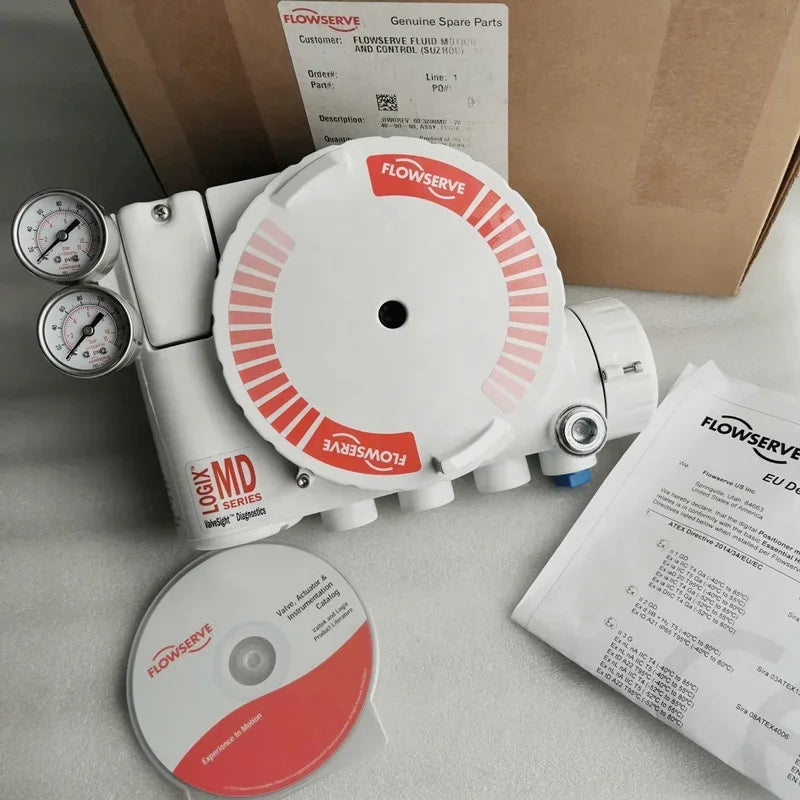

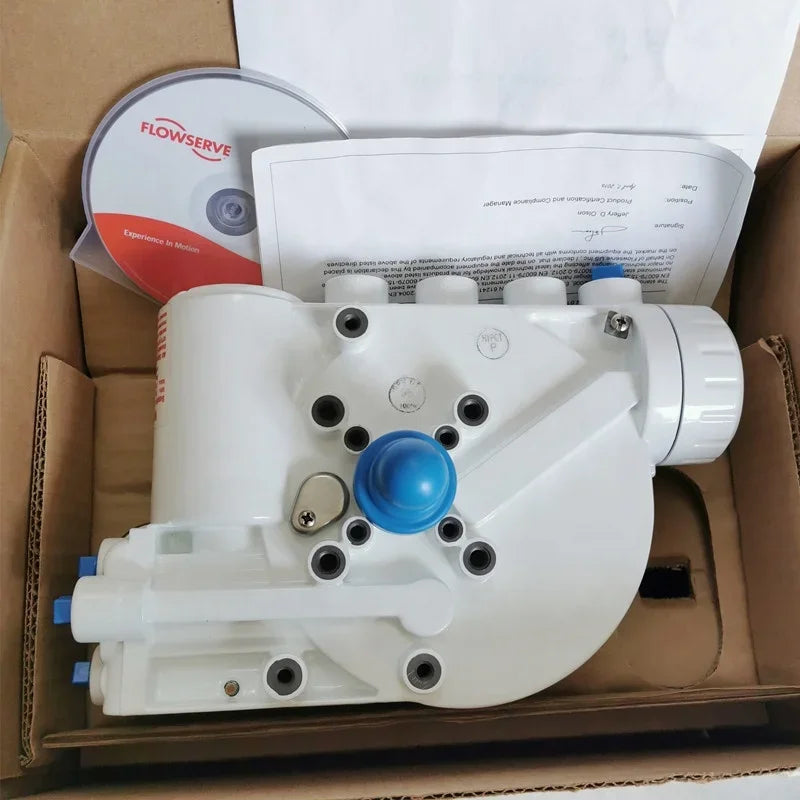

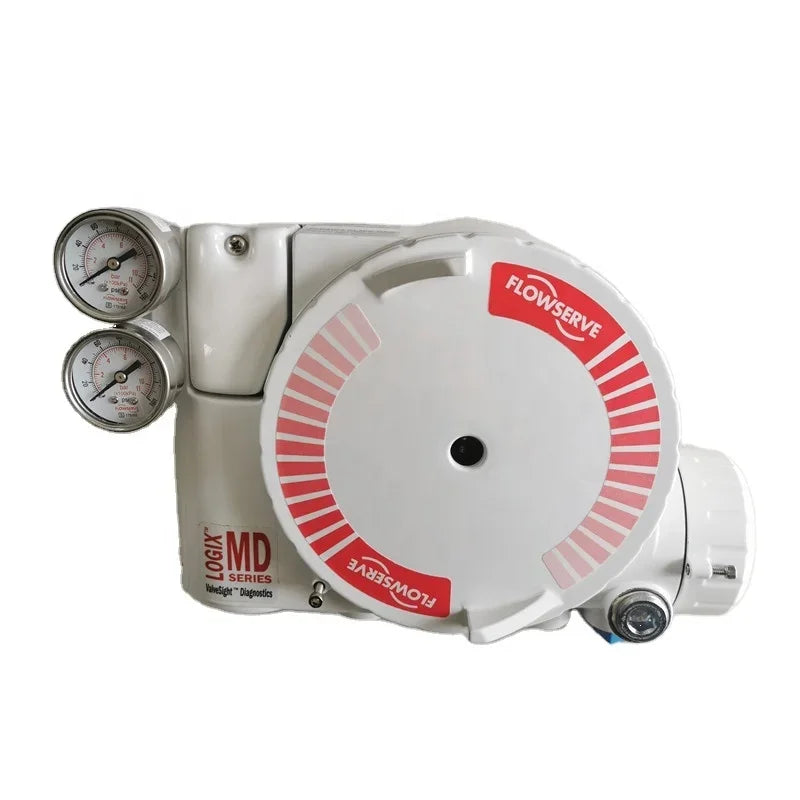

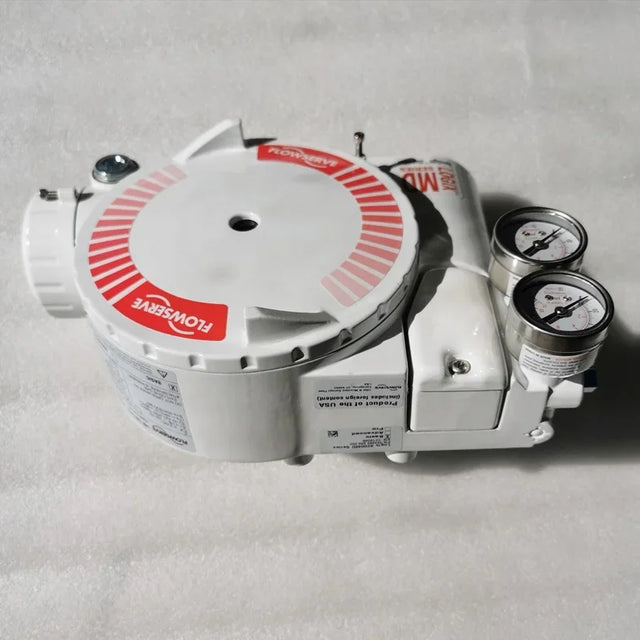

Flowserve Logix 3200MD-28-D6-E-04-40-0S-0F HART Digital Valve Positioner
The Flowserve Logix 3200MD-28-D6-E-04-40-0S-0F Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems.
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Flowserve Logix 3200MD-28-D6-E-04-40-0S-0F Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems. Manufactured by Flowserve under the Valtek Logix product family, this intelligent positioner uses a 4–20 mA electrical input with HART communication to regulate pneumatic output pressure and maintain accurate valve positioning. Its microprocessor-based control technology supports responsive actuator movement, stable process regulation, and reliable valve operation.
Part of the Flowserve Logix 3200MD Series, this configuration features a four-way double-acting pneumatic output, 316 stainless steel feedback shaft, low-temperature construction, and stainless steel pressure gauges with stainless steel internals. It also includes an additional 4–20 mA analogue position feedback output and ATEX certification configuration. The positioner is suitable for oil and gas processing, chemical manufacturing, power generation, petroleum refining, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Manufacturer / Brand |
Flowserve / Valtek |
|
Model Number |
3200MD-28-D6-E-04-40-0S-0F |
|
Product Series |
Logix 3200MD |
|
Product Type |
HART Digital Electropneumatic Valve Positioner |
|
Electrical Input |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Wiring Configuration |
Two-Wire |
|
Electrical Supply |
10–30 V DC, Loop Powered |
|
Diagnostic Level |
Standard |
|
Actuator Configuration |
Four-Way, Double Acting |
|
Compatible Actuators |
Linear and Rotary Pneumatic Actuators |
|
Feedback Shaft |
DD 316 Stainless Steel |
|
Electrical Cable Entry |
1/2 Inch NPT |
|
Temperature Configuration |
Low Temperature |
|
Operating Temperature |
−40°C to +80°C |
|
Housing Material |
Painted Aluminium |
|
Gauge Configuration |
Stainless Steel with Stainless Steel Internals |
|
Gauge Units |
psi, bar and kPa |
|
Analogue Position Feedback |
4–20 mA Output |
|
Certification Code |
28, ATEX |
|
Position Measurement |
Non-Contact Position Sensor |
|
Calibration |
Automatic Quick-Cal |
|
Local Interface |
Configuration Switches and Status Indicators |
|
Configuration Software |
Flowserve ValveSight |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Related Model |
3200MD-28-D6-E-04-40-0G-0F |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital valve positioning with HART communication
Standard 4–20 mA electrical control input
Four-way double-acting pneumatic output configuration
Integrated 4–20 mA analogue valve position feedback
316 stainless steel feedback shaft for compatible Valtek actuators
Stainless steel pressure gauges with stainless steel internals
Low-temperature configuration for operation down to −40°C
ATEX certification configuration for specified hazardous areas
Automatic Quick-Cal function for simplified commissioning
Non-contact valve position sensing for accurate feedback
Compatible with Flowserve ValveSight diagnostic software
Supports linear and rotary pneumatic valve control
Typical Applications
Industrial pneumatic control valve positioning
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing automation
Double-acting pneumatic actuator control
Linear globe and rotary control valves
HART-compatible industrial process control systems
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
