Flowserve 3821-28EA-D43R-0110-00 Logix 3800 Digital Valve Positioner with HART
The Flowserve 3821-28EA-D43R-0110-00 Logix 3800 Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems.
- Double Acting Actuator Configuration
- Compressed Instrument Air Actuation Medium
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Flowserve 3821-28EA-D43R-0110-00 Logix 3800 Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems. Manufactured by Flowserve, this intelligent electropneumatic positioner uses a standard 4–20 mA electrical control signal with HART digital communication to regulate pneumatic output pressure and maintain accurate valve positioning. Its double-acting configuration delivers controlled instrument air through two pneumatic outputs, supporting responsive actuator movement, stable flow regulation, and dependable performance in demanding industrial environments.

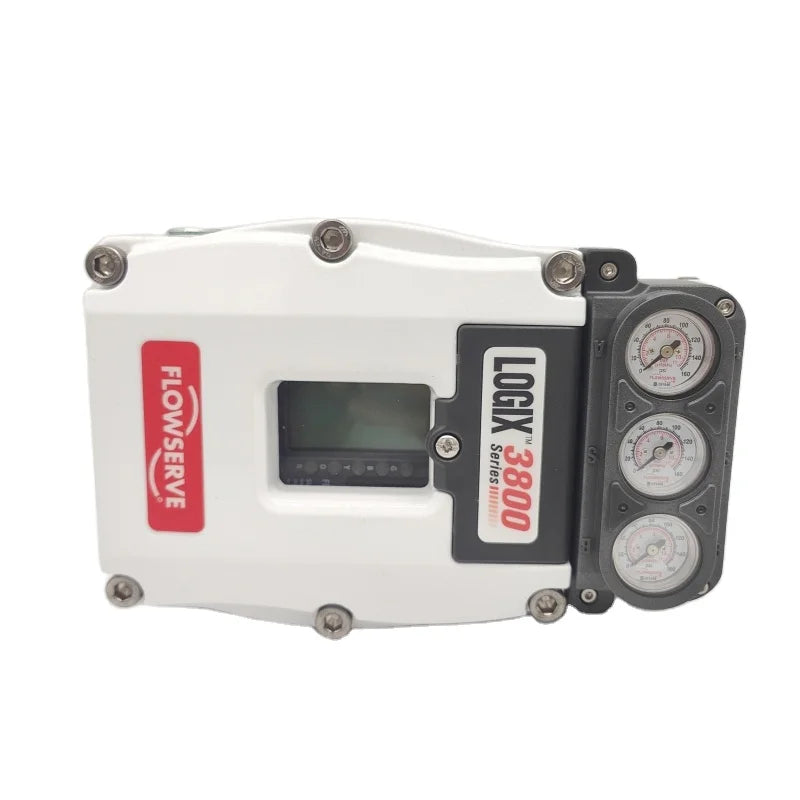

Part of the Flowserve Logix 3800 series, the 3821-28EA-D43R-0110-00 features microprocessor-based control, non-contact magnetic position sensing, automatic calibration, and digital diagnostic capabilities. This configuration includes an aluminium explosion-proof housing, three stainless steel pressure gauges with right-side orientation, an LCD display, and a stainless steel feedback shaft. Its high-performance pneumatic relay, configurable control characteristics, and compatibility with linear and rotary actuators make it suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Digital Electropneumatic Valve Positioner |
|
Brand |
Flowserve |
|
Manufacturer |
Flowserve Corporation |
|
Model |
3821-28EA-D43R-0110-00 |
|
Series |
Logix 3800 |
|
Product Type |
Intelligent Digital Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Actuator Configuration |
Double Acting |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART 6, Configurable to HART 7 |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Pneumatic Relay Type |
Double Acting, Standard Relay |
|
Actuator Action |
Four-Way, Double Acting |
|
Actuation Medium |
Compressed Instrument Air |
|
Housing Material |
Aluminium |
|
Housing Configuration |
Explosionproof |
|
Hazardous Area Approval Configuration |
ATEX / IECEx |
|
Electrical Conduit Connection |
1/2 Inch NPT |
|
Pneumatic Connections |
1/4 Inch NPT |
|
Mounting Threads |
5/16 Inch, 18 UNC |
|
Pressure Gauge Configuration |
Three Stainless Steel Gauges with Brass Internals |
|
Pressure Gauge Scale |
psi and bar/kPa |
|
Gauge Orientation |
Right Side |
|
Diagnostic Configuration |
Standard Diagnostics |
|
Display Type |
LCD |
|
Position Detection |
Non-Contact Magnetic Position Sensor |
|
Feedback Shaft |
316 Stainless Steel, Valtek Standard |
|
Mounting Configuration |
Standard Mounting |
|
Calibration |
Automatic Quick Calibration |
|
Control Function |
Automatic Valve Position Regulation |
|
Working Medium |
Clean, Dry Instrument Air |
|
Related Model |
3821-28EA-D43L-0110-00 |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital valve positioning for accurate industrial pneumatic actuator control.
-
Double-acting pneumatic relay configuration for reliable bidirectional actuator movement.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
HART digital communication for remote configuration, monitoring, and diagnostics.
-
Microprocessor-based electronic control for precise and responsive valve positioning.
-
Non-contact magnetic position sensing technology for reliable valve travel measurement.
-
Automatic quick calibration for simplified installation, setup, and commissioning.
-
Integrated LCD display for convenient local configuration and operating status monitoring.
-
Three stainless steel pressure gauges with right-side orientation for convenient pneumatic pressure monitoring.
-
Durable aluminium explosionproof housing for appropriately certified industrial installations.
-
ATEX and IECEx hazardous-area protection configuration for suitable industrial environments.
-
Standard diagnostic functions for monitoring valve positioning and instrument performance.
-
Four-way pneumatic output configuration for compatible double-acting actuators.
-
Stainless steel feedback shaft for durable mechanical integration with compatible valve assemblies.
-
Configurable control characteristics and automatic tuning for optimising valve response.
-
Suitable for pneumatic linear and rotary control valve applications.
Typical Applications
-
Industrial process automation systems
-
Double-acting pneumatic control valve assemblies
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Pneumatic linear and rotary actuator control
-
Ball and butterfly valve automation
-
Industrial flow and pressure regulation systems
-
Distributed control systems with HART communication
-
Hazardous-area process instrumentation
-
Industrial valve performance monitoring and maintenance
