Flowserve PMV D30AHN2-U39PVA-U5X0XN HART Digital Valve Positioner
The Flowserve PMV D30AHN2-U39PVA-U5X0XN Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems.
- High-Flow Spool, Single or Double Acting Pneumatic Configuration
- 1.4–8 Bar Pneumatic Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

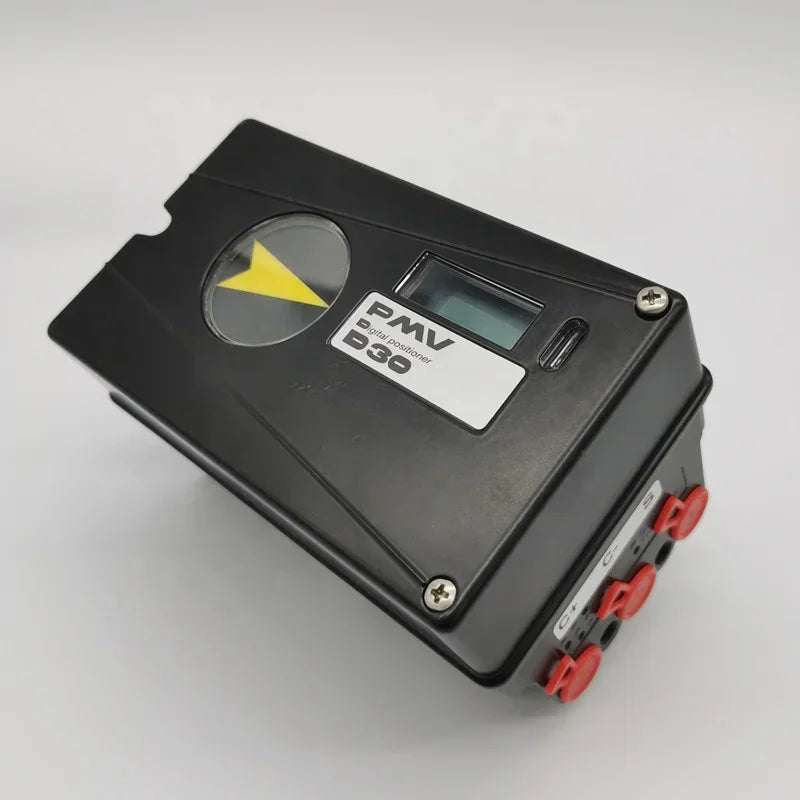

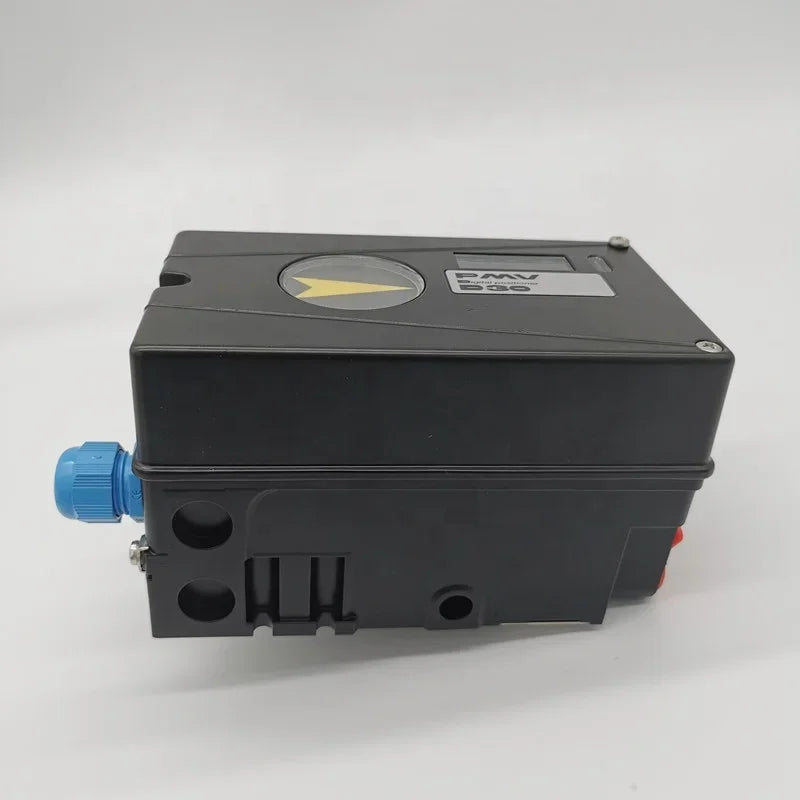

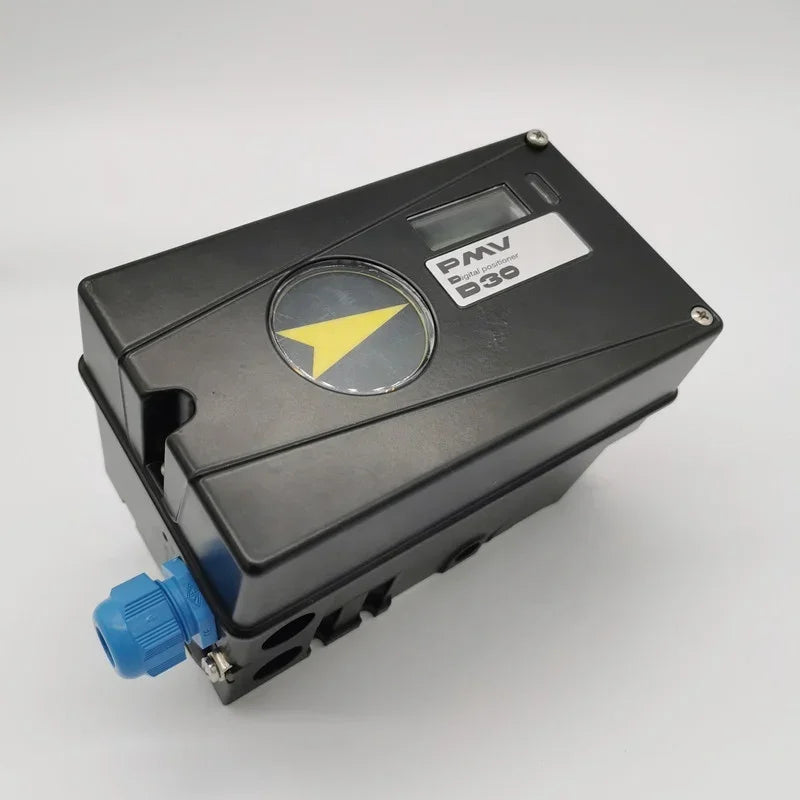

The Flowserve PMV D30AHN2-U39PVA-U5X0XN Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems. Manufactured by PMV, a Flowserve brand, this intelligent electropneumatic positioner uses a 4–20 mA electrical input with HART communication to regulate pneumatic output pressure. Its high-flow spool valve supports responsive actuator movement, accurate valve positioning, and reliable industrial process control.
Part of the Flowserve PMV D30 Series, the D30AHN2-U39PVA-U5X0XN features ATEX certification, a high-capacity pneumatic spool, automatic calibration, and an integrated LCD display. Its powder-coated aluminium housing provides IP66 protection, while its IEC 534-6 mounting configuration supports installation on compatible linear pneumatic actuators. The positioner is suitable for oil and gas processing, chemical manufacturing, petroleum refining, power generation, water treatment, and industrial automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Manufacturer / Brand |
Flowserve / PMV |
|
Model Number |
D30AHN2-U39PVA-U5X0XN |
|
Product Series |
PMV D30 |
|
Product Type |
HART Digital Electropneumatic Valve Positioner |
|
Control Technology |
Microprocessor-Based |
|
Electrical Input |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Pneumatic Configuration |
High-Flow Spool, Single or Double Acting |
|
Actuator Compatibility |
Linear and Rotary Pneumatic Actuators |
|
Pneumatic Supply Pressure |
1.4–8 Bar |
|
Maximum Air Delivery |
760 NL/min at 6 Bar |
|
Air Consumption |
Approximately 8 NL/min at 6 Bar |
|
Pneumatic Connections |
1/4 Inch NPT |
|
Electrical Cable Entry |
1/2 Inch NPT |
|
Electrical Conduits |
Two |
|

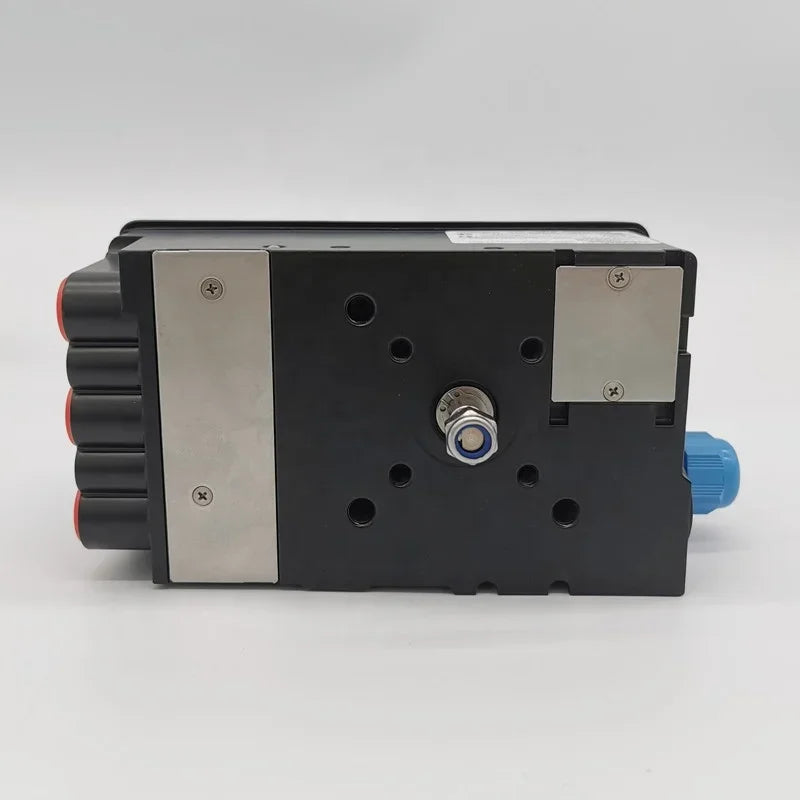

Mounting Configuration |
IEC 534-6, Flat D-Type Shaft |
|

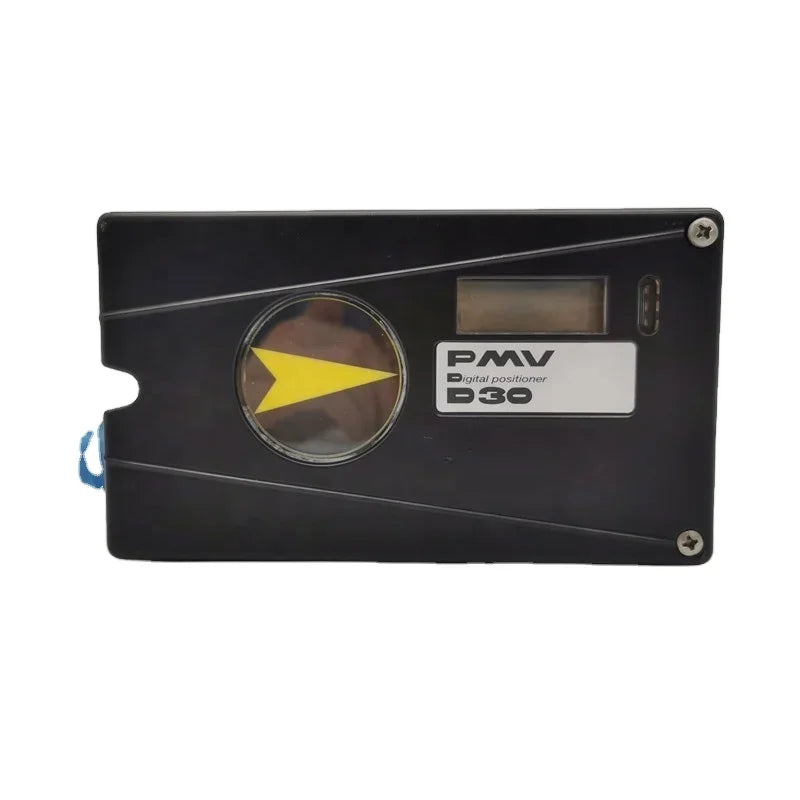

Cover and Indicator |
PMV Black Cover with Arrow Indicator |
|
Housing Material |
Powder-Coated Aluminium |
|
Enclosure Protection |
IP66 / NEMA 4X |
|
Hazardous-Area Certification |
ATEX, Code A |
|
Operating Temperature |
−40°C to +80°C |
|
Calibration |
Automatic and Manual |
|
Local Interface |
Graphic LCD and Pushbuttons |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Related Model |
D30NHN2-U39PVA-U5T0XS |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital valve positioning with HART communication
Standard 4–20 mA electrical control input
High-capacity pneumatic spool for responsive actuator movement
Compatible with single-acting and double-acting pneumatic actuators
ATEX-certified configuration for approved hazardous areas
Automatic calibration for simplified commissioning
Integrated graphic LCD display and local pushbuttons
IEC 534-6 mounting configuration for compatible actuators
Durable powder-coated aluminium housing
IP66/NEMA 4X enclosure protection
High pneumatic airflow capacity for demanding valve applications
Supports linear and rotary pneumatic valve control
Typical Applications
Industrial pneumatic control valve positioning
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial manufacturing automation
Linear globe valve positioning
Rotary ball and butterfly valve automation
HART-compatible industrial process control systems
Shipping & Support
Fast dispatch – Australia & Worldwide Shipping
Technical assistance available
1-year warranty
