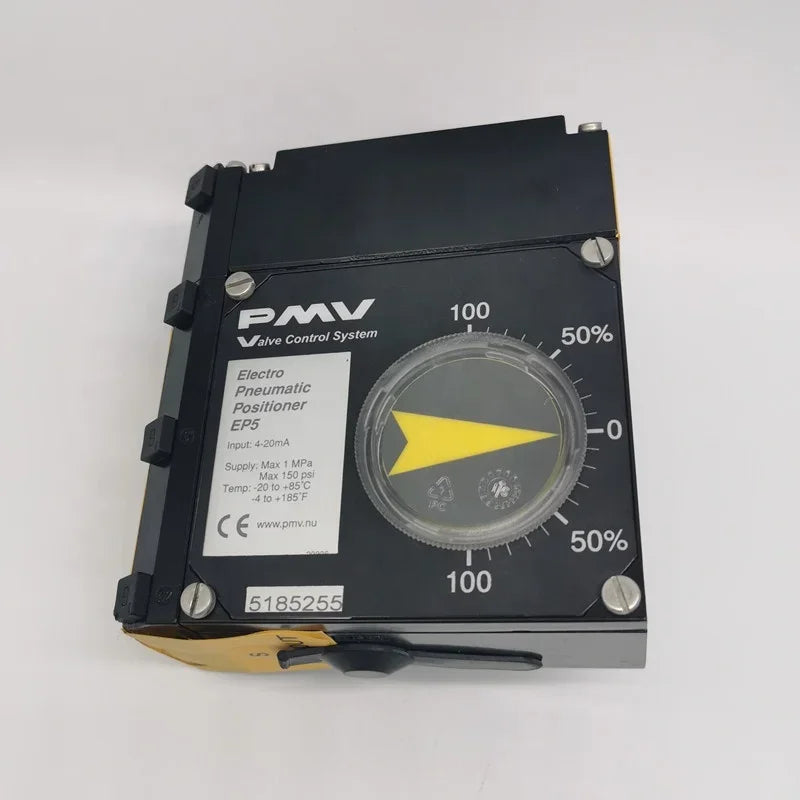

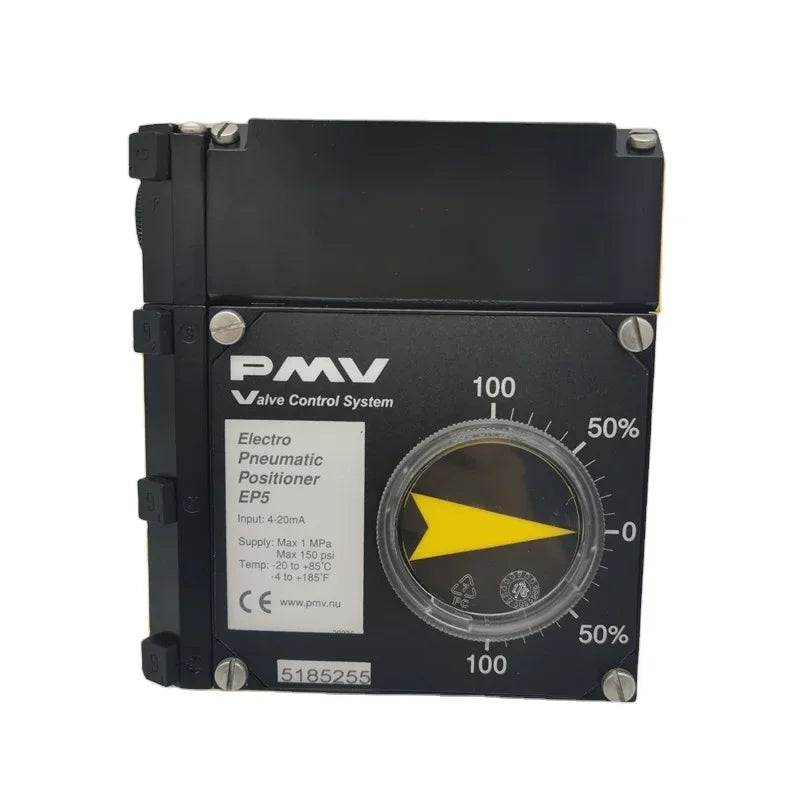

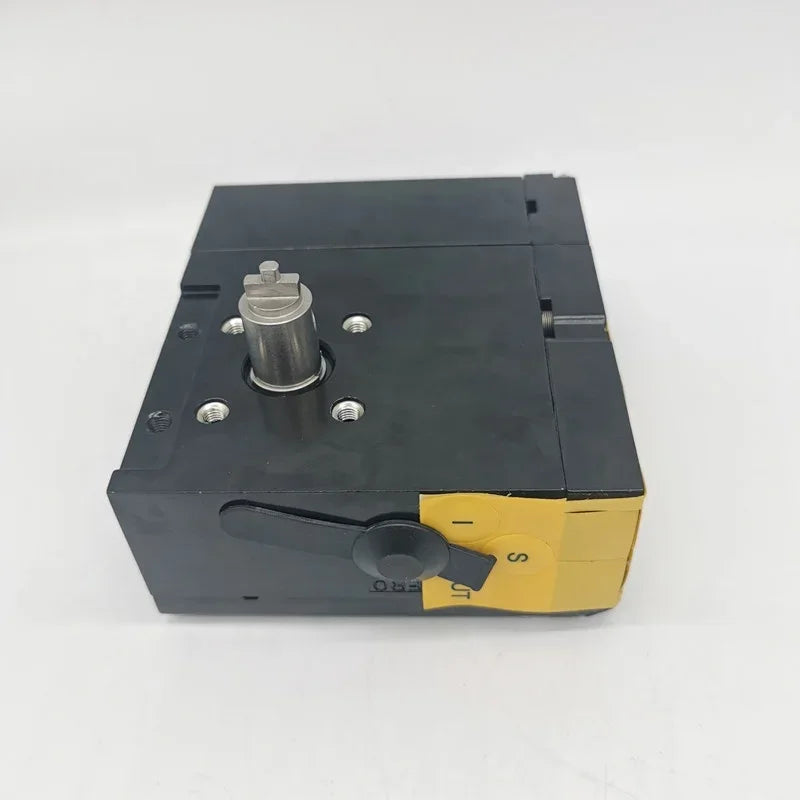

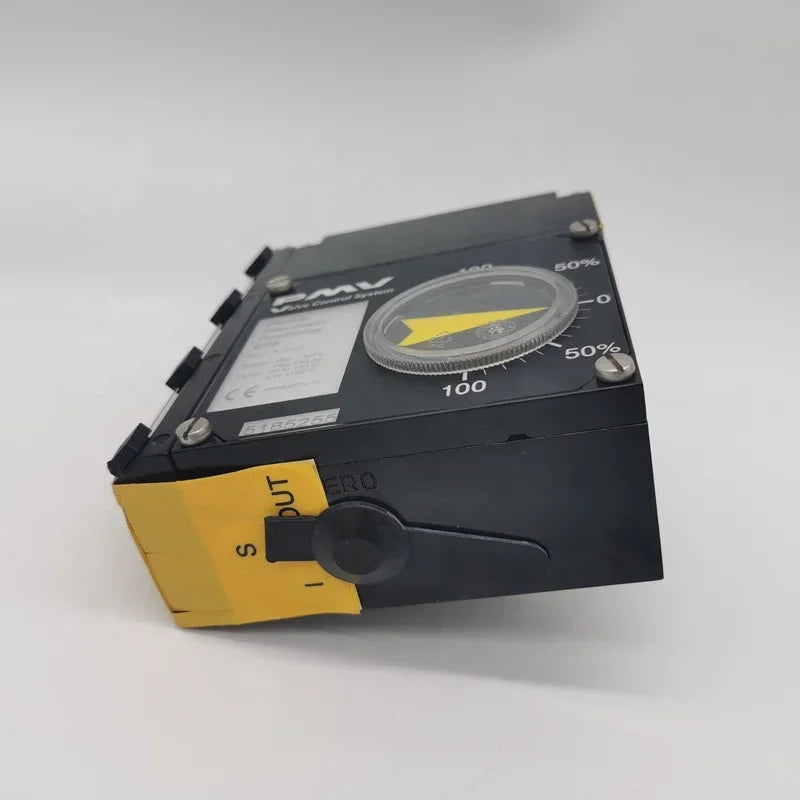

PMV EP5XX-HPGU-23K01-PV9DA-4Z Flowserve Electro pneumatic Valve Positioner
The PMV EP5XX-HPGU-23K01-PV9DA-4Z Electropneumatic Valve Positioner is designed for precise positioning and automatic control of double-acting pneumatic valve actuators in industrial process systems.
- Double Acting Actuator Configuration
- 1.4 Bar (0.14 MPa) Minimum Supply Air Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The PMV EP5XX-HPGU-23K01-PV9DA-4Z Electropneumatic Valve Positioner is designed for precise positioning and automatic control of double-acting pneumatic valve actuators in industrial process systems. Manufactured under the PMV brand by Flowserve, this positioner converts a standard 4–20 mA electrical input signal into proportional pneumatic pressure adjustments. Its high-performance spool valve enables responsive actuator movement, accurate valve travel control, and dependable operation in industrial applications requiring consistent flow and process regulation.
Part of the PMV EP5 Series, the EP5XX-HPGU-23K01-PV9DA-4Z combines an epoxy-coated die-cast aluminium housing, rotary NAMUR spindle, K01 linear cam, and a direct-acting 90-degree position indicator. Its G 1/4 pneumatic connections and M20 × 1.5 electrical cable entry support integration with compatible industrial valve assemblies. The positioner also features accessible zero and span adjustments, gauge ports, a replaceable filter, and a modular design that supports optional PMV F5 feedback accessories. These features make it suitable for chemical processing, oil and gas facilities, power generation, water treatment, manufacturing, and industrial pneumatic valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
PMV / Flowserve |
|
Model |
EP5XX-HPGU-23K01-PV9DA-4Z |
|
Series |
EP5 |
|
Product Type |
Analogue Electropneumatic Valve Positioner |
|
Actuator Configuration |
Double Acting |
|
Control Technology |
Electropneumatic Control with Mechanical Cam Feedback |
|
Input Signal |
4–20 mA DC |
|
Communication |
Analogue; HART Not Specified |
|
Pneumatic Spool Valve |
High Performance (HP) |
|
Pneumatic Connections |
G 1/4 |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Housing Material |
Die-Cast Aluminium |
|
Housing Surface Treatment |
Epoxy Coating |
|
Spindle Configuration |
Code 23, Rotary NAMUR |
|
Mounting Compatibility |
VDI/VDE 3845 |
|
Cam Configuration |
K01, 90° Linear |
|
Front Cover Configuration |
PV9, 90° Position Scale |
|
Control Action |
Direct Acting |
|
Position Indicator |
Arrow Indicator |
|
Position Indication Range |
0–100% |
|
Minimum Supply Air Pressure |
1.4 Bar (0.14 MPa) |
|
Maximum Supply Air Pressure |
10 Bar (1 MPa) |
|
Standard Linearity |
Less Than 1% of Full Scale |
|
Repeatability |
Less Than 0.5% of Full Scale |
|
Hysteresis |
Less Than 0.75% of Full Scale |
|
Deadband |
Less Than 0.15% |
|
Enclosure Protection |
IP66 / NEMA 4 |
|
Seal Material |
Nitrile Rubber (NBR) |
|
Operating Temperature |
−20°C to +85°C |
|
Calibration |
Adjustable Zero and Span |
|
Pressure Gauge Ports |
Integrated |
|
Air Supply Requirement |
Clean, Dry, Oil-Free Instrument Air |
|
Approximate Weight |
1.5 kg |
|
Optional Feedback Accessories |
Compatible PMV F5 Feedback Modules |
|
Application Scope |
Industrial Pneumatic Valve Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Double-acting electropneumatic valve positioner for precise industrial actuator positioning.
-
Standard 4–20 mA electrical input for integration into industrial automation systems.
-
High-performance pneumatic spool valve for responsive actuator pressure regulation.
-
Mechanical cam feedback system for monitoring and controlling valve travel.
-
Rotary NAMUR spindle compatible with suitable quarter-turn actuators.
-
K01 linear cam designed for 90-degree rotary valve positioning.
-
Direct-acting configuration with an arrow-style visual position indicator.
-
Durable epoxy-coated die-cast aluminium housing for industrial environments.
-
G 1/4 pneumatic connections and M20 × 1.5 electrical cable entry.
-
IP66 / NEMA 4 protection against dust and water ingress.
-
External zero adjustment and accessible span calibration.
-
Integrated pressure gauge ports for instrument air monitoring.
-
Replaceable internal filter for easier maintenance.
-
Tapped exhaust port for suitable pneumatic venting arrangements.
-
Modular compatibility with selected PMV F5 feedback accessories.
-
Nitrile rubber seals supporting the specified −20°C to +85°C operating range.
Typical Applications
-
Double-acting pneumatic actuator control
-
Industrial process automation systems
-
Rotary ball valve positioning
-
Butterfly valve automation
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Food and beverage processing plants
-
Pharmaceutical production equipment
-
Industrial flow and pressure control assemblies
