PMV EP5XX-HPGU-36K01-PV9DA-4Z Flowserve Electropneumatic Valve Positioner
The PMV EP5XX-HPGU-36K01-PV9DA-4Z Electropneumatic Valve Positioner is designed for accurate positioning and automated control of double-acting pneumatic valve actuators in industrial process systems.
- Double Acting Positioner Configuration
- 10 Bar (1 MPa) Maximum Supply Air Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview

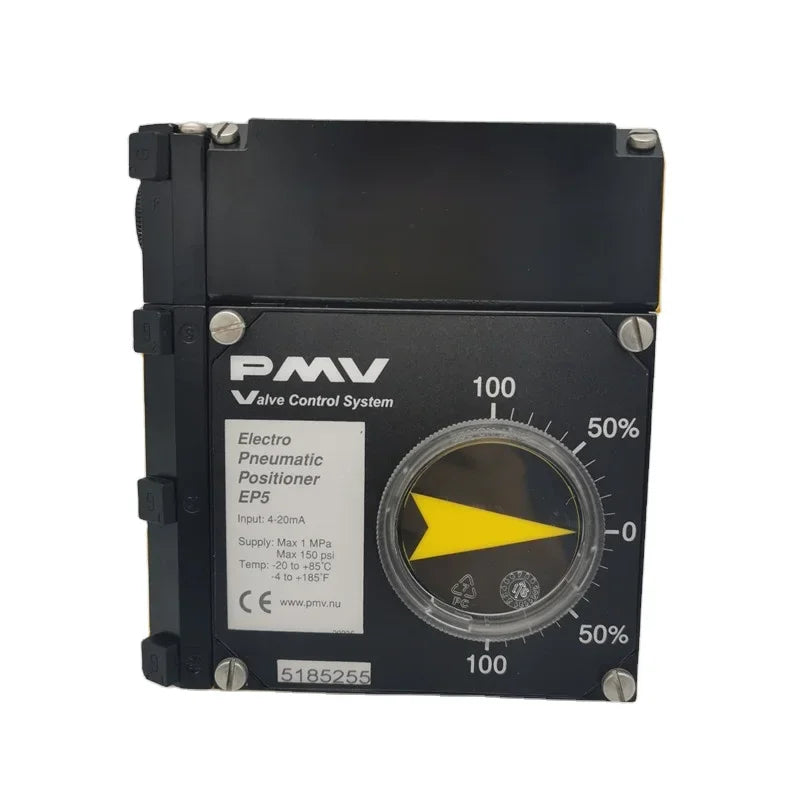

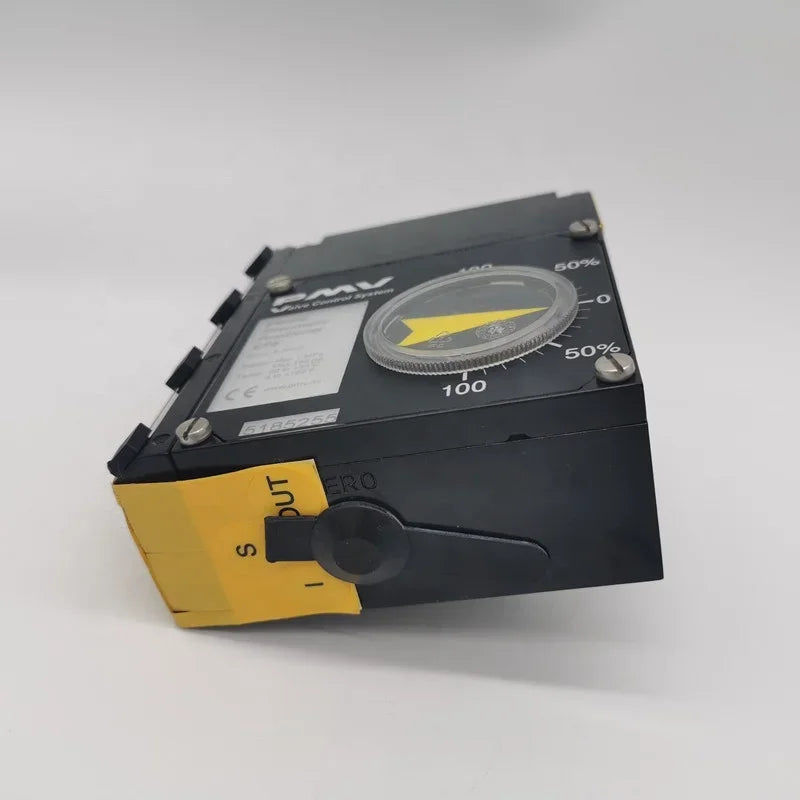

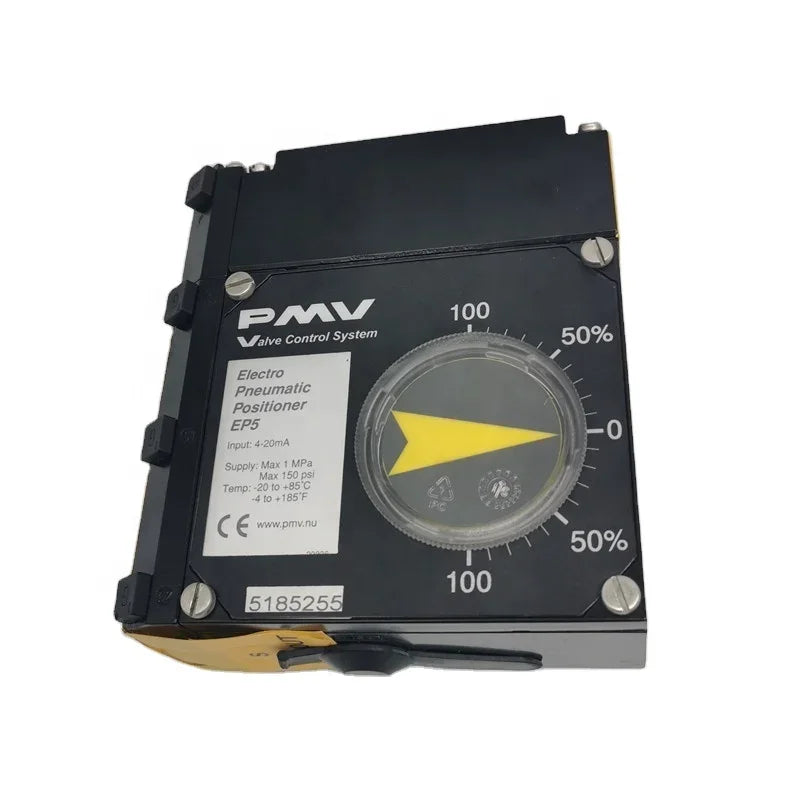

The PMV EP5XX-HPGU-36K01-PV9DA-4Z Electropneumatic Valve Positioner is designed for accurate positioning and automated control of double-acting pneumatic valve actuators in industrial process systems. Manufactured under the PMV brand by Flowserve, this positioner converts a standard 4–20 mA electrical input signal into pneumatic output pressures that regulate actuator movement. Its high-performance spool valve supports responsive switching, controlled valve travel, and dependable positioning in demanding industrial environments.
Part of the PMV EP5 Series, the EP5XX-HPGU-36K01-PV9DA-4Z features an epoxy-coated aluminium housing, G 1/4 pneumatic connections, M20 × 1.5 electrical cable entry, and a mechanical cam feedback system. Its K01 linear cam, direct-acting configuration, and 90-degree position indicator support accurate valve travel monitoring and adjustment. The related EP5XX-HPGU-23K01-PV9DA-4Z shares the same principal pneumatic and electrical configuration but uses a different feedback spindle arrangement.
Important product identification: Although the supplied title describes this positioner as having HART, the standard PMV EP5XX is an analogue electropneumatic positioner. The manufacturer documentation identifies a 4–20 mA input but does not specify HART communication for this model. It should therefore not be advertised as HART-compatible without separate manufacturer confirmation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
PMV / Flowserve |
|
Model |
EP5XX-HPGU-36K01-PV9DA-4Z |
|
Series |
EP5 |
|
Product Type |
Analogue Electropneumatic Valve Positioner |
|
Positioner Configuration |
Double Acting |
|
Control Technology |
Electropneumatic Control with Mechanical Cam Feedback |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
Analogue Control; HART Not Specified |
|
Actuator Compatibility |
Compatible Double-Acting Pneumatic Actuators |
|
Spool Valve |
High Performance (HP) |
|
Pneumatic Connections |
G 1/4 |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Housing Material |
Die-Cast Aluminium |
|
Housing Surface Treatment |
Epoxy Coating |
|

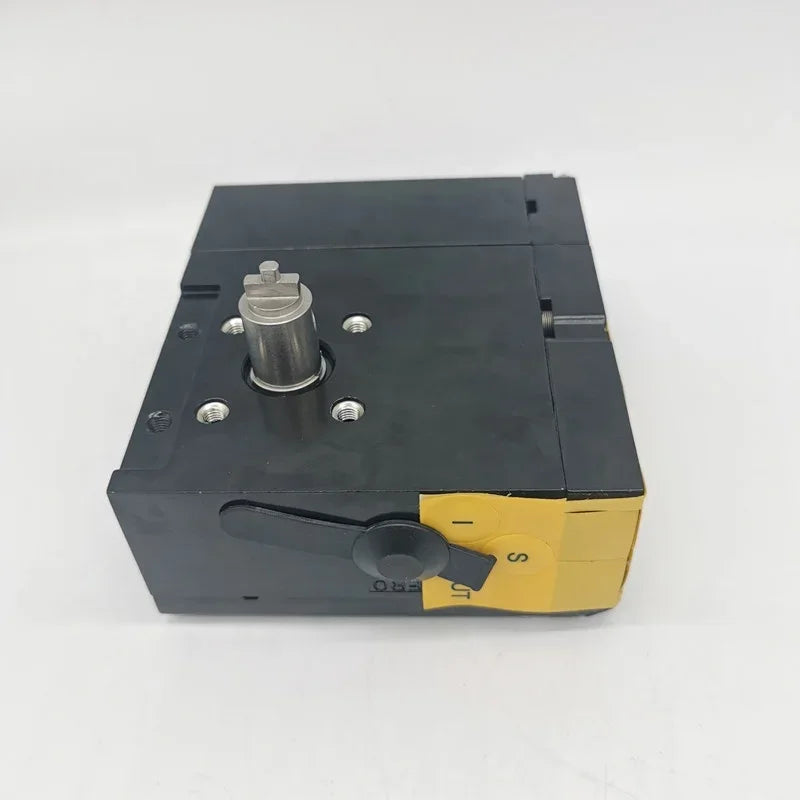

Spindle Configuration |
Code 36 |
|
Feedback Mechanism |
Mechanical Cam and Spindle |
|
Cam Configuration |
K01, 90° Linear |
|
Front Cover Configuration |
PV9, 90° Position Scale |
|
Control Action |
Direct Acting |
|
Position Indicator |
Arrow Indicator |
|
Position Indication Range |
0–100% |
|
Maximum Supply Air Pressure |
10 Bar (1 MPa) |
|
Minimum Supply Air Pressure |
1.4 Bar (0.14 MPa) |
|
Enclosure Protection |
IP66 / NEMA 4 |
|
Standard Positioner Linearity |
Less Than 1% of Full Scale |
|
Repeatability |
Less Than 0.5% of Full Scale |
|
Hysteresis |
Less Than 0.75% of Full Scale |
|
Deadband |
Less Than 0.15% |
|
Seal Material |
Nitrile Rubber (NBR) |
|
Operating Temperature |
−20°C to +85°C |
|
Calibration |
Adjustable Zero and Span |
|
Pressure Gauge Ports |
Integrated |
|
Working Medium |
Clean, Dry, Oil-Free Instrument Air |
|
Related Model |
EP5XX-HPGU-23K01-PV9DA-4Z |
|
Application Scope |
Industrial Pneumatic Valve Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Double-acting electropneumatic valve positioner for accurate industrial actuator positioning.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
High-performance pneumatic spool valve for responsive actuator pressure control.
-
Mechanical cam feedback system for monitoring actuator movement.
-
Code 36 feedback spindle configuration for the appropriate actuator coupling arrangement.
-
K01 linear cam designed for 90-degree valve travel.
-
Direct-acting control configuration for predictable valve positioning.
-
Integrated position indicator with a 0–100% travel scale.
-
Durable epoxy-coated aluminium housing for industrial applications.
-
G 1/4 pneumatic connections for compatible instrument air piping.
-
M20 × 1.5 electrical cable entry for installation with suitable cable fittings.
-
IP66 / NEMA 4 enclosure protection against dust and water ingress.
-
External zero adjustment and accessible span calibration.
-
Replaceable internal filter for convenient routine maintenance.
-
Integrated pressure gauge ports for pneumatic monitoring.
-
Tapped exhaust port for suitable instrument air venting arrangements.
-
Nitrile seals for the specified −20°C to +85°C operating temperature range.
Typical Applications
-
Double-acting pneumatic actuator control
-
Industrial process automation systems
-
Rotary control valve positioning
-
Ball and butterfly valve automation
-
Chemical and petrochemical processing facilities
-
Oil and gas production and processing plants
-
Power generation and utility facilities
-
Water and wastewater treatment plants
-
Industrial manufacturing machinery
-
Pneumatic flow control systems
-
Industrial valve maintenance and replacement
-
Process instrumentation and control assemblies
