Flowserve PMV EP5XX-LBGU-06K02-PV4DA-4Z Electro pneumatic Valve Positioner
The Flowserve PMV EP5XX-LBGU-06K02-PV4DA-4Z Electropneumatic Valve Positioner is designed for accurate positioning and automatic control of double-acting pneumatic valve actuators in industrial process systems.
- Double Acting Actuator Configuration
- 1.4–10 Bar Pneumatic Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Flowserve PMV EP5XX-LBGU-06K02-PV4DA-4Z Electropneumatic Valve Positioner is designed for accurate positioning and automatic control of double-acting pneumatic valve actuators in industrial process systems. Manufactured by Flowserve under the PMV brand, this positioner converts a 4–20 mA DC electrical control signal into proportional pneumatic pressure to regulate valve movement. Its electropneumatic I/P converter, pneumatic spool valve and mechanical feedback mechanism work together to maintain the required valve position, supporting responsive actuator movement, stable flow regulation and reliable industrial operation.
Part of the Flowserve PMV EP5 series, the EP5XX-LBGU-06K02-PV4DA-4Z features a normal-gain pneumatic spool valve, G 1/4 pneumatic connections, M20 × 1.5 electrical cable entry and epoxy-coated die-cast aluminium housing. Its 45-degree position indicator, direct-acting configuration and nitrile sealing arrangement support installation on compatible rotary pneumatic actuators. The positioner also provides adjustable zero and span calibration, built-in gauge ports and a modular design for maintenance. It is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, pulp and paper production and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
Flowserve / PMV |
|
Main Model |
EP5XX-LBGU-06K02-PV4DA-4Z |
|
Product Series |
EP5 |
|
Product Type |
Analogue Electropneumatic Valve Positioner |
|
Control Technology |
Electropneumatic Force-Balance Control |
|
Electrical Input Signal |
4–20 mA DC |
|
Communication Protocol |
Analogue, Without HART |
|
Actuator Configuration |
Double Acting |
|
Actuator Compatibility |
Compatible Pneumatic Valve Actuators |
|
Pneumatic Spool Configuration |
LB, Normal Gain |
|
Pneumatic Control Mechanism |
Spool Valve |
|
I/P Conversion |
Integrated Electropneumatic Converter |
|
Pneumatic Supply Pressure |
1.4–10 Bar |
|
Pneumatic Connection Type |
G 1/4 |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Pressure Gauge Connection |
G 1/8 |
|
Housing Material |
Die-Cast Aluminium |
|
Surface Treatment |
Epoxy Coating |
|
Spindle Configuration |
Code 06 |
|
Cam Configuration |
K02 |
|
Position Indicator |
Arrow Indicator |
|
Position Indicator Scale |
45° |
|
Operating Action |
Direct Acting |
|
Electrical Input Code |
4 |
|
Temperature and Seal Code |
Z |
|
Sealing Material |
Nitrile Rubber (NBR) |
|
Standard Operating Temperature |
−20°C to +85°C |
|
Enclosure Protection |
IP66 / NEMA 4 |
|
Deadband, Series |
≤0.15% |
|
Linearity, Series |
≤1% of Full Scale |
|
Hysteresis, Series |
≤0.75% of Full Scale |
|
Repeatability, Series |
≤0.5% of Full Scale |
|
Input Impedance, Series |
170–260 Ohms at 20°C |
|
Air Consumption at 4 Bar, Normal Gain |
Up to 6.1 Nl/min |
|
Minimum Air Delivery at 4 Bar, Normal Gain |
288 Nl/min |
|
Approximate Weight |
1.5 kg |
|
Pneumatic Exhaust |
Tapped Exhaust Port |
|
Pressure Gauge Ports |
Integrated |
|
Hazardous-Area Approval |
Not Established for This EP5XX Configuration |
|
Related Model |
EP5XX-HPGU-23K01-PV9DA-4Z |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Analogue electropneumatic valve positioning for accurate industrial process control
Standard 4–20 mA DC electrical input for conventional process automation systems
Double-acting pneumatic configuration for compatible valve actuators
Normal-gain pneumatic spool valve for stable actuator pressure control
Integrated I/P converter for converting electrical control signals into pneumatic pressure
Mechanical position feedback for regulating actuator movement
G 1/4 pneumatic connections for compatible instrument air installations
M20 × 1.5 electrical cable entry for industrial wiring
Epoxy-coated die-cast aluminium housing for industrial durability
IP66/NEMA 4 enclosure protection against dust and water ingress

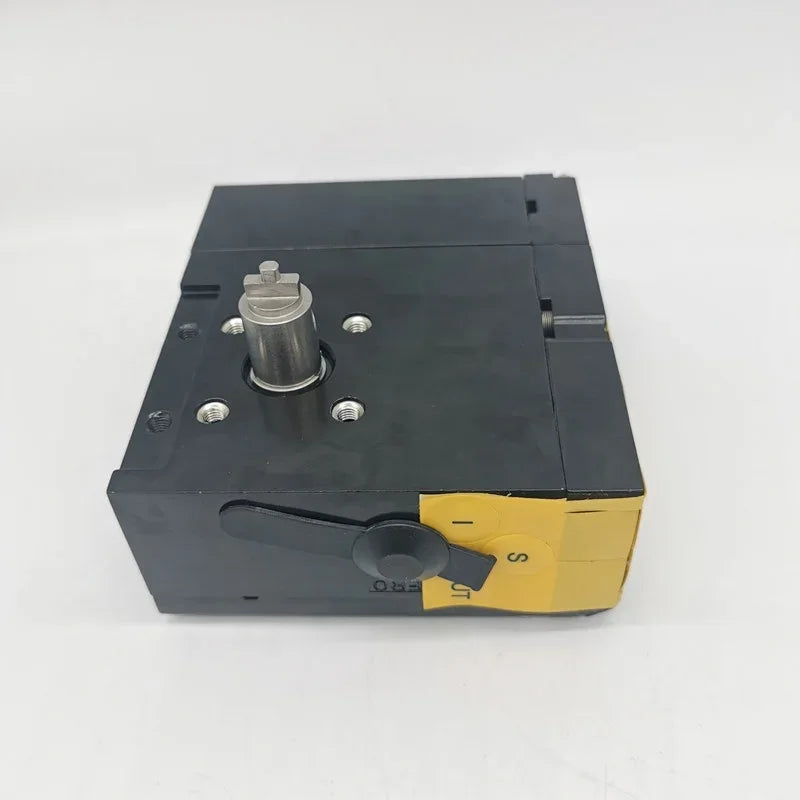

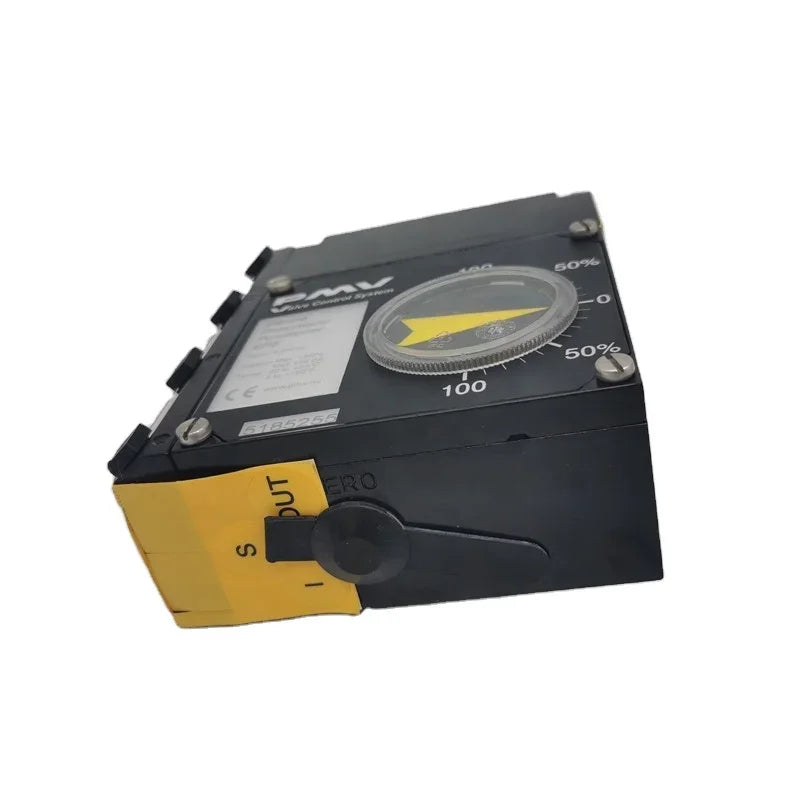

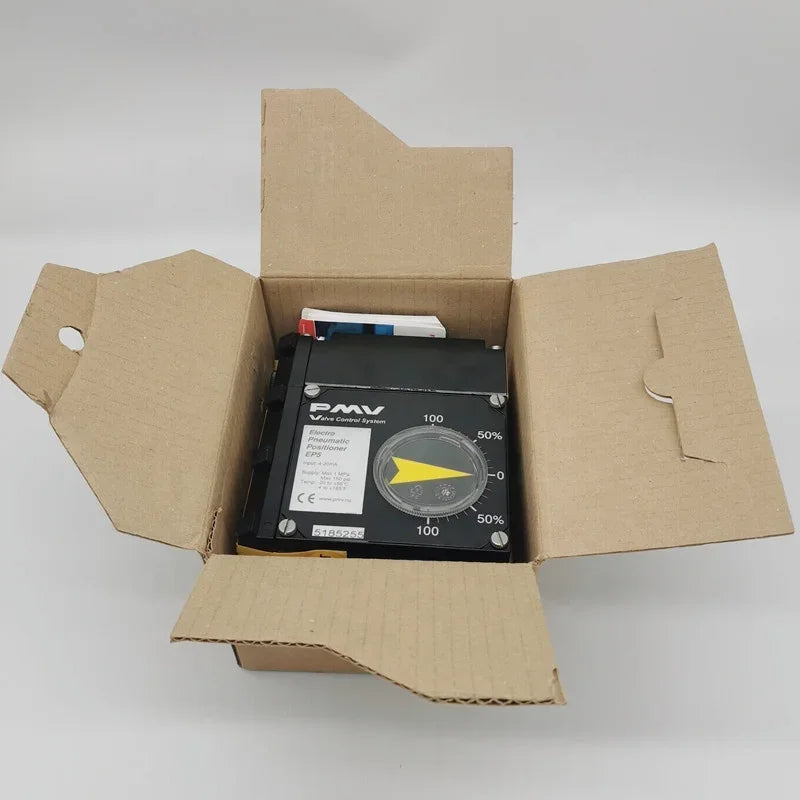

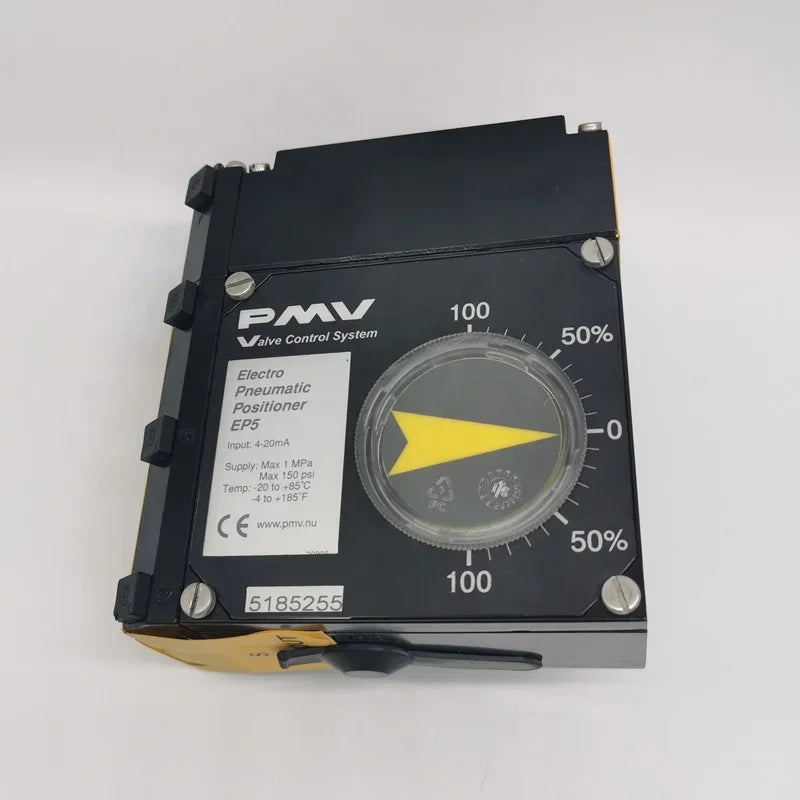

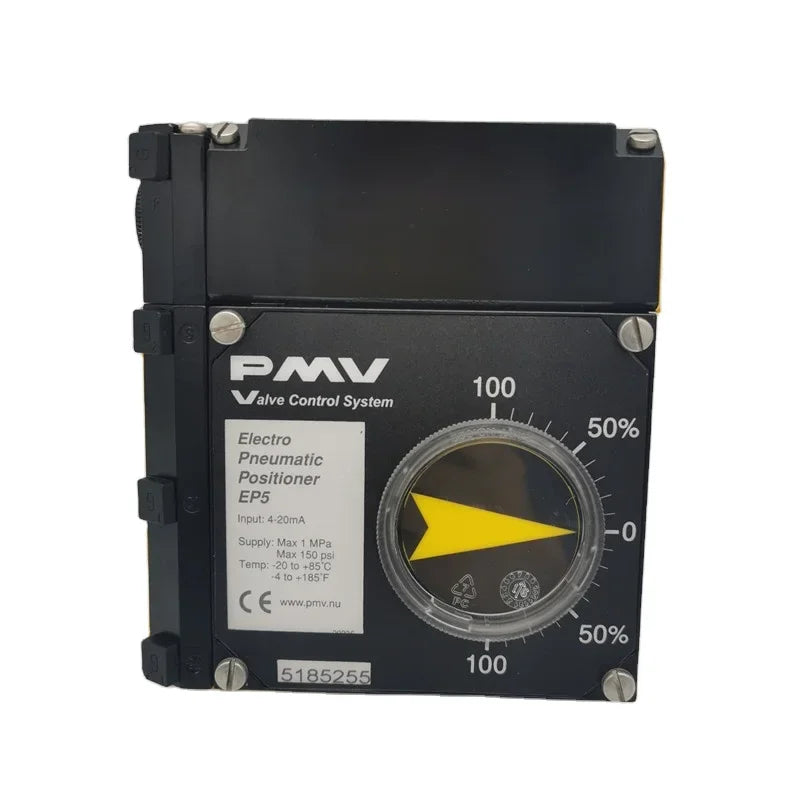

45-degree position indicator for visual monitoring of actuator movement
Direct-acting operating configuration for suitable valve control arrangements
Spindle code 06 for the specified mechanical mounting arrangement
K02 cam configuration for the corresponding valve travel application
Nitrile rubber seals suitable for the specified temperature range
Standard operating temperature range of −20°C to +85°C
Adjustable zero and span settings for instrument calibration
Built-in gauge ports for pneumatic pressure monitoring
Tapped exhaust port for compatible exhaust piping arrangements
Modular construction for maintenance and component replacement
Typical Applications
Industrial pneumatic control valve positioning
Double-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining and processing installations
Power generation and utility systems
Water and wastewater treatment facilities
Pulp and paper processing plants
Industrial manufacturing and production machinery
Rotary pneumatic valve automation
Industrial flow and pressure regulation systems
Temperature control and heat exchanger applications
Conventional 4–20 mA process control loops
Industrial valve instrumentation maintenance
Pneumatic actuator servicing and refurbishment
Industrial process automation equipment replacement
