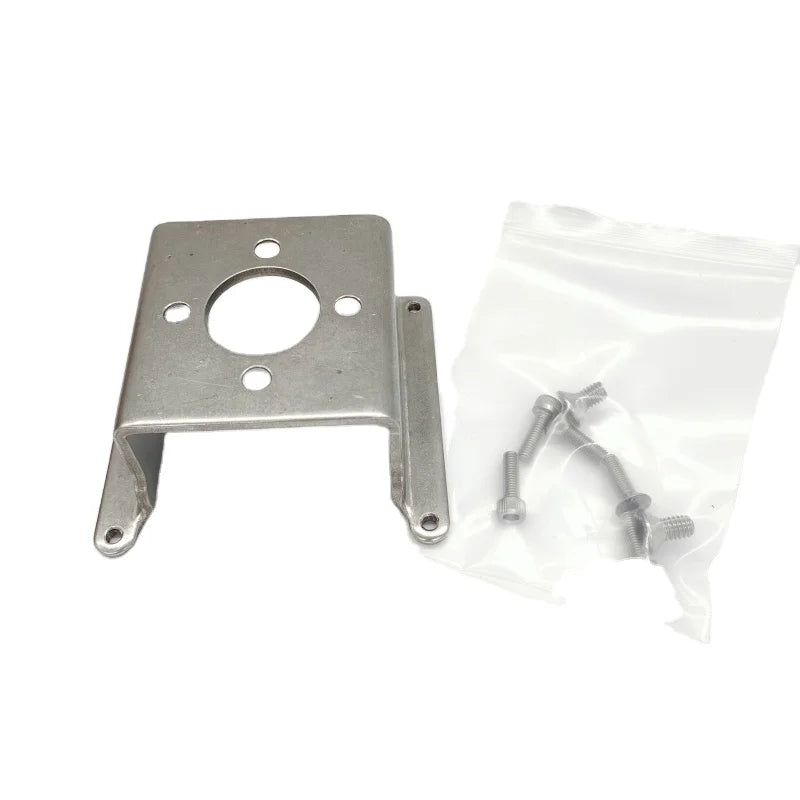

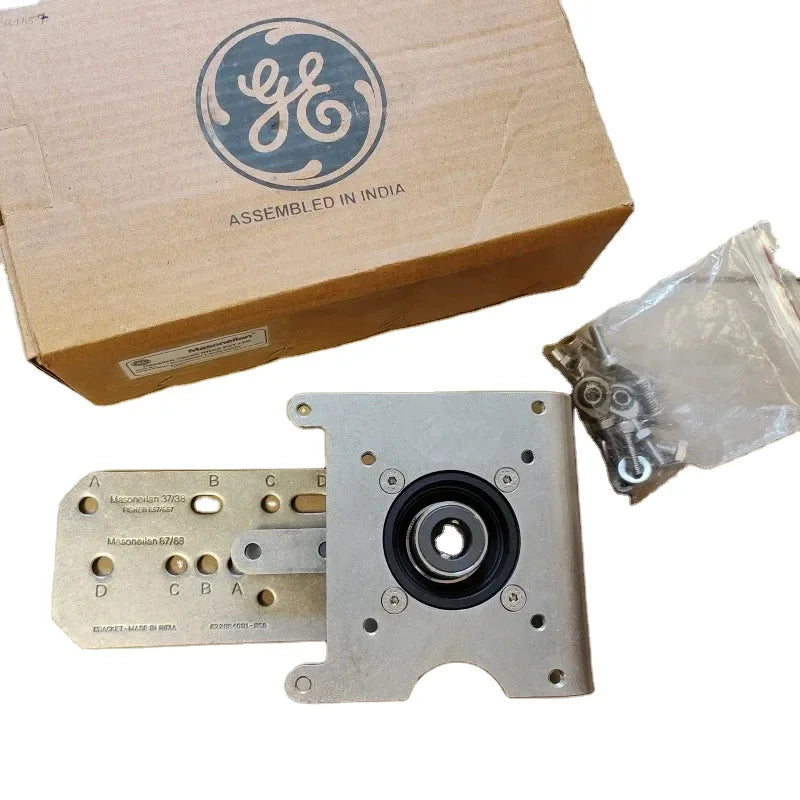

Masoneilan 622090001-999-0000 and 720043131-999-0000 Valve Positioner Mounting Kits
The Masoneilan 622090001-999-0000 and 720043131-999-0000 Valve Positioner Mounting Kits are industrial mounting accessories designed for secure installation of digital valve positioners on pneumatic control valve actuators. Manufactured for Masoneilan equipment under the...
- Actuator-Mounted Positioner Installation Configuration
- 6 and 10, or 16, Depending on Kit Compatible Actuator Sizes
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Masoneilan 622090001-999-0000 and 720043131-999-0000 Valve Positioner Mounting Kits are industrial mounting accessories designed for secure installation of digital valve positioners on pneumatic control valve actuators. Manufactured for Masoneilan equipment under the Baker Hughes and Dresser product heritage, these mounting kits provide the mechanical connection required between compatible SVI digital valve positioners and Masoneilan 87/88 Series reciprocating actuators. Their application-specific designs support correct positioner alignment, dependable mechanical feedback, and reliable industrial valve operation.
The 622090001-999-0000 is an earlier mounting kit reference associated with Masoneilan 87/88 actuator sizes 6 and 10, while the 720043131-999-0000 is designed for size 16 actuators. These mounting assemblies support compatible SVI digital positioner installations and replacement requirements. They are suitable for valve maintenance, actuator servicing, oil and gas processing, chemical manufacturing, petroleum refining, power generation, and industrial process automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Valve Positioner Mounting Kit |
|
Manufacturer / Brand |
Masoneilan / Baker Hughes |
|
Legacy Brand |
Dresser Masoneilan |
|
Model Number 1 |
622090001-999-0000 |
|
Model Number 2 |
720043131-999-0000 |
|
Product Type |
Digital Valve Positioner Mounting Kit |
|
Component Classification |
Mechanical Valve Positioner Accessory |
|
Primary Function |
Positioner Mounting and Actuator Connection |
|
Mounting Kit 622090001 |
Earlier Design for 87/88 Actuator Sizes 6 and 10 |
|
Mounting Kit 720043131 |
Mounting Kit for 87/88 Actuator Size 16 |
|
Compatible Actuator Series |
Masoneilan 87 and 88 |
|
Compatible Actuator Sizes |
6 and 10, or 16, Depending on Kit |
|
Positioner Compatibility |
Selected Masoneilan SVI Digital Positioners |
|
Mounting Application |
Reciprocating Pneumatic Actuators |
|
Mounting Technology |
Mechanical Bracket and Feedback Linkage Assembly |
|
Installation Configuration |
Actuator-Mounted Positioner |
|
Position Feedback Support |
Mechanical Connection for Valve Travel Sensing |
|
Actuator Movement |
Linear / Reciprocating |
|
Mounting Hardware |
Kit-Specific Hardware and Linkage Components |
|
Installation Requirements |
Compatible Actuator Size and Positioner Configuration |
|
Replacement Application |
Valve Positioner Installation and Maintenance |
|
Operating Environment |
Industrial Process Control Systems |
|
Product Function |
Secure Mechanical Positioner Installation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Dedicated mounting kits for Masoneilan digital valve positioners
Compatible with selected Masoneilan 87 and 88 actuators
622090001-999-0000 reference for actuator sizes 6 and 10
720043131-999-0000 configuration for actuator size 16
Supports secure mounting of SVI digital valve positioners
Mechanical linkage arrangement for valve position feedback
Application-specific design for pneumatic actuator installations
Supports accurate alignment of positioner and actuator components
Designed for industrial control valve assembly maintenance
Compatible with reciprocating pneumatic actuator systems
Supports positioner installation and replacement operations
Suitable for industrial valve servicing and maintenance
Typical Applications
Masoneilan SVI digital valve positioner installation
Masoneilan 87 and 88 pneumatic actuator assemblies
Industrial control valve positioner mounting
Pneumatic actuator maintenance and replacement
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure control systems
Reciprocating actuator instrumentation
Industrial valve positioning system maintenance
Process automation and valve servicing applications
Shipping & Support
Fast dispatch, Australia and Worldwide Shipping
Technical assistance available
1-year warranty
