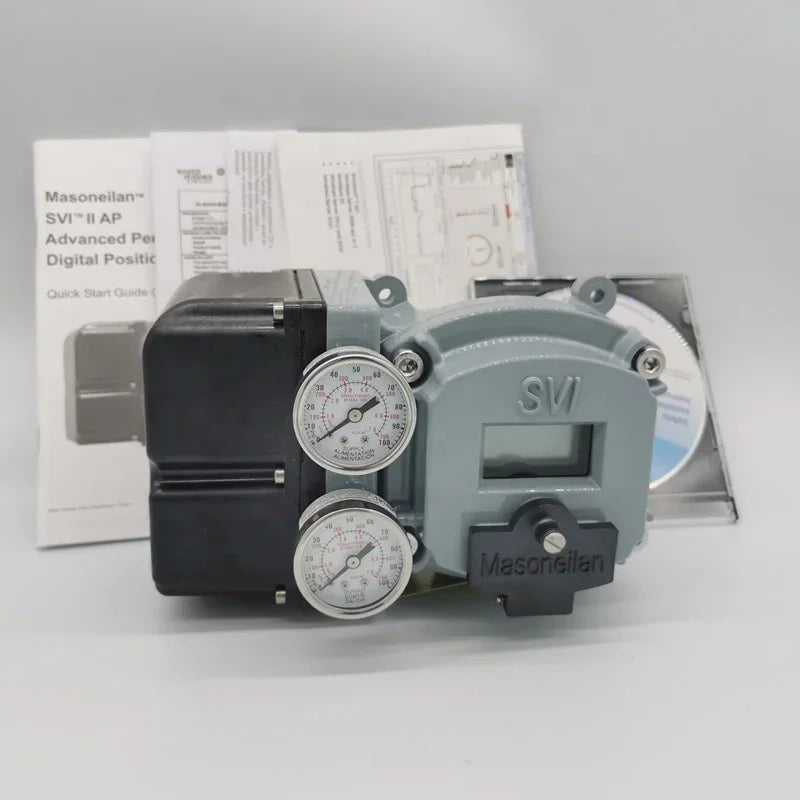

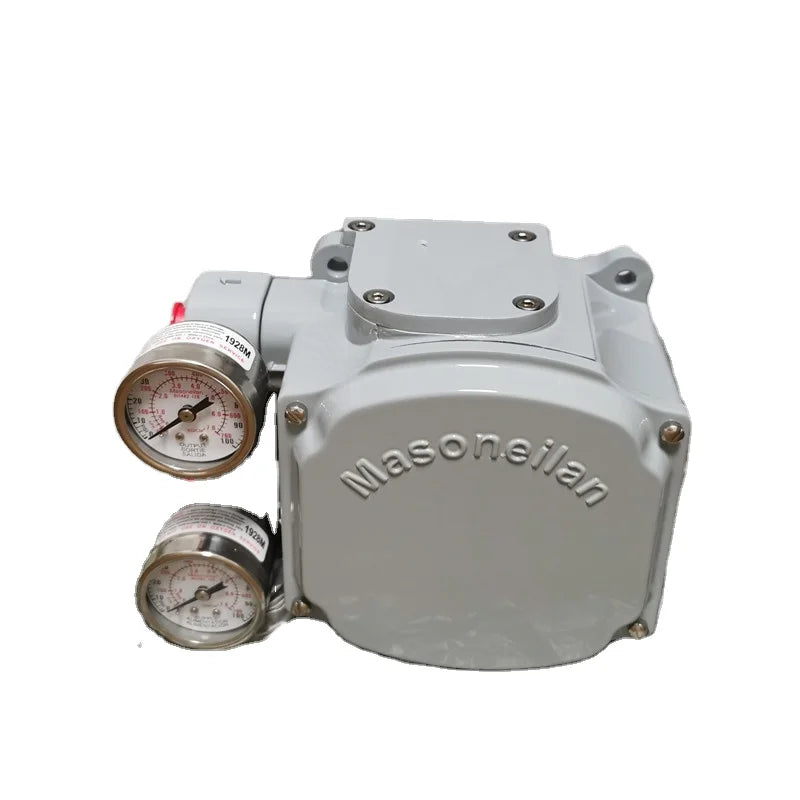

Masoneilan SVi1000/G/IM and SVi1000/PR/G/IM Digital Valve Positioners
The Masoneilan SVi1000/G/IM and SVi1000/PR/G/IM Intelligent Digital Valve Positioners are advanced electro-pneumatic instruments designed for accurate positioning and control of industrial pneumatic valve actuators.
- Two-Wire, Loop Powered Power Configuration
- 20–100 psi (1.4–6.9 bar), Within Actuator Rating Supply Pressure
- 9 V DC at 20 mA Minimum Terminal Voltage
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Masoneilan SVi1000/G/IM and SVi1000/PR/G/IM Intelligent Digital Valve Positioners are advanced electro-pneumatic instruments designed for accurate positioning and control of industrial pneumatic valve actuators. Manufactured by Masoneilan, a Baker Hughes brand, the SVi1000 Series uses microprocessor-based control, HART digital communication, and contactless magnetic position sensing to deliver precise valve movement. Its 4–20 mA input signal enables integration with industrial control systems for reliable process automation.

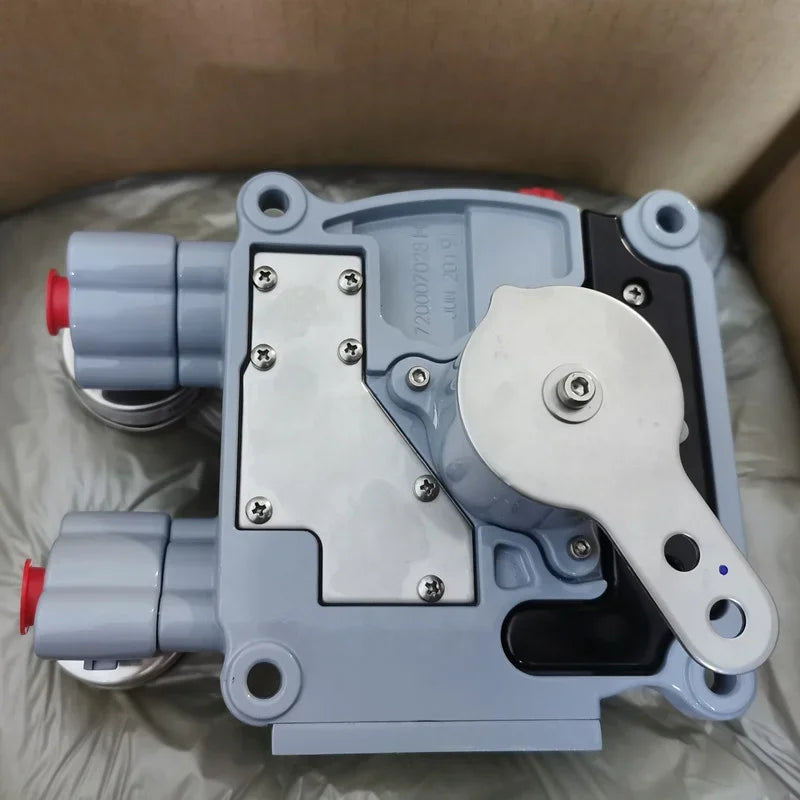

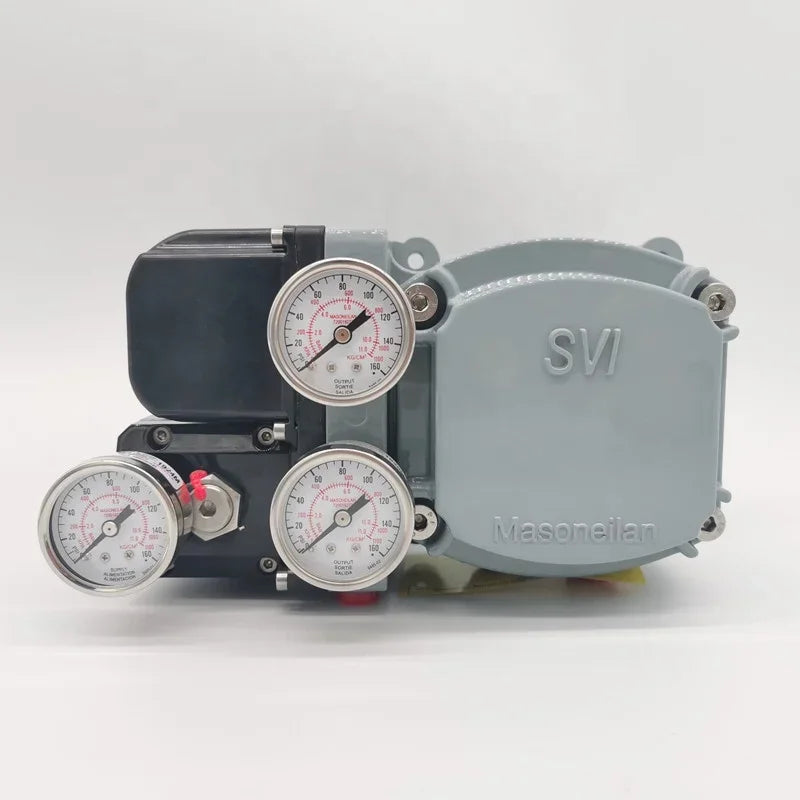

The SVi1000/G/IM features integrated pressure gauges and a magnetic position sensing assembly, while the SVi1000/PR/G/IM additionally provides valve position retransmission for remote monitoring. Both configurations support single-acting pneumatic actuators, automatic calibration, and local control functions. Their robust construction and IP66 enclosure protection make them suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Manufacturer / Brand |
Masoneilan / Baker Hughes |
|
Model Number 1 |
SVi1000/G/IM |
|
Model Number 2 |
SVi1000/PR/G/IM |
|
Product Series |
SVi1000 |
|
Product Type |
Intelligent Electro-Pneumatic Valve Positioner |
|
Positioner Technology |
Microprocessor-Based Digital Control |
|
Primary Function |
Pneumatic Control Valve Positioning |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
HART Compatibility |
HART 5 or HART 7, Firmware Dependent |
|
Power Configuration |
Two-Wire, Loop Powered |
|
Minimum Terminal Voltage |
9 V DC at 20 mA |
|
Pneumatic Configuration |
Single Acting |
|
Pneumatic Flow Configuration |
Standard Flow |
|
Supply Pressure |
20–100 psi (1.4–6.9 bar), Within Actuator Rating |
|
Pneumatic Loading Coefficient |
Cv 0.30 |
|
Pneumatic Exhaust Coefficient |
Cv 0.40 |
|
Maximum Output Pressure |
100 psi (6.9 bar) |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Position Sensing Technology |
Contactless Magnetic Sensor |
|
Integrated Magnet |
Included in Both Models |
|
Pressure Gauges |
Included in Both Models |
|
Position Retransmission |
SVi1000/PR/G/IM Model |
|
Position Feedback Output |
4–20 mA, PR Configuration |
|
Automatic Calibration |
Supported |
|
Local Configuration |
Integrated Pushbuttons and LED Indicators |
|
Actuator Compatibility |
Single-Acting Linear and Rotary Pneumatic Actuators |
|
Enclosure Protection |
IP66 / NEMA 4X |
|
Hazardous Area Certifications |
Configuration and Nameplate Dependent |
|
Control System Integration |
HART-Compatible DCS and PLC Systems |
|
Operating Application |
Industrial Valve Positioning and Automation |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Intelligent digital electro-pneumatic valve positioning
Accurate 4–20 mA electrical control signal
Integrated HART digital communication technology
Single-acting pneumatic actuator control
Contactless magnetic valve position sensing
Integrated pressure gauges for pneumatic monitoring
Automatic calibration and positioner tuning
4–20 mA position retransmission on SVi1000/PR/G/IM
Microprocessor-based valve positioning technology
Local pushbutton configuration and LED status indicators
Durable IP66-rated industrial enclosure
Low air consumption for efficient pneumatic operation
Compatible with linear and rotary pneumatic actuators
Reliable integration with industrial process control systems
Suitable for industrial valve maintenance and replacement
Typical Applications
Industrial pneumatic control valve positioning
Single-acting pneumatic actuator systems
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining installations
Power generation and utility systems
Water and wastewater treatment facilities
Industrial flow and pressure regulation
Linear and rotary valve automation
Pneumatic diaphragm actuator control
Remote valve position monitoring and feedback
Distributed control system integration
Industrial process automation and instrumentation
