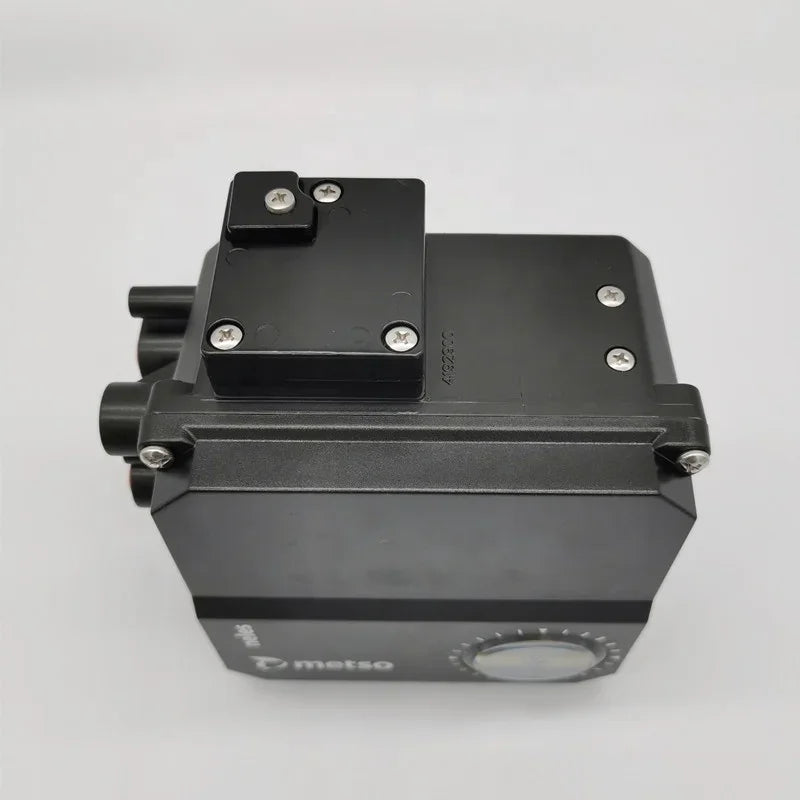

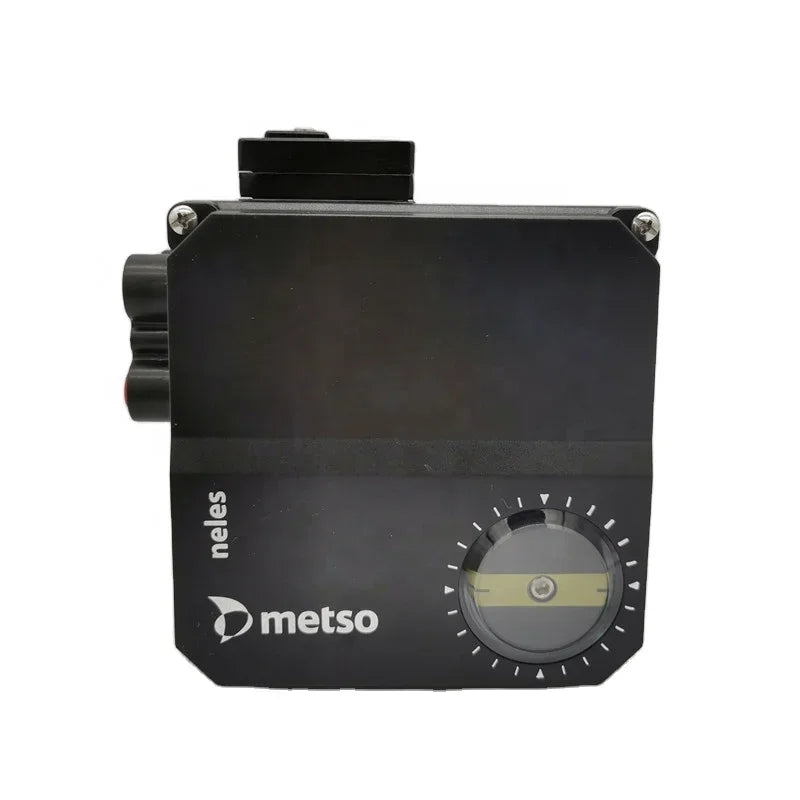

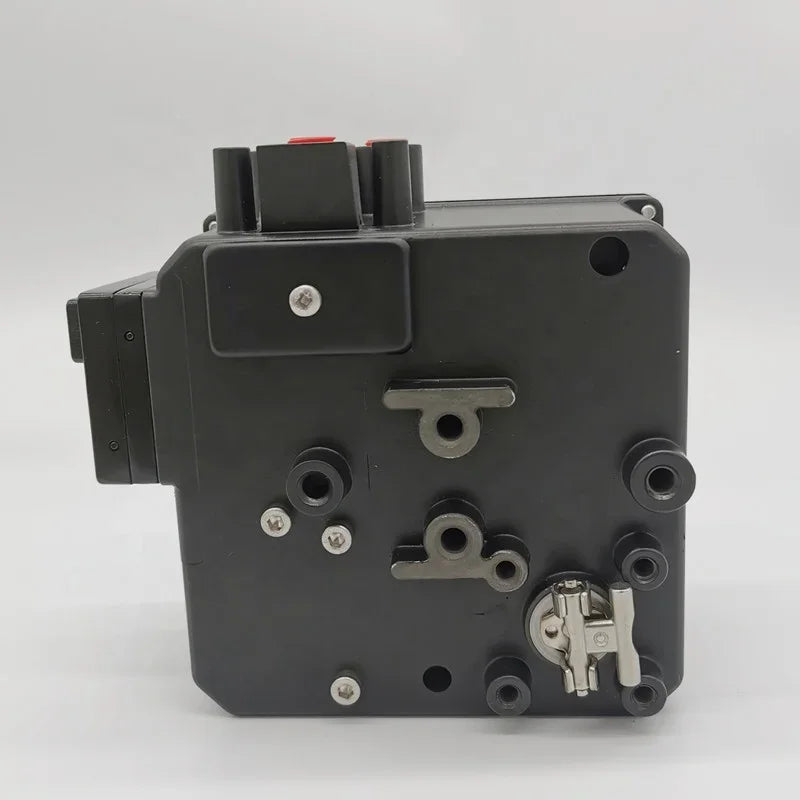

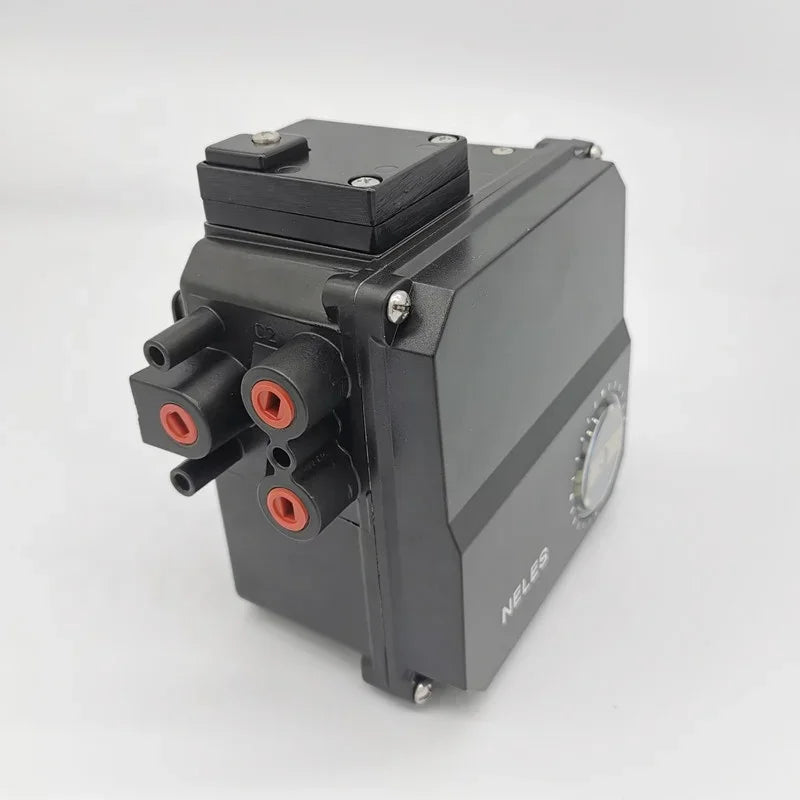

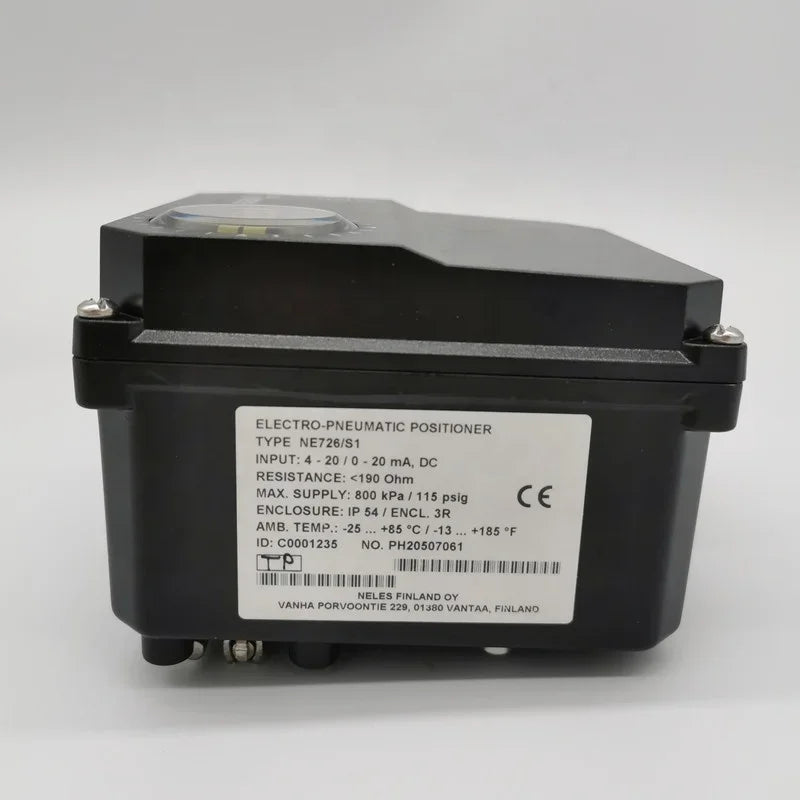

Neles NE726 NE700 Electronpneumatic Valve Positioner
The Neles NE726 Electropneumatic Valve Positioner is designed for accurate positioning and automatic control of pneumatic valve actuators in industrial process systems.
- Spool Valve Pilot Valve Type
- 1.4–8 Bar Instrument Air Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview
The Neles NE726 Electropneumatic Valve Positioner is designed for accurate positioning and automatic control of pneumatic valve actuators in industrial process systems. Manufactured under the Neles brand by Valmet, this positioner converts a 4–20 mA DC electrical control signal into a proportional pneumatic output that regulates valve movement. Its mechanical feedback mechanism continuously compares the required valve position with actual actuator travel, supporting stable flow regulation, responsive valve operation, and reliable performance in demanding industrial applications.
Part of the Neles NE700 series, the NE726 features a 6 mm pneumatic pilot valve designed for actuators with stroke volumes ranging from 8 to 30 litres. Its rugged anodised aluminium housing provides IP54 enclosure protection, while its force-balance control mechanism, adjustable feedback cam, and direct or reverse operating action support flexible installation and calibration. The positioner can operate compatible single-acting and double-acting pneumatic actuators and is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, pulp and paper production, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
Neles / Valmet |
|
Main Model |
NE726 |
|
Product Series |
NE700 |
|
Product Type |
Analogue Electropneumatic Valve Positioner |
|
Control Technology |
Electropneumatic Force-Balance Control |
|
Electrical Input Signal |
4–20 mA DC / 0–20 mA DC |
|
Split-Range Input Options |
4–12 mA or 12–20 mA |
|
Input Resistance |
Maximum 190 Ω |
|
Communication Protocol |
Analogue, Without HART |
|
Actuator Configuration |
Single Acting and Double Acting |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Pneumatic Pilot Valve Diameter |
6 mm |
|
Pilot Valve Type |
Spool Valve |
|
Recommended Actuator Stroke Volume |
8–30 Litres |
|
Instrument Air Supply Pressure |
1.4–8 Bar |
|
Pneumatic Supply Connection |
1/4 Inch NPT |
|
Pneumatic Output Connections |
1/4 Inch NPT |
|
Pneumatic Air Consumption |
1.2 Nm³/h at 4 Bar Supply |
|
Maximum Air Delivery |
18 Nm³/h at 4 Bar Supply |
|
Position Feedback |
Mechanical Cam and Feedback Spring |
|
Operating Principle |
Torque-Balance Control |
|
Maximum Feedback Shaft Rotation |
90° |
|
Standard Control Characteristic |
Linear |
|
Operating Direction |
Direct or Reverse, Adjustable |
|
Calibration |
Mechanical Zero and Electrical Range Adjustment |
|
Enclosure Material |
Anodised Aluminium Alloy |
|
Cover Material |
Polycarbonate |
|
Internal Components |
Stainless Steel and Aluminium Alloy |
|
Standard Diaphragm and Seal Material |
Nitrile Rubber |
|
Enclosure Protection |
IP54 |
|
Standard Ambient Temperature |
−25°C to +85°C |
|
Dead Band |
Less Than 0.3% |
|
Hysteresis |
Less Than 0.7% |
|
Linearity |
Less Than 2% |
|
Vibration Influence |
Less Than 1% at 1.5 g, 5–100 Hz |
|
Approximate Weight |
2.2 kg |
|
Standard Mounting |
Actuator-Specific Mounting Arrangement |
|
VDI/VDE 3845 Mounting |
Available with S1 Configuration |
|
Optional Pressure Gauges |
Available with A Configuration |
|
Optional Filter Regulator |
Available with Compatible Accessory Configuration |
|
Working Medium |
Clean, Dry Instrument Air |
|
Related Models |
NE724, NE724/S1, NE726/S1, NE724A, NE729/S1 |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
Analogue electropneumatic valve positioning for accurate industrial process control
Standard 4–20 mA DC electrical input for conventional automation systems
Supports 0–20 mA electrical input and suitable split-range applications
6 mm pneumatic pilot valve designed for medium-to-large actuator capacities
Recommended actuator stroke volume range of 8 to 30 litres
Compatible with single-acting and double-acting pneumatic actuators
Mechanical force-balance control mechanism for reliable valve positioning
Adjustable feedback cam and spring arrangement for accurate travel measurement
Direct and reverse operating action for different actuator requirements
Maximum instrument air supply pressure of 8 bar
High pneumatic delivery capacity for responsive actuator movement
Durable anodised aluminium alloy housing for industrial environments
IP54 enclosure protection against dust and water ingress
Stainless steel and aluminium internal components for mechanical durability
Mechanical zero adjustment and electrical range adjustment for calibration
Rugged construction designed to resist industrial vibration
Compatible with linear and rotary valve assemblies using suitable mounting hardware
Supports VDI/VDE 3845 actuator mounting with the appropriate S1 configuration
Suitable for industrial valve maintenance, replacement, and process automation upgrades
Typical Applications
Industrial pneumatic control valve positioning
Oil and gas production and processing facilities
Chemical and petrochemical manufacturing plants
Petroleum refining and processing installations
Power generation and utility systems
Water and wastewater treatment facilities
Pulp and paper processing plants
Industrial manufacturing and production machinery
Medium-to-large pneumatic actuator control systems
Rotary ball and butterfly valve automation
Linear globe valve positioning
Industrial flow and pressure regulation
Temperature control and heat exchanger systems
Conventional 4–20 mA process control loops
Industrial valve instrumentation maintenance
Pneumatic control valve replacement and refurbishment
