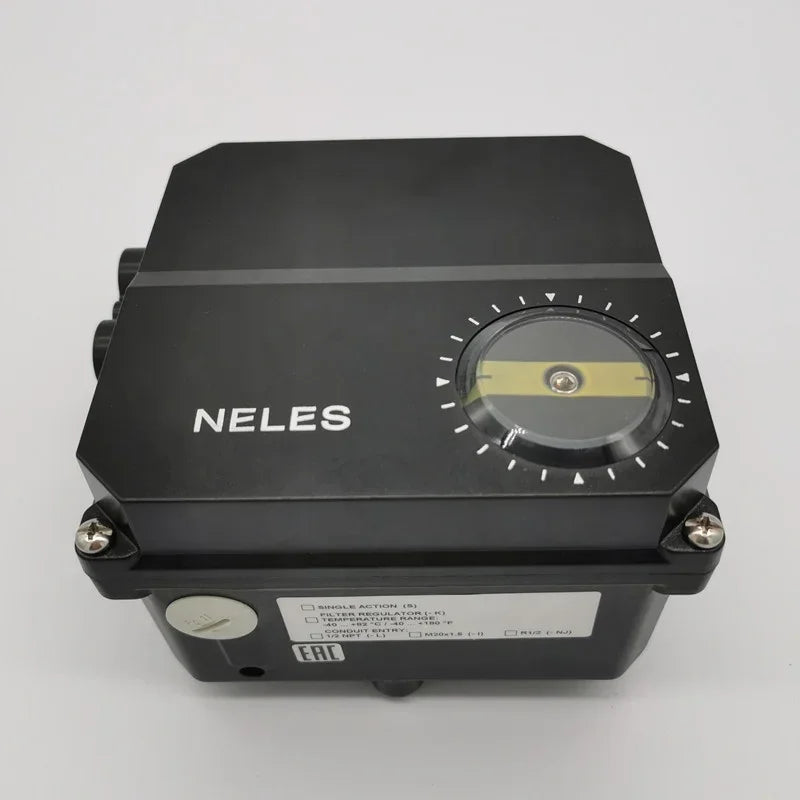

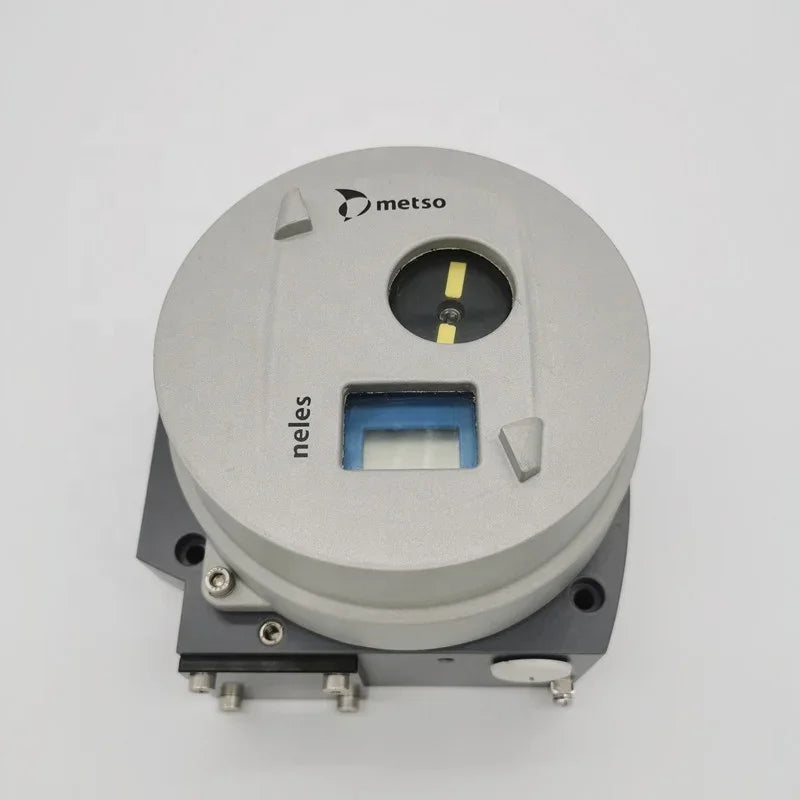

Neles ND7103HX Intelligent Digital Valve Positioner with HART
The Neles ND7103HX Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems.
- Single Acting and Double Acting Actuator Configuration
- 1.4–8 Bar Supply Air Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 YearWarranty
Product Overview

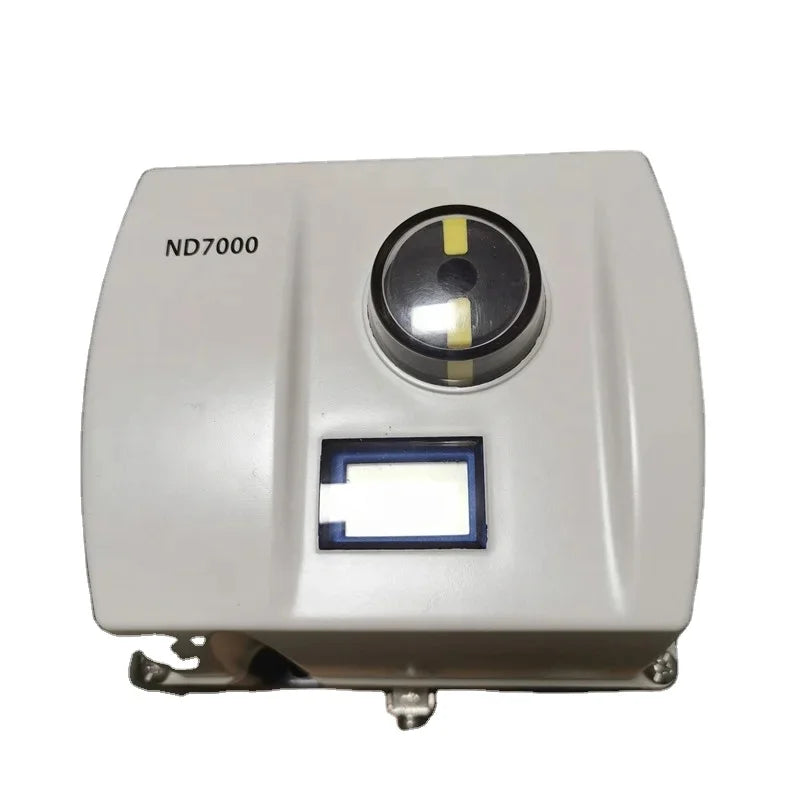

The Neles ND7103HX Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems. Part of the Neles ND7000 series, this intelligent valve controller uses a standard 4–20 mA electrical input signal with HART digital communication to regulate pneumatic output pressure and maintain accurate valve positioning. Its advanced electronic control technology supports stable valve movement, efficient flow regulation, and dependable performance in demanding industrial environments.
Engineered for industrial process automation, the ND7103HX features a durable aluminium enclosure, microprocessor-based control, and a medium-capacity pneumatic spool valve designed for compatible actuator applications. Its intelligent diagnostic capabilities support valve performance monitoring, automatic calibration, and convenient integration into process control systems. Related models include the Neles ND9103HN, ND9102HXT, ND9106HN, and ND9103HXT, which offer different pneumatic capacities, communication options, and protection configurations. The positioner is suitable for chemical processing, oil and gas facilities, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Brand |
Neles |
|
Manufacturer |
Valmet |
|
Model |
ND7103HX |
|
Series |
ND7000 |
|
Product Type |
Digital Valve Controller |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Actuator Configuration |
Single Acting and Double Acting |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Supply Air Pressure |
1.4–8 Bar |
|
Spool Valve Capacity |
Medium Capacity |
|
Actuator Stroke Volume |
1–3 dm³ |
|
Pneumatic Connection |
G 1/4 |
|
Linear Travel Range |
10–120 mm |
|
Rotary Travel Range |
45–95° |
|
Housing Material |
Aluminium |
|
Protection Rating |
IP66 / NEMA 4X |
|
Hazardous Area Protection |
Intrinsically Safe Configuration (X) |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Calibration |
Automatic and Manual |
|
Position Feedback |
Electronic Valve Position Measurement |
|
Control Function |
Automatic Valve Position Regulation |
|
Working Medium |
Clean, Dry Instrument Air |
|
Related Models |
ND9103HN, ND9102HXT, ND9106HN, ND9103HXT |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital valve positioning for accurate control of industrial pneumatic valve actuators.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
HART digital communication for configuration, monitoring, and diagnostic functions.
-
Supports compatible single-acting and double-acting pneumatic actuator applications.
-
Microprocessor-based control technology for precise and responsive valve movement.
-
Medium-capacity pneumatic spool valve suitable for actuator stroke volumes of 1–3 dm³.
-
Supply air pressure range of 1.4–8 bar for industrial pneumatic control systems.
-
Durable aluminium housing with IP66 protection against dust and water ingress.
-
Electronic position feedback for continuous monitoring of valve travel and operating performance.
-
Automatic and manual calibration functions for simplified installation and commissioning.
-
Compatible with linear and rotary pneumatic valve actuators.
-
Intelligent diagnostic capabilities for monitoring valve performance and supporting maintenance.
-
Intrinsically safe configuration designed for appropriately certified hazardous-area installations.
-
Compact industrial construction suitable for continuous process automation applications.
Typical Applications
-
Industrial process automation systems
-
Pneumatic control valve assemblies
-
Oil and gas processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing equipment
-
Rotary and linear pneumatic actuator control
-
Ball and butterfly valve automation
-
Industrial flow and pressure regulation systems
-
Distributed control systems with HART communication
-
Industrial valve diagnostics and process instrumentation
Shipping & Support
-
Fast dispatch – Australia & Worldwide Shipping
-
Technical assistance available
-
1-year warranty
