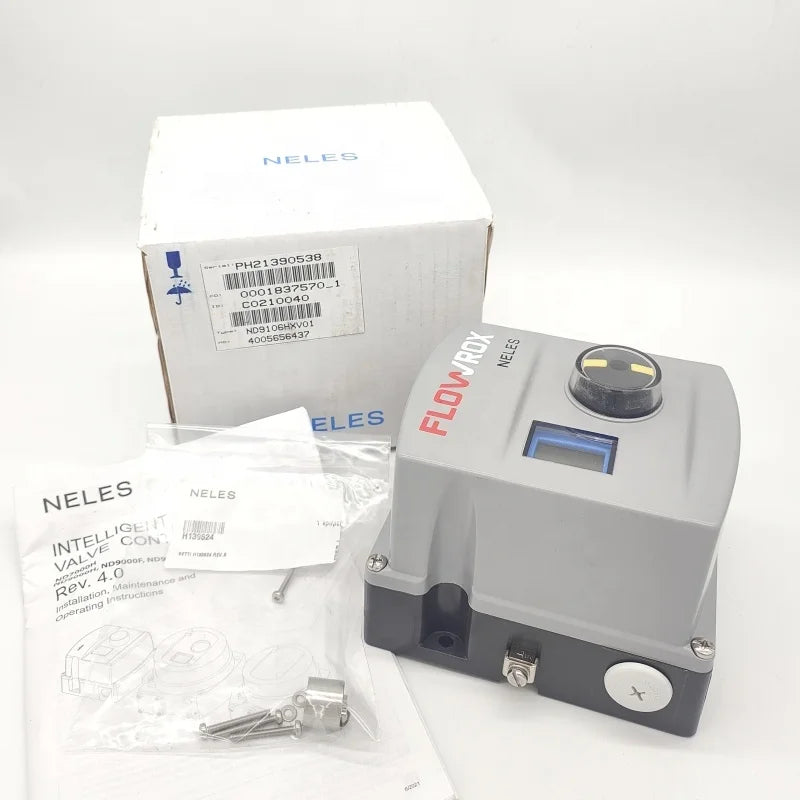

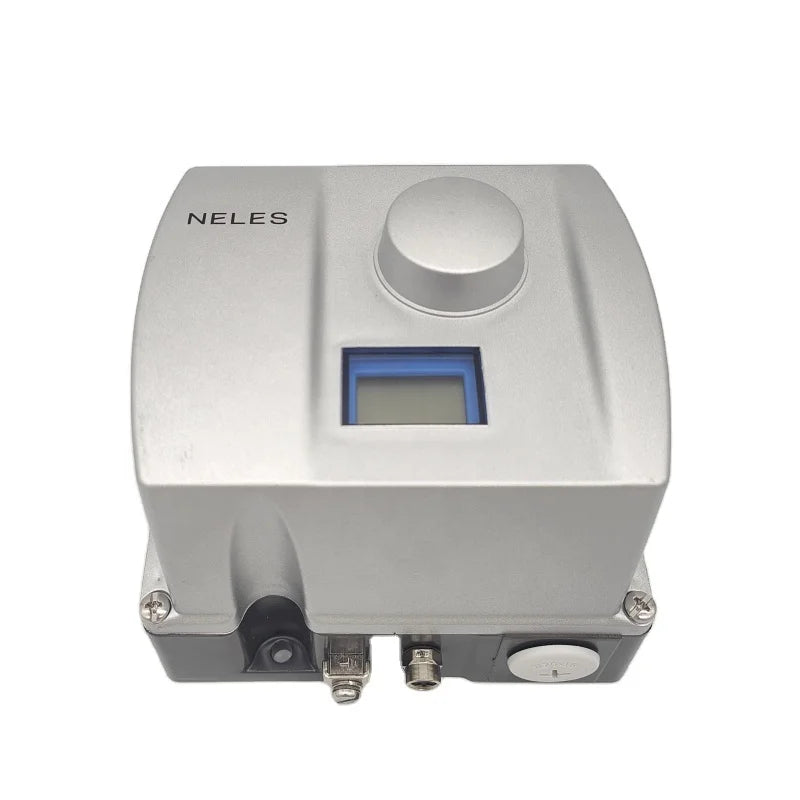

Neles ND9106HXV01 Intelligent Digital Valve Positioner with HART
The Neles ND9106HXV01 Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems.
- Single Acting and Double Acting Actuator Configuration
- 1.4–8 Bar Supply Air Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The Neles ND9106HXV01 Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems. Part of the Neles ND9000 series, this intelligent valve controller uses a standard 4–20 mA electrical input signal with HART digital communication to regulate pneumatic output pressure and maintain accurate valve positioning. Its high-capacity pneumatic spool valve supports responsive actuator movement, stable flow regulation, and consistent performance in demanding industrial applications.
Manufactured under the Neles brand, now part of Valmet, the ND9106HXV01 belongs to the ND9106HX product family, featuring microprocessor-based control, intelligent diagnostics, contactless position measurement, and an IP66-rated industrial enclosure. Its high-capacity configuration is designed for pneumatic actuators with stroke volumes greater than 3 dm³, while the HX configuration provides ATEX and IECEx intrinsically safe protection options. Compatible with single-acting and double-acting pneumatic actuators, the positioner supports linear and rotary valve applications. The related Neles ND9106HNTR is another ND9000 HART positioner configuration, associated with remote position measurement applications.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Valve Positioner |
|
Brand |
Neles |
|
Manufacturer |
Valmet |
|
Model |
ND9106HXV01 |
|
Product Family |
ND9106HX |
|
Series |
ND9000 |
|
Product Type |
Digital Valve Controller |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Actuator Configuration |
Single Acting and Double Acting |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART 6 / HART 7 |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Spool Valve Capacity |
High Capacity |
|
Actuator Stroke Volume |
Greater Than 3 dm³ |
|
Supply Air Pressure |
1.4–8 Bar |
|
Pneumatic Connection |
G 1/4 |
|
Position Detection |
Contactless Electronic Position Measurement |
|
Housing Type |
Standard ND9100 Industrial Enclosure |
|
Housing Material |
Aluminium Alloy with Protective Coating |
|
Protection Rating |
IP66 / NEMA 4X |
|
Hazardous Area Protection |
ATEX / IECEx Intrinsically Safe, HX Configuration |
|
Operating Temperature |
-40°C to +85°C, Standard Series Range |
|
Calibration |
Automatic and Manual |
|
Diagnostic Functions |
Self-Diagnostics, Online, Performance and Communication Diagnostics |
|
Mounting Standards |
VDI/VDE 3845 and IEC 60534-6 |
|
Configuration |
Local and Remote |
|
Remote Position Measurement |
Available Within ND9000 Series |
|
Working Medium |
Clean, Dry Instrument Air |
|
Related Model |
ND9106HNTR |
|
Application Scope |
Industrial Pneumatic Valve Control Systems |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital valve positioning for precise control of industrial pneumatic actuators.
-
Standard 4–20 mA electrical input signal for integration into industrial automation systems.
-
HART digital communication for remote configuration, monitoring, and diagnostics.
-
High-capacity pneumatic spool valve designed for actuators with stroke volumes greater than 3 dm³.
-
Compatible with single-acting and double-acting pneumatic actuator configurations.
-
Microprocessor-based electronic control for accurate and responsive valve movement.
-
Supply air pressure range of 1.4–8 bar for compatible industrial pneumatic systems.
-
Contactless position measurement technology for reliable valve travel monitoring.
-
Durable aluminium alloy enclosure with IP66 / NEMA 4X protection against dust and water ingress.
-
HX hazardous-area protection configuration with ATEX and IECEx certification options.
-
Automatic and manual calibration for simplified installation and commissioning.
-
Advanced diagnostic functions for monitoring valve performance, operating conditions, and instrument health.
-
Local and remote configuration capabilities for convenient industrial operation.
-
Compatible with linear and rotary pneumatic control valves.
-
High pneumatic output capacity suitable for controlling larger industrial actuators.
-
Designed for reliable performance in demanding industrial process automation environments.
Typical Applications
-
Industrial process automation systems
-
Large pneumatic control valve actuators
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Pneumatic linear and rotary actuator control
-
Ball and butterfly valve automation
-
Industrial flow and pressure regulation systems
-
Distributed control systems with HART communication
-
Hazardous-area valve automation installations
-
Industrial process instrumentation and control systems
