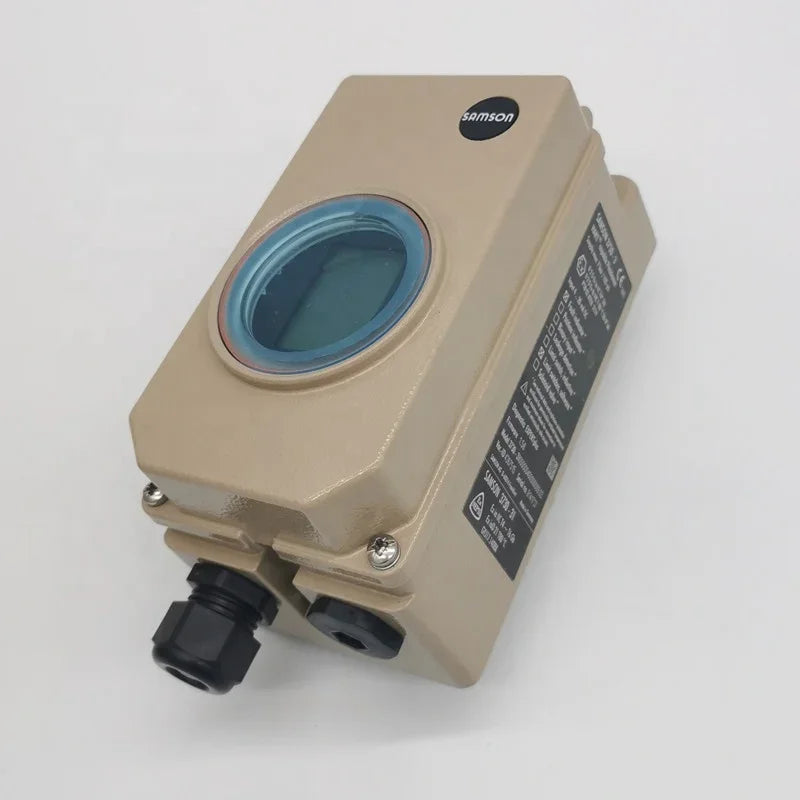

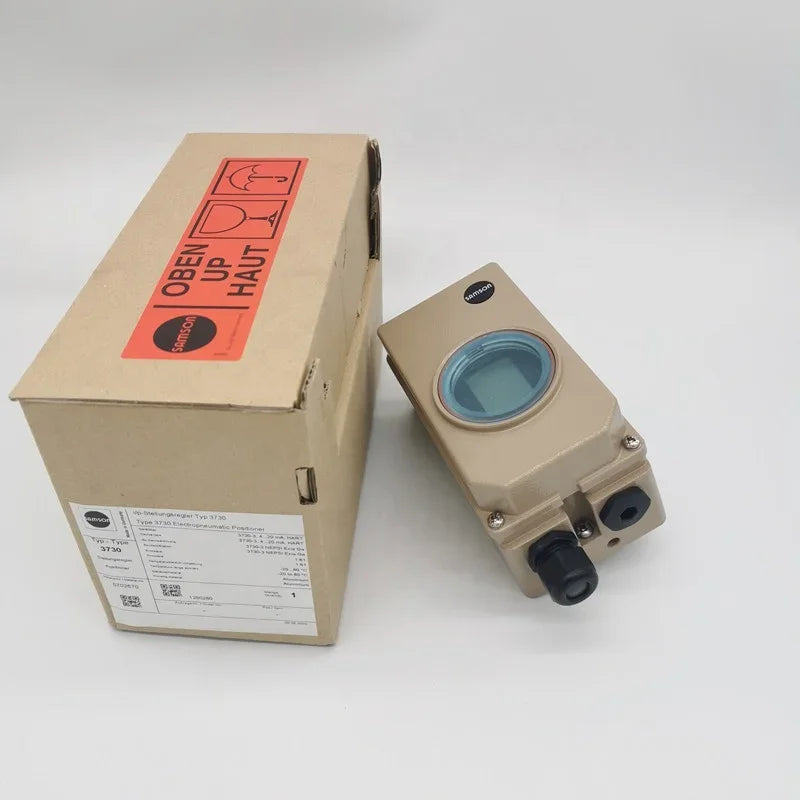

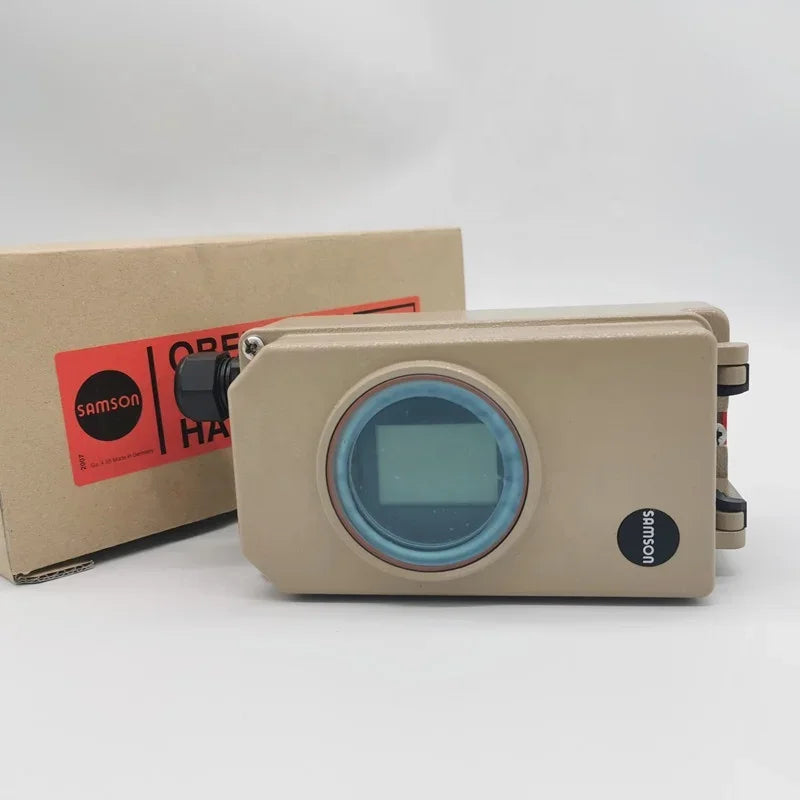

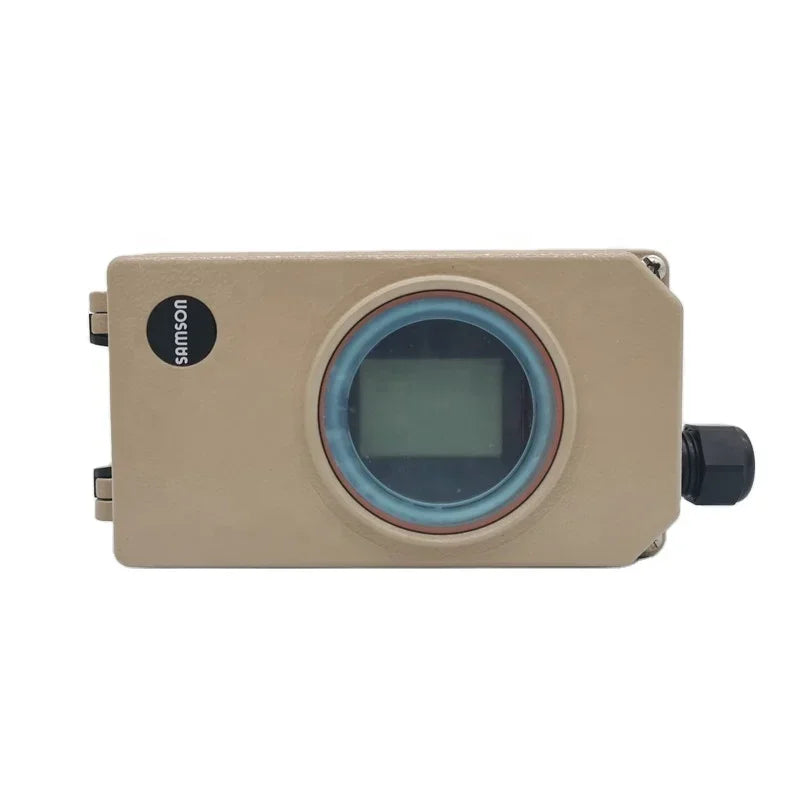

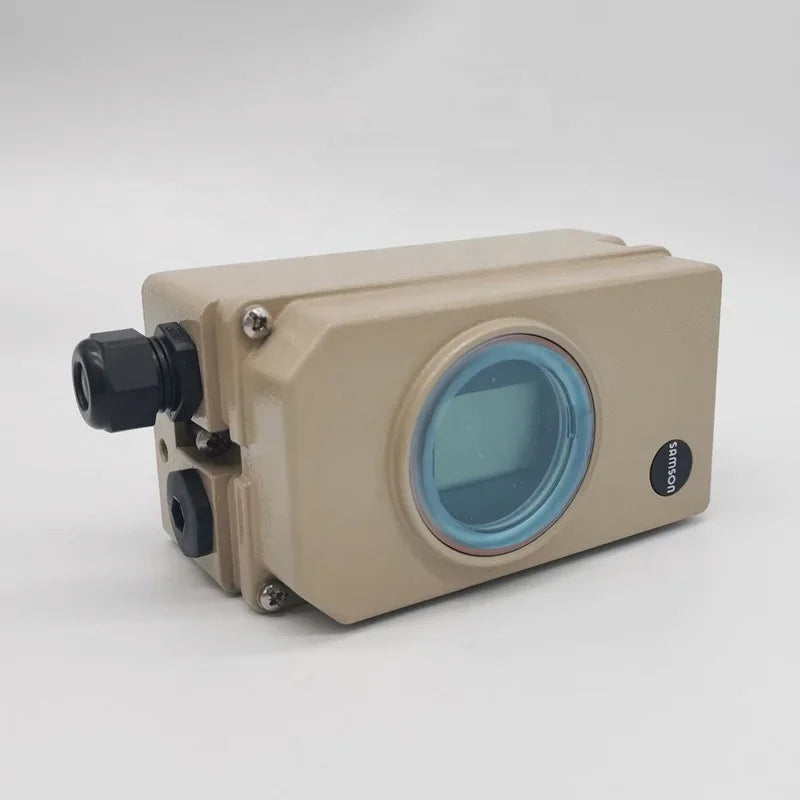

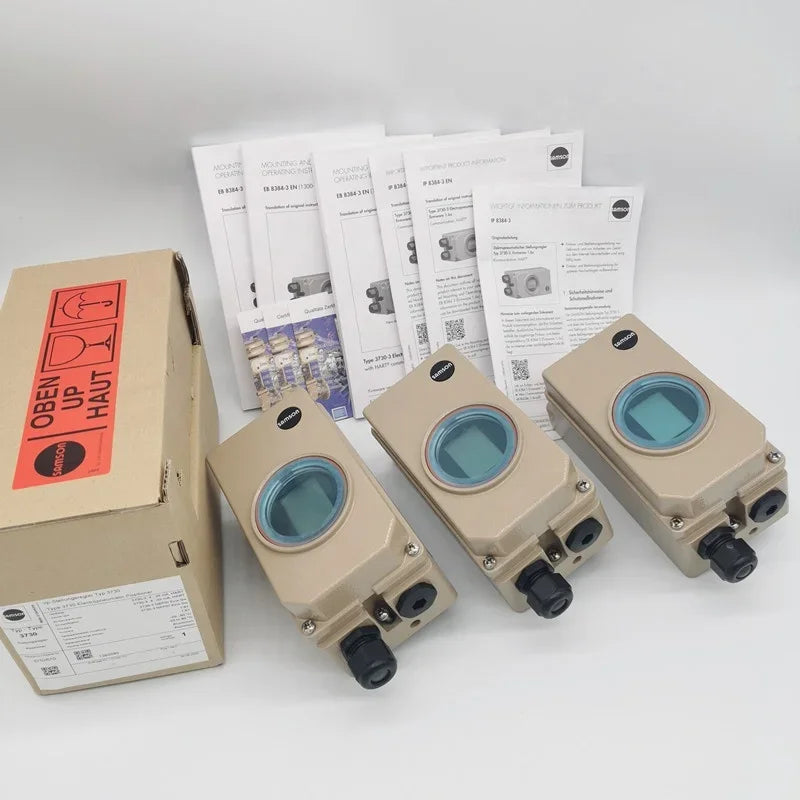

SAMSON 3730-31001000400000009.04 Intelligent Digital Valve Positioner with HART
The SAMSON 3730-31001000400000009.04 Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems.
- Pneumatic Actuator Position Control Positioner Configuration
- 1.4–7 Bar (20–105 psi) Pneumatic Supply Pressure
Need help applying this product? Our engineers can help select the right equipment and design a system around your requirements. Request a quote or discuss your application with us.
Need help choosing? Send us the part number or your operating data — talk to an engineer or see full specifications.
- Fast dispatchAustralia & worldwide
- Technical supportTalk to an engineer
- 1 Year Warranty
Product Overview
The SAMSON 3730-31001000400000009.04 Intelligent Digital Valve Positioner is designed for precise positioning and automated control of pneumatic valve actuators in industrial process systems. Manufactured by SAMSON, this electropneumatic positioner uses a standard 4–20 mA electrical input signal with HART digital communication to regulate pneumatic output pressure and maintain accurate valve positioning. Its microprocessor-based control system continuously compares the required valve position with actual actuator travel, providing responsive valve movement, stable flow regulation, and dependable process control.
Part of the SAMSON Type 3730-3 Series, the 3730-31001000400000009.04 features automatic calibration, integrated EXPERTplus diagnostics, an LCD display, and an analogue position transmitter for independent 4–20 mA valve travel feedback. Its aluminium housing provides IP66/NEMA 4X enclosure protection, while its intrinsically safe ATEX configuration supports suitable hazardous-area installations. With HART communication, adjustable valve characteristics, and flexible mounting arrangements, this positioner is suitable for oil and gas processing, chemical manufacturing, power generation, water treatment, and industrial valve automation.
Technical Specifications
|
Specification |
Value |
|---|---|
|
Product Name |
Intelligent Digital Electropneumatic Valve Positioner |
|
Manufacturer / Brand |
SAMSON |
|
Model / Ordering Code |
3730-31001000400000009.04 |
|
Series |
Type 3730-3 |
|
Product Type |
Intelligent Digital Valve Positioner |
|
Control Technology |
Microprocessor-Based Electropneumatic |
|
Input Signal |
4–20 mA DC |
|
Communication Protocol |
HART |
|
Operating Mode |
Two-Wire, Loop Powered |
|
Positioner Configuration |
Pneumatic Actuator Position Control |
|
Actuator Compatibility |
Pneumatic Linear and Rotary Actuators |
|
Pneumatic Supply Pressure |
1.4–7 Bar (20–105 psi) |
|
Output Pressure |
0 Bar up to Available Supply Pressure |
|
Adjustable Output Pressure Limits |
1.4, 2.4 or 3.7 Bar |
|
Valve Travel Range |
3.6–300 mm, Depending on Mounting |
|
Rotary Operating Angle |
24–100° |
|
Housing Material |
Aluminium |
|
Enclosure Protection |
IP66 / NEMA 4X |
|
Explosion Protection Configuration |
Intrinsically Safe, ATEX |
|
Local User Interface |
LCD Display with Rotary Pushbutton |
|
Position Measurement |
Electronic Travel Sensor |
|
Analogue Position Transmitter |
Included |
|
Position Feedback Output |
4–20 mA |
|
Diagnostic Configuration |
EXPERTplus Diagnostics, Code 4 |
|
Positioner Initialization |
Automatic, Multiple Initialization Modes |
|
Local Communication |
SAMSON SSP Interface |
|
Configuration Software |
SAMSON TROVIS-VIEW |
|
Electrical Cable Entry |
M20 × 1.5 |
|
Maximum Position Deviation |
≤1% |
|
Hysteresis |
≤0.3% |
|
Sensitivity |
≤0.1% |
|
Standard Ambient Temperature |
−20°C to +80°C |
|
Position Alarm Functions |
Two Programmable Software Position Alarms |
|
Operating Medium |
Clean, Dry Instrument Air |
|
Condition |
New |
|
Warranty |
1 Year |
Key Features
-
Intelligent digital valve positioning for accurate industrial pneumatic actuator control.
-
Standard 4–20 mA electrical input signal for industrial automation systems.
-
HART digital communication for remote configuration, monitoring, and diagnostics.
-
Integrated 4–20 mA analogue position transmitter for independent valve travel feedback.
-
Microprocessor-based control technology for responsive valve positioning.
-
Automatic initialization and calibration for simplified installation and commissioning.
-
EXPERTplus diagnostic functions for evaluating valve and positioner operating conditions.
-
Integrated LCD display with rotary pushbutton for convenient local operation.
-
Durable aluminium housing suitable for industrial process environments.
-
IP66 / NEMA 4X enclosure protection against dust and water ingress.
-
Intrinsically safe ATEX configuration for appropriately certified hazardous-area installations.
-
Adjustable pneumatic output pressure limits for compatible actuator requirements.
-
Electronic valve travel measurement for accurate position monitoring.
-
Supports linear and rotary pneumatic valve actuators with suitable mounting accessories.
-
Two programmable position alarms for process monitoring.
-
Configurable control characteristics for optimising valve response.
-
Supports configuration and maintenance through SAMSON TROVIS-VIEW software.
Typical Applications
-
Industrial process automation systems
-
Pneumatic control valve assemblies
-
Oil and gas production and processing facilities
-
Chemical and petrochemical plants
-
Petroleum refining installations
-
Power generation and utility systems
-
Water and wastewater treatment facilities
-
Industrial manufacturing machinery
-
Linear globe valve positioning
-
Rotary ball and butterfly valve automation
-
Industrial flow and pressure regulation
-
Distributed control systems with HART communication
